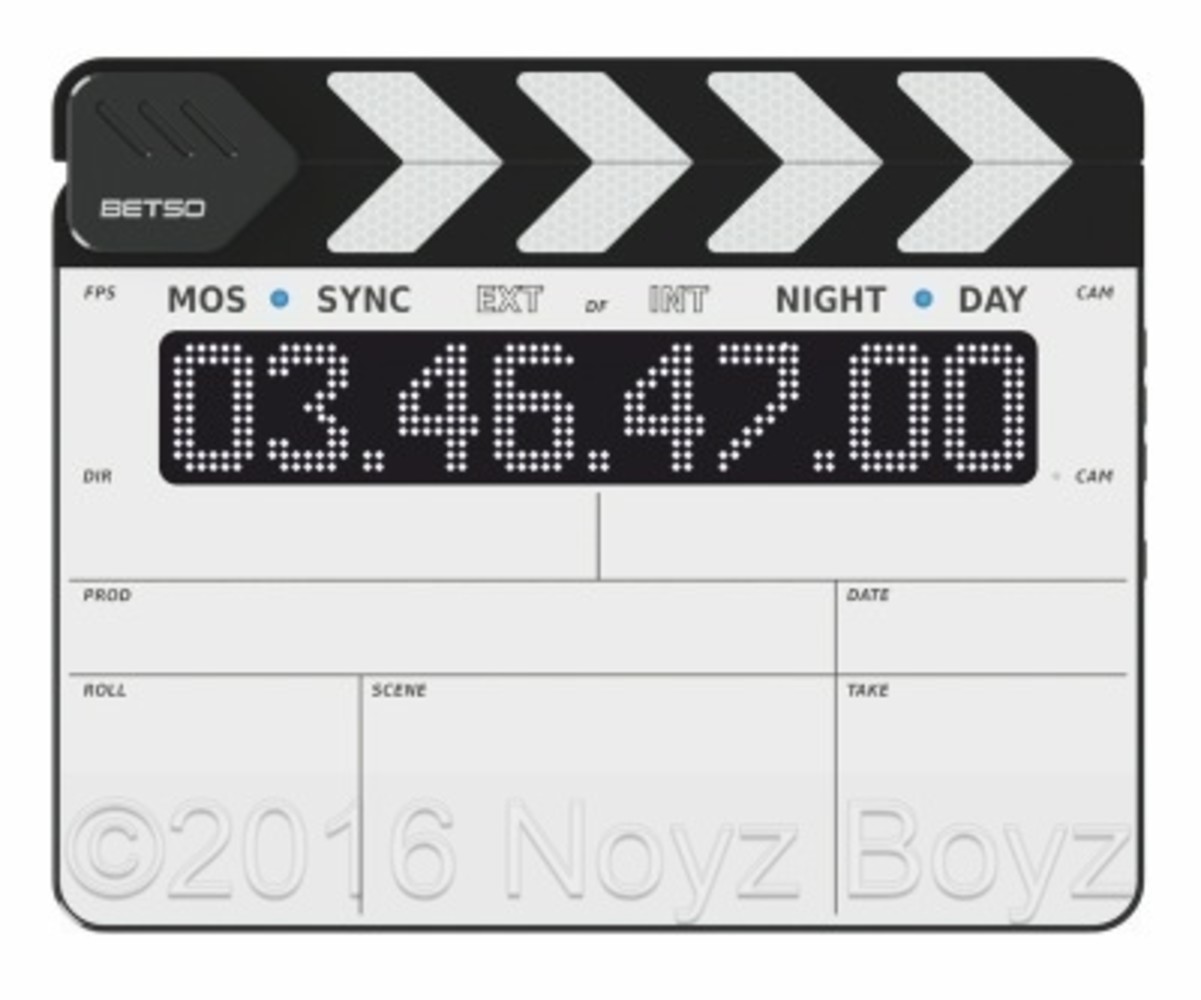

Betso WTCS-1

5% sale
Productomschrijving
Display Graphical 1″ high, white LED display with adjustable brightness Dimensions (h x w x d) 230 x 185 x 24 mm (9.0″ x 7.3″ x 0.9″) Weight (w/o batteries) approx. 760g Mechanical construction CNC milled, anodized aluminium alloy and stiff wood Powering 6x AA battery (alkalin...
Display | Graphical 1″ high, white LED display with adjustable brightness |
Dimensions (h x w x d) | 230 x 185 x 24 mm (9.0″ x 7.3″ x 0.9″) |
Weight (w/o batteries) | approx. 760g |
Mechanical construction | CNC milled, anodized aluminium alloy and stiff wood |
Powering | 6x AA battery (alkaline or lithium) / 6x accu (NiMH, NiCd) |
External powering 6 - 16 V DC | |
Current consumption | approx. 30 - 1000 mA ∗ |
approx. 4 mA in stand-by mode (arms of the slate closed) | |
Battery life | Up to 100 hours ∗∗ |
SMPTE TC formats | 23,976 fps - 30 fps including DF and NDF (also 2x multiples: 23.976 fps - 60 fps supported) |
Input TC sensitivity | 0.2 - 10 V (p-p) |
Frequency range | 863 - 870 MHz (Europe) |
Number of channels | 5 |
RF output power | 10mW (10dBm) |
Operating range | up to 500m ∗∗∗ |
Toon meer
Toon minder
Productspecificaties
- Artikelnummer
- BETTimWTCS4550
- SKU
- BETTimWTCS4550
