PSC RF4PDBH

RF 4 PACK, "Dual Band" version covers the frequency range of 470-618 MHz plus 940-960MHz (Lectro 941block). RF distribution for 2 dual receivers. Hirose connector.

Lees meer...
Artikelnummer: PSCAudRF4P7990

Key Features

  • Supports Two Slot Receivers.
  • Built in RF Distribution and Filtering.
  • Provides Remote Antenna Powering.
  • Build in Battery Distribution System.
  • Takes two external batteries.
  • Provides multi-color LED battery metering.

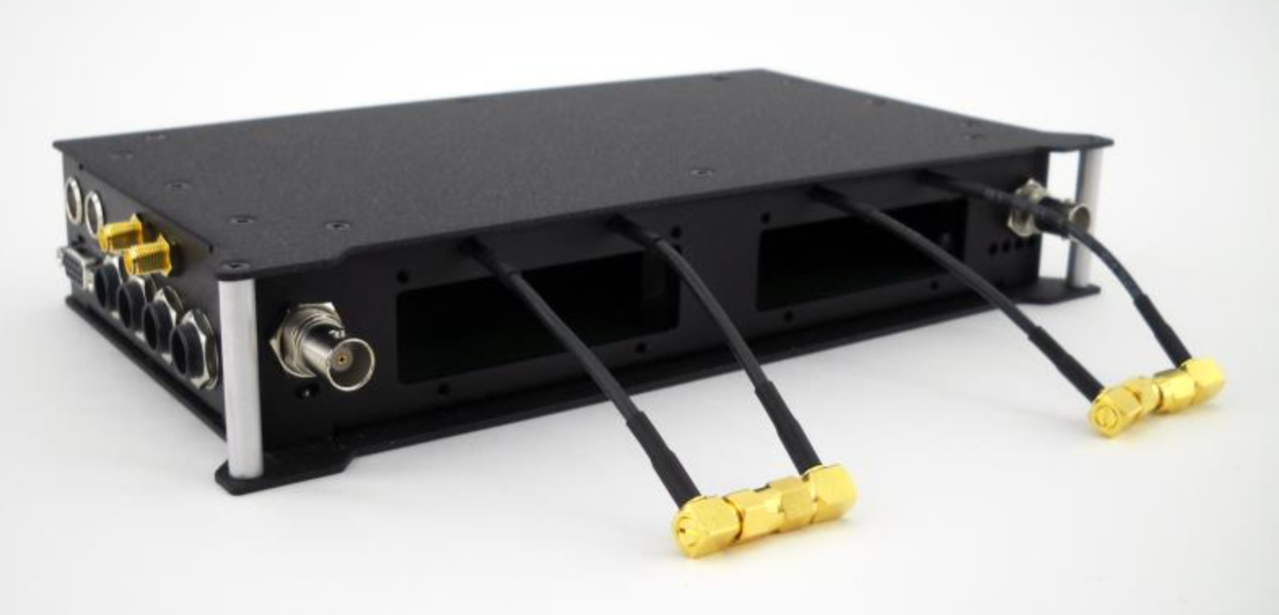

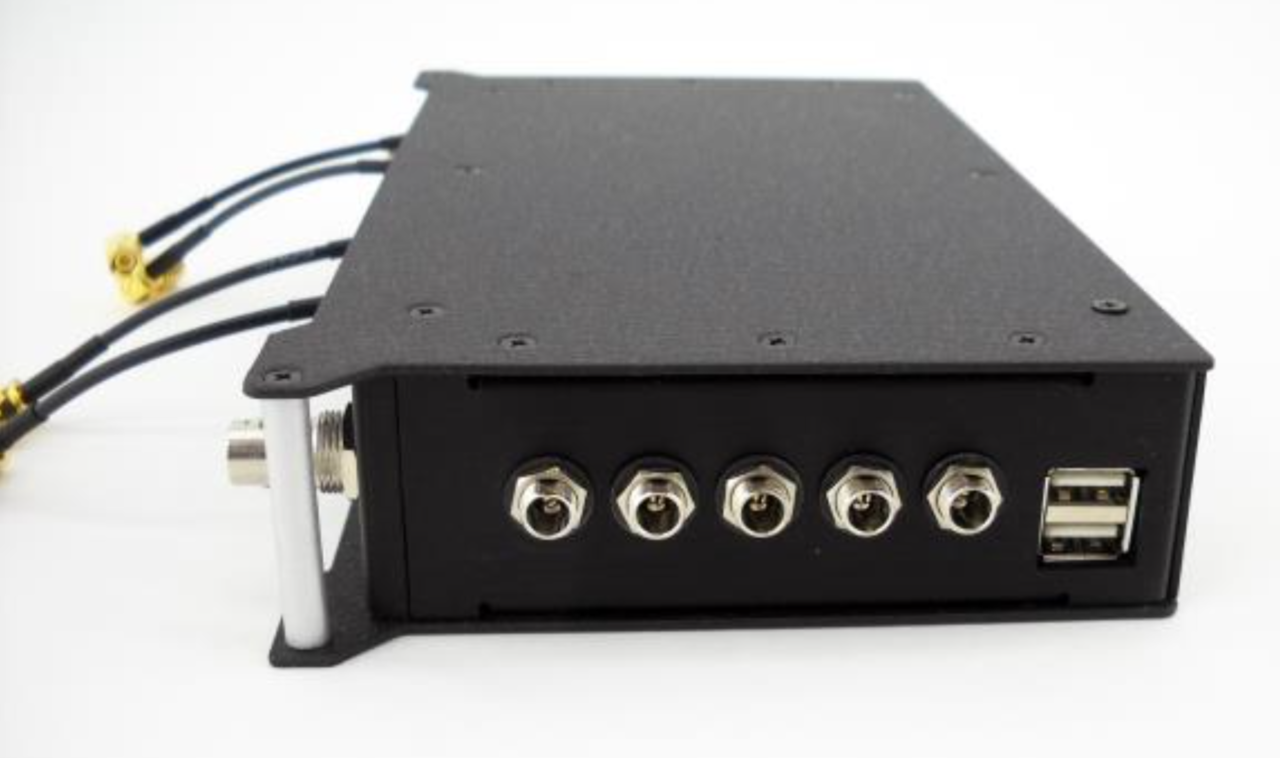

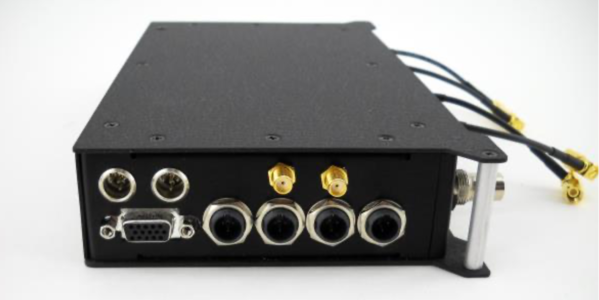

This new product is very similar to our RF 6 Pack. It is a smaller, more compact version and also incorporates a battery distribution system (BDS). By combining these two products you save weight, size and cabling in your bag setups. This product supports both analog and AES Digital audio outputs. It will support up to 8 channels of Digital Audio when used with the new Wisycom receiver in AES mode. This product provides RF and power distribution to two slot receivers. It also has two RF output connectors for easy daisy chaining of two units, or to feed RF to another device. The power distribution section accepts two external batteries. These can be NP-1 or the eSmart batteries. A convenient multi-color LED battery meter is provided. Battery metering is selectable for various battery types (voltages). Audio outputs are available as mini XLR and also on a DB-15 Multipin connection.
