PSC RFMMWB

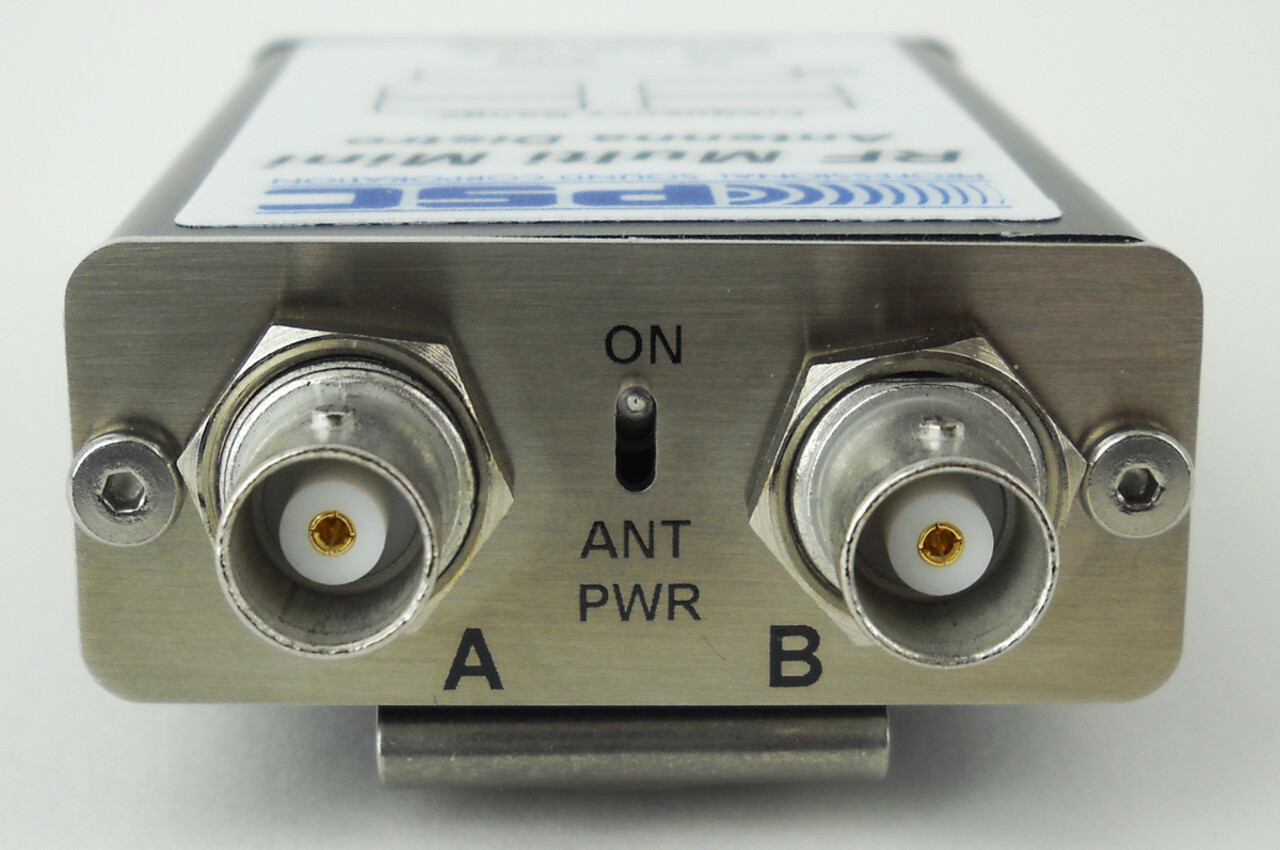

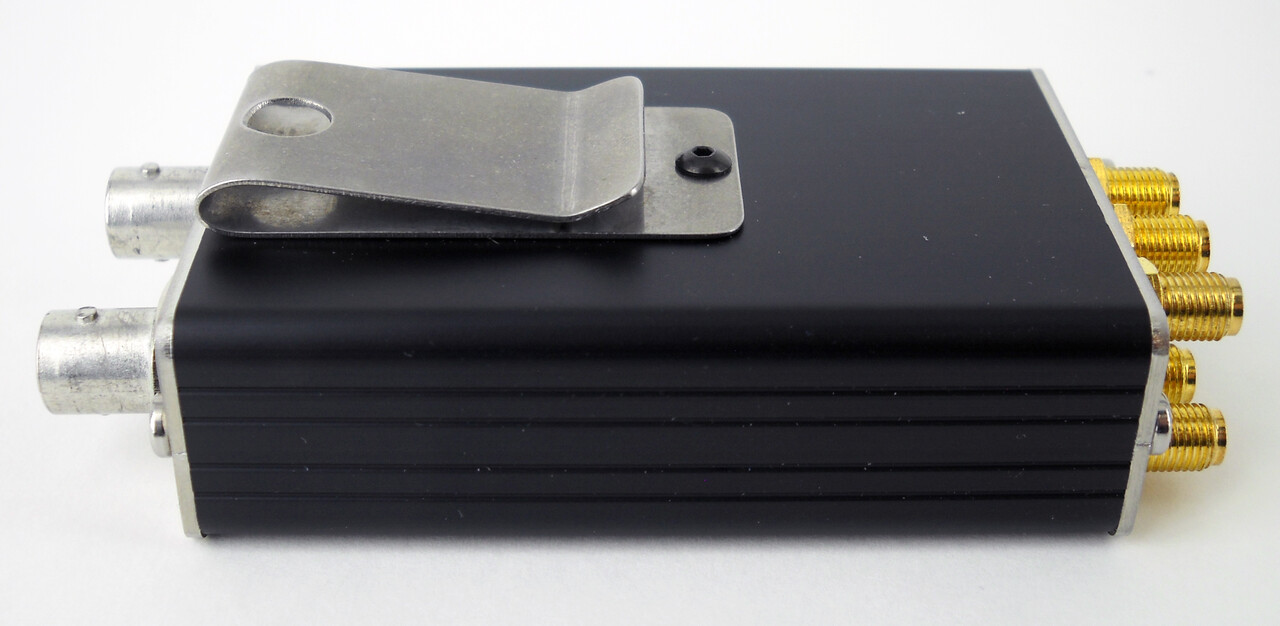

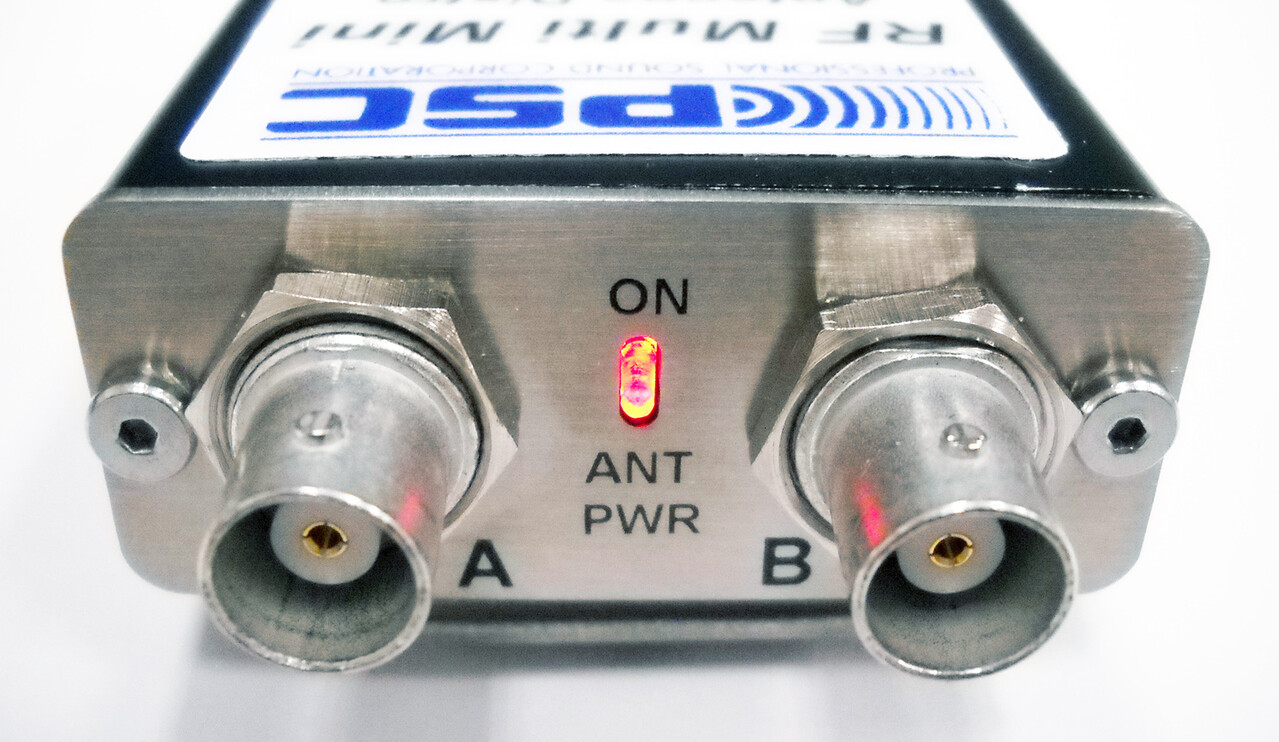

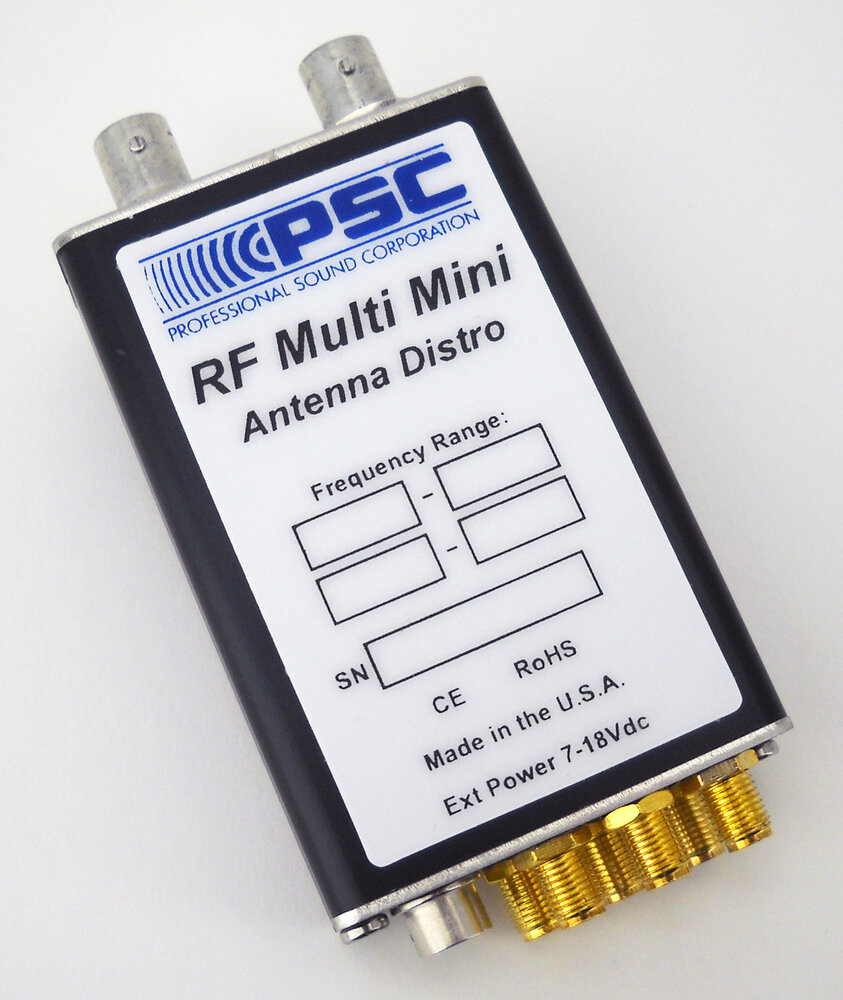

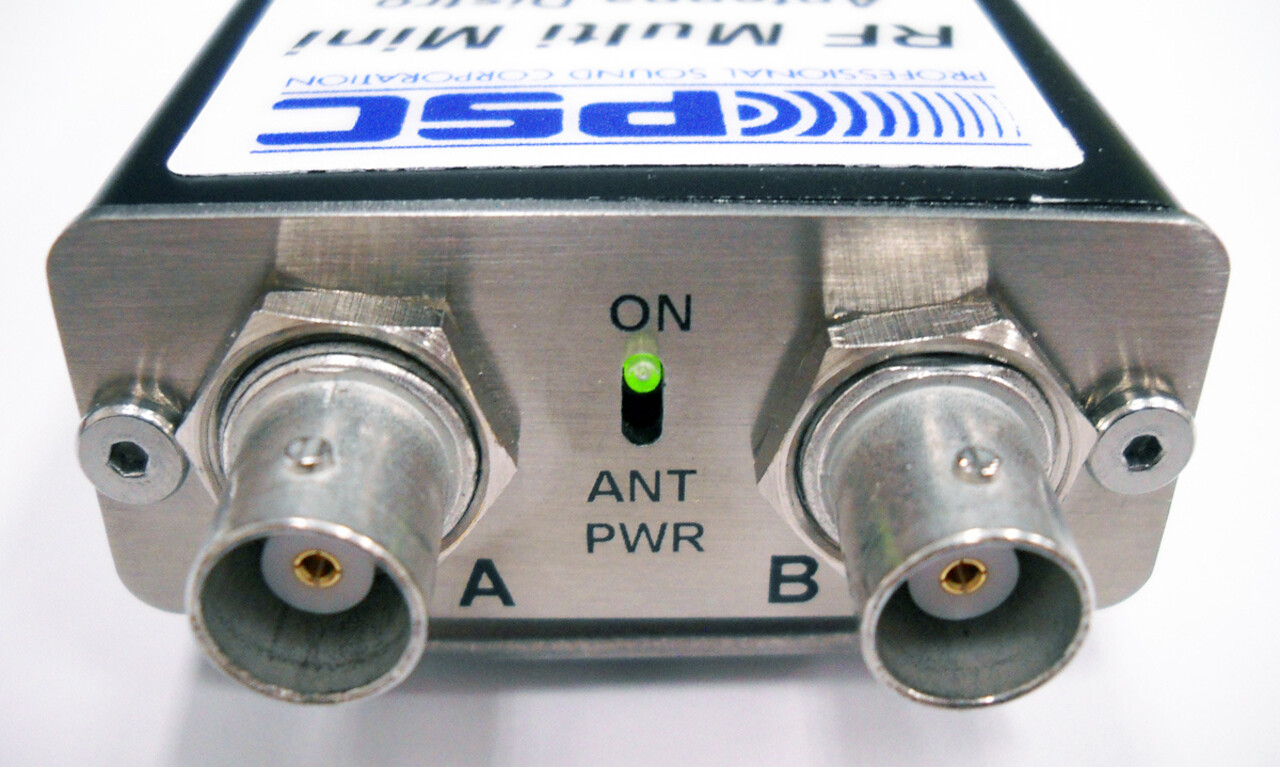

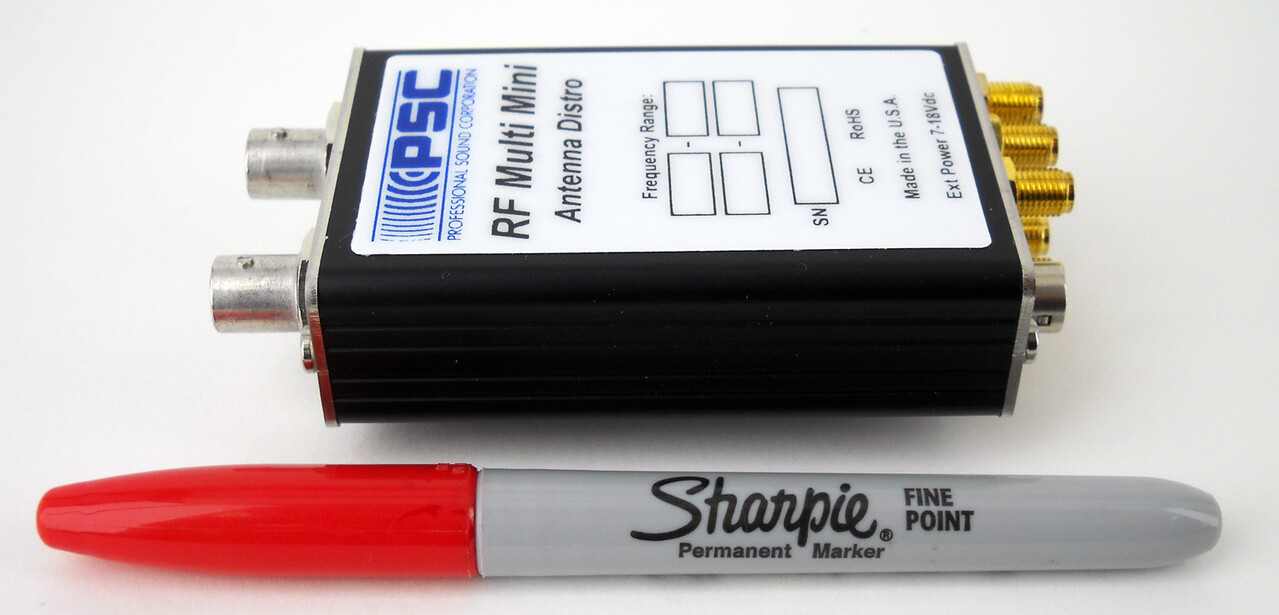

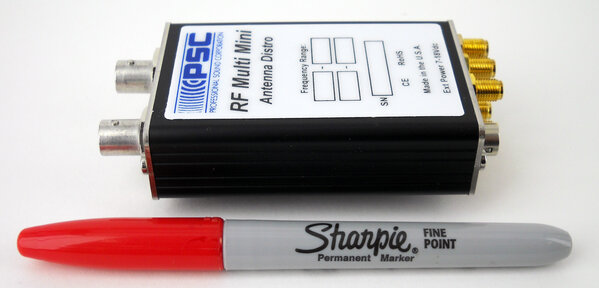

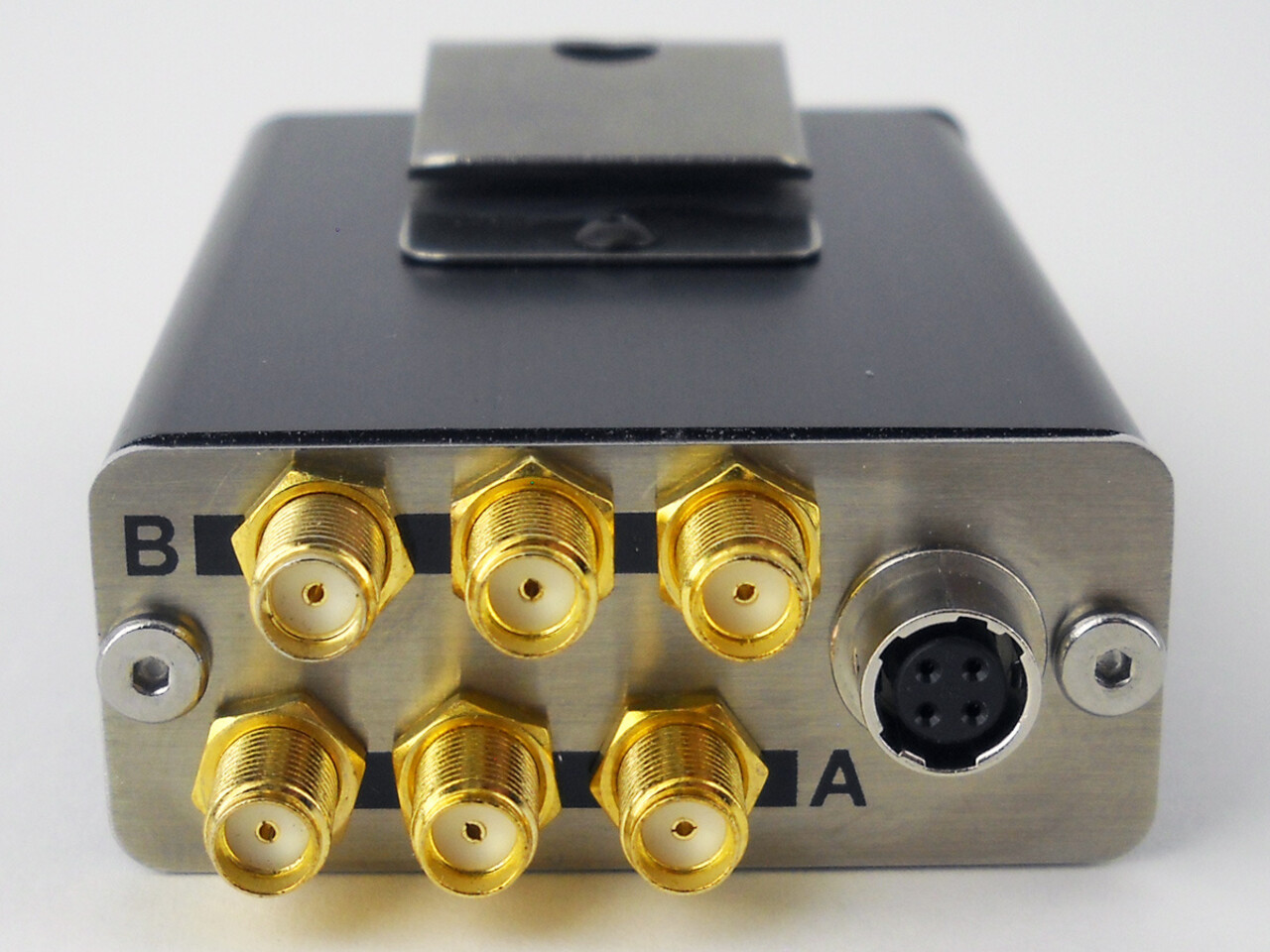

The PSC RF Multi Mini contains two, separate, active 1 x 3 RF splitters for use with up to three diversity receivers. This compact, rugged device was developed using the latest super low noise, high current RF amplifiers and will operate over various frequency ranges based on which bandpass filter it is built with. Its two inputs are traditional BNC connectors for ease of use in interfacing with your external antennas. The PSC RF Multi Mini also can provide power to external powered antennas or remote line amplifiers. Each of the SMA outputs offers a typical isolation factor of 24 to 28dB between radio receivers. There is a three-way switch located on the top panel between the two BNC RF inputs. This switch has three positions: ÒOFF,Ó main power ÒONÓ and main power and remote ANTENNA PWR switched on. The switch utilizes a light up LED switch handle. When used in normal mode, the switch batt lights up GREEN. When the unit is switched to also provide remote antenna power, the switch lights up RED. The entire unit is powered from any source of external DC power of 7 to 18Vdc @ approximately 120 mA
