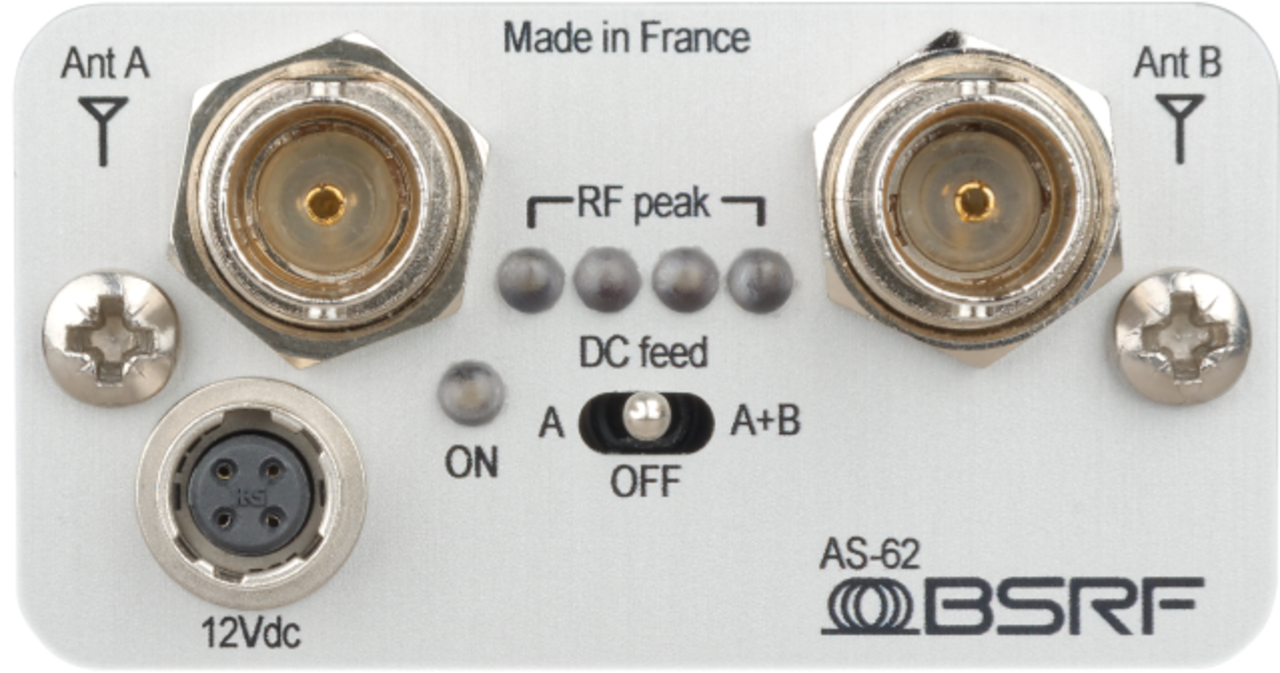

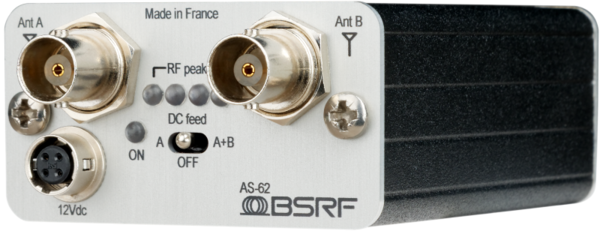

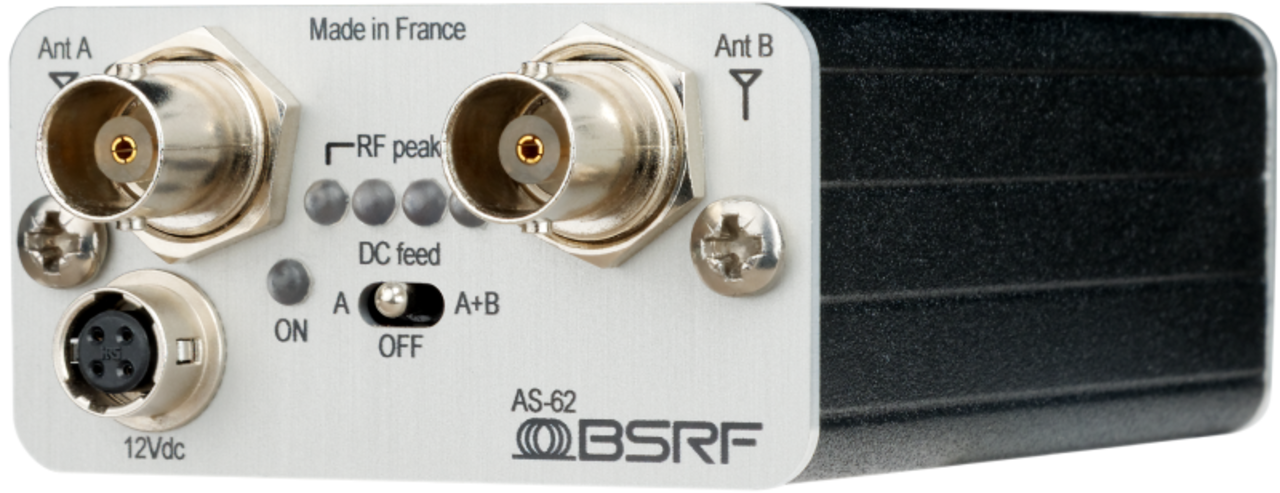

BSRF AS-62

Specificaties :

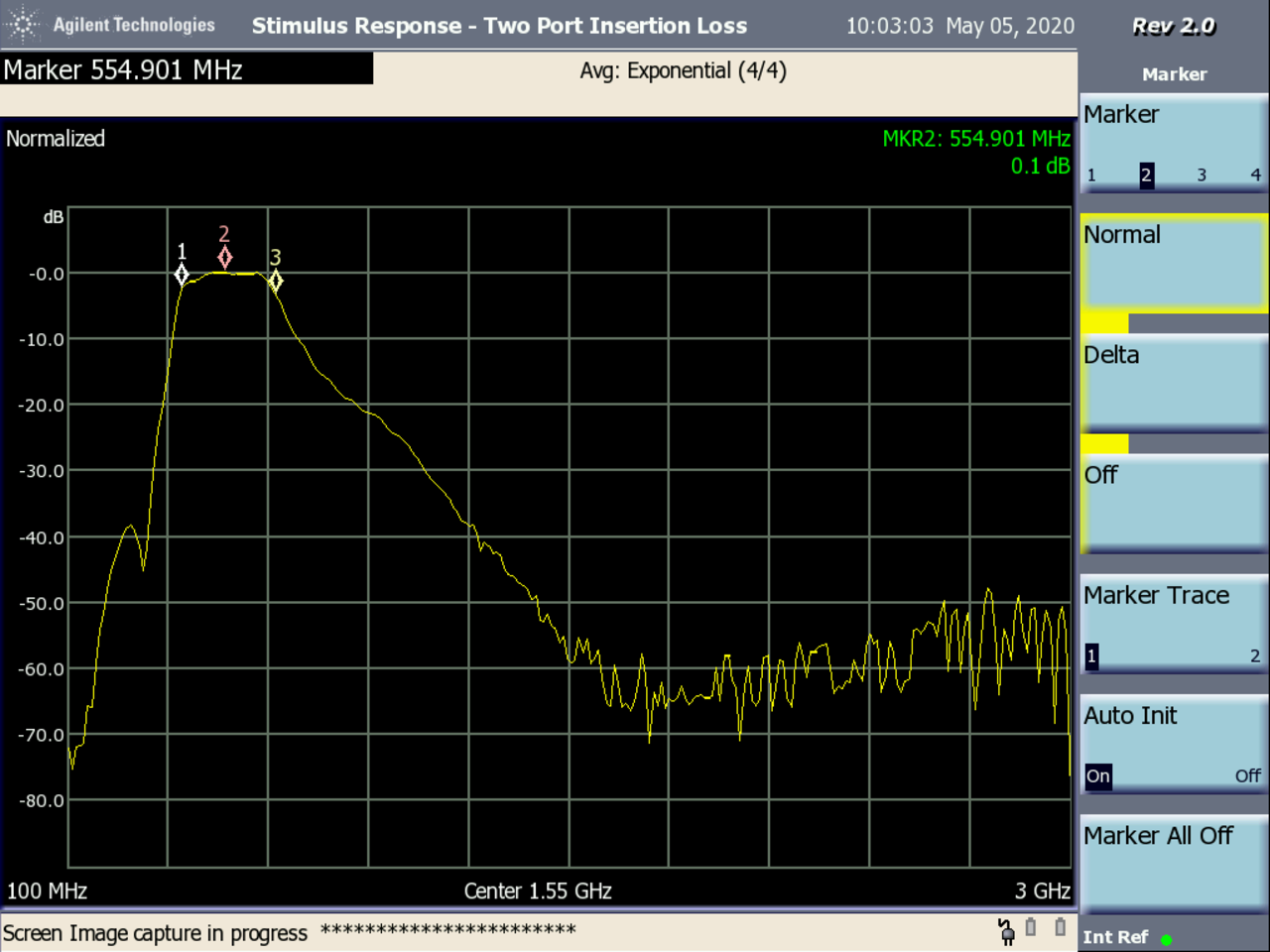

• Bandwidth 470-700MHz
• Gain 0dB (+/- 1dB)
• Noise figure <2 dB
• OIP3 39dBm typ.
• Isolation between outputs >25dB
• RF inputs 2xBNC 50 ohms
• DC feed 12V/200mA

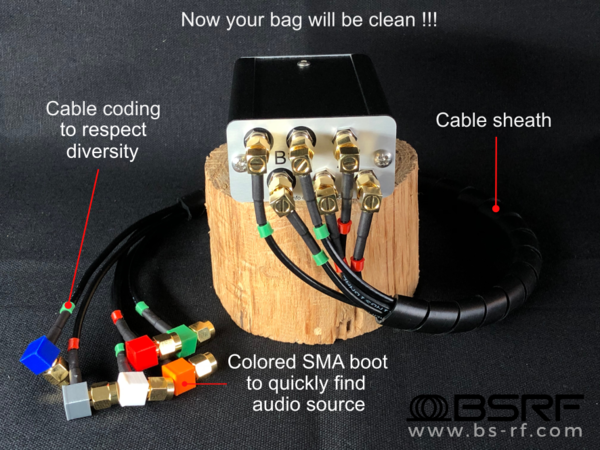

• RF outputs 2 x 3 SMA 50 ohms
• Current 150 mA without active antennas
• Supply HRS4, 12-17V
• Dimensions 83 x 60 x 31mm
• Weight 255g
