Sound Devices A20-NEXUS

8-16 Channel True Diversity Receiver with SpectraBand TechnologyÊ Ê

The future of wirelessÊ

Meet the half-rack receiver with an entire rack's worth of features. The next-generation A20-Nexus is expandable from 8 channels up to 16 channels with software licenses and features forward-thinking technologies like SpectraBand, the powerful NexLink remote-control link, real time spectrum analysis, and more.Ê With multiple options for audio outputs, powering, and remote control, the A20-Nexus can seamlessly adapt to your workflow, both now and in the future.Ê

• 8-channel ultra-high-performance, true-diversity receivers in a rack size (8.0Ó x 6.6Ó x 1.6Ó).Ê
• Expandable to 12- or 16-channels via software license (coming soon).Ê
• 470 MHz Ð 1525 MHz tuning range via SpectraBand Technology.Ê
• NexLink: integrated, long distance remote control of all wireless transmittersÊ
• Dante audio-over-IP of RF receiver audio.Ê
• Flexible powering: via PoE+, DC input, 8-Series, or AC mains (with optional adapter).Ê
• Web App control from browser on any computer, smartphone or tablet.Ê
• Full remote operation capability: Power via PoE, audio via Dante, control via Web App.Ê

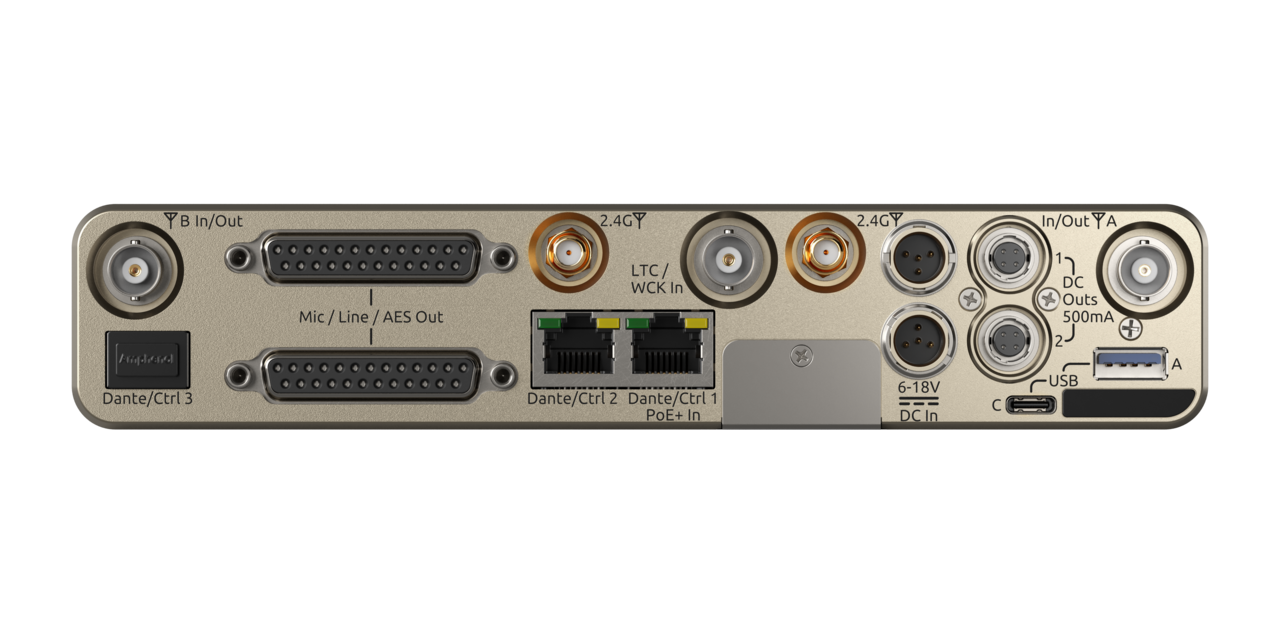

• Dual DB-25 connectors for 16 channels of mic, line, or AES outputsÊ
• 16 channels of Dante audio-over-IP output to DB25 connectors on the back panel.Ê

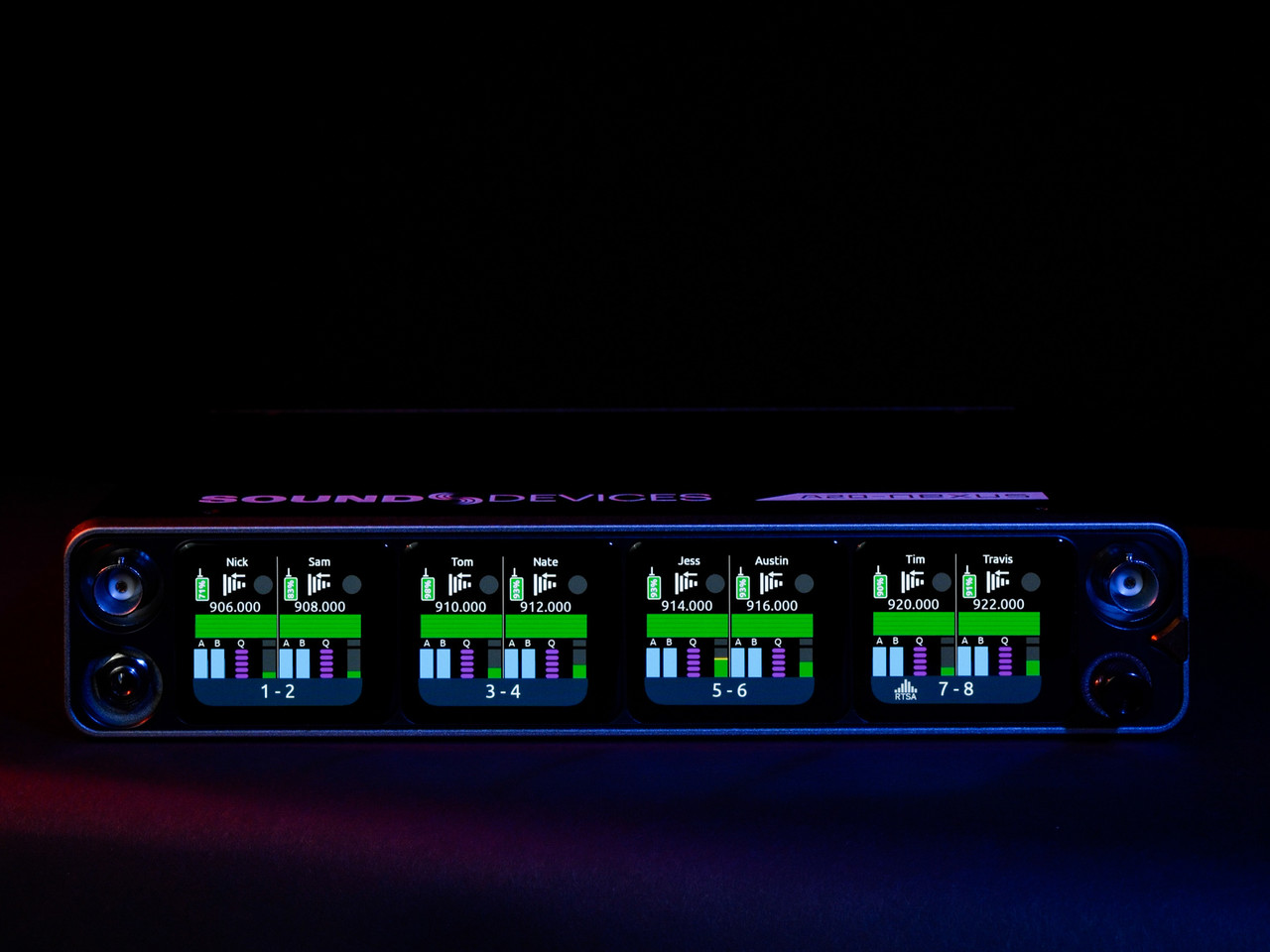

• Wide, 6.2Ó color OLED array with touch for control and monitoring.Ê

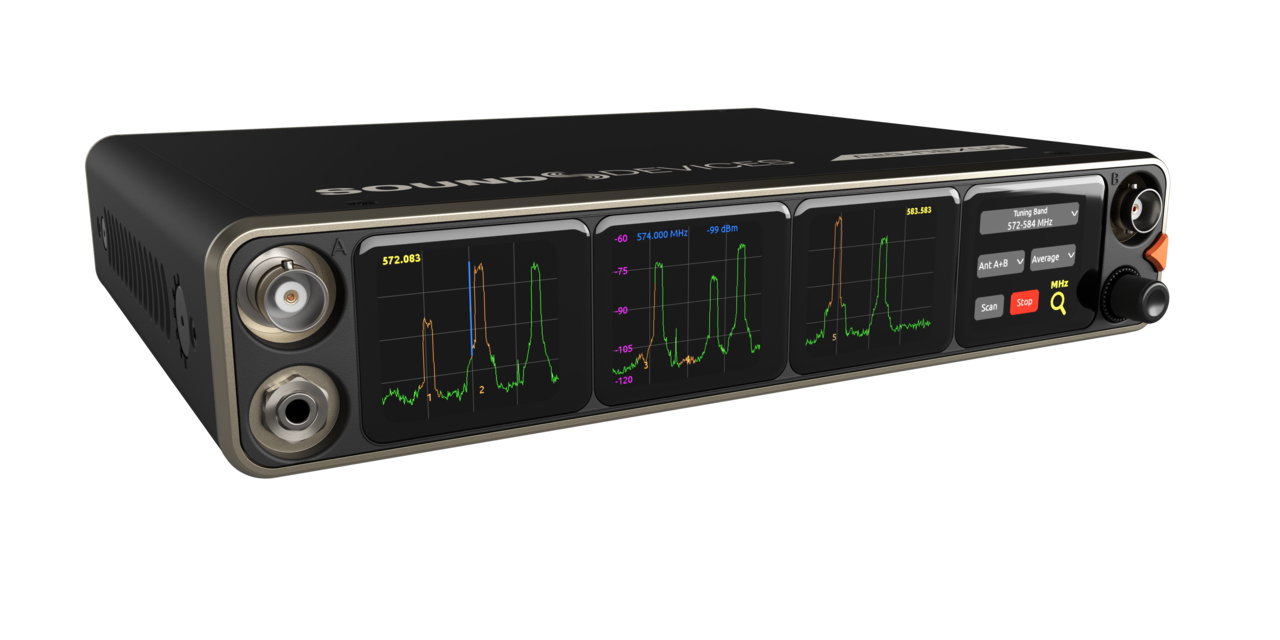

• Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.Ê
• Optical Fiber Network option via SFP slot. SFP accepts a wide variety of modular network transceivers.Ê

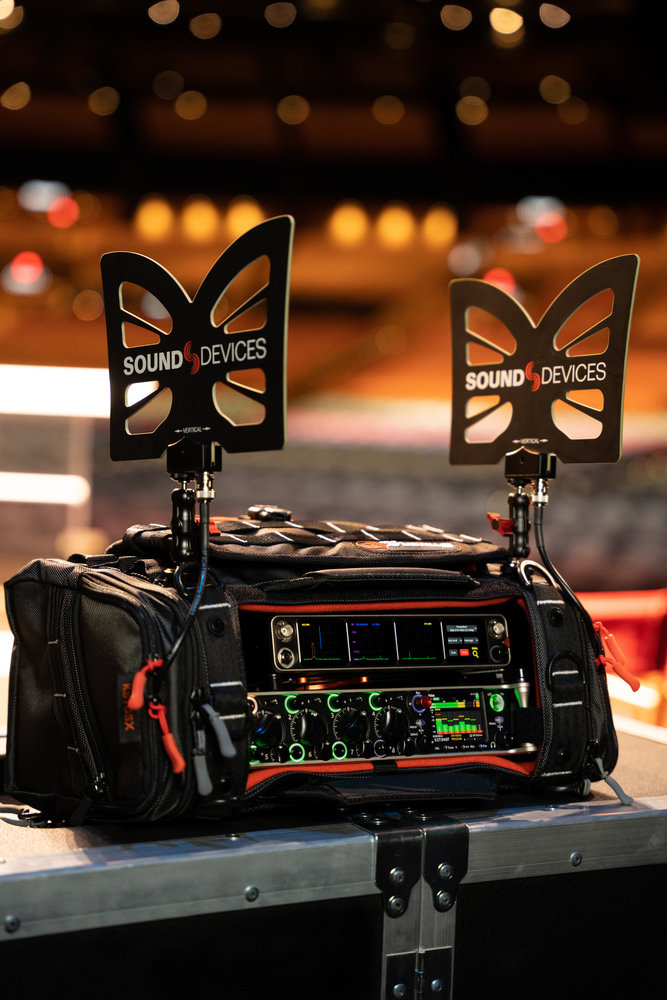

• A20-QuickDock allows docking and undocking in seconds from 8-Series mixer-recorders with no tools.Ê
• Supports GainForward Architecture: No gain setting on the A20-Mini transmitter. Adjust gain at the receiver or mixer.Ê
• 100% digital long-range modulation delivers the longest transmission distance of any system on the market.ÊÊ
• Excellent audio quality, full 10 Hz Ð 20 kHz audio bandwidth.Ê
• RF SAW filters for excellent rejection of interferenceÊ from nearby IFB or camera hop transmitters.Ê
• BNC timecode input for auto timecode sync of transmitters over NexLinkÊ

There are a range of accessories for the A20-Nexus:Ê

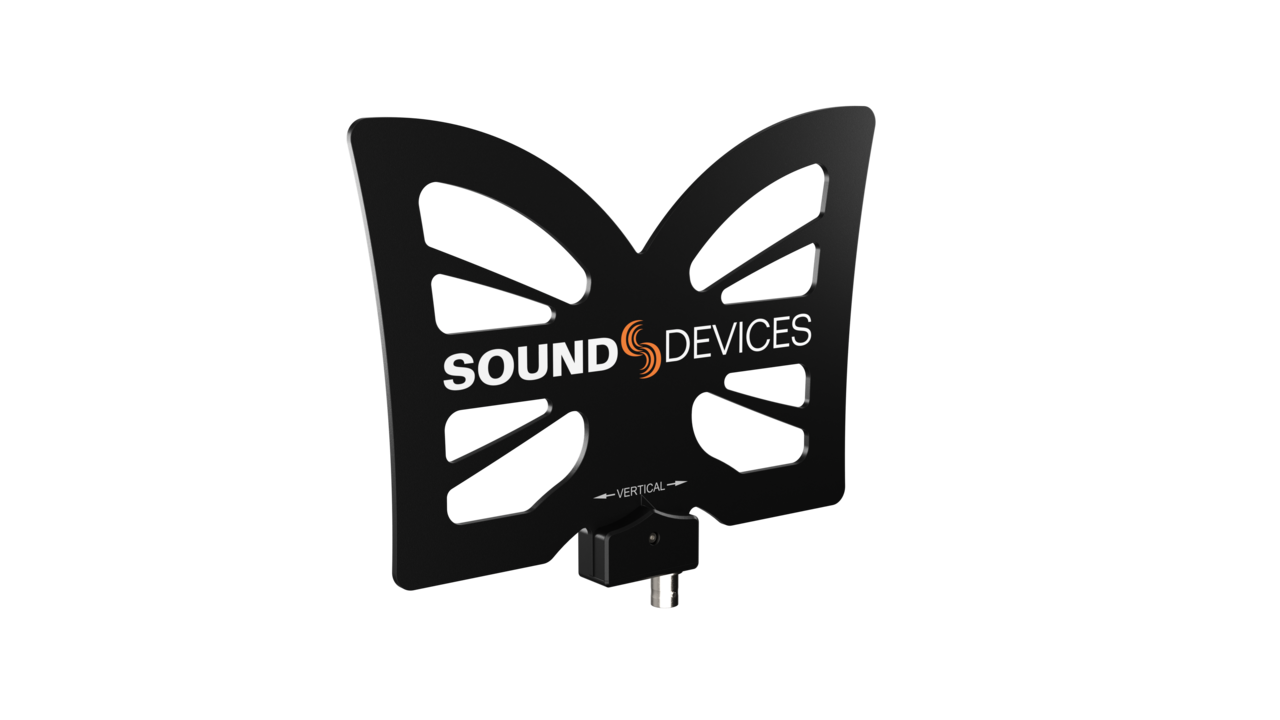

• A20-Monarch small footprint, passive omnidirectional antenna which covers full SpectraBand (470-1525MHz), ships with mounts and cablingÊ
• A20-QuickDock For quickly attaching and removing the Nexus to and from any 8-Series recorderÊ
• A20-Shelf To securely rack-mount 1 or 2 A20-Nexus, or PowerStation-8M units, in a 1U shelf space, whilst having full access to the front panelsÊ

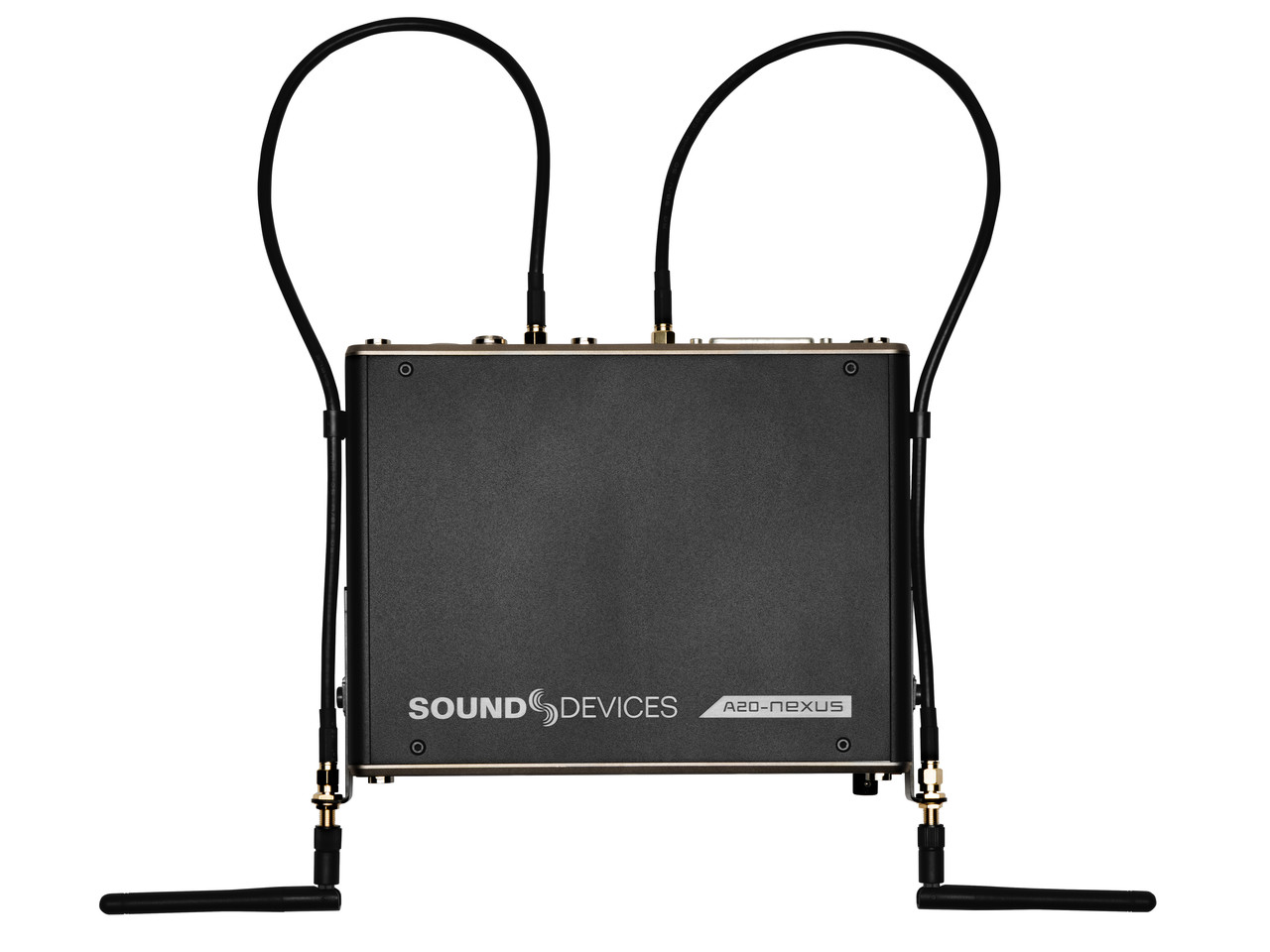

• 2.4GHz Antenna Bracket Assembly Kit for front mounting the NexLink 2.4GHz antennasÊ
• A20-2.4G Ant 2.4GHz NexLink SMA antenna. Not compatible with 8-Series SD-Remote antenna

What's in the box:

• 1x A20-Nexus
• 2x A20-Monarch
• 2 x Articulating arm with clamp and -20 thread mountÊ
• 2 x 30in/75cm BNC - BNC cableÊ
• 2 x A20-2.4G AntÊ
• 2 x 2.4GHz Antenna Bracket Assembly KitÊ
