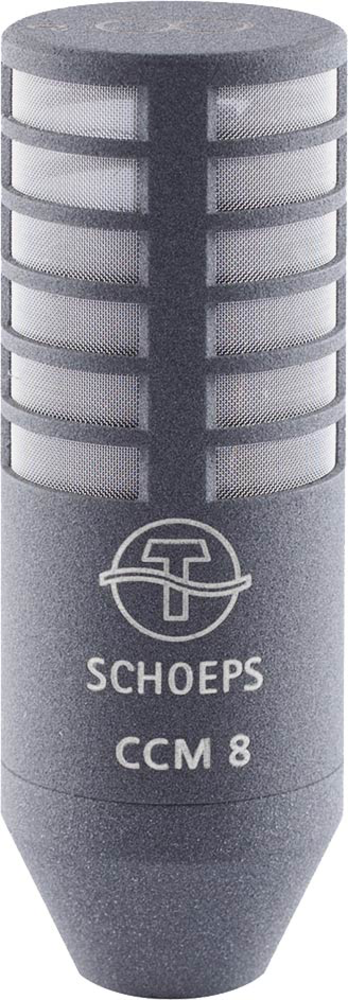

Schoeps CCM 8 K
Productomschrijving
De overige specificaties zijn zoals het corresponderende kapsel:
Met vaste kabel naar XLR 3 polig male connector. Inclusief SGC klem. All CCMs Current consumption with 12V8mA Current consumption with 48V4mA Impedance90Ω Minimum recommended load impedance600Ω Low-cut frequency20Hz Length (L version)without connector: 46 - 58mm Length (U version)46 - 58mm Diameter20 mm Wei...

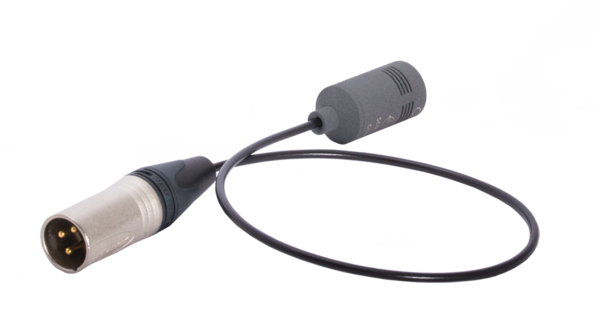

Met vaste kabel naar XLR 3 polig male connector.

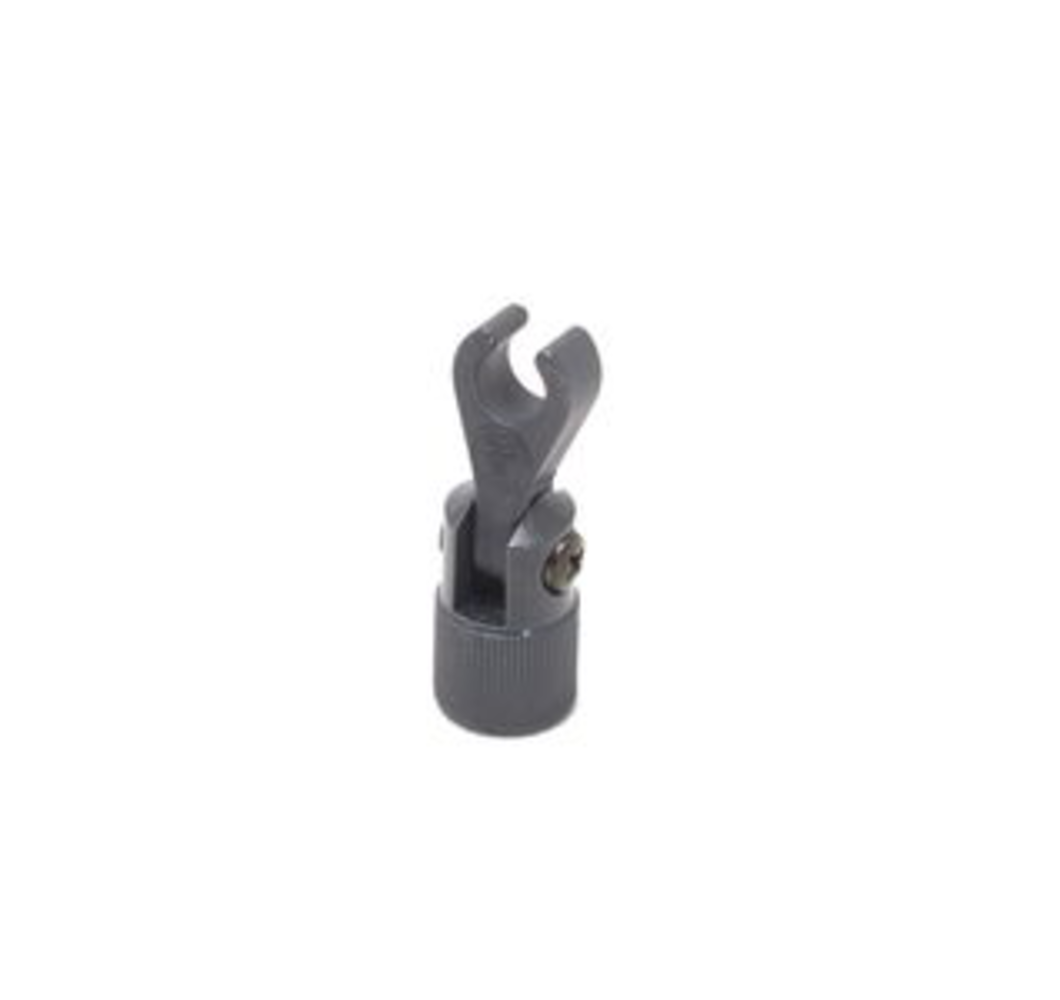

Inclusief SGC klem.
| All CCMs | |
|---|---|
| Current consumption with 12V | 8mA |
| Current consumption with 48V | 4mA |
| Impedance | 90Ω |
| Minimum recommended load impedance | 600Ω |
| Low-cut frequency | 20Hz |
| Length (L version) | without connector: 46 - 58mm |
| Length (U version) | 46 - 58mm |
| Diameter | 20 mm |
| Weight (U-version) | 33g |
| Weight (L-version) | 43g |
| Surface finish | matte gray |
De overige specificaties zijn zoals het corresponderende kapsel:
| MK 8 | |
|---|---|
| Frequency range | 40 Hz - 16 kHz |
| Sensitivity | 10 mV/Pa |
| Equivalent noise level (A-weighted) | 18 dB-A |
| Equivalent noise level (CCIR) | 26 dB |
| Signal-to-noise ratio (A-weighted) | 76 dB-A |
| Maximum sound pressure level at 0.5% THD | 134 dB-SPL |
Toon meer
Toon minder
Productspecificaties
- Artikelnummer
- SchComCCM 2290
- SKU
- SchComCCM2290
Gerelateerde Producten:
[121106] compact microphone, figure of eight, with permanent attached XLR cable, with SGC
