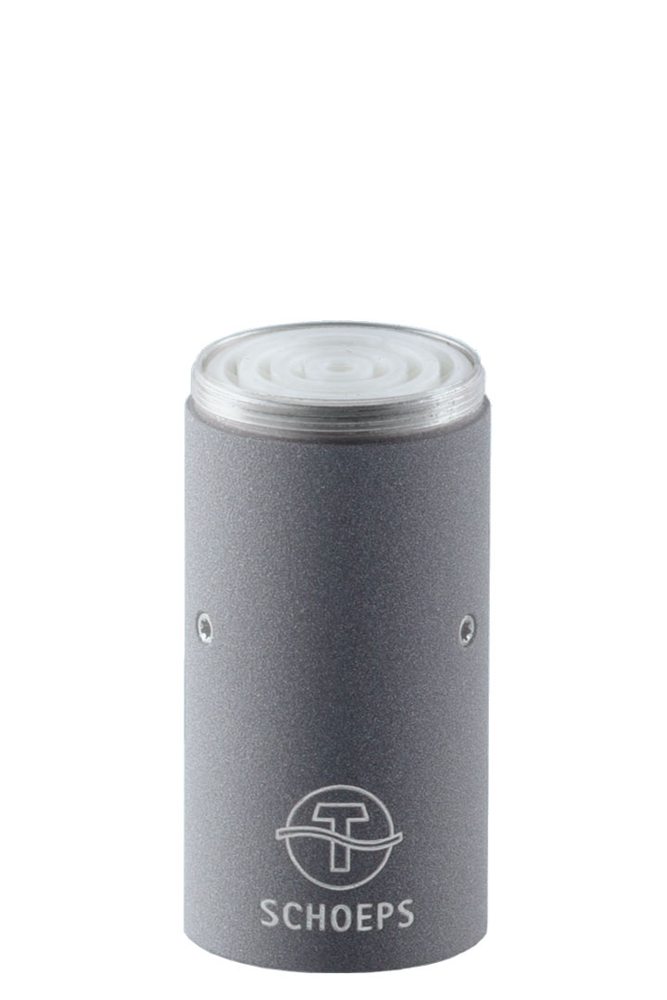

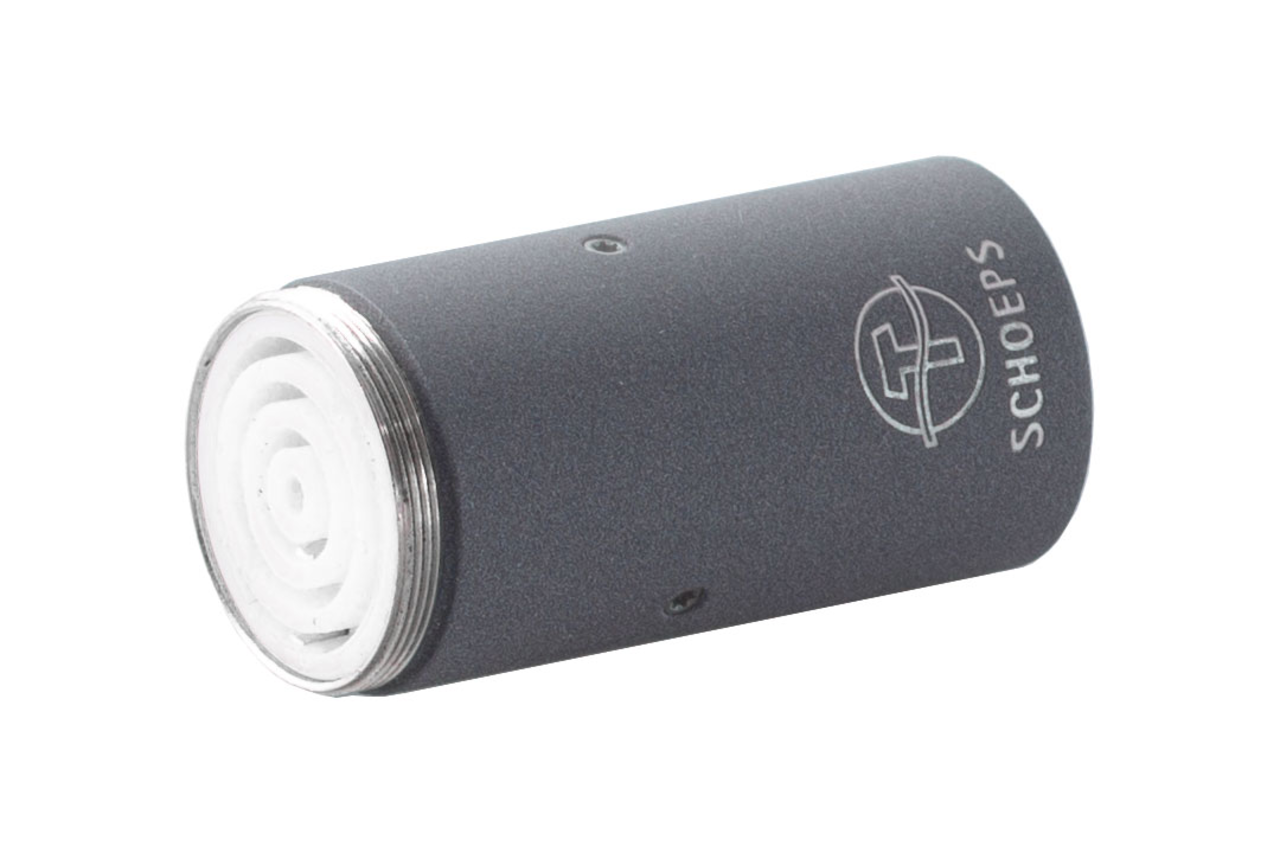

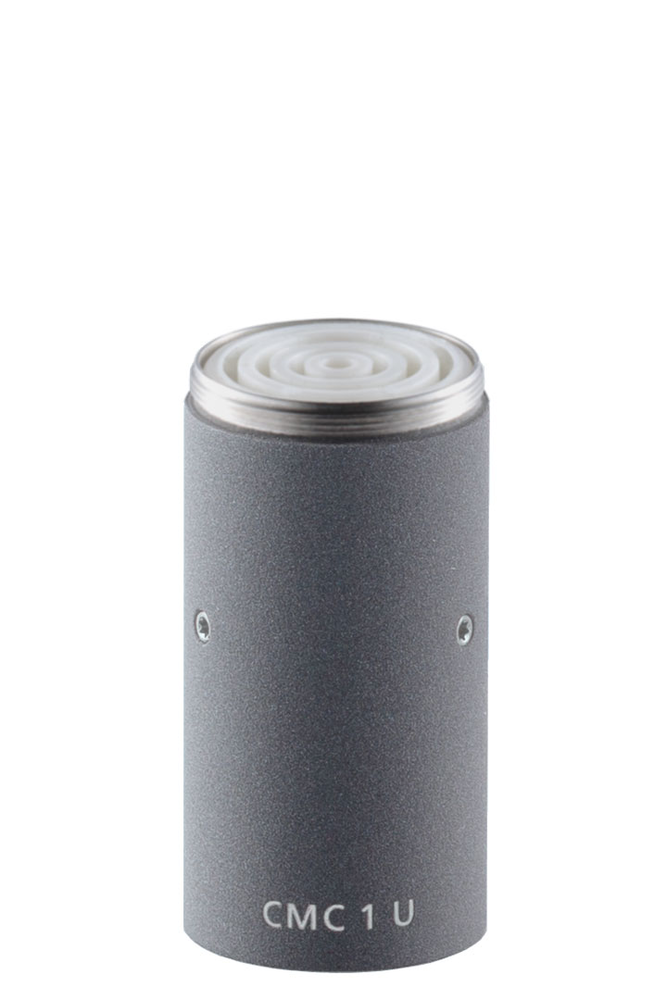

Schoeps CMC 1 U
De nieuwe Schoeps CMC 1 wordt leverbaar vanaf 1 Oktober 2019 en is nu te bestellen.
The CMC 1 is the new, small Colette microphone amplifier, about one-third the size and 40% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.
At SCHOEPS, Òuncompromising miniaturizationÓ means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:
- High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
- Very low current consumption: 2.0 mA at 48 Volts
- Operates on 48 V or 12 V phantom power
- Very high immunity from RF interference with the SCHOEPS RFI Shield
Ê
Specifications:
Frequency Range | 20 Hz-20 kHz |
Maximum output voltage | 1,8 V (5 dbV) with 1 k½ load |
Maximum sound pressure level (THD < 0.5 %) | 135 dB-SPL (P48) with MK 4 |
Low cut filter | 20 Hz, 12 dB/oct |
Output impedance | 50 ½ +/- 1 ½ (8 Hz - 50 kHz) |
Minimum recommended load impedance | 1 k½ |
Common mode rejection ratio (at 1 kHz) | > 55 dB |
Maximum cable length | > 400 m / ~1300 ft |
SCHOEPS RFI Shield | Yes |
Powering standard / Valid range | P48 / 30-52 V |
Current consumption | 2 mA (P48) |
Output | XLR-3M, analog, 1 channel |
Length | 39 mm / ~1.5" |
Diameter | 20 mm / 0.8" |
Weight | 36 g / 1.3 oz |
Surface FinishÊ | matte gray (g) or custom color |
Productspecificaties
- Artikelnummer
- SCHMicCMC 7696
- SKU
- 132011
- Gewicht
- 36
- Afmetingen
- Lengte: 39 mm. Diameter : 20 mm
- Gewicht
- 36g
