Ambient LockitBT (ACN-LB) [A81063]

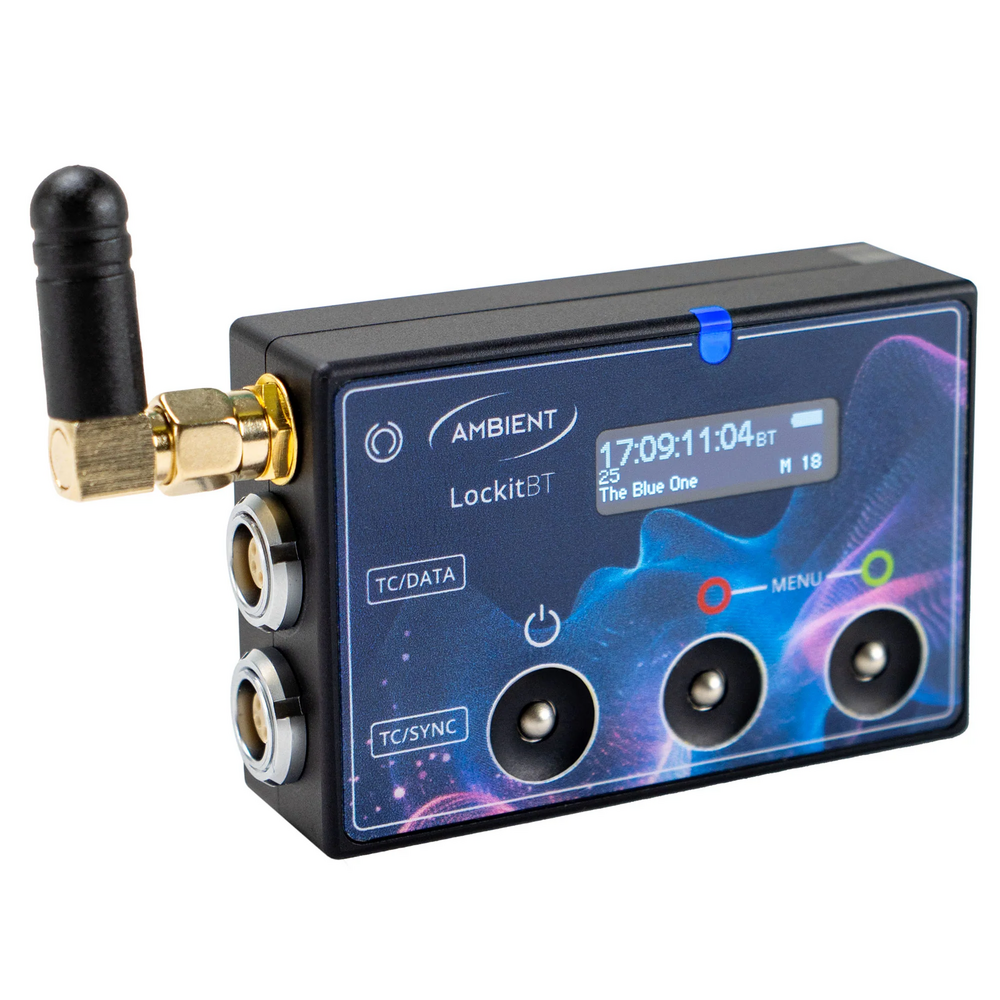

The Ambient LockitBT (ACN-LB) is a compact timecode and sync generator for synchronizing cameras, audio recorders and other equipment. It supports SMPTE timecode, Genlock and Wordclock and is part of the Ambient Communication Network (ACN).

ACN allows multiple Lockit devices to be synchronized wirelessly. With C-Jam Mode active, connected Lockits remain continuously synchronized with each other. The LockitBT also provides Bluetooth for remote control via the LockitRemote app.

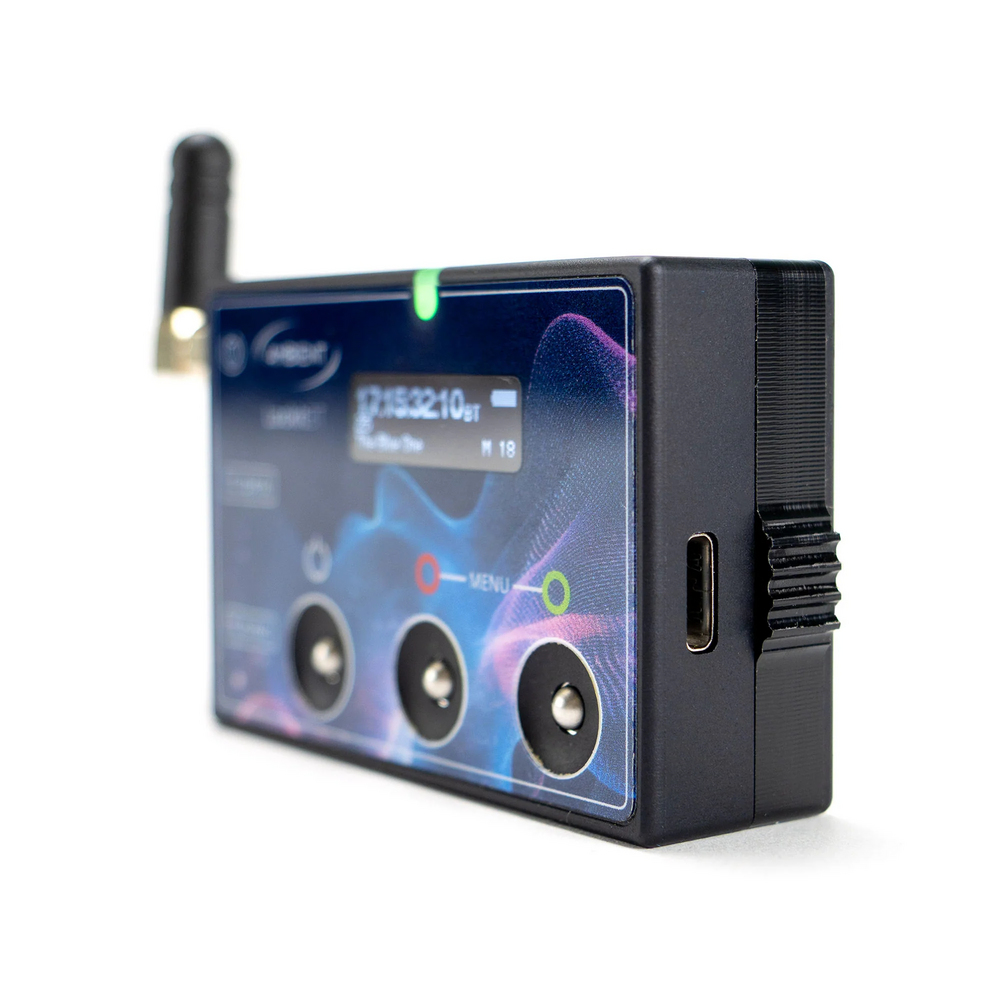

The USB-C connection is used for powering and charging, data transfer, MIDI Timecode and connection to LockitToolbox. Timecode and sync offsets can be adjusted individually. The replaceable NP-50 Li-Ion battery provides approximately 14 hours of runtime.

Main Features

• Timecode and sync generator with SMPTE timecode
• Supports Genlock, Wordclock and PPF shutter sync
• Full Ambient Communication Network (ACN) support
• C-Jam Mode for continuous synchronization between Lockit devices

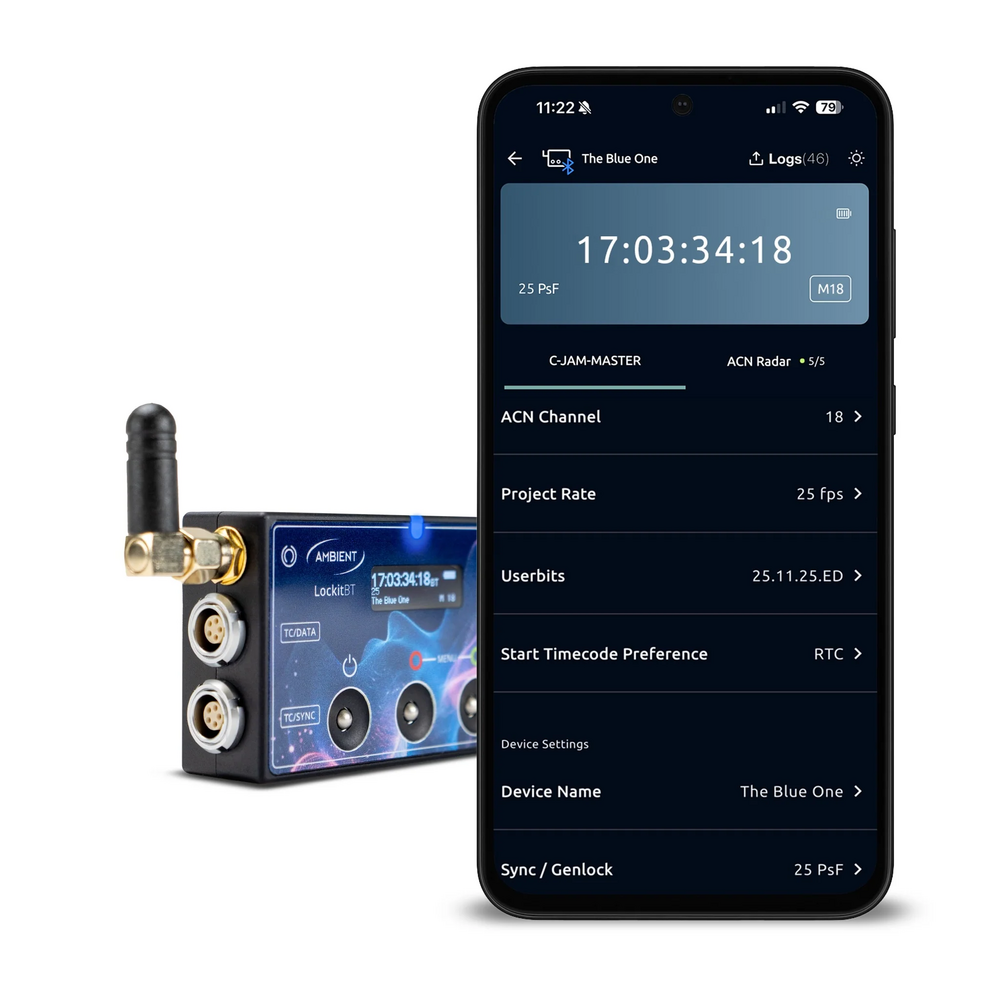

• Bluetooth control via the LockitRemote app

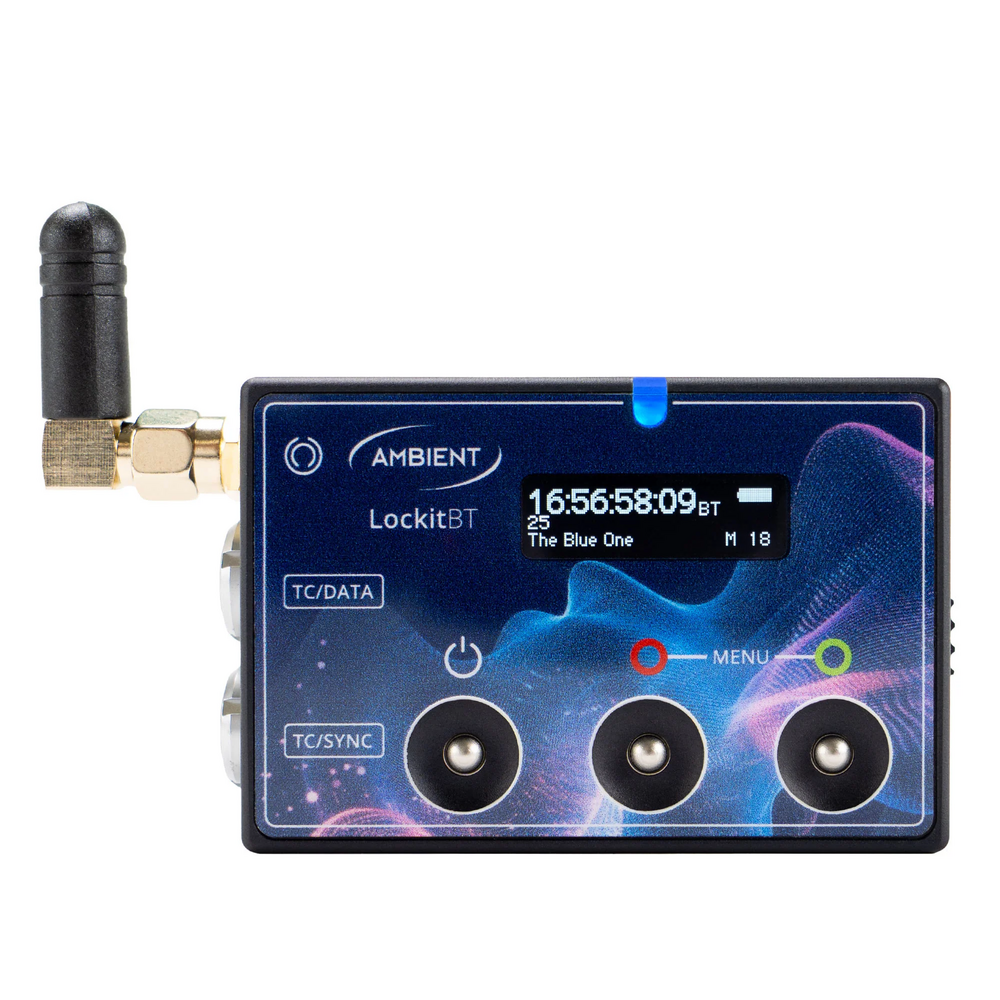

• OLED display with button operation
• USB-C for powering, charging, data and MIDI Timecode
• Adjustable timecode and sync offset

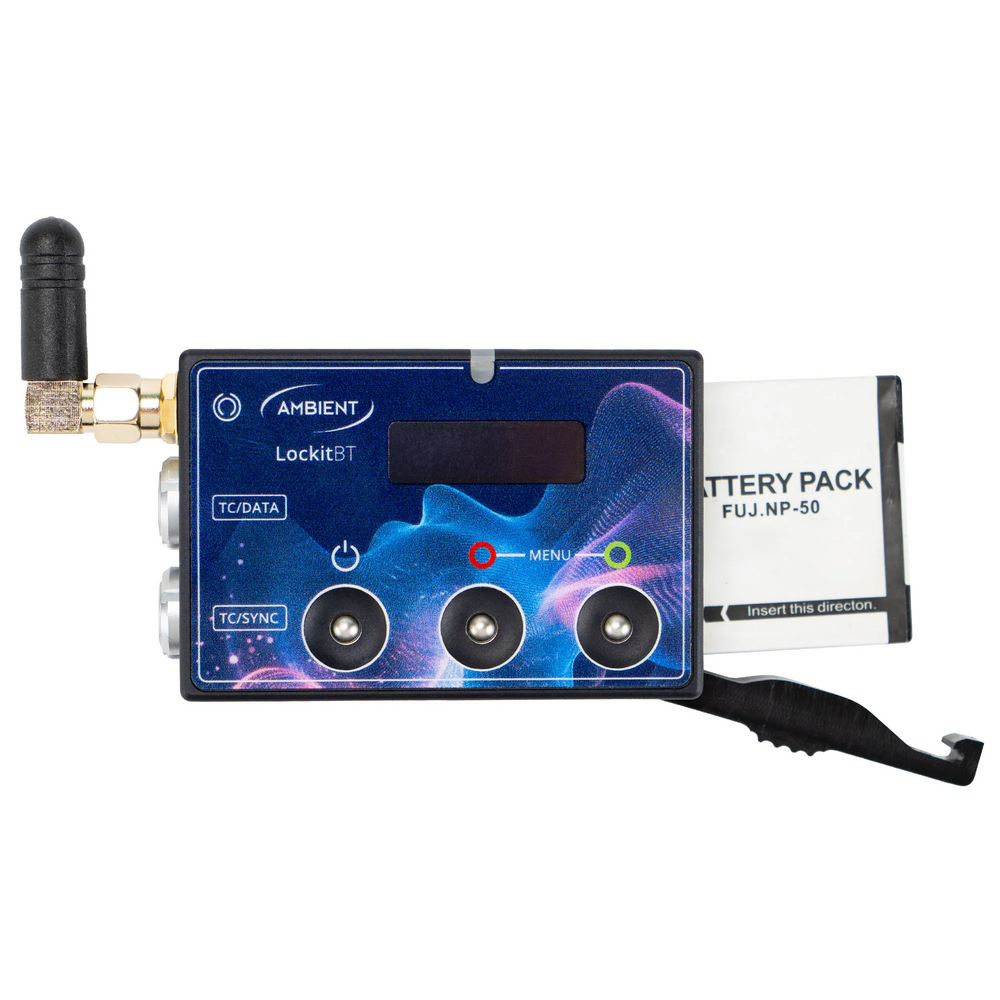

• Replaceable NP-50 Li-Ion battery
• Approximately 14 hours of runtime

Specifications

• Timecode frame rates: 23.976, 24, 25, 29.97, 29.97 Drop and 30 FPS
• Timecode: SMPTE 12M, 3 V TTL, adjustable down to microphone level
• Genlock: 1080i/PsF and 1080p tri-level, 23.976 to 60 FPS
• Wordclock: up to 192 kHz
• Sync: automatic load switching for two cameras, Wordclock and PPF shutter sync
• Connections: TC & Sync, TC & ACN, USB-C 2.0 and SMA-RP antenna connection
• ACN: 2.4 GHz
• Display: 256 × 32 OLED
• Battery: replaceable NP-50 Li-Ion
• Dimensions: 65.6 × 44.0 × 20.0 mm
• Weight: 80 g without battery
• Housing: anodized, pearl-blasted aluminium

Included

• Ambient LockitBT (ACN-LB)
• 1 × NP-50 compatible Li-Ion battery
• 1 × MTC-USB-C USB-C to USB-C MIDI Timecode cable [A81064]
• 2 × Double Lock mounts
