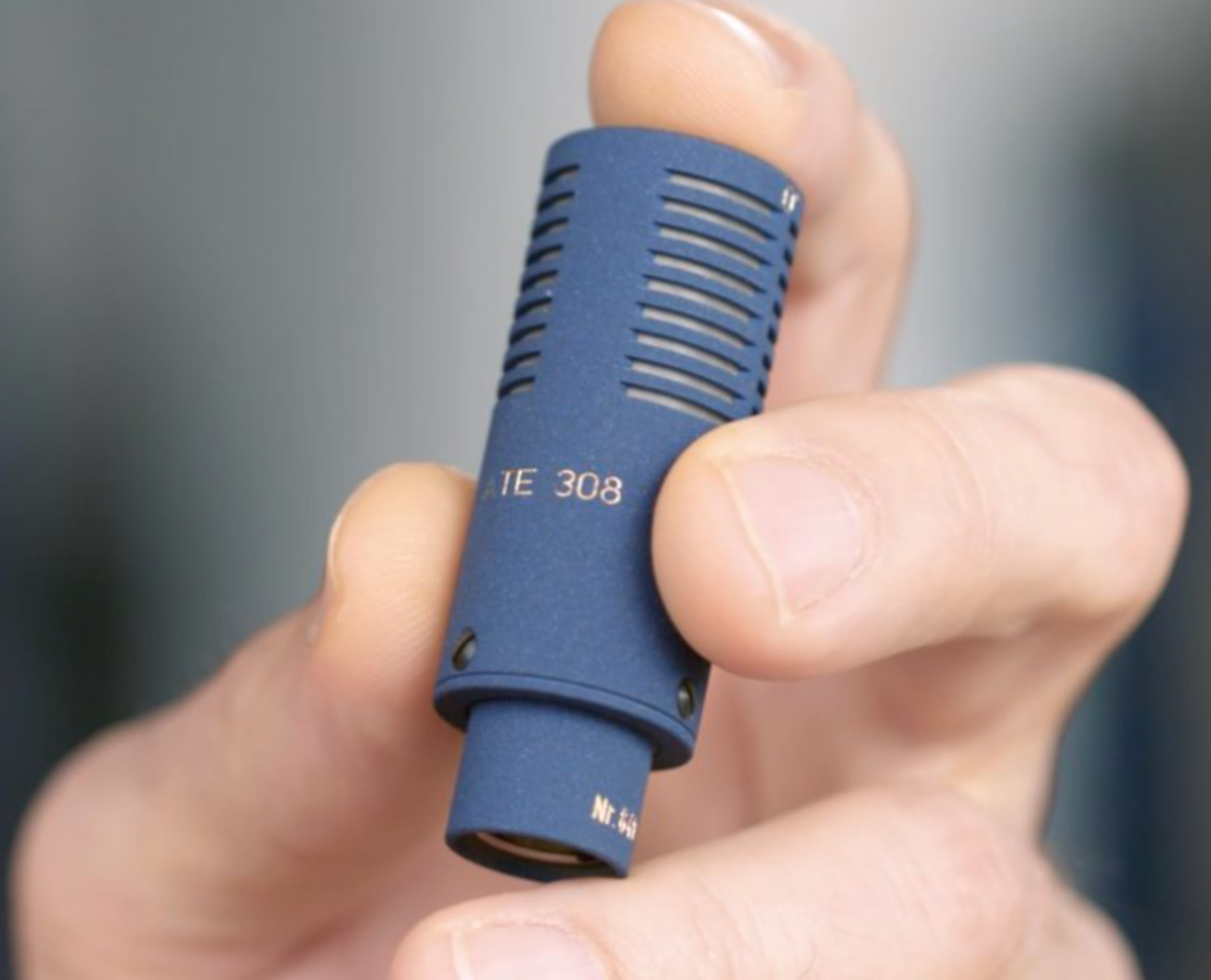

Ambient ATE 308

The ATE 308 is an ultra-compact figure-8 condenser microphone designed to create a full M/S stereo image when paired with a shotgun mic. It mounts directly to the boom microphone and includes a mounting clip and Y-cable with 5-pin XLR output.

• Polar pattern: figure-8 (bidirectional)
• Frequency range: 100 Hz – 16,000 Hz (±3 dB)
• Sensitivity: 9 mV/Pa
• S/N ratio: 79 dB (A-weighted)
• Max SPL: 132 dB SPL
• Power: 48 V phantom
• Connector: TA3F (via Y-cable to 5-pin XLR)
• Size: 53 mm length / 20 mm Ø / Weight: 40 g
