AudioRoot BCC-CC-H
Product description
AudioRoot BCC-CC-H The BCC-CC-H is a power combining cable with two battery cup inputs and one HRS4 output. Unlike the DYAD models, the BCC series supports telemetry, allowing battery status information to be transmitted. It is designed for redundant power or extended runtime in compact audio setups. Main features Inputs: 2 × battery cup Out...
AudioRoot BCC-CC-H

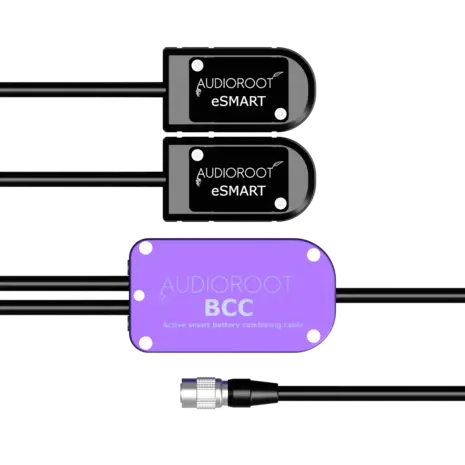

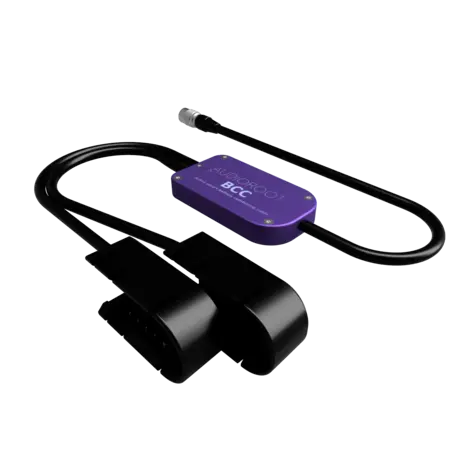

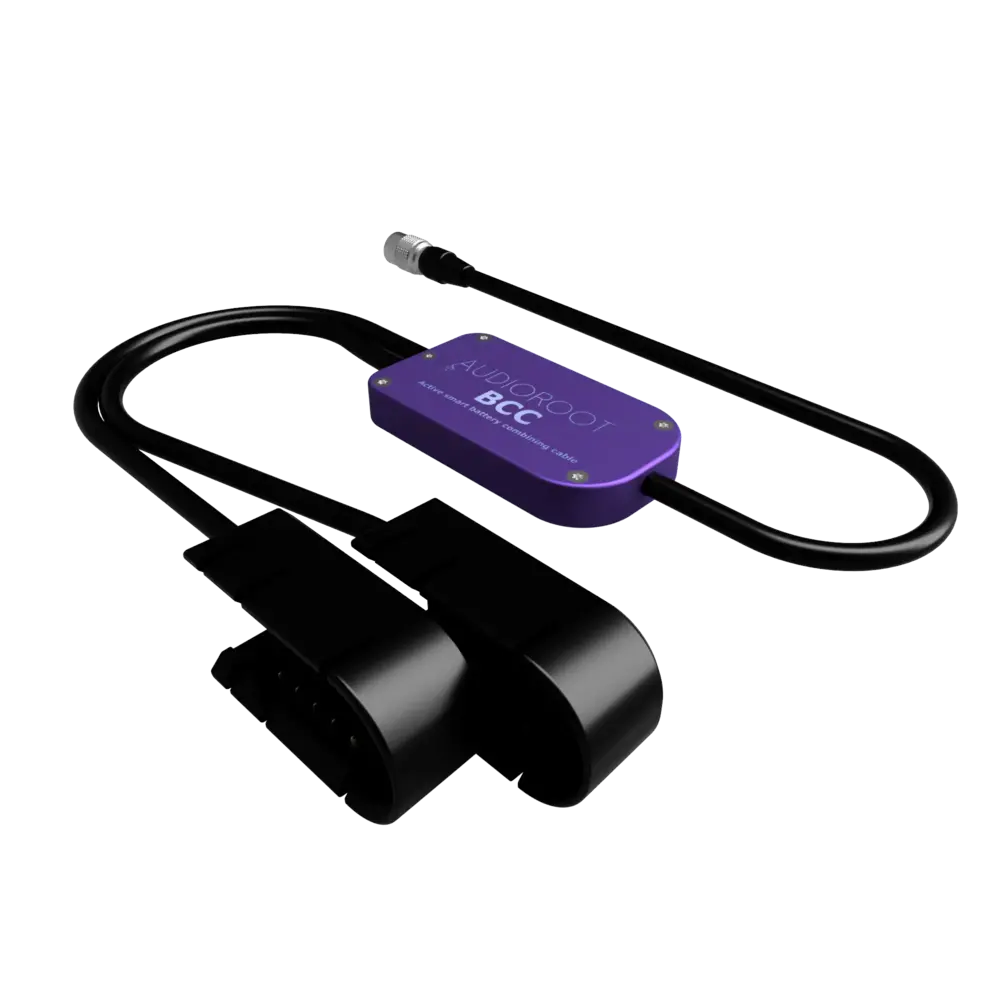

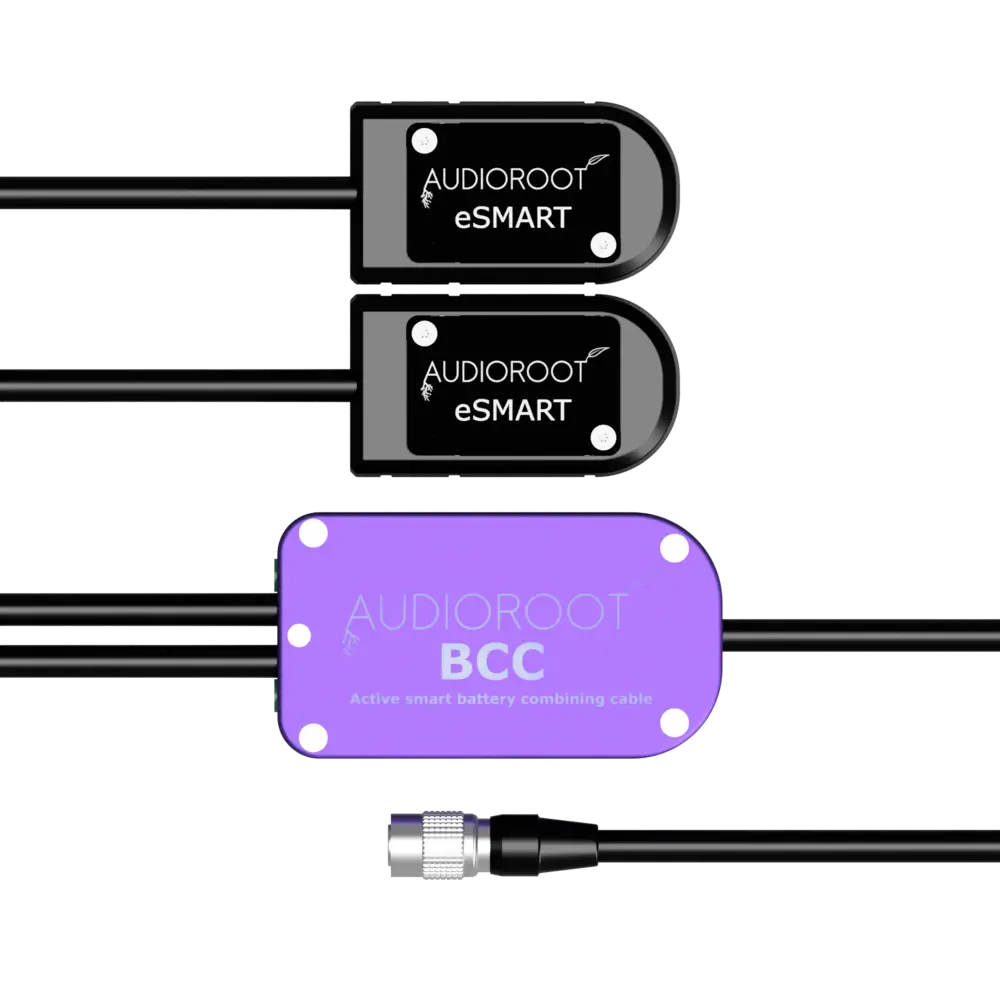

The BCC-CC-H is a power combining cable with two battery cup inputs and one HRS4 output. Unlike the DYAD models, the BCC series supports telemetry, allowing battery status information to be transmitted. It is designed for redundant power or extended runtime in compact audio setups.
Main features
- Inputs: 2 × battery cup
- Output: HRS4
- Telemetry support
- For redundant power or extended runtime
- Robust cabling and connectors
Included
- 1 × BCC-CC-H power combining cable
Models and connections
Cup = battery connector. Inputs are listed on the left; columns show the output connector. Click a model number to view the product.
DYAD — 2 inputs, without telemetry
TRIAD — 3 inputs, without telemetry
| Inputs | HRS4 | TA4M | XLR4 | USB-C |
|---|---|---|---|---|
| 3 × cup | TRIAD-CCC-H | TRIAD-CCC-T | TRIAD-CCC-X | TRIAD-CCC-U |
| 2 × cup + TA4M | TRIAD-CCT-H | TRIAD-CCT-T | TRIAD-CCT-X | TRIAD-CCT-U |
| 2 × cup + USB-C | TRIAD-CCU-H | TRIAD-CCU-T | TRIAD-CCU-X | — |
BCC — 2 to 4 inputs, with telemetry
| Inputs | HRS4 | TA4F | XLR4F |
|---|---|---|---|
| 2 × cup | BCC-CC-H | BCC-CC-T | BCC-CC-X |
| 3 × cup | BCC-CCC-H | BCC-CCC-T | BCC-CCC-X |
| 2 × cup + TA4M | BCC-CCT-H | BCC-CCT-T | BCC-CCT-X |
| 2 × cup + USB-C | BCC-CCU-H | BCC-CCU-T | BCC-CCU-X |
| 4 × cup | BCC-CCCC-H | BCC-CCCC-T | BCC-CCCC-X |
| 3 × cup + TA4M | BCC-CCCT-H | BCC-CCCT-T | BCC-CCCT-X |
| 3 × cup + USB-C | BCC-CCCU-H | BCC-CCCU-T | BCC-CCCU-X |
| 2 × cup + TA4M + USB-C | BCC-CCTU-H | BCC-CCTU-T | BCC-CCTU-X |
Show more
Show less
Product specifications
- Article number
- AROPowPOWE10506
- SKU
- BCC-CC-H
- EAN
- 3760013432607
