AudioRoot DYAD-CU-X
Product description
AudioRoot DYAD-CU-X The DYAD-CU-X is a passive power combiner with one battery cup and one USB-C as inputs and one XLR4 output. Designed for redundant power supply or extended runtime on compact audio setups; no telemetry. Main Features Inputs: 1 × battery cup, 1 × USB-C Output: XLR4 Passive combining (no telemetry) For redundant or extended po...

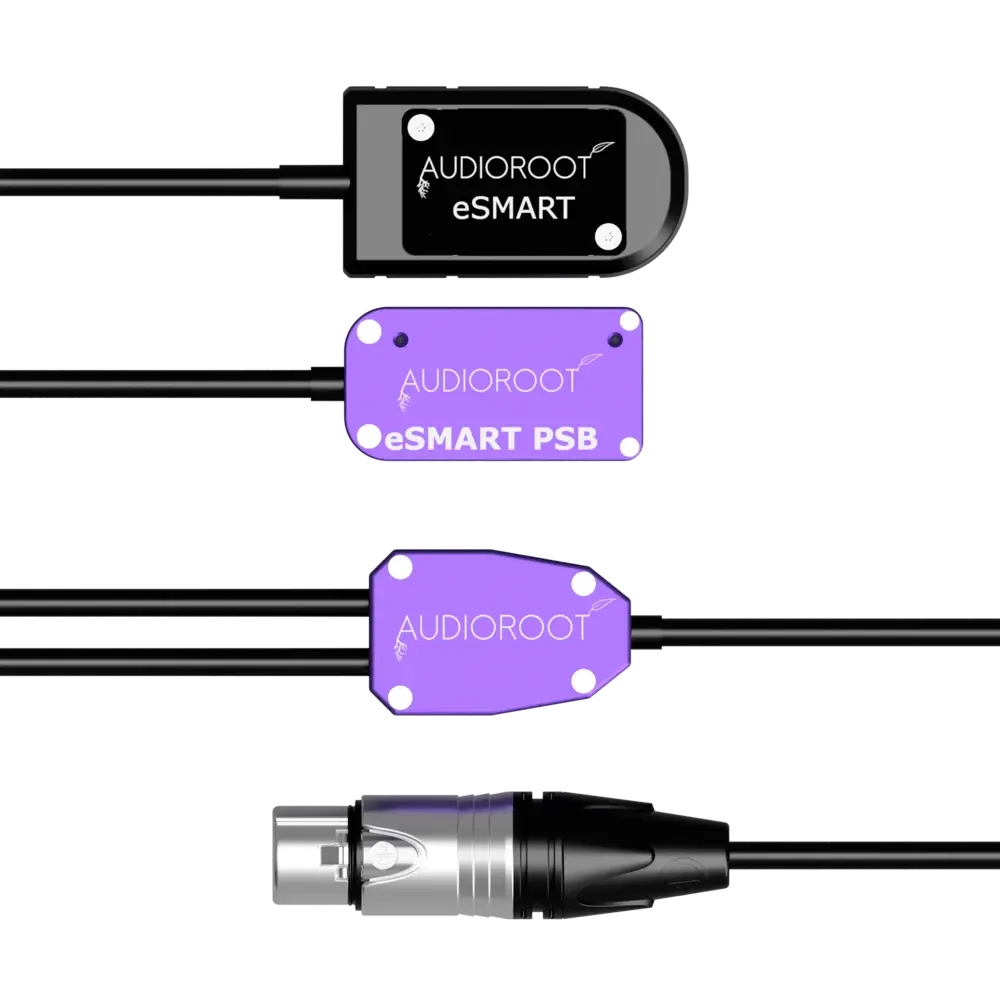

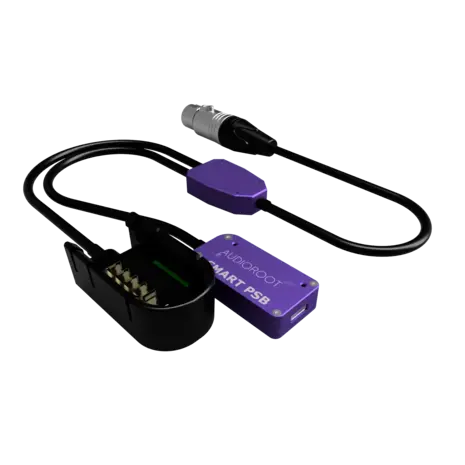

AudioRoot DYAD-CU-X
The DYAD-CU-X is a passive power combiner with one battery cup and one USB-C as inputs and one XLR4 output. Designed for redundant power supply or extended runtime on compact audio setups; no telemetry.
Main Features
- Inputs: 1 × battery cup, 1 × USB-C
- Output: XLR4
- Passive combining (no telemetry)
- For redundant or extended power
- Durable cabling and connectors
Included
- 1 × DYAD-CU-X power combining cable
Models and connections
Cup = battery connector. Inputs are listed on the left; columns show the output connector. Click a model number to view the product.
DYAD — 2 inputs, without telemetry
TRIAD — 3 inputs, without telemetry
| Inputs | HRS4 | TA4M | XLR4 | USB-C |
|---|---|---|---|---|
| 3 × cup | TRIAD-CCC-H | TRIAD-CCC-T | TRIAD-CCC-X | TRIAD-CCC-U |
| 2 × cup + TA4M | TRIAD-CCT-H | TRIAD-CCT-T | TRIAD-CCT-X | TRIAD-CCT-U |
| 2 × cup + USB-C | TRIAD-CCU-H | TRIAD-CCU-T | TRIAD-CCU-X | — |
BCC — 2 to 4 inputs, with telemetry
| Inputs | HRS4 | TA4F | XLR4F |
|---|---|---|---|
| 2 × cup | BCC-CC-H | BCC-CC-T | BCC-CC-X |
| 3 × cup | BCC-CCC-H | BCC-CCC-T | BCC-CCC-X |
| 2 × cup + TA4M | BCC-CCT-H | BCC-CCT-T | BCC-CCT-X |
| 2 × cup + USB-C | BCC-CCU-H | BCC-CCU-T | BCC-CCU-X |
| 4 × cup | BCC-CCCC-H | BCC-CCCC-T | BCC-CCCC-X |
| 3 × cup + TA4M | BCC-CCCT-H | BCC-CCCT-T | BCC-CCCT-X |
| 3 × cup + USB-C | BCC-CCCU-H | BCC-CCCU-T | BCC-CCCU-X |
| 2 × cup + TA4M + USB-C | BCC-CCTU-H | BCC-CCTU-T | BCC-CCTU-X |
Show more
Show less
Product specifications
- Article number
- AROPowPOWE10492
- SKU
- DYAD-CU-X
- EAN
- 3760013432744
