AudioRoot eSMART BH2-D-T

AudioRoot eSMART BH2-D-T

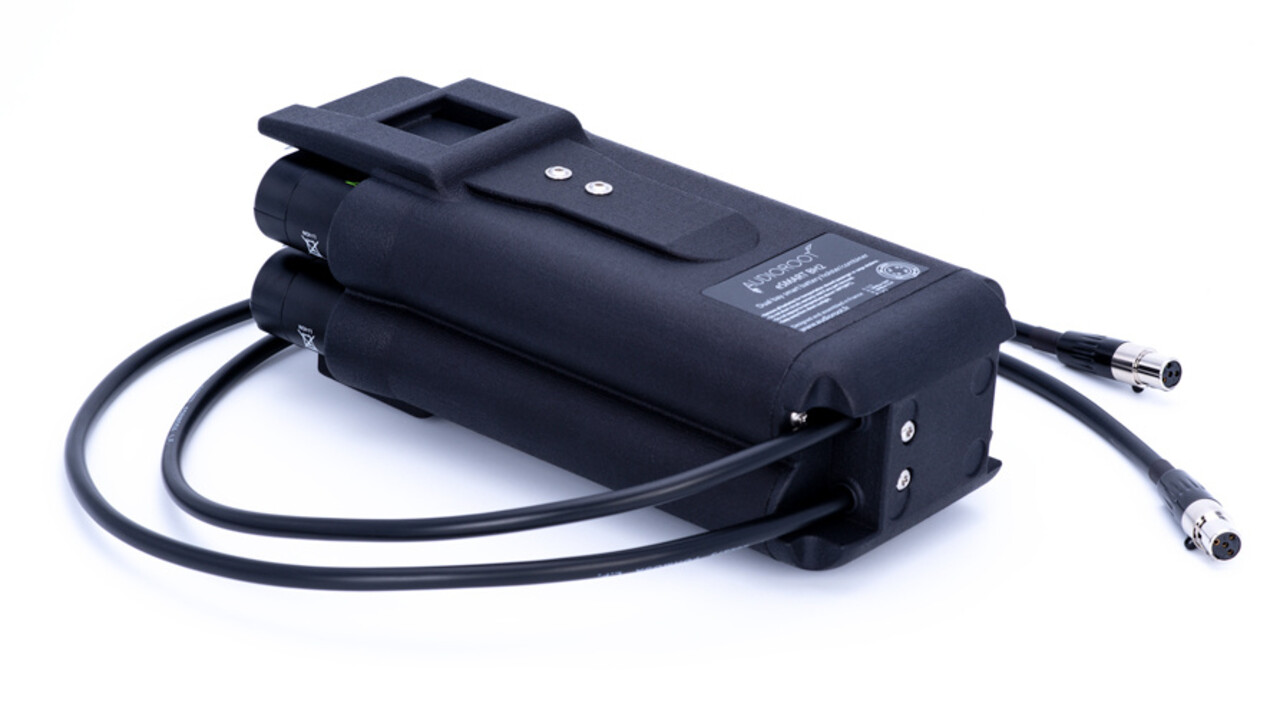

The AudioRoot eSMART BH2-D-T is a dual battery holder with two independent TA4F output cables. Each battery has its own four-conductor connection for power and SMBus telemetry, keeping both batteries separately available to a compatible power system.

The D-TAP output combines battery power. Spring locks secure the batteries, and the belt clip can be mounted on either side of the holder.

Main Features

• Two positions for long eSMART batteries.
• Two independent TA4F power and telemetry cables.
• Combined-power D-TAP output.
• Individual spring locks and included belt clip.

Specifications

• Battery format: long 4S2P eSMART batteries.
• Output cables: 2 × TA4F, four conductors.
• Cable length: 60 cm each.
• Dimensions: 71 × 90 × 193 mm.
• Weight without batteries: 250 g.

Compatibility and Versions

For the eSMART Li-96neo and eSMART Li-98Wh. AudioRoot lists this version for use with the eSMART TRIO.

The eSMART BH2-D-H has two Hirose cables. The eSMART BH2-C-T combines power and telemetry into one TA4F cable.

Included

• 1 × eSMART BH2-D-T battery holder with two output cables.
• Belt clip.

Batteries not included.
