AudioRoot eTA4F-HRS4-4W

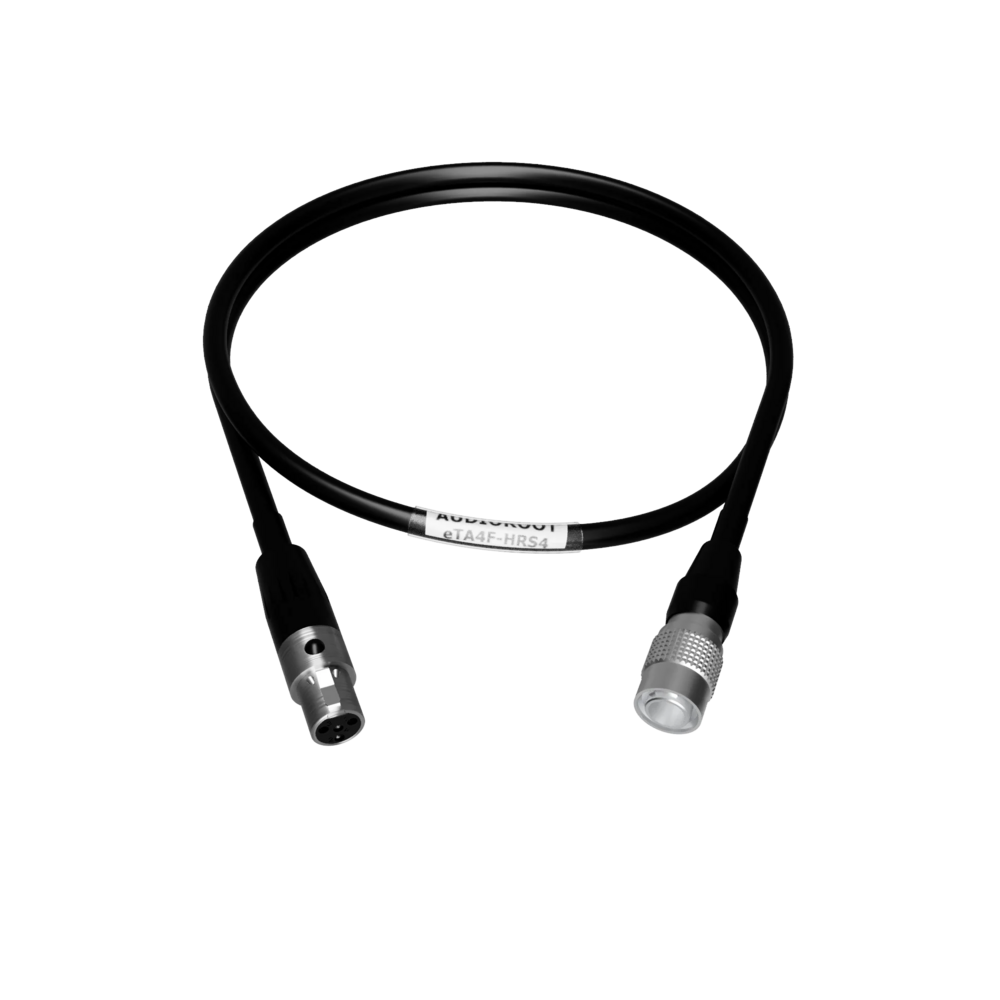

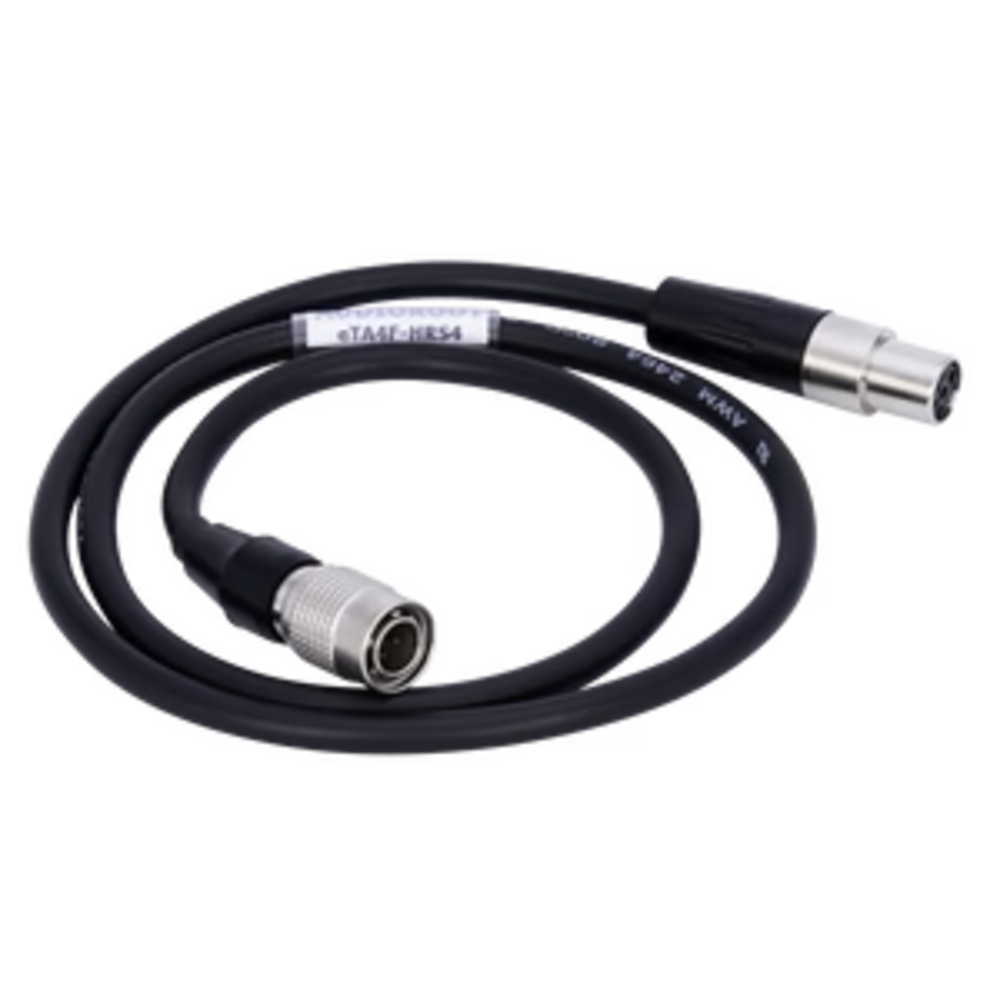

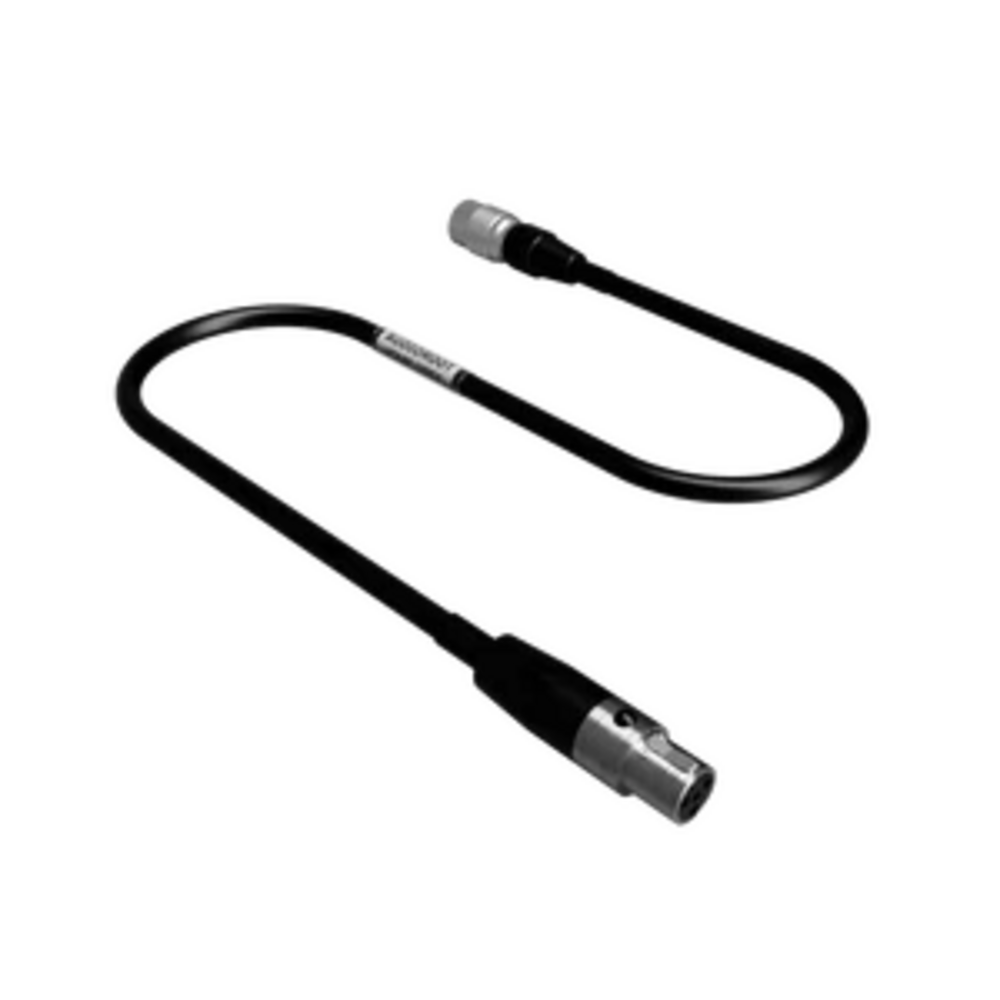

AudioRoot eTA4F-HRS4-4W Y-Output Cable

The AudioRoot eTA4F-HRS4-4W is a Y-output cable designed for use with eSMART batteries. This cable allows a single eSMART battery to be connected simultaneously to an SMBus-compatible device with a TA4F input (such as the Sound Devices Scorpio, 888, or 833) and a standard device with a 4-pin Hirose power input.

Key Features:

• Connector 1: TA4F with 4 conductors
• Connector 2: HRS4 with 2 conductors
• Cable Length: 60 cm (other lengths available on request)

Pinout Configuration:

• TA4F:
  • Pin 1: BATT (-)
  • Pin 2: SMBus data
  • Pin 3: SMBus clock
  • Pin 4: BATT (+)
• HRS4:
  • Pin 1: BATT (-)
  • Pin 2: Not connected
  • Pin 3: Not connected
  • Pin 4: BATT (+)

This cable provides an efficient solution for powering multiple devices from a single eSMART battery and is ideal for field applications.
