AudioRoot FEMTO

AudioRoot FEMTO

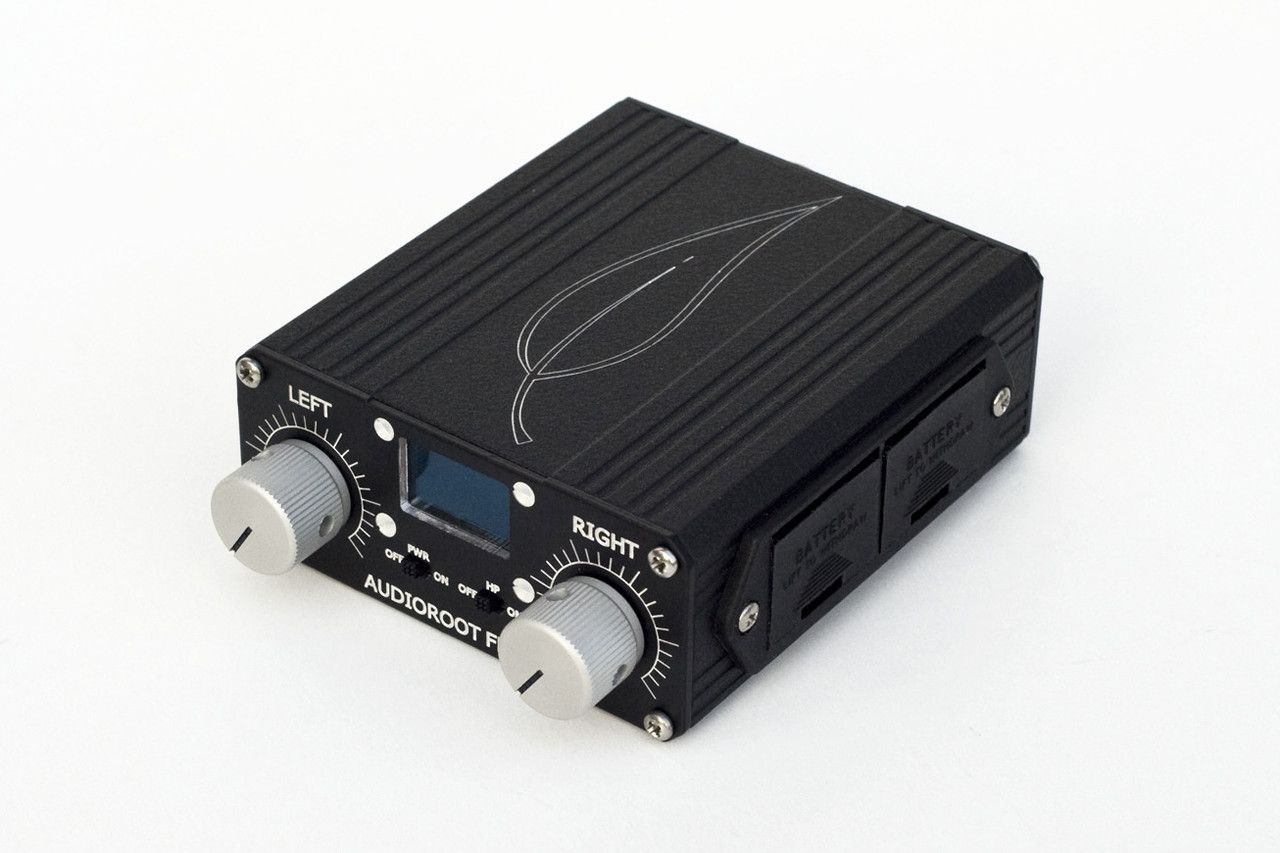

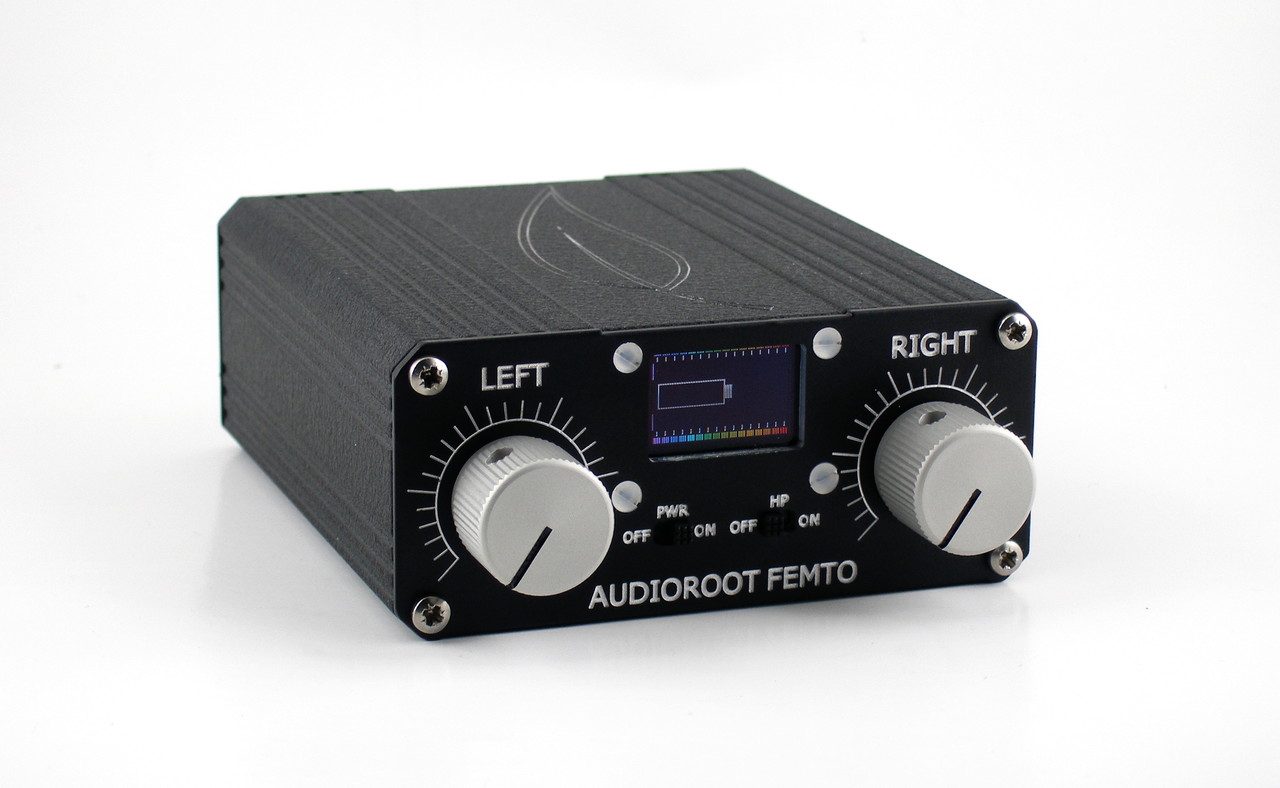

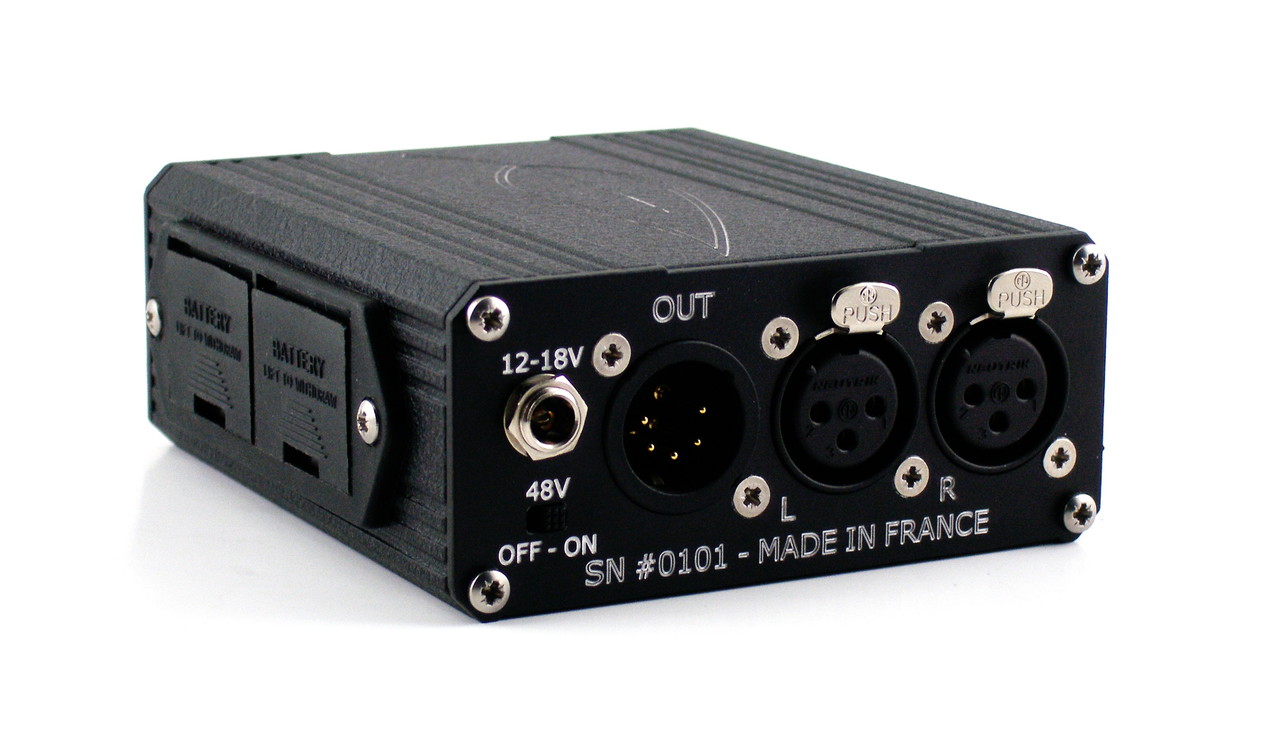

The AudioRoot FEMTO is a portable two-channel microphone preamplifier for location recording. It provides two electronically balanced XLR3 microphone inputs, 48V phantom power and a balanced stereo output through XLR5.

Each channel has an independent gain control covering +10 to +64 dB. The OLED screen displays audio levels and battery status. A high-pass filter reduces low-frequency signals below 80 Hz.

Main Features

• Two microphone channels with independent gain controls.
• 48V phantom power for condenser microphones.
• 80Hz high-pass filter with a 12 dB per octave slope.
• OLED display for audio levels and battery information.
• Balanced line output through XLR5M.
• Powder-coated aluminium housing with engraved markings.

Power

The FEMTO runs on two 9V batteries or an external 12–18V supply. Connecting external power automatically disconnects the internal batteries. AudioRoot specifies approximately six hours of battery operation with two Schoeps CMC64Ug microphones.

The standard version has a Hirose power connection. The FEMTO-PSU is available separately for this version.

Specifications

• Input impedance: >5 kΩ.
• Gain range: +10 to +64 dB.
• Distortion: 0.002% below 40 dB gain; 0.006% at 60 dB gain.
• Equivalent input noise: −129.2 dBu at maximum gain with a 200Ω source impedance.
• Bandwidth: 15 Hz–20 kHz, ±3 dB.
• Maximum output level: +18 dBu with a 600Ω load and 16V supply.
• Dimensions: 95 × 129 × 42 mm.
• Weight without batteries: 327 g.

Included

• AudioRoot FEMTO microphone preamplifier.
• Balanced XLR5 to 2 × TA3F output cable.

The external mains power supply is available separately.

FEMTO and uPRE MKII

The FEMTO provides a balanced analogue output. The uPRE MKII adds digital output options, stereo linking and M/S decoding.
