Betso TCX-2N

Betso TCX-2N [TCX-2N]

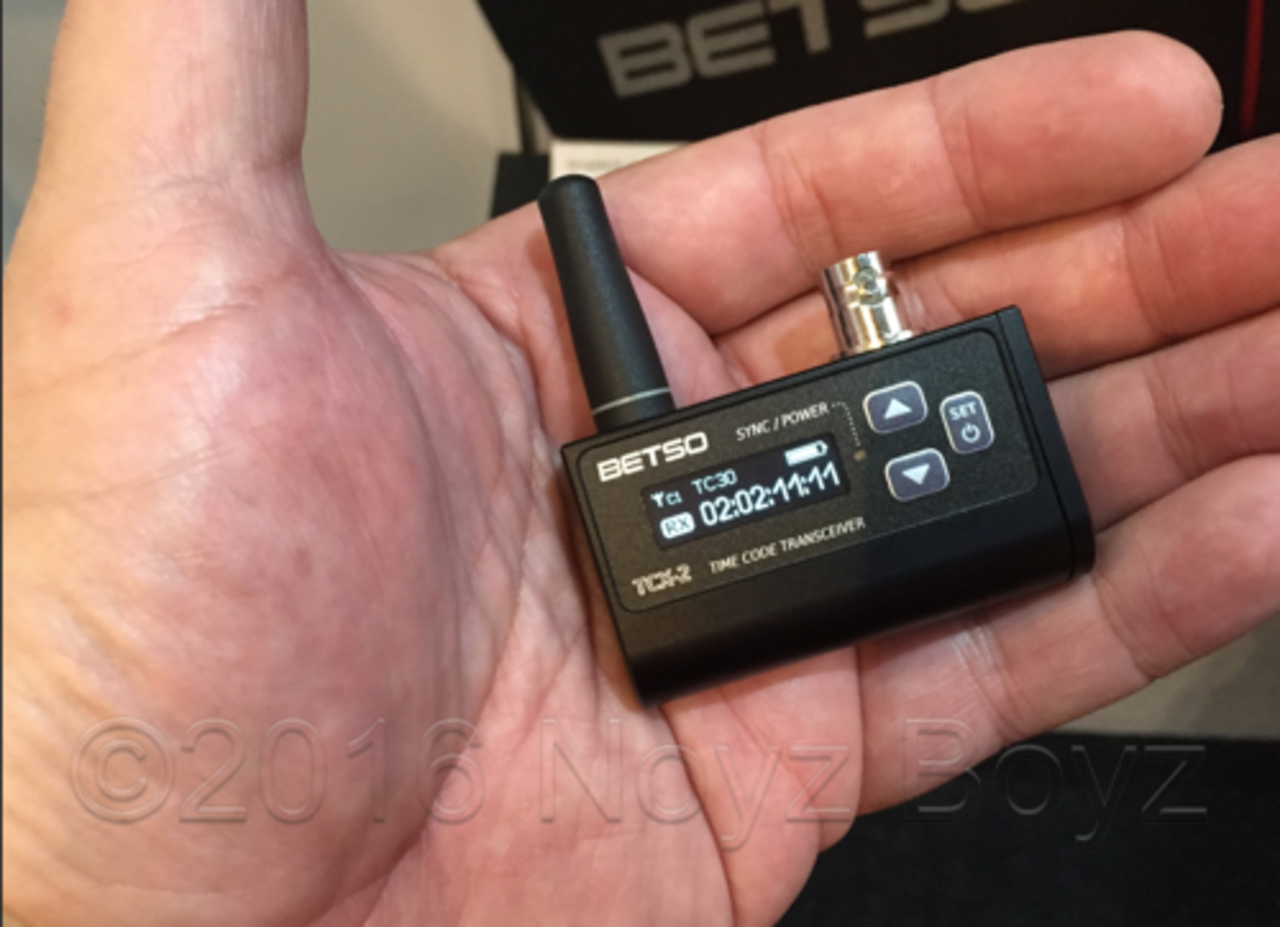

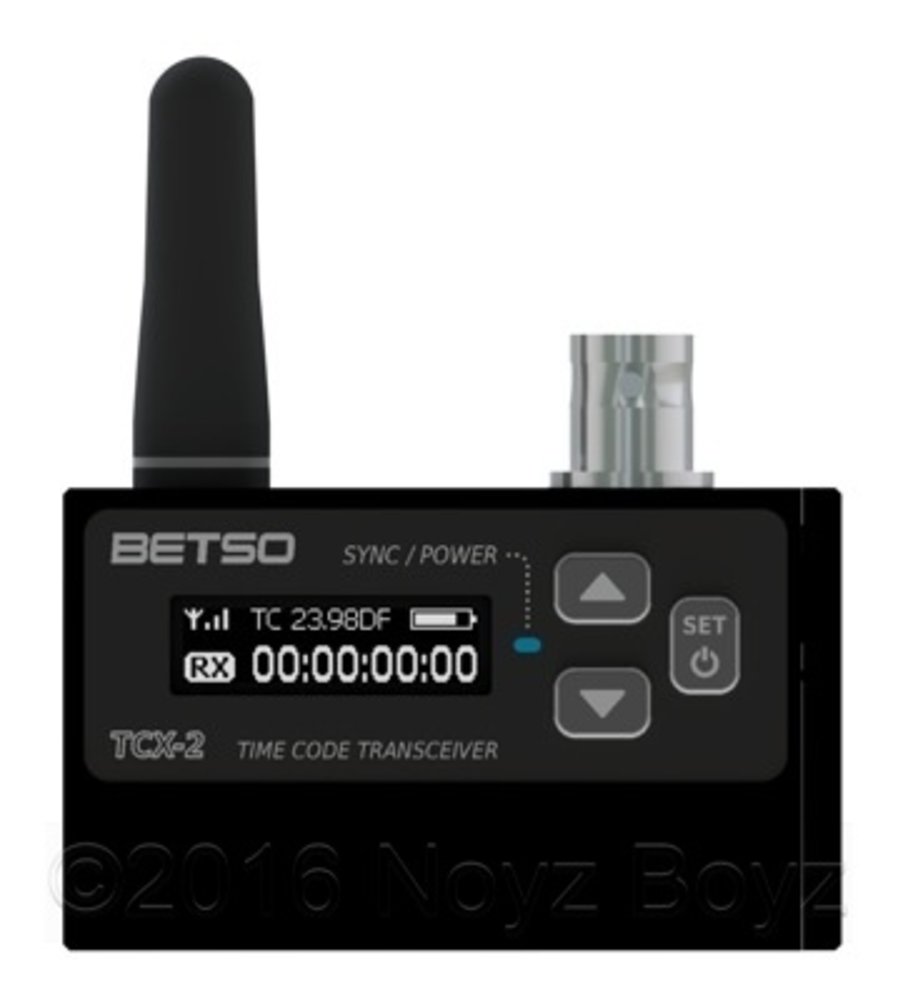

The Betso TCX-2N is an ultra-compact timecode transceiver and generator for workflows where multiple devices must remain precisely synchronized. It supports SMPTE timecode input/output, can be jammed and used as a standalone generator, and distributes timecode and device status wirelessly within a Betso RF network.

Main Features

• Timecode transceiver and generator with SMPTE timecode receive, transmit, and jamming.
• RF transmission for continuous wireless jamming and network device status information.
• Operating range up to 500 m (line of sight); frequency-hopping spread spectrum for robust RF performance.
• If RF range is lost, the unit continues generating synchronized timecode.
• Wide graphic OLED display with adjustable brightness and low power consumption.
• BNC connector for timecode input/output.
• Internal temperature compensated oscillator (TCXO) for stable timecode.
• USB-C connector for external power (5–20 V DC) and firmware upgrades.
• Status and power monitoring for other Betso network devices.
• Nearly fully sealed CNC-milled, anodized aluminium housing.

Specifications

• Display: graphic OLED display with adjustable brightness.
• Dimensions (h × w × d): 59 × 35 × 16 mm.
• Weight (without AA cell): approx. 45 g.
• Powering: 1× AA cell (alkaline or lithium) or 1× AA rechargeable (NiMH, NiCd); USB-C 5–20 V DC.
• Current consumption: 50–100 mA (mode dependent).
• Battery life: up to 50 hours (lowest display brightness, RF off, alkaline cell).
• SMPTE TC formats: 23.976–30 fps incl. DF/NDF; also 0.5× and 2× (11.98–60 fps).
• Output TC amplitude: adjustable from −30 dBu to +6 dBu.
• Input TC sensitivity: 0.2–10 V (p-p).
• TCXO: temperature compensated oscillator (±0.1 ppm).
• Accuracy: <0.3 frames per 24 hours; with RF transmission 0 frames per 24 hours.
• RF frequency range: 902–928 MHz (USA/Canada); 863–870 MHz (Europe); 922.4–928.0 MHz (Japan).
• Number of RF channels: 5.
• RF output power: 10 mW (10 dBm).
• Operating range: up to 500 m (line of sight).

Included

• Betso TCX-2N [TCX-2N].
