    BSRF FA-1

    Product description
    BSRF FA-1 Filtered Amplifier The BSRF FA-1 combines a bandpass filter with an inline RF amplifier. Filtering reduces out-of-band signals before amplification, while selectable gain compensates for coaxial cable loss. Main Features Three gain settings: +6, +9 and +12 dB. Bypass setting: filtering without amplification. Fail-safe operation: the pass...

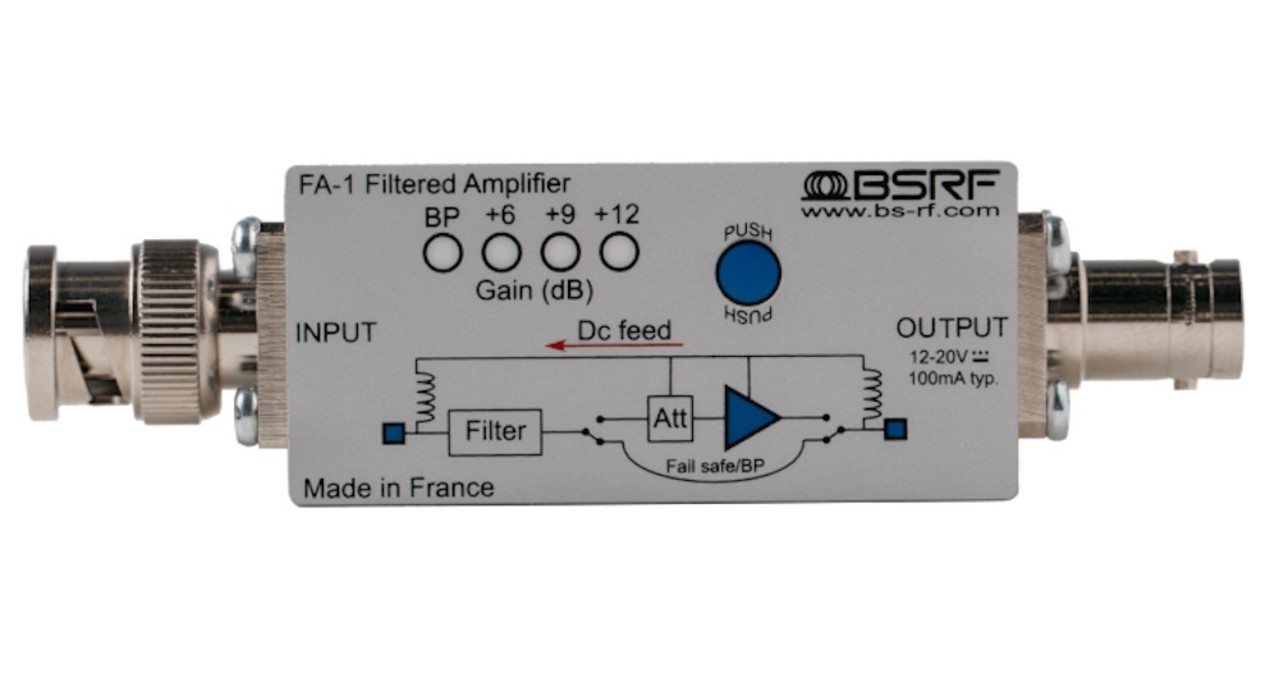

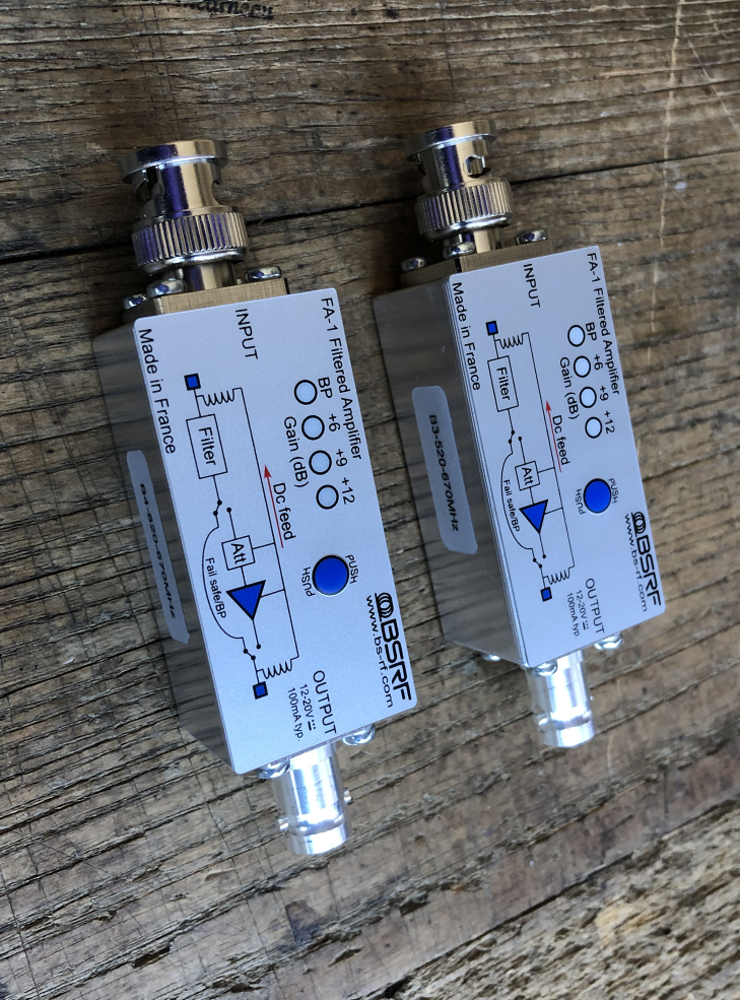

    BSRF FA-1 Filtered Amplifier

    The BSRF FA-1 combines a bandpass filter with an inline RF amplifier. Filtering reduces out-of-band signals before amplification, while selectable gain compensates for coaxial cable loss.

    Main Features

    • Three gain settings: +6, +9 and +12 dB.
    • Bypass setting: filtering without amplification.
    • Fail-safe operation: the passive filter path remains available if power is lost.
    • Coaxial powering and DC pass-through for active antennas.

    Frequency versions

    Available with a fixed filter for 470–520, 520–570, 570–620 or 620–670 MHz, specified at −3 dB. These are separate versions, not switchable bands. Specify the required band when ordering. Custom filters are available on request.

    Specifications

    • RF input and output: BNC, 50 Ω.
    • DC-feed supply: 10–18 V; typical consumption 100 mA.
    • DC pass-through: 200 mA maximum.
    • Passive insertion loss: typically 2 dB, depending on filter bandwidth.
    • Dimensions including connectors: 94 × 20 × 24 mm.
    • Weight: 100 g.

    Compatibility

    For passive and active antennas. Power the FA-1 from a suitable receiver with DC feed or an antenna splitter such as the BSRF AS-122. Match the filter band to the transmitter frequencies in use.

    Included

    • BSRF FA-1 with BNC connections, in the ordered frequency version.

    Product specifications

    Article number
    BSRRF-FA-17804
    SKU
    FA-1
