Cinela E-OSIX-CMC1-H

Cinela E-OSIX-CMC1-H Microphone Suspension [E-OSIX-CMC1-H]

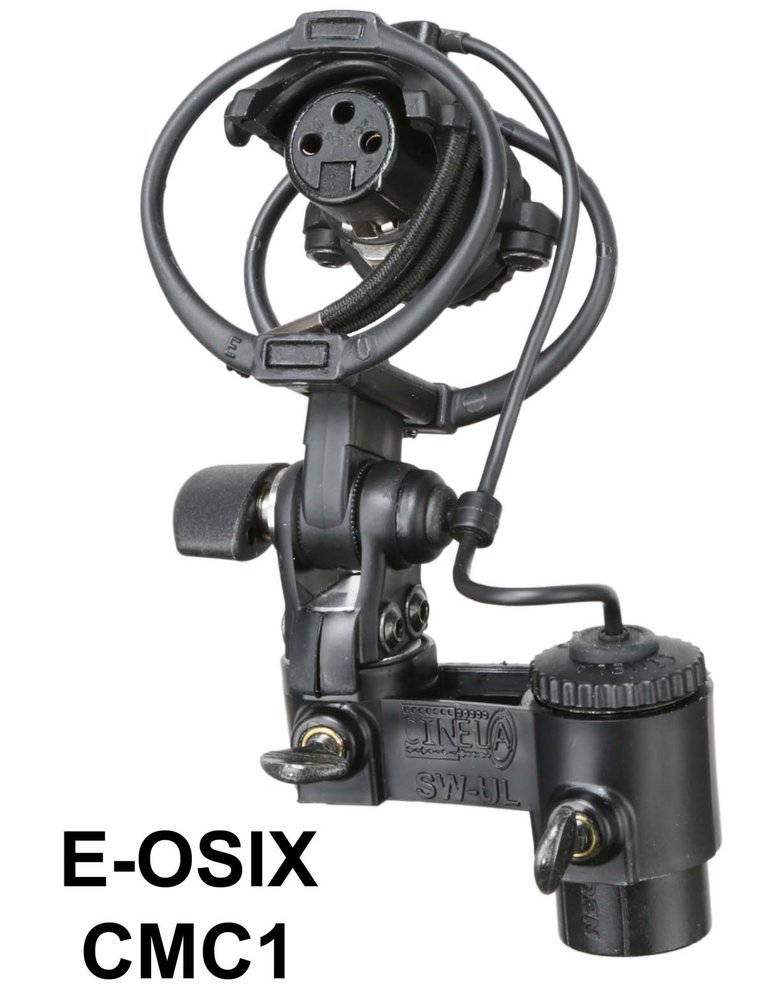

The Cinela E-OSIX-CMC1-H is an elastic microphone suspension for the Schoeps CMC 1 U with an MK capsule. The HARD version features firmer elliptical isolators and is suitable for the heavier combination with a CUT 60 filter.

The isolators mechanically decouple the microphone from the boom pole or microphone stand. They reduce the transmission of vibration and handling noise when holding, moving and positioning the microphone. The swivel allows the microphone angle to be adjusted and locked in place.

Main features

• Specifically designed for the Schoeps CMC 1 U with an MK capsule
• HARD isolators support a greater load than the SOFT version

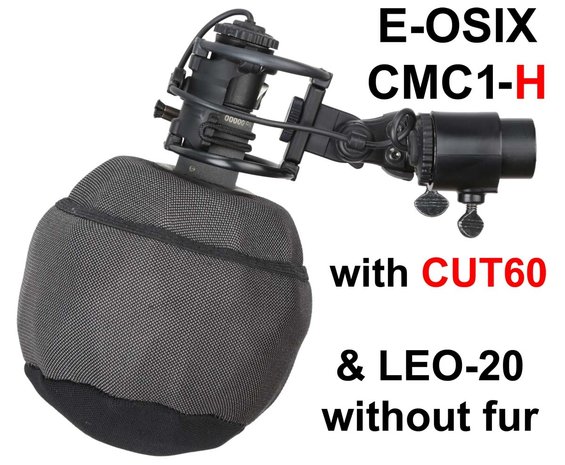

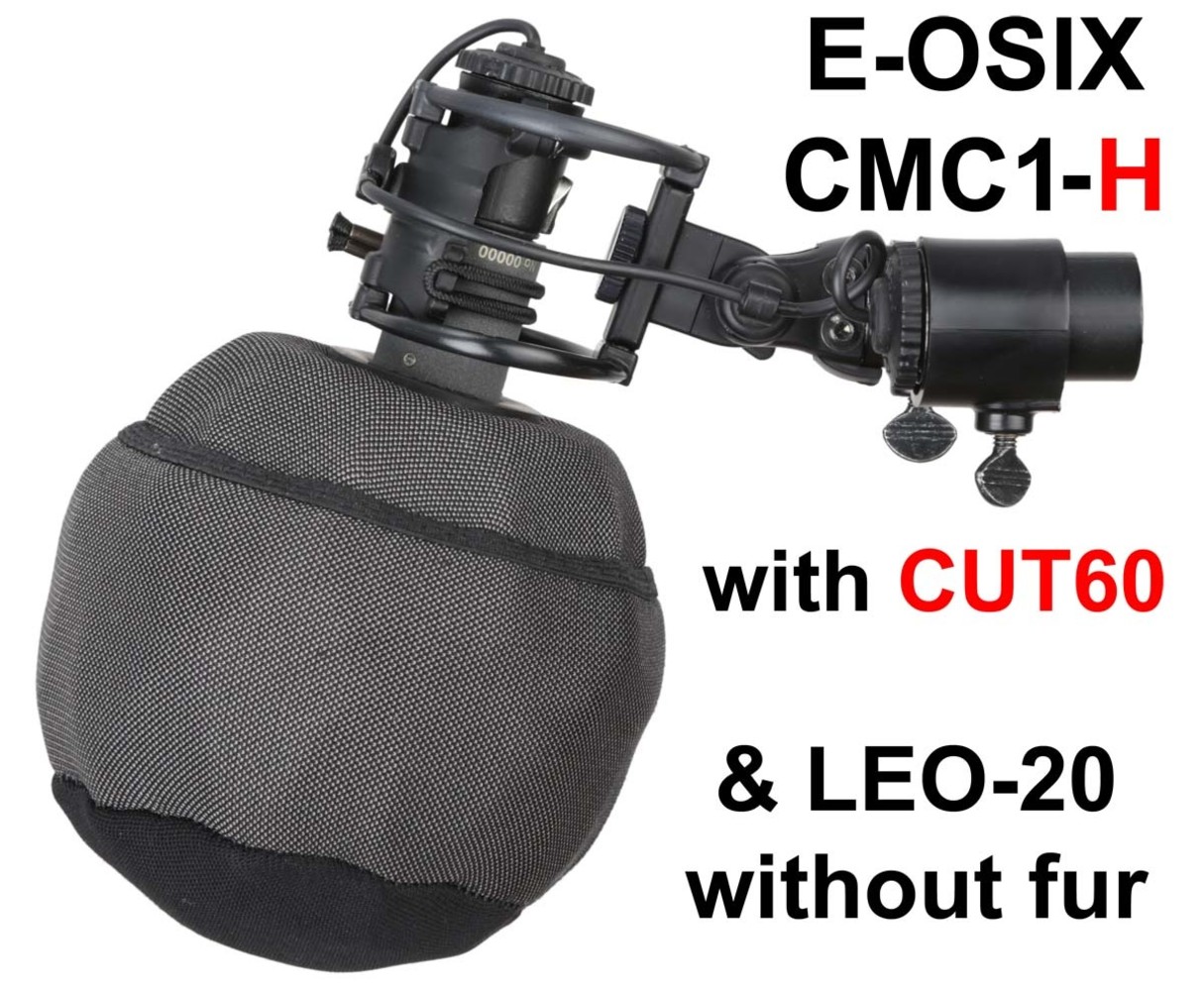

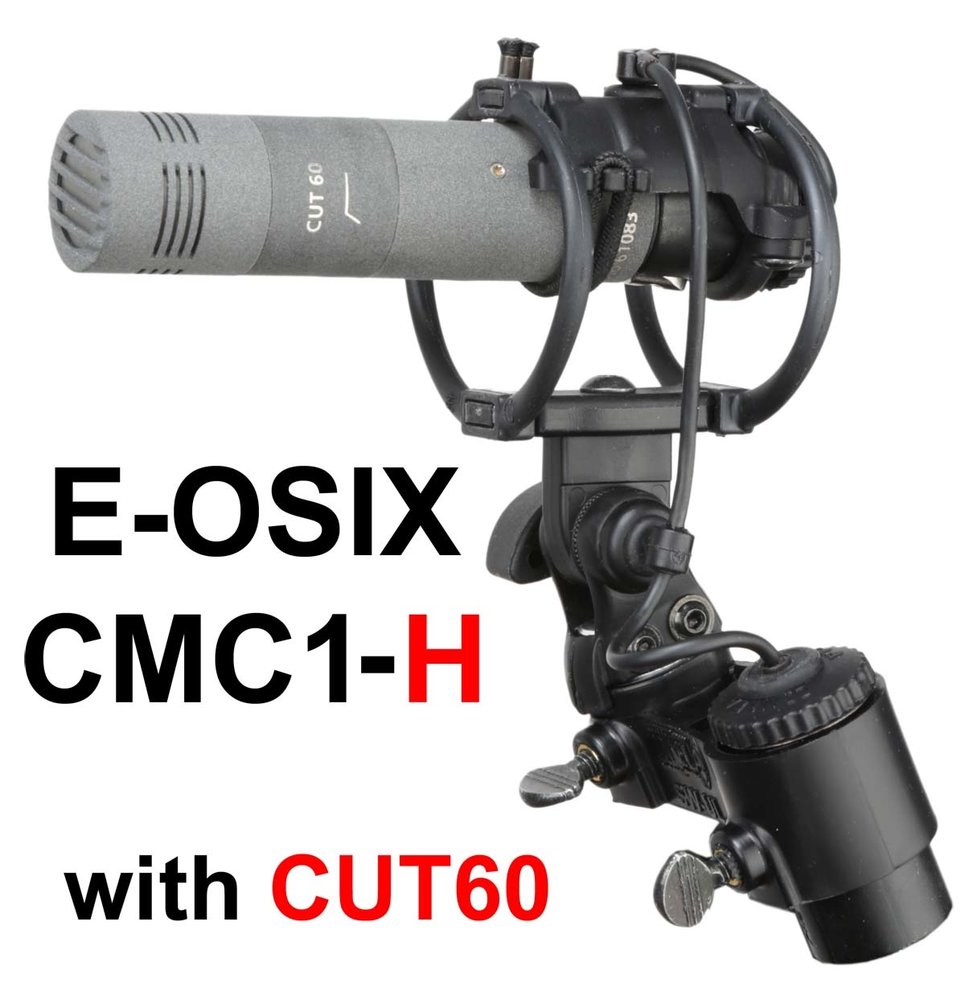

• Suitable for the combination with a CUT 60 filter
• Elliptical isolators for mechanical decoupling
• Reduces vibration and handling noise transmitted through the boom pole or stand
• Modular construction with separate suspension module, cable and swivel
• Adjustable microphone angle with locking knob

Compatibility

Suitable for the Schoeps CMC 1 U microphone amplifier with an MK capsule, including the combination with a CUT 60 filter. The firmer HARD isolators support the additional load of this setup. For the lightweight combination without a CUT 60, the SOFT version E-OSIX-CMC1-S is available.

Specifications

• Type: elastic microphone suspension
• Version: HARD
• Isolators: elliptical
• Cinela configuration code: 10-1-00
• Microphone application: Schoeps CMC 1 U with an MK capsule, suitable for use with a CUT 60
• Mounting: boom pole or microphone stand

Included

• Cinela E-OSIX-CMC1-H suspension module with HARD isolators

Microphone amplifier, capsule and CUT 60 filter not included.
