Cinela E-OSIX-CMC1L-H

Cinela E-OSIX-CMC1L-H Microphone Suspension [E-OSIX-CMC1L-H]

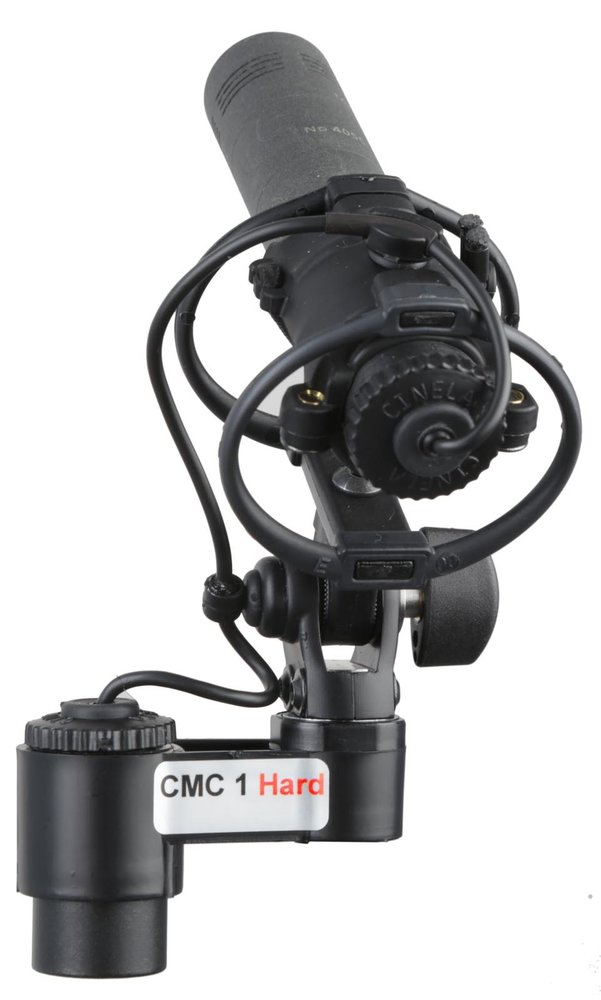

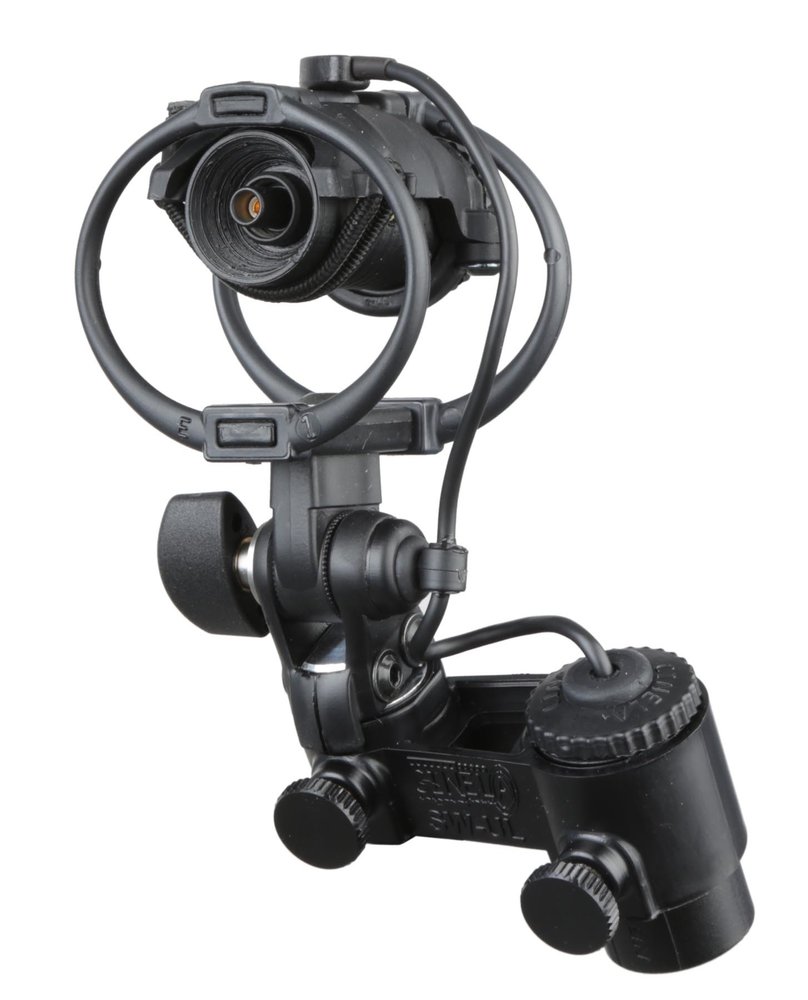

The Cinela E-OSIX-CMC1L-H is an elastic microphone suspension for the Schoeps CMC 1 L with an MK capsule. This version is configured for the microphone amplifier with a Lemo connection. The HARD isolators provide firmer support for a heavier microphone setup, for example with a CUT 60 filter.

The elliptical isolators mechanically decouple the microphone from the boom pole or microphone stand. They reduce the transmission of vibration and handling noise when holding, moving and positioning the microphone. The swivel allows the microphone angle to be adjusted and locked in place.

Main features

• Specifically designed for the Schoeps CMC 1 L with an MK capsule
• Configured for the CMC 1 L with a Lemo connection
• HARD isolators for firmer support under additional load
• Suitable for the combination with a CUT 60 filter
• Elliptical isolators for mechanical decoupling
• Reduces vibration and handling noise transmitted through the boom pole or stand
• Modular construction for maintenance and replacement of components
• Adjustable microphone angle with a locking swivel

Compatibility

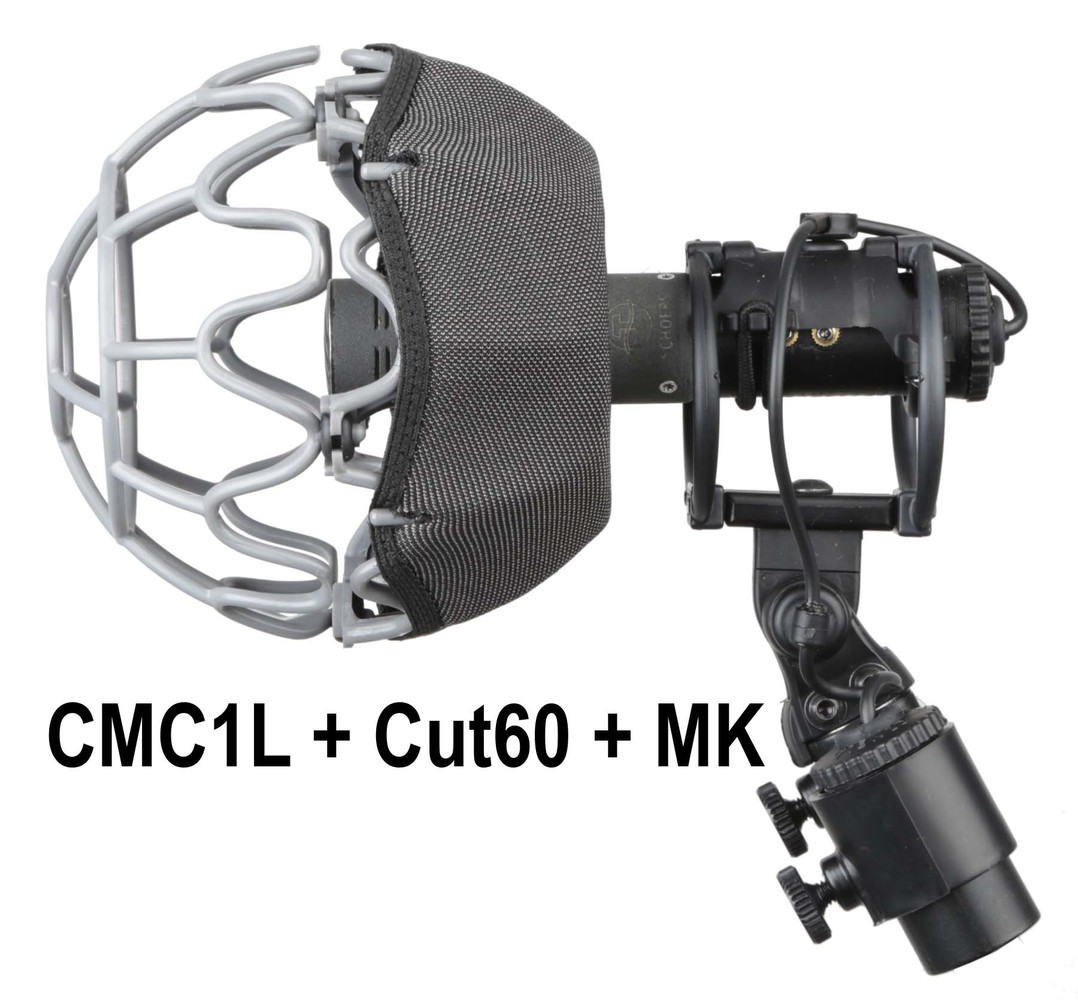

Suitable for the Schoeps CMC 1 L microphone amplifier with an MK capsule, including the combination with a CUT 60 filter. The HARD isolators are tuned to support the additional load of this setup.

Specifications

• Type: elastic microphone suspension
• Version: HARD
• Isolators: elliptical
• Cinela configuration code: 10-1-00
• Microphone application: Schoeps CMC 1 L with an MK capsule, suitable for use with a CUT 60
• Microphone connection: Lemo
• Mounting: boom pole or microphone stand

Included

• 1 × Cinela E-OSIX-CMC1L-H complete microphone suspension

Microphone amplifier, capsule and CUT 60 filter not included.
