Cinela PIANI-2-CMC-CMC

Cinela PIANI-2-CMC-CMC Windshield System

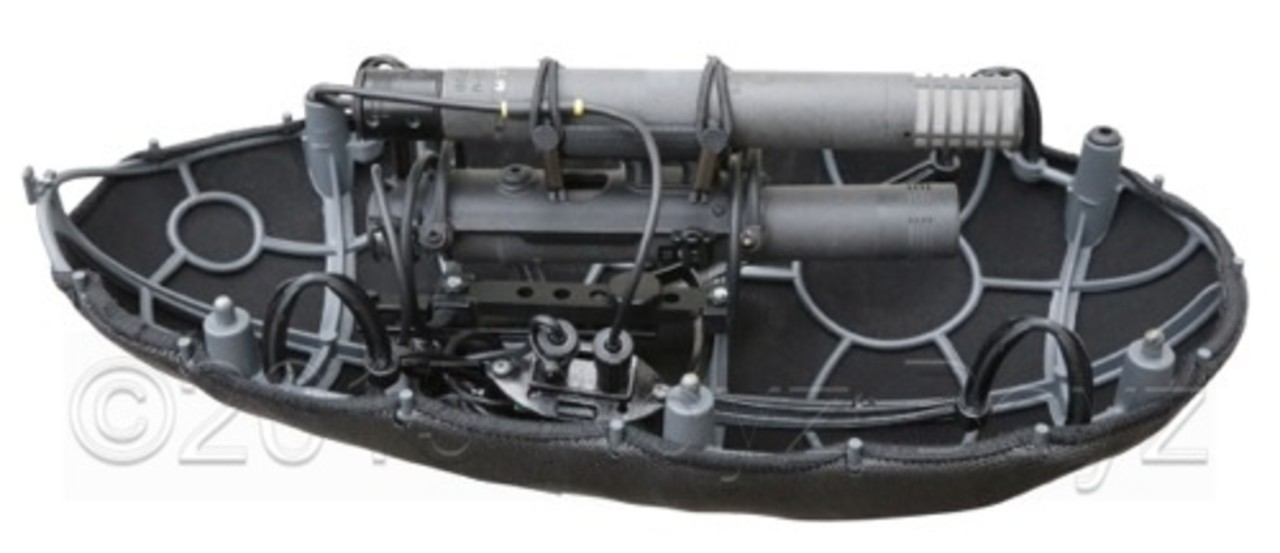

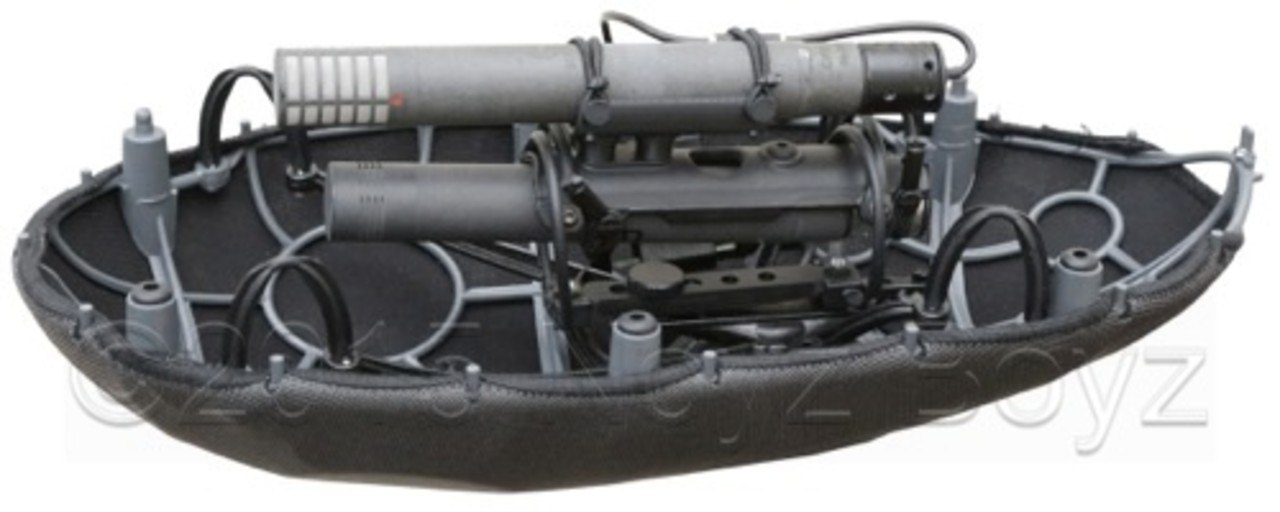

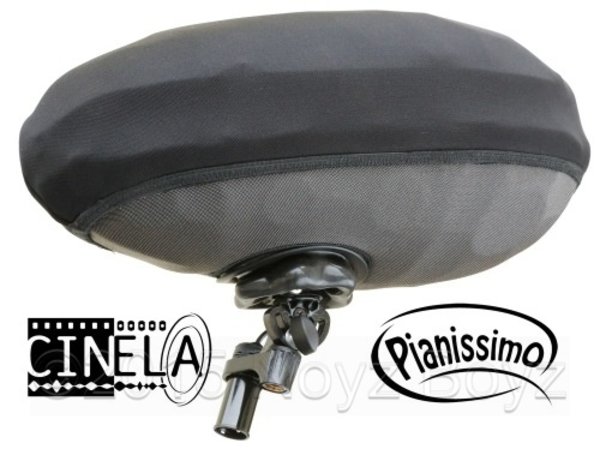

The Cinela PIANI-2-CMC-CMC is a PIANISSIMO windshield system for an MS stereo pair comprising two Schoeps CMC 6 microphone amplifiers. An MK 4 or MK 41 provides the mid channel, while an MK 8 on the second amplifier provides the figure-eight side channel.

The internal suspension reduces transmitted handling noise. The elastically suspended basket, primary 3D fabric and synthetic fur windshield provide wind protection. Both microphone signals remain separately available through a single XLR5M output for MS decoding.

Main features

• Internal suspension adapted to an MS pair with two CMC 6 amplifiers.
• Integrated wiring for the mid and side channels.
• Primary 3D fabric and synthetic fur windshield.
• 5-pin XLR output carrying two separate microphone channels.

Compatibility

• Mid channel: Schoeps CMC 6 with MK 4 or MK 41.
• Side channel: Schoeps CMC 6 with MK 8.

Specify the complete microphone combination when ordering so that the suspension and wiring can be matched to it.

Specifications

• Model: PIANI-2-CMC-CMC.
• Product series: PIANISSIMO.
• Configuration: MS stereo, two microphone channels.
• Microphone connections: 3-pin XLR female.
• Output: 5-pin XLR male.

Included

• 1 × complete PIANISSIMO windshield system with suitable MS suspension, internal wiring and 3D fabric.
• 1 × synthetic fur windshield; version and color as ordered.
• 1 × polycarbonate protective transport shell.

Microphone amplifiers, capsules, external extension cable and breakout cable not included.
