Denecke JB-1

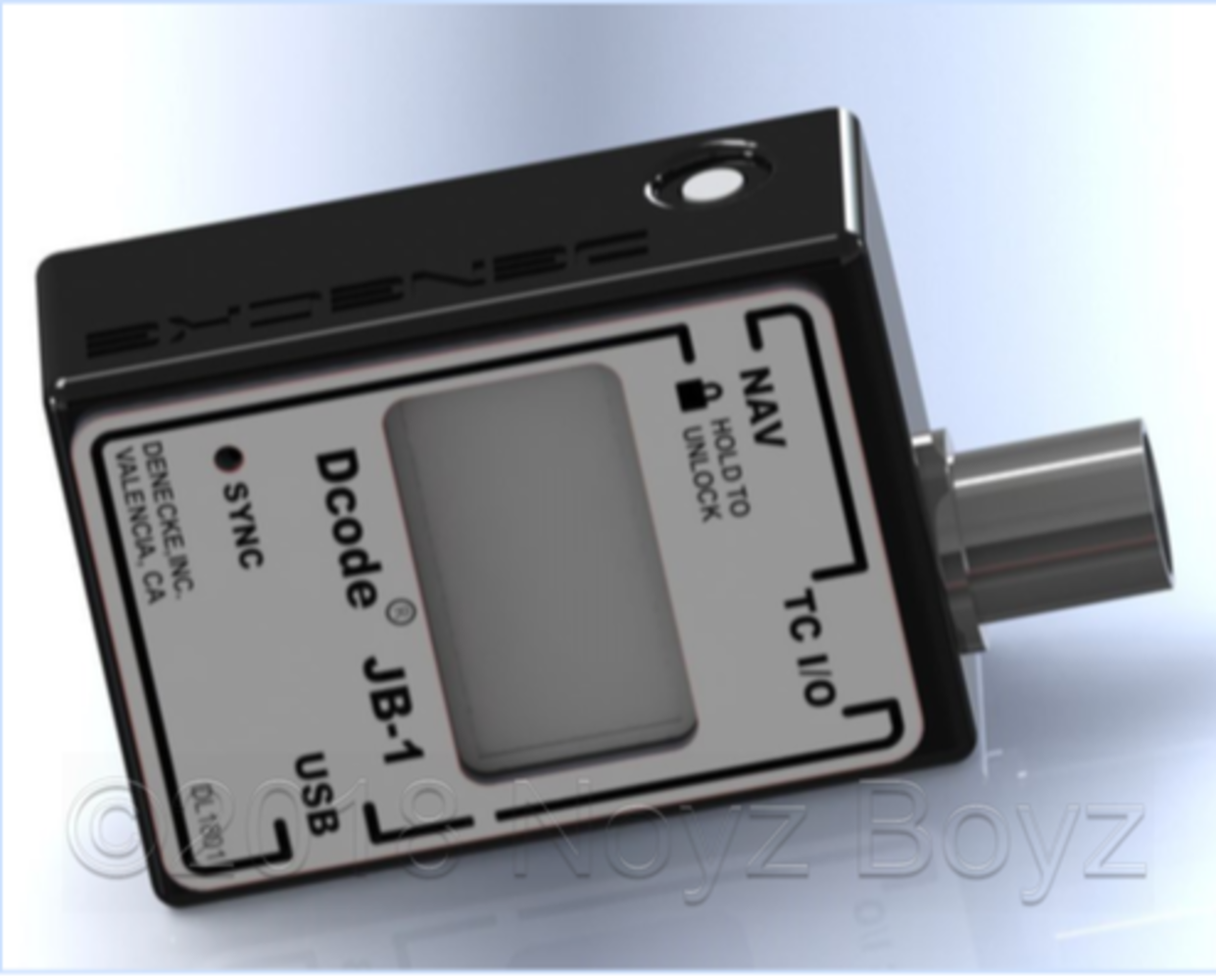

Denecke Inc, the inventors of high stability time code systems, releases a new compact syncbox, the JB-1. The Dcode® JB-1 is a compact timecode generator measuring 5 x 3.5 x 1.65 cm and weighing just 57 grams! It features a display and menu system, which allows for ease of use and display of timecode and settings. It runs on a user-replaceable internal LiPo battery cell with a run time of approximately 150 hours (12 hours with back light continuously on). It reads, generates, and jam syncs to all standard frame rates including 23.976 for high definition shoots. The JB-1 features an automatic jam sync capability, which senses the incoming timecode rate. Cross jamming of different rates can be accomplished as well. The advanced Temperature Compensated Crystal Oscillator (TCXO) has ten times the frequency stability than previous products, eliminating the need to jam more than once per day.

FEATURES

• Generates and Jam Syncs to all common SMPTE Timecode frame rates.
• Cross jams regardless of incoming frame rates.
• Sunlight-readable display with backlight.
• Bidirectional BNC.
• Selectable TC output levels (6 preset, 2 user), eliminating the need for external output reduction pads.
• Runs on a user-replaceable internal LiPo battery cell.
• Simple to set up. Reprogrammable for new features and updates, via both Mac and Windows computers.
• Very high stability crystal ensures low drift.
• Compact aluminum housing.

SPECIFICATIONS

• Input: -15dB @ 4.7K; BNC Connector
• Output: Six Preset and two User Programmable levels between 0.00V to 2.40V; BNC Connector
• Battery Power: Internal LiPo cell
• External Power: 5V, via Micro USB Connector
• TCXO Crystal: ± 0.1PPM @ -40° to +85°C
• Size: 1.84" (W) x 1.36" (H) x 0.63" (D) (46.7mm x 34.5mm x 15.9mm)
• Weight: 2 oz. (56.7g.)
• Battery Life: Approx. 150 Hours (12 Hours with Back Light Continuously ON)
