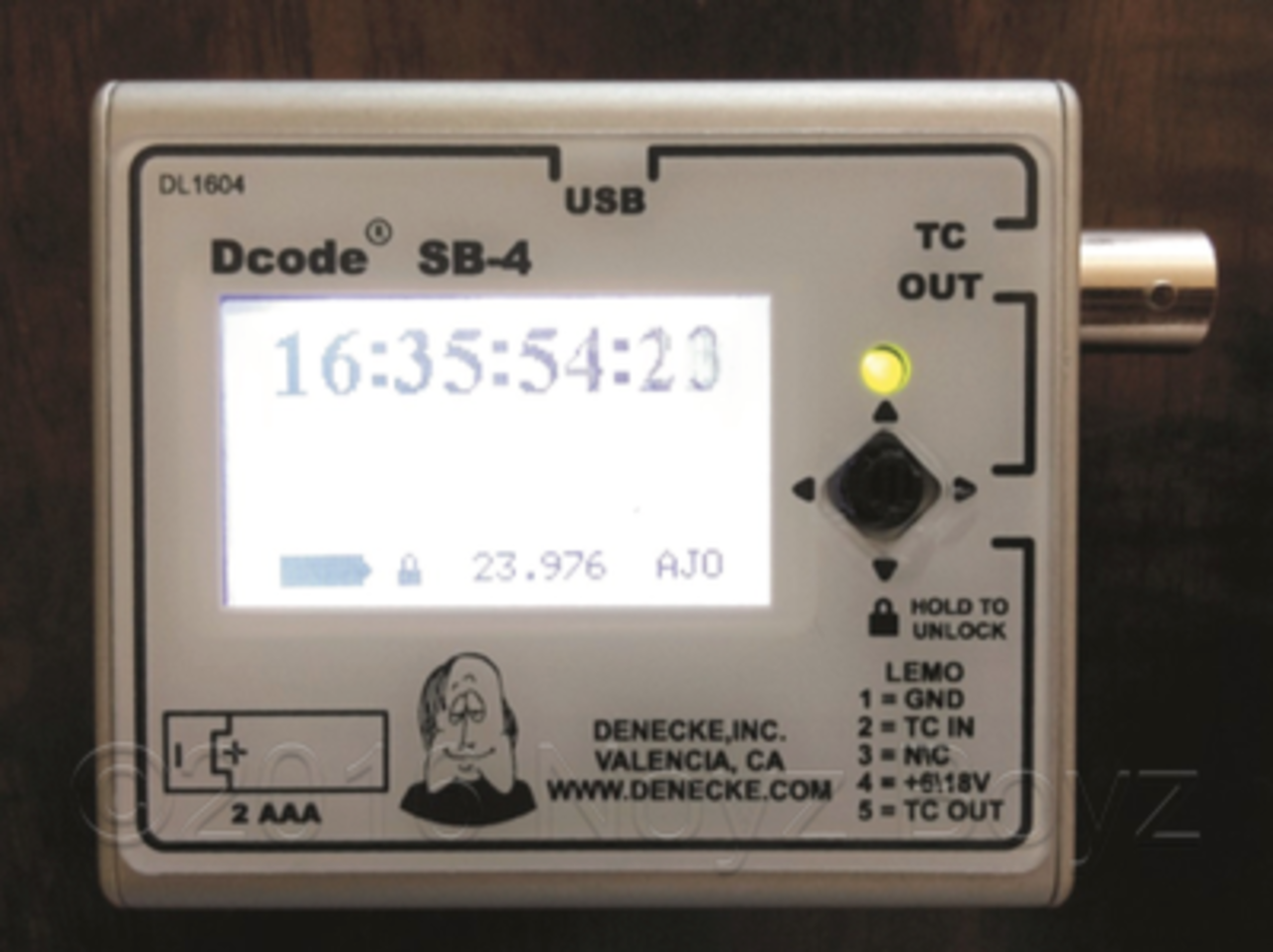

Denecke SB-4

Features

• Generates and Jam Syncs to all common SMPTE Timecode frame rates.
• Cross jams regardless of incoming frame rates.
• Sunlight-readable display with backlight.
• Jam from an external timecode source or set it internally and use as a standalone generator.
• Selectable TC output levels, eliminating the need for external output reduction pads.
• Runs on 2 AAA batteries or external power connection.
• Simple to set up. Reprogrammable for new features and updates, via both Mac and Windows computers.
• Very high stability crystal ensures low drift.
• Provides indication of drift/inaccuracy between SB-4 and a timecode input signal.

Specifications:

• Input: -15dB @ 4.7K; LEMO Connector
• TCXO Crystal: +/- 0.1PPM @ -40°C to +85°C
• Output: Selectable 2.0V, 1.0V, 0.50V and 0.20V
• Size: 6.5cm (W) x 5.6cm (H) x 2.5cm (D)
• Battery Power: 2 "AAA" Batteries
• Weight: 4 oz. (with batteries)
• External Power: 6 to 18 Volts DC, via LEMO Connector
• Battery Life: 30+ Hours; Approximately 15+ Hours at 5V, via Micro USB Connector with Back Light Continuously ON.
