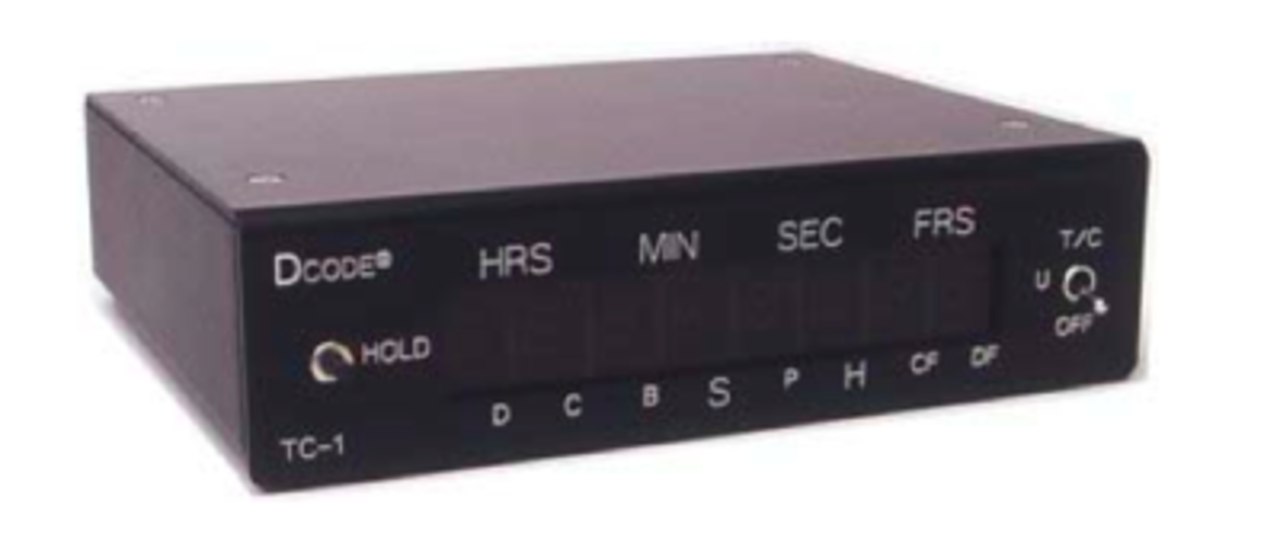

Denecke TC-1

Description:

The Denecke TC-1 is a versatile timecode reader supporting SMPTE and EBU timecode. It can read timecode from various sources, such as video recorders and film editing devices, and operates at speeds ranging from 1/50th to 50 times normal speed, both forward and reverse. This makes it a reliable tool for film and television productions.

Features:

• Reads SMPTE/EBU timecode at speeds from 1/50th to 50x, forward and reverse
• Displays timecode in hours, minutes, seconds, and frames
• ‘Hold’ function to freeze the time display
• Signal status indicator for easy monitoring
• Output for reshaped timecode
• Compact and robust design

Specifications:

• Dimensions: 6" x 5" x 1.625" (15.2 cm x 12.7 cm x 4.1 cm)
• Weight: 1.5 lbs (680 g)
• Input: -35 to +35 dB at 50 kΩ impedance
• Output: 1V square wave at 2 kΩ load
• Power: 7-24V AC/DC
