Denecke TS-3EL

Description:

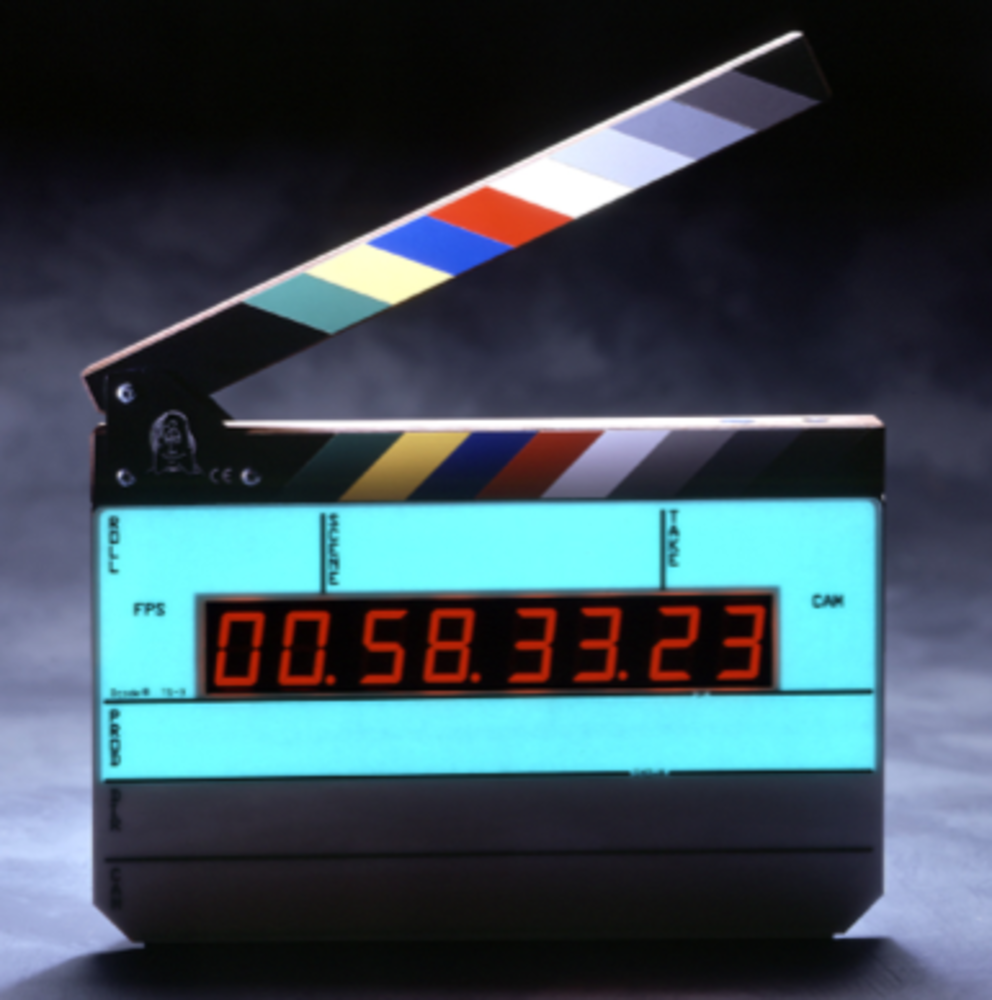

The Denecke TS-3EL is a professional timecode slate designed for film and video productions. It reads and displays SMPTE/EBU timecode and features an internally mounted Syncbox Time Code Generator, allowing it to jam to all standard frame rates, including 23.976 fps. The high stability Temperature Compensated Crystal Oscillator (TCXO) ensures minimal drift, which is essential for accurate synchronization during shoots. The electroluminescent (EL) backlit display is particularly useful during night shoots and on dimly lit stages.

Features:

• Reads and displays SMPTE/EBU timecode
• Internal Syncbox Time Code Generator
• Jams to all standard frame rates, including 23.976 fps
• Automatic user bits jam when time is set
• High stability TCXO for minimal drift
• EL backlit display for low-light use
• Flat back with removable plate for camera logs
• Sliding door for quick access to controls and battery compartment
• Sync error warning and auto set to incoming frame rates
• Logging feature to scroll back through the last 16 timecode claps

Specifications:

• Dimensions: 8.25" x 11" x 1.3" (21 cm x 28 cm x 3.3 cm)
• Weight: 2.35 lbs (1.05 kg) without batteries; 2.7 lbs (1.25 kg) with batteries
• Input: -15 dB at 4.7 kΩ input impedance
• Power: 5.7V to 16V DC
• Battery: 6 AA alkaline batteries
