DPA 2006C

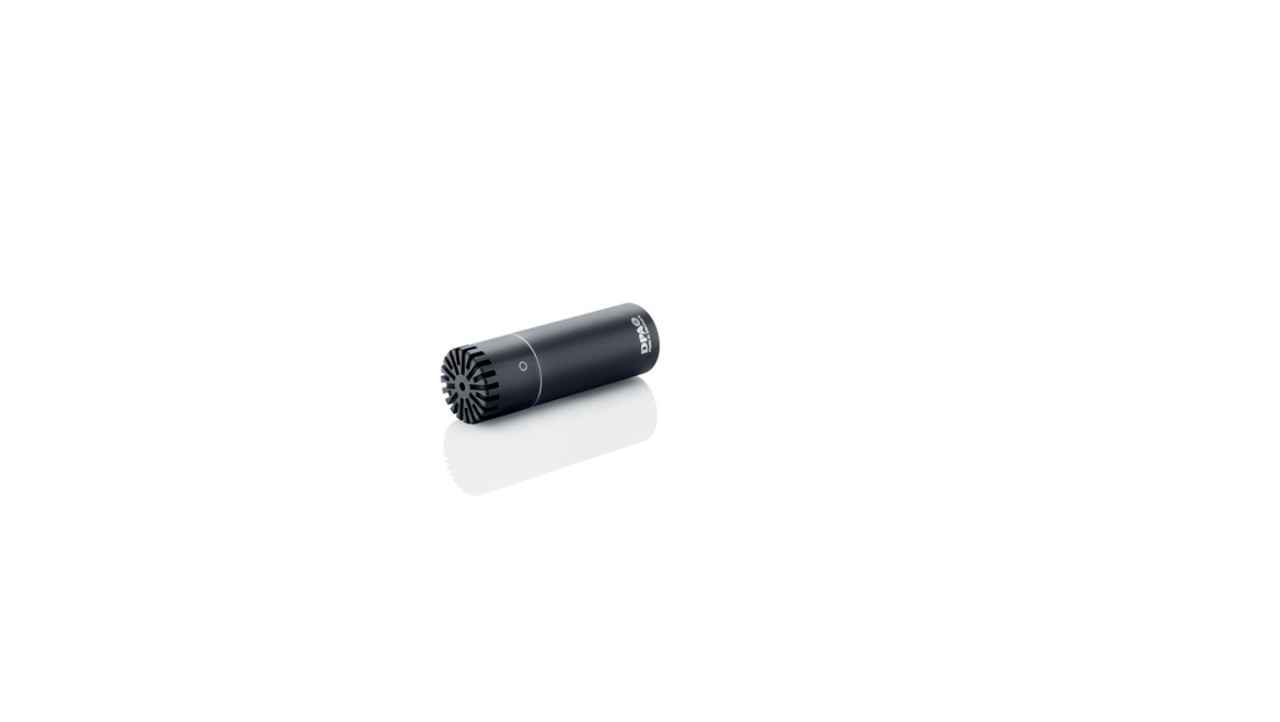

DPA 2006C Compact Omnidirectional Microphone

The DPA 2006C is a compact omnidirectional condenser microphone featuring advanced Twin Diaphragm Capsule technology. By combining two miniature diaphragms into one capsule, it offers highly natural and balanced sound with fast transient response and low distortion. The MMP-C preamplifier ensures a short, lightweight form factor, ideal for situations requiring minimal visual footprint or limited space.

Key Features

• Twin Diaphragm Capsule technology for accurate and balanced sonic reproduction
• Compact design with MMP-C preamp
• Linear omnidirectional response
• Part of the DPA modular system

Specifications

• Polar pattern: Omnidirectional
• Frequency range: 20 Hz – 20 kHz
• Sensitivity: 40 mV/Pa
• Equivalent noise level: 16 dB(A)
• Max SPL: 144 dB
• Output impedance: 200 ohms
• Power supply: 48 V phantom power
• Connector: XLR-3M
• Dimensions: 64 mm length, 19 mm diameter
• Weight: 58 g

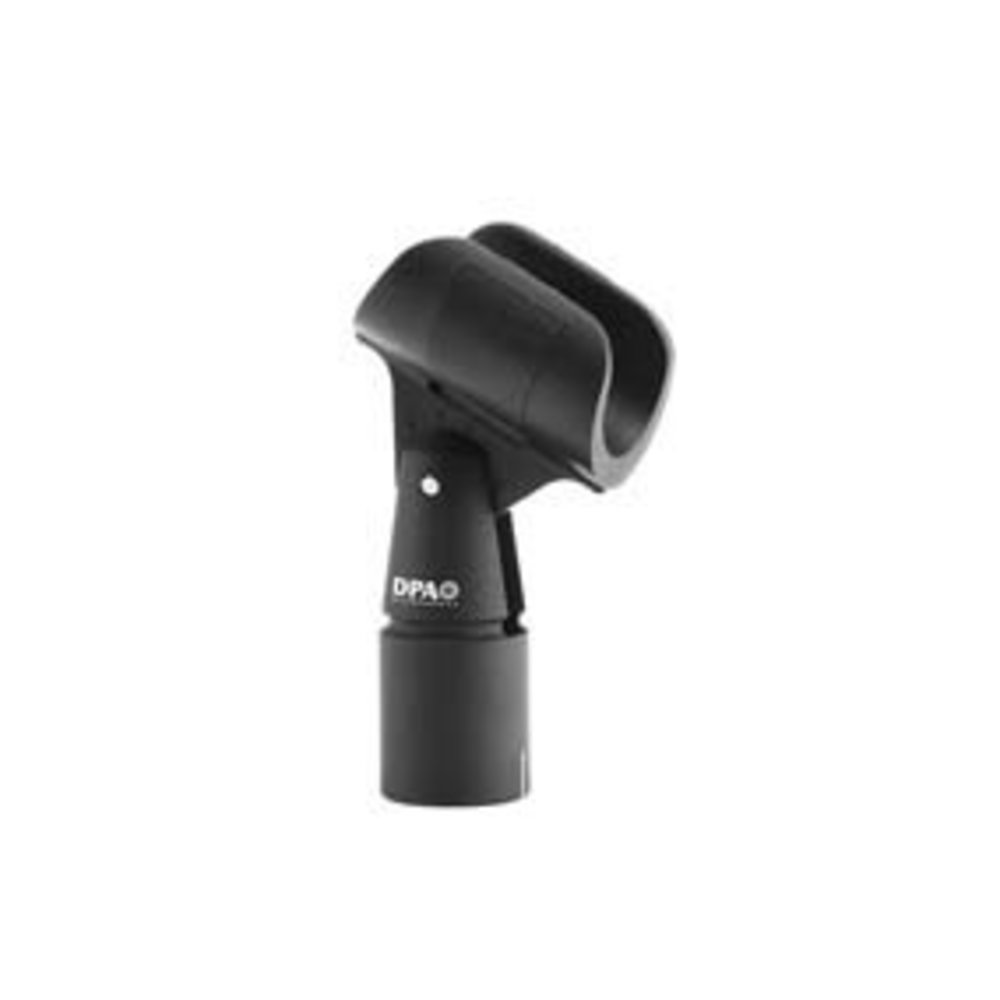

Supplied with microphone clip. Compatible with windscreens such as DUA0020 and DUA0028.
