DPA 3506A

DPA 3506A Stereo Kit with 4006A Microphones

The DPA 3506A is a premium stereo kit featuring two carefully matched 4006A omnidirectional condenser microphones. With strict matching on sensitivity, frequency response, and noise level, this kit delivers precise and consistent stereo imaging. Ideal for studio recording, classical music capture, and high-resolution concert work.

Key Features

• Matched pair of 4006A omnidirectional microphones (within ±0.5 dB)
• Exceptional clarity and transparency
• Includes a wide range of acoustic pressure equalizers and grids
• Supports A-B stereo configuration and flexible placement

Specifications (per microphone)

• Polar pattern: Omnidirectional
• Frequency range: 10 Hz – 20 kHz
• Sensitivity: -28 dB re. 1 V/Pa
• Equivalent noise level: 15 dB(A)
• Max SPL: 147 dB
• Power supply: 48 V phantom power
• Connector: XLR-3M
• Dimensions: 169.93 mm length, 19 mm diameter
• Weight: 163 g

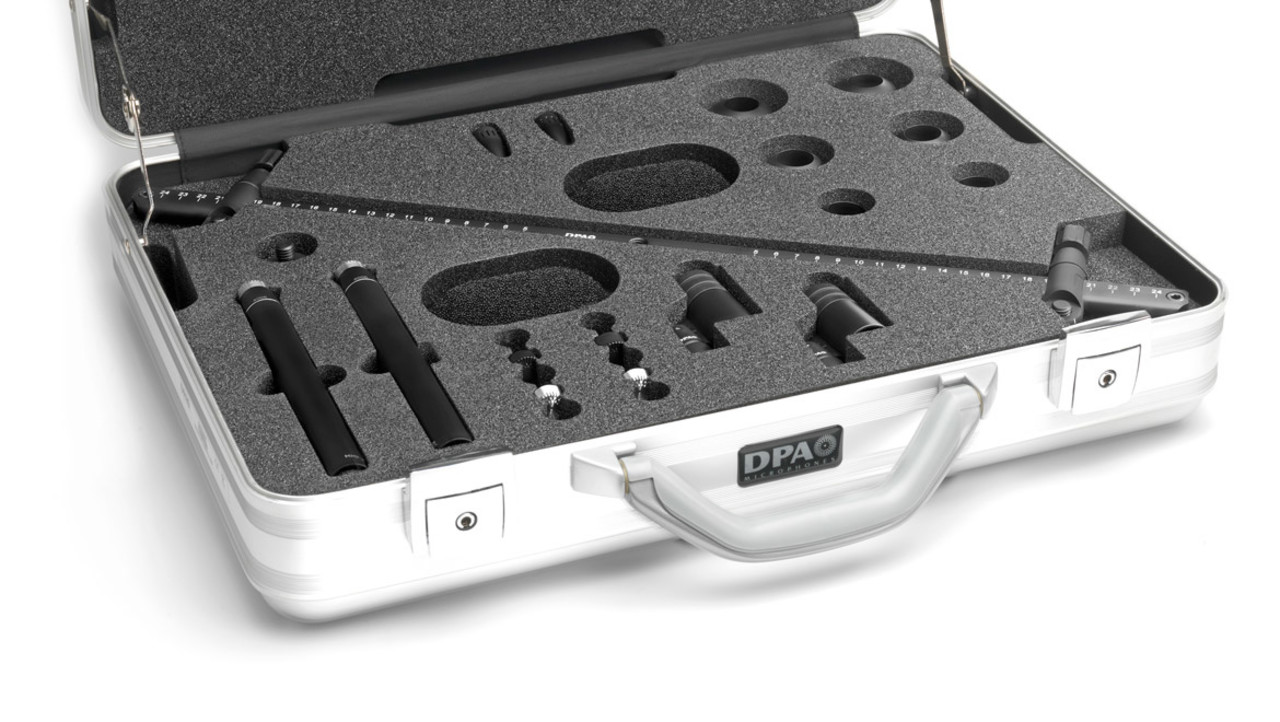

Included accessories

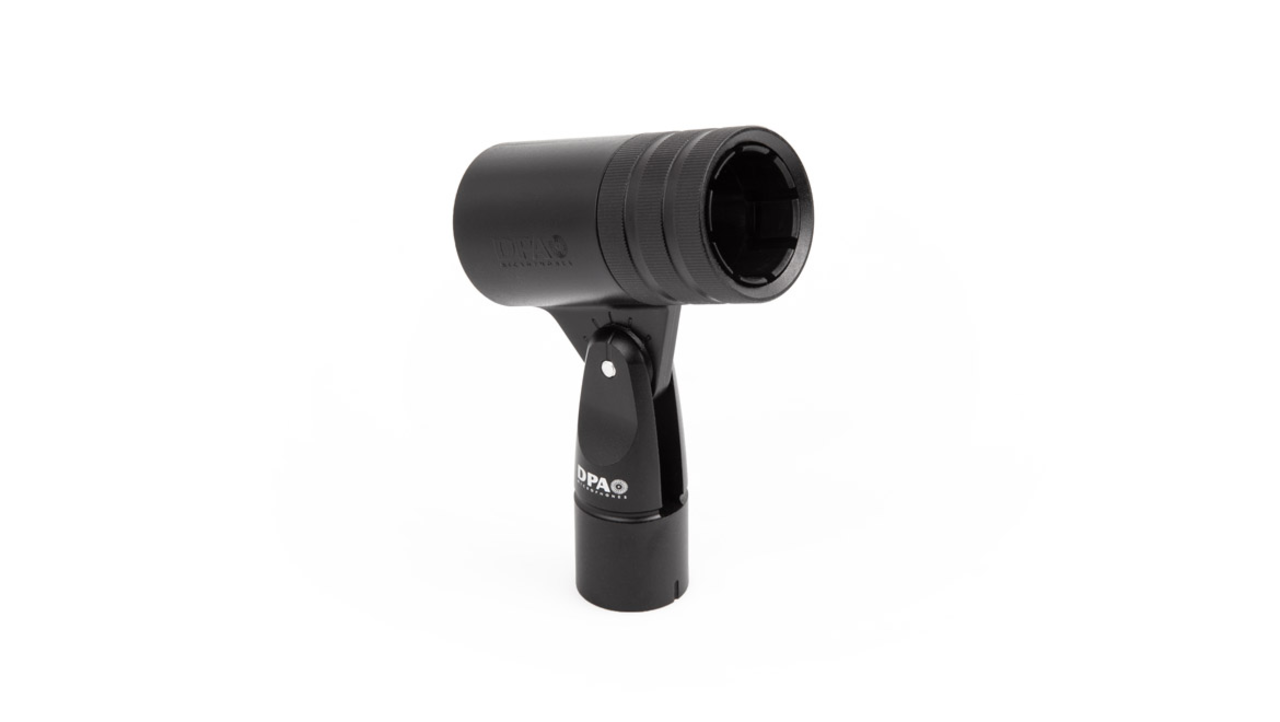

• 2 × 4006A microphones

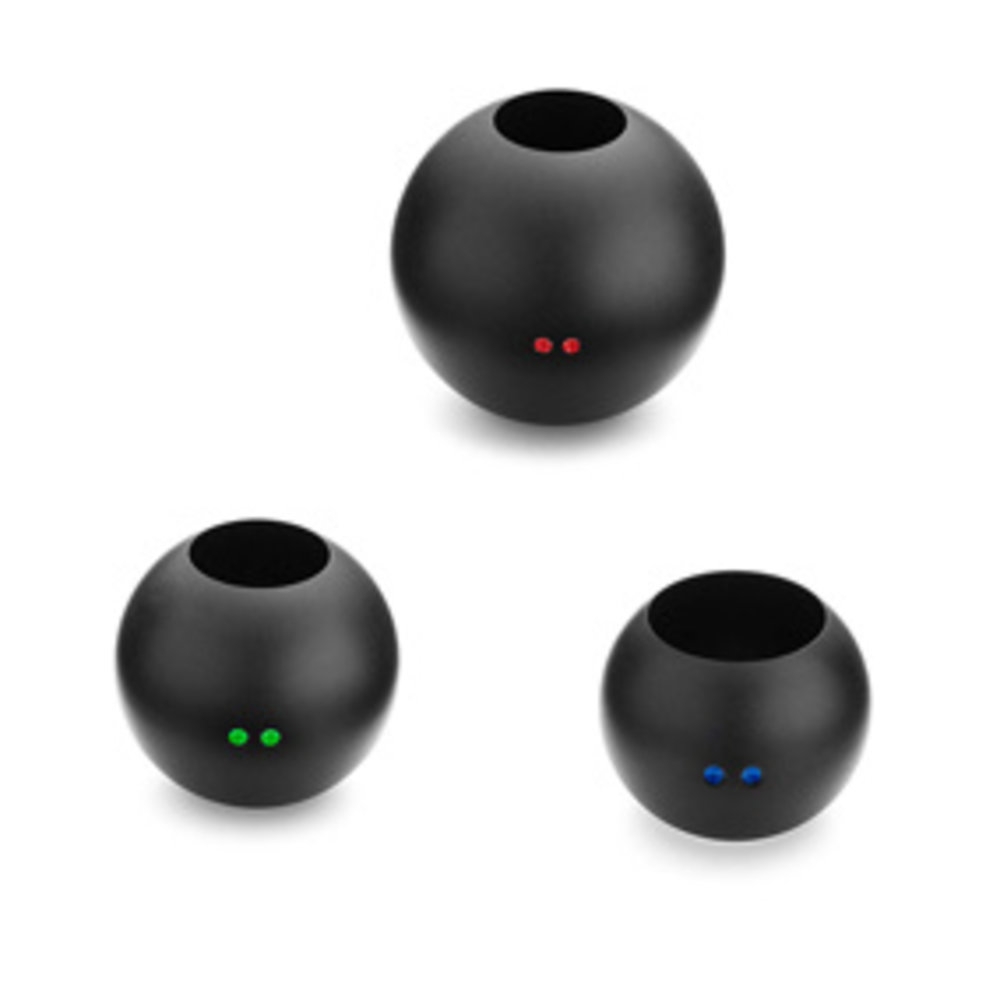

• 2 × APE30RS (30 mm), 2 × APE40RS (40 mm), 2 × APE50RS (50 mm) equalizers

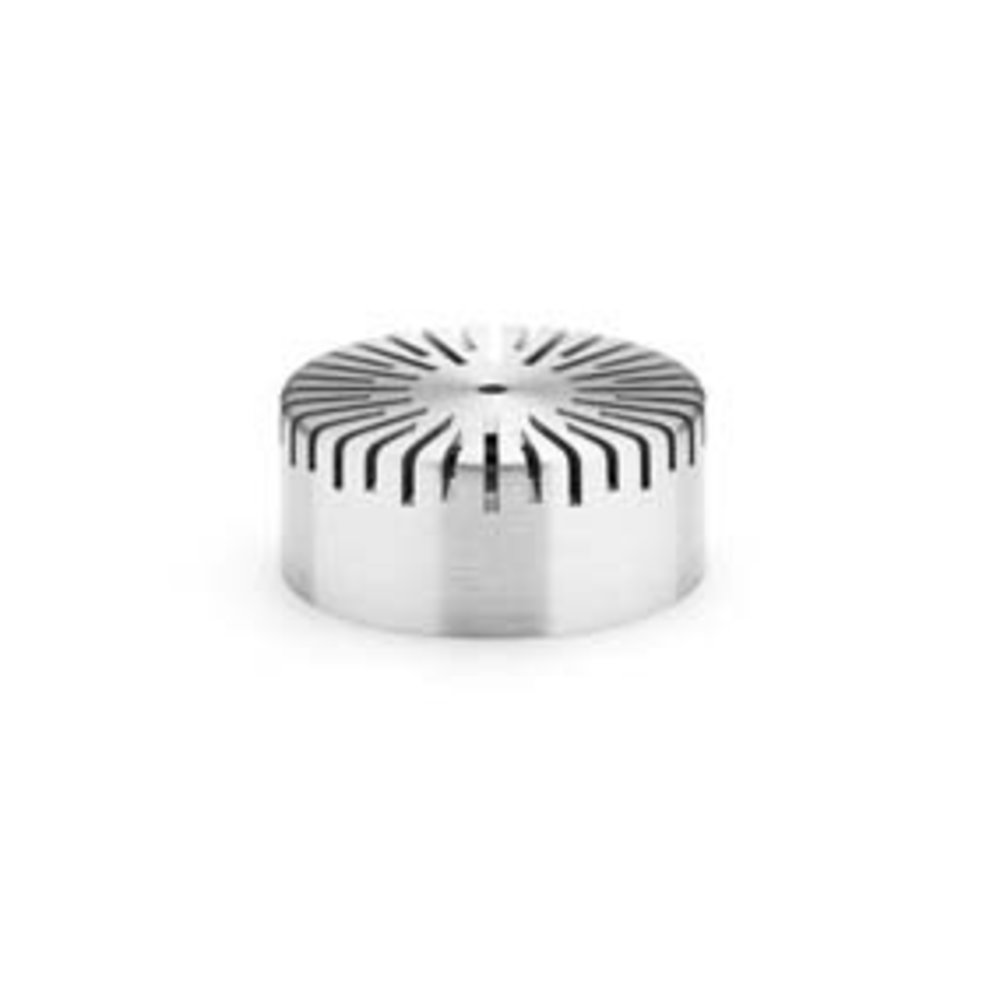

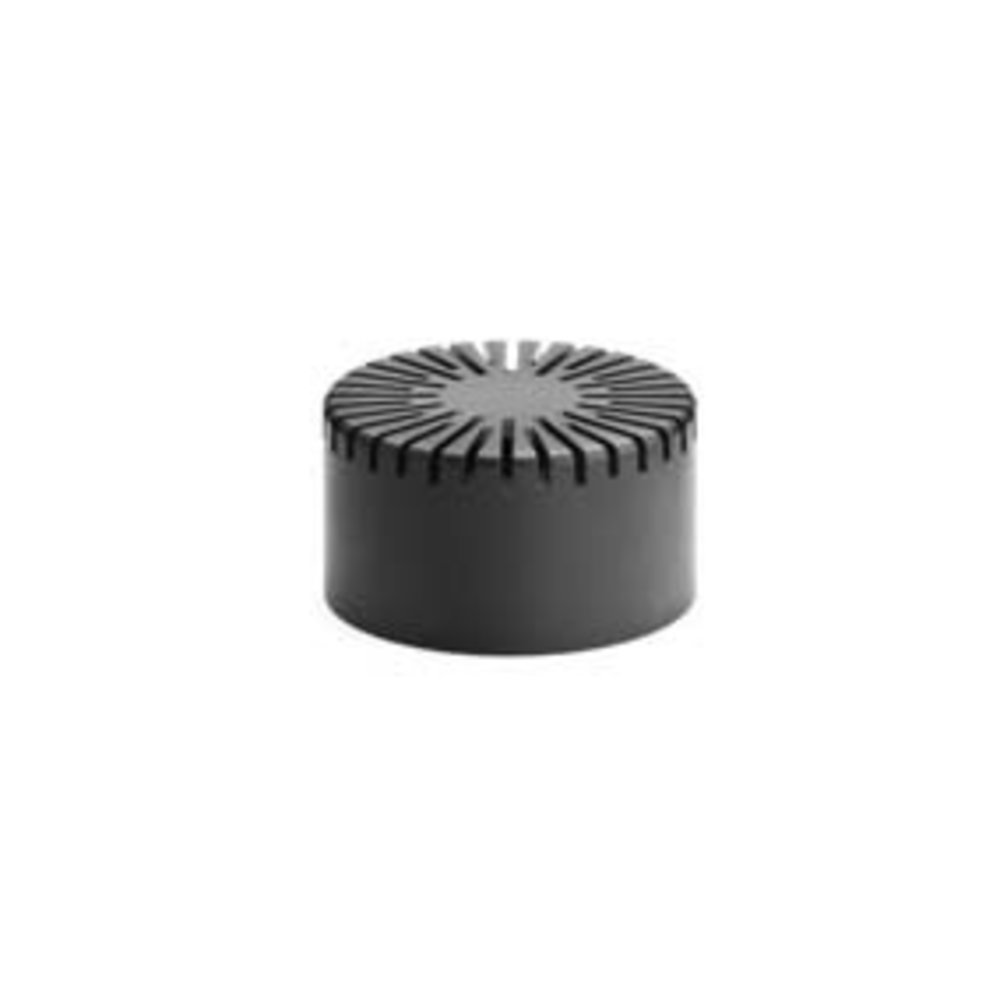

• 6 × frequency grids (free-field, close-miking, diffuse-field)

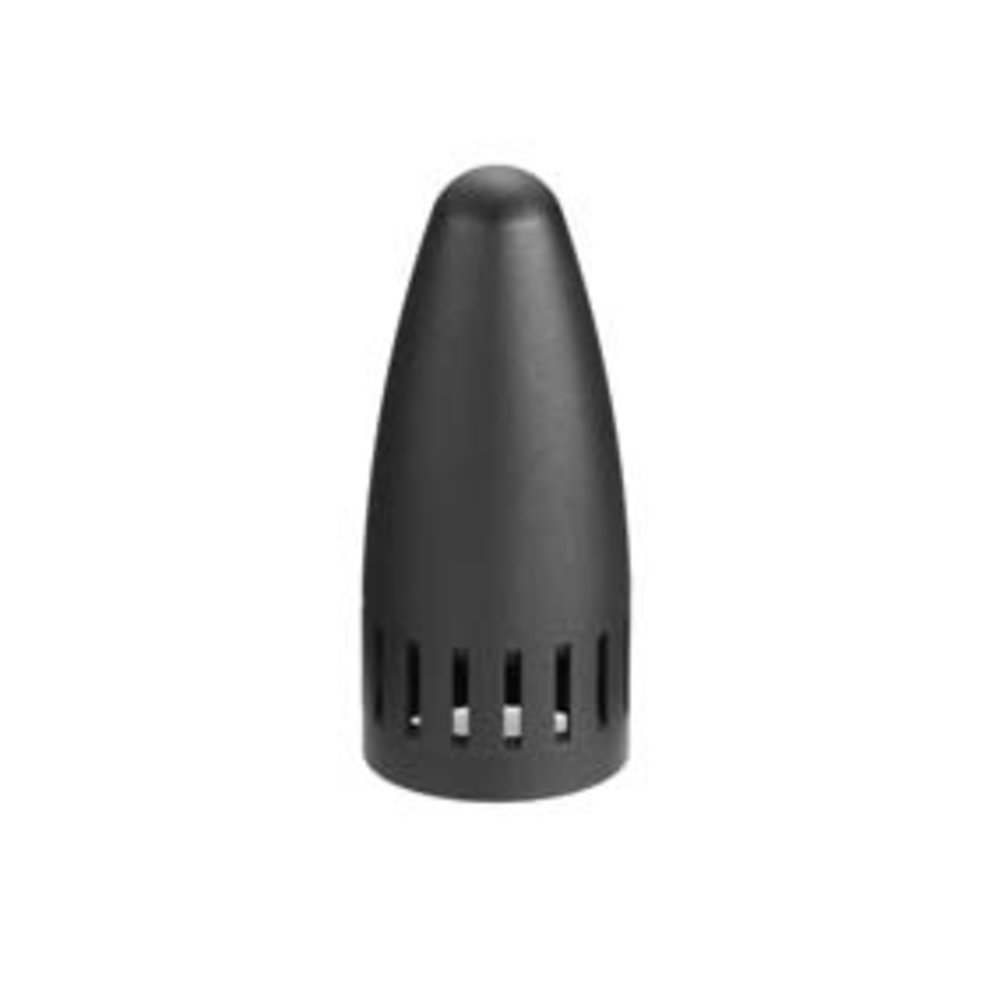

• 2 × UA0777 nose cones

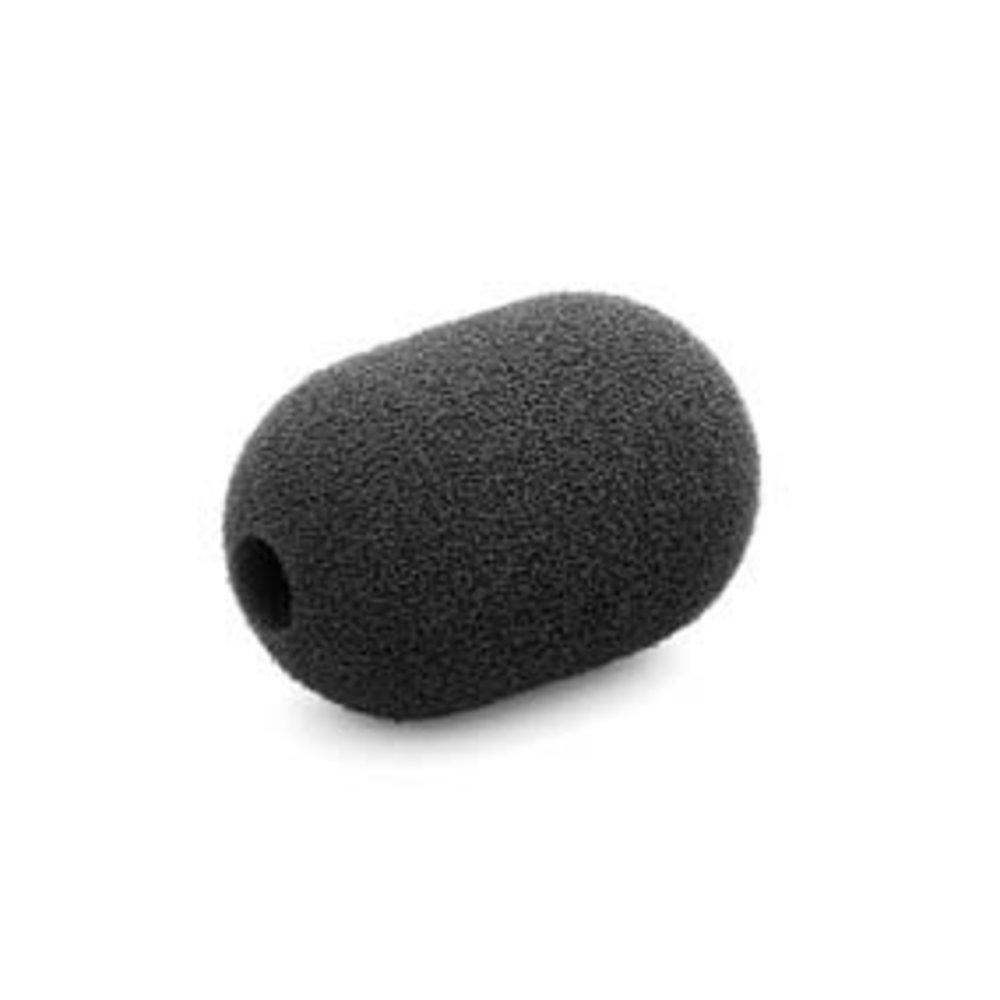

• 2 × UA0896 foam windscreens

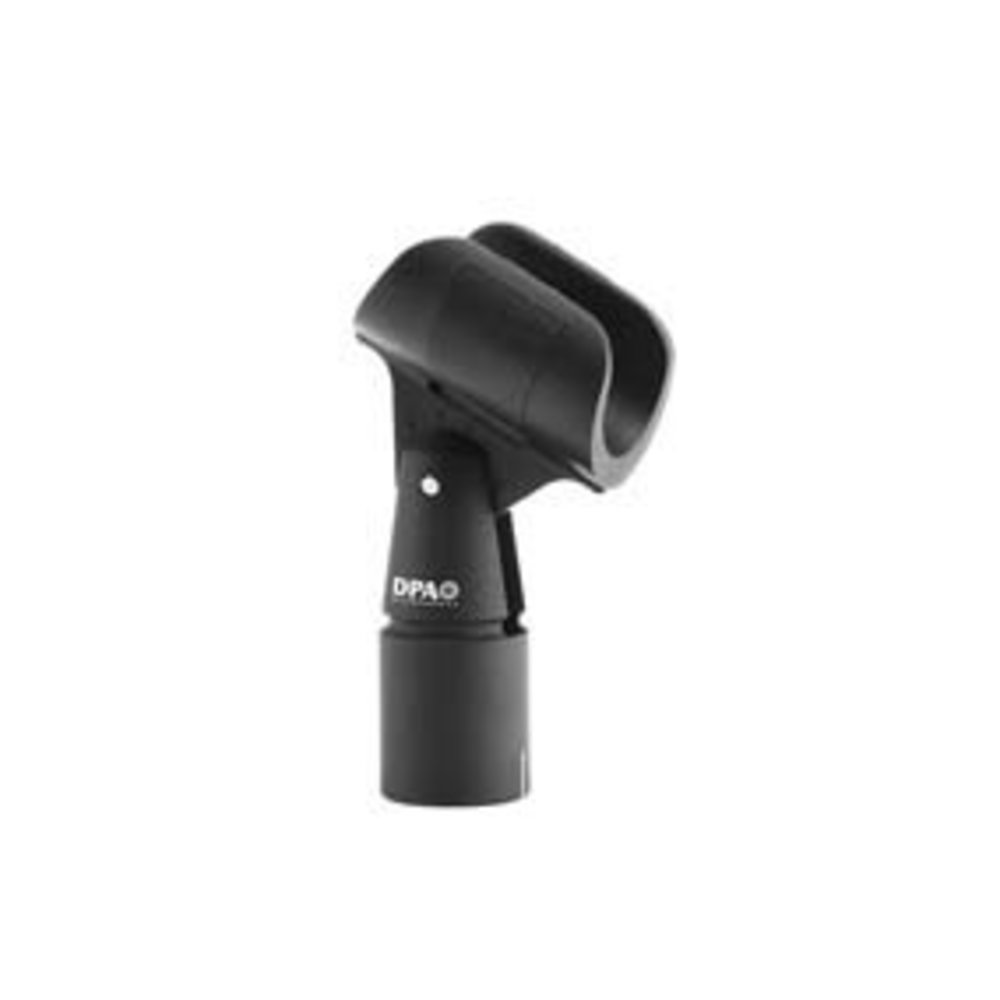

• 2 × microphone clips

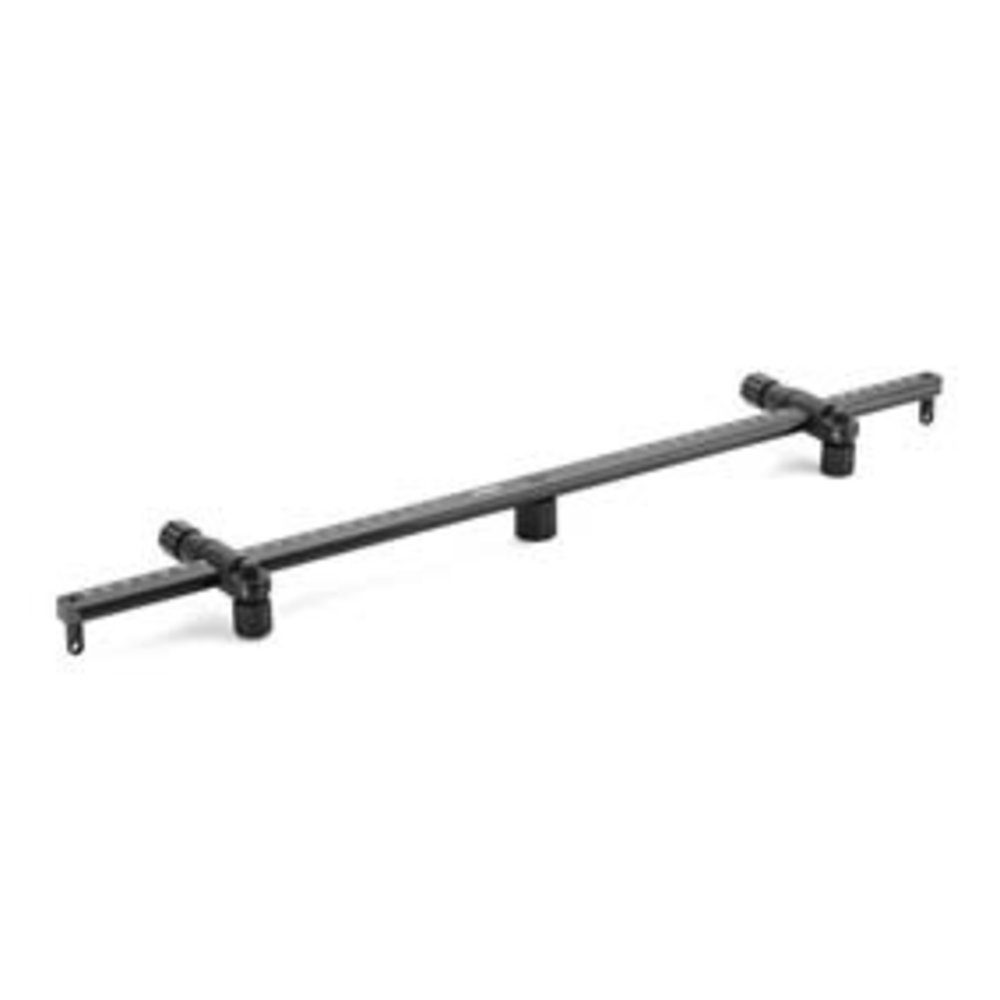

• 1 × stereo boom

A complete solution for extremely accurate and flexible high-quality stereo recording.
