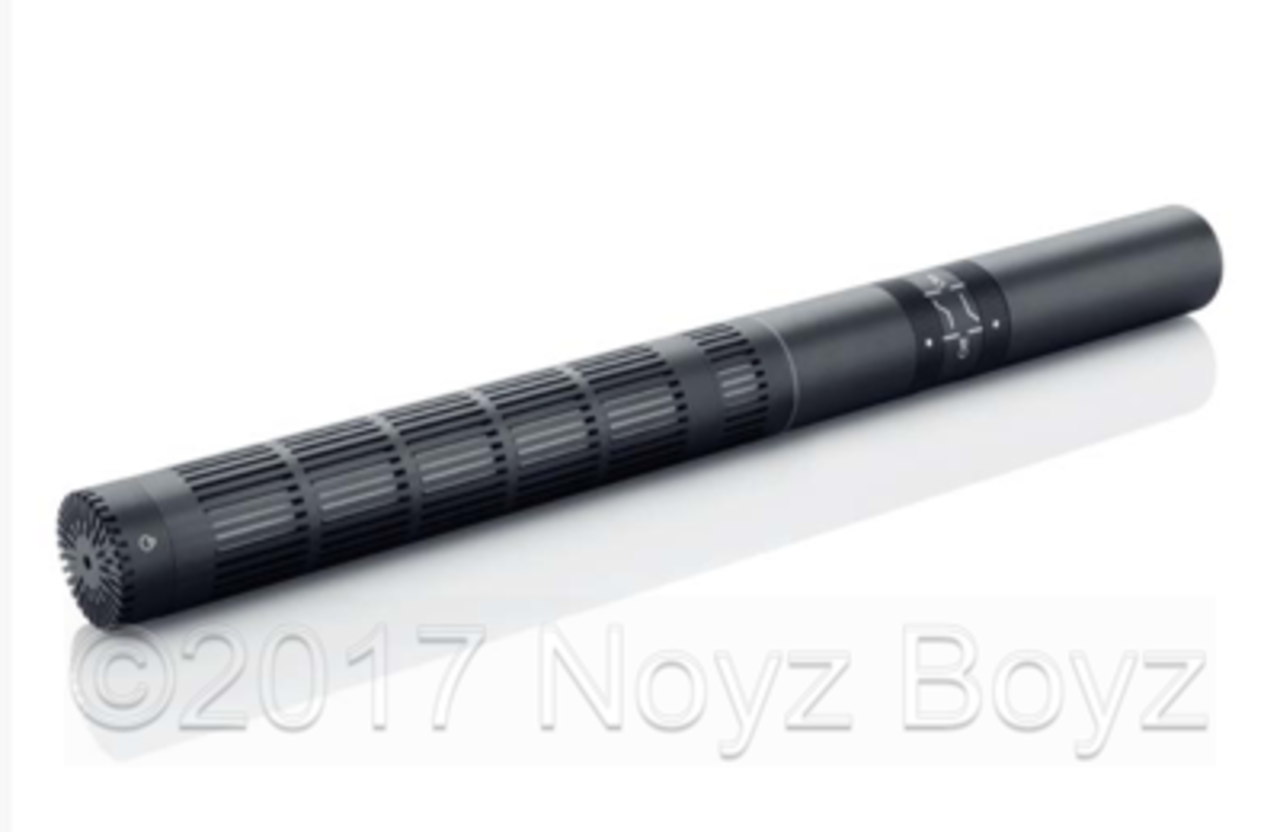

DPA 4017B
Product description
Specifications 4017B SHOTGUN MICROPHONE Directional patternSupercardioid, lobe-shaped Principle of operationPressure gradient, with interference tube Cartridge typePre-polarized condenser Frequency range20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz Frequency range, ±2 dB, at 60 cm (23.6 in)70 Hz - 18 kHz with typ. 3 dB soft boos...
Specifications 4017B SHOTGUN MICROPHONE Directional patternSupercardioid, lobe-shaped Principle of operationPressure gradient, with interference tube Cartridge typePre-polarized condenser Frequency range20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz Frequency range, ±2 dB, at 60 cm (23.6 in)70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz Sensitivity, nominal, ±2 dB at 1 kHz19 mV/Pa; -34.4 dB re. 1 V/Pa Equivalent noise level, A-weightedTyp. 13 dB(A) re. 20 µPa (max. 15 dB(A)) Equivalent noise level, ITU-R BS.468-4Typ. 24 dB (max. 26 dB) S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)Typ. 81 dB(A) Total harmonic distortion (THD)< 1% up to 137 dB SPL peak Dynamic rangeTyp. 124 dB Max. SPL, peak before clipping138 dB
Show more
Show less
Product specifications
- Article number
- DPACon40176784
