DPA 4017C

Specifications

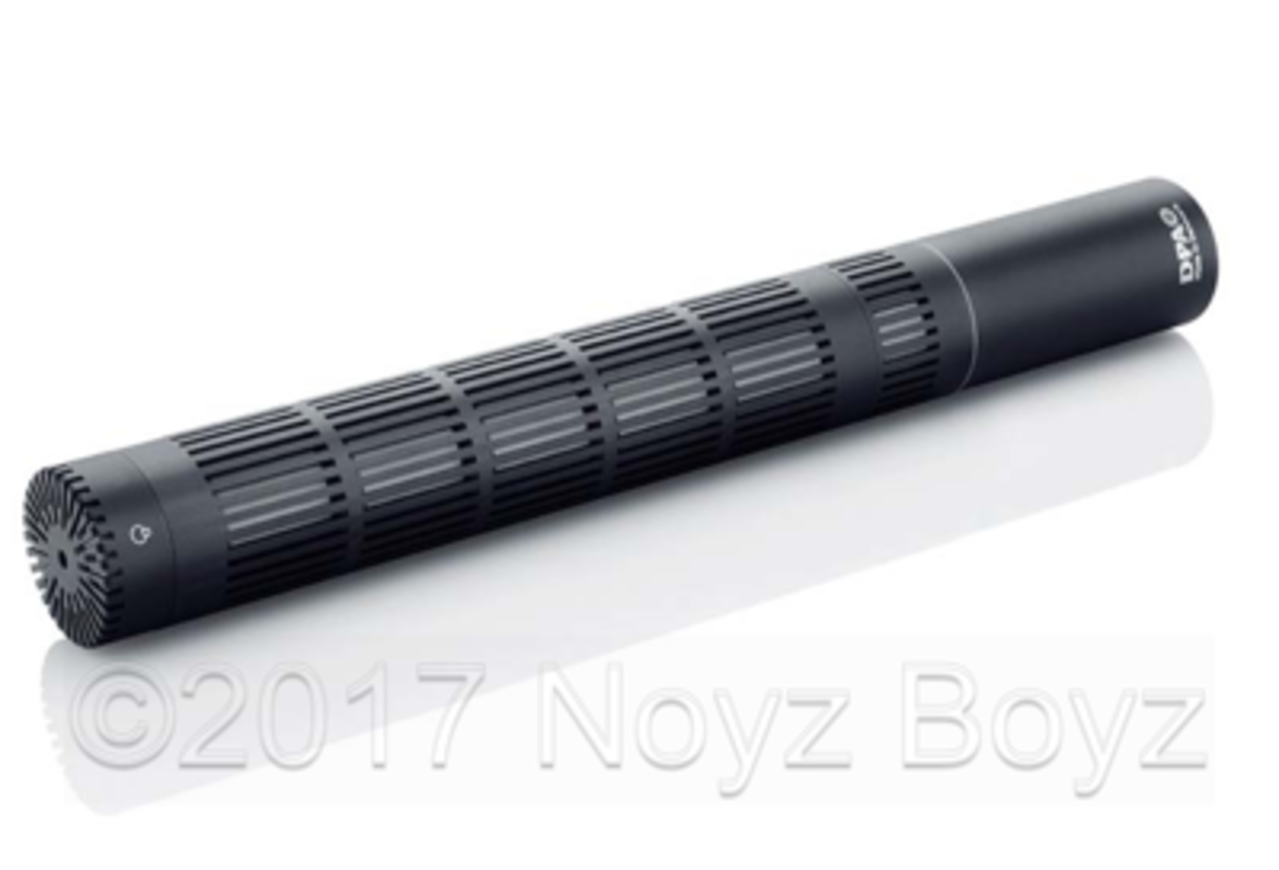

4017C SHOTGUN MICROPHONE, COMPACT

• Directional pattern: Supercardioid, lobe-shaped
• Principle of operation: Pressure gradient, with interference tube
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
• Sensitivity, nominal, ±2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB)
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 81 dB(A)
• Total harmonic distortion (THD):< 1% up to 137 dB SPL peak
• Dynamic range: Typ. 124 dB
• Max. SPL, peak before clipping: 146 dB
