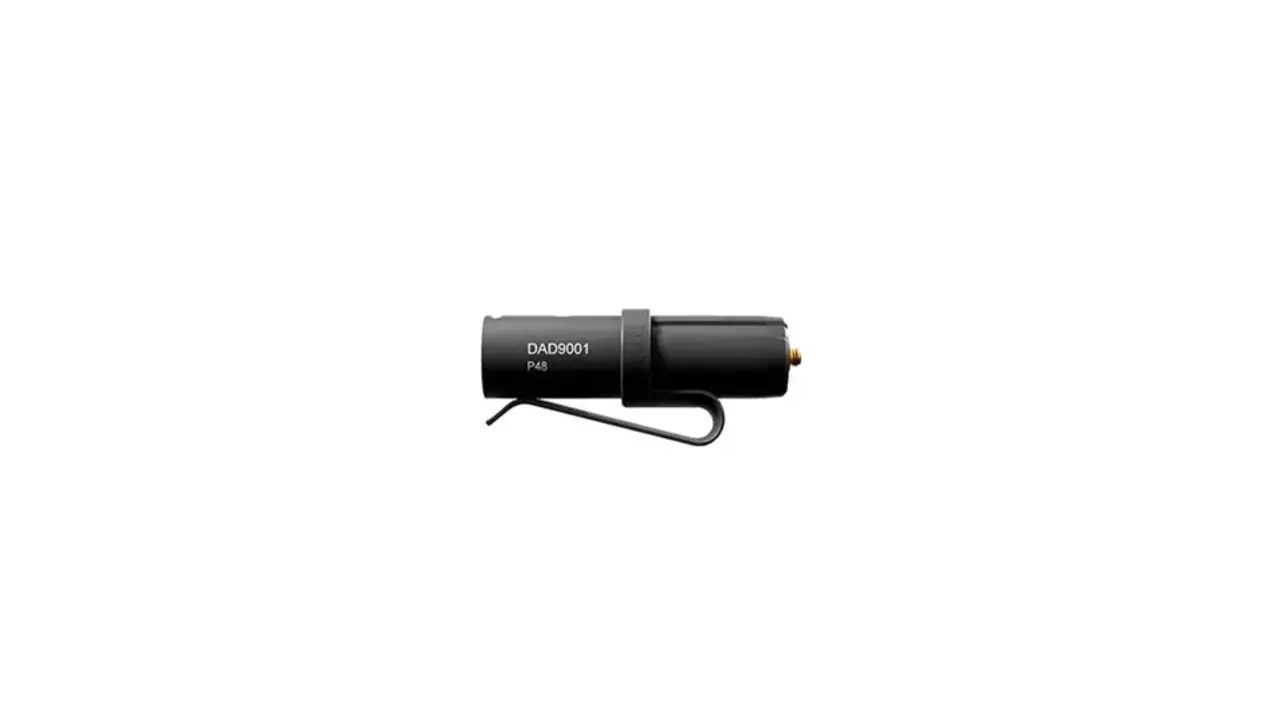

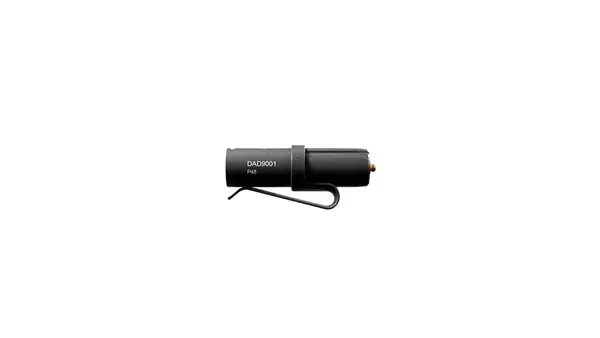

DPA DAD9001

DPA DAD9001 Adapter: MicroLock to 3-pin XLR with Belt Clip

The DPA DAD9001 is a MicroLock-to-3-pin XLR adapter with a repositionable belt clip. It powers DPA miniature microphones from +48 V phantom and is optimized for CORE+ performance. The solid metal housing and enhanced electrical design improve durability and RF immunity.

Main Features

• MicroLock input to 3-pin XLR output
• Supports +48 V P48 phantom power
• Optimized for CORE+ miniature mics (incl. 4099 CORE+)
• All-metal housing; enhanced RF immunity
• Integrated, repositionable belt clip
• Quick switch between wired and wireless use with no tonal change

Specifications

• Connectors: MicroLock (in) → XLR male (out)
• Power: +48 V phantom (P48)
• Compatibility: DPA miniature microphones with MicroLock (e.g., 4099 CORE+)
• Housing: metal; repositionable clip
• Article number (SKU): DAD9001

Included

• DPA DAD9001 MicroLock-to-XLR adapter
• Integrated, repositionable belt clip
