Hawk-Woods NPC-TA4

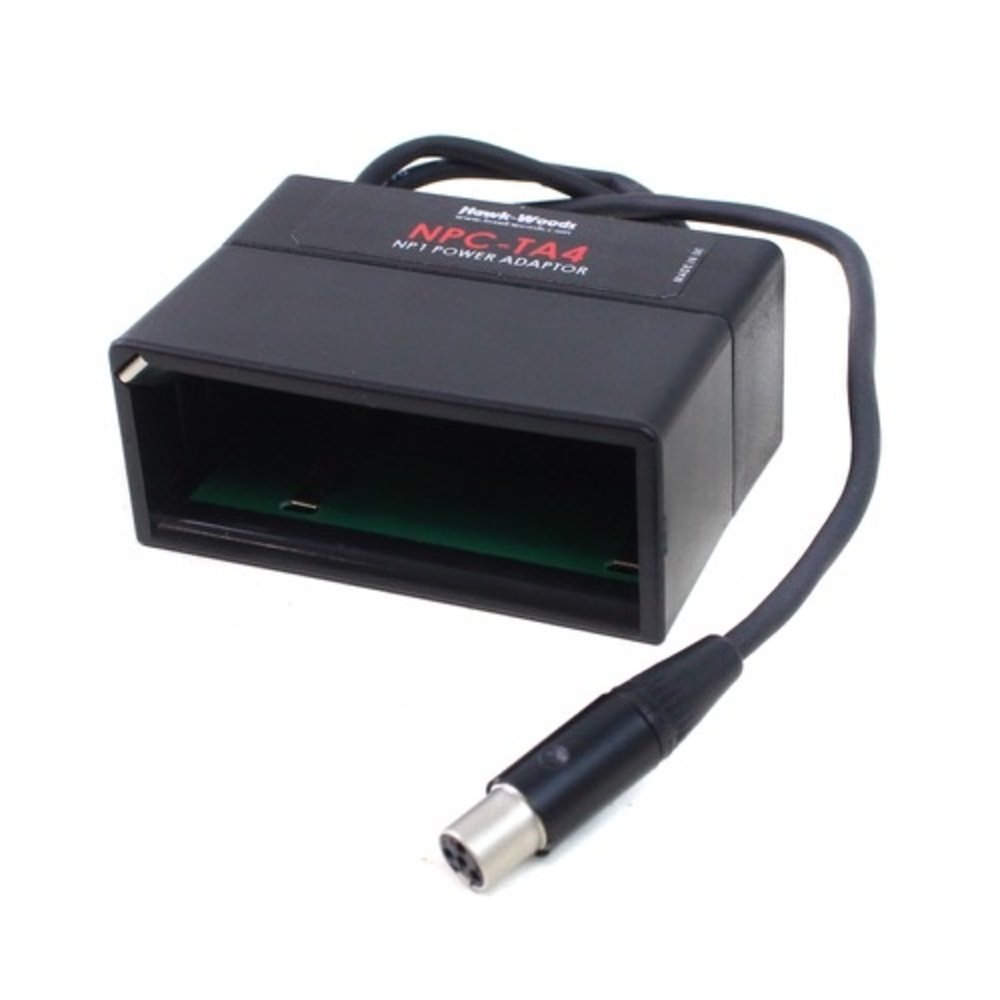

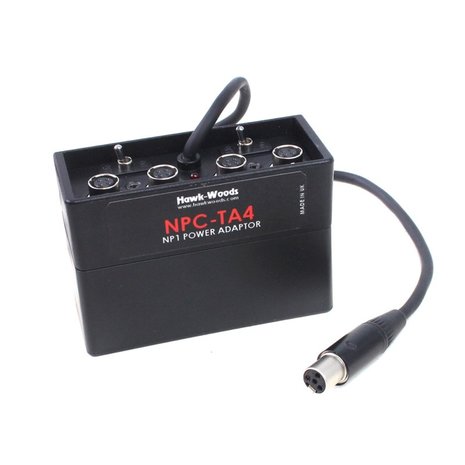

Hawk-Woods NPC-TA4 NP1 Power Adaptor to TA4

The Hawk-Woods NPC-TA4 is an NP1 battery adapter featuring a TA4 output, specifically designed for use with the Sound Devices Scorpio mixer/recorder. This adapter provides an unregulated power output via a single TA4 cable and includes four switched Hirose connectors for powering additional equipment. The NPC-TA4 is compatible with all NP1-type batteries and features a low battery voltage indicator. Its design allows easy access to the switches when the adapter is placed vertically in a sound bag.

Main Features

• Output: 1x TA4 cable (mini-XLR 4-pin female)
• 4x switched Hirose connectors (4-pin female)
• Compatible with all NP1-type batteries
• Unregulated power output
• Low battery voltage indicator
• Weight: 90 g

Compatibility

• Sound Devices Scorpio mixer/recorder
• Other equipment with TA4 power input
