Hawk-Woods NPU-SQN4S

Hawk-Woods NPU-SQN4S NP1 Power Adaptor with 4 Hirose Outputs

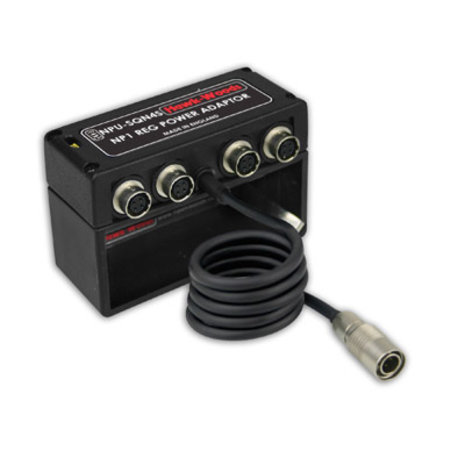

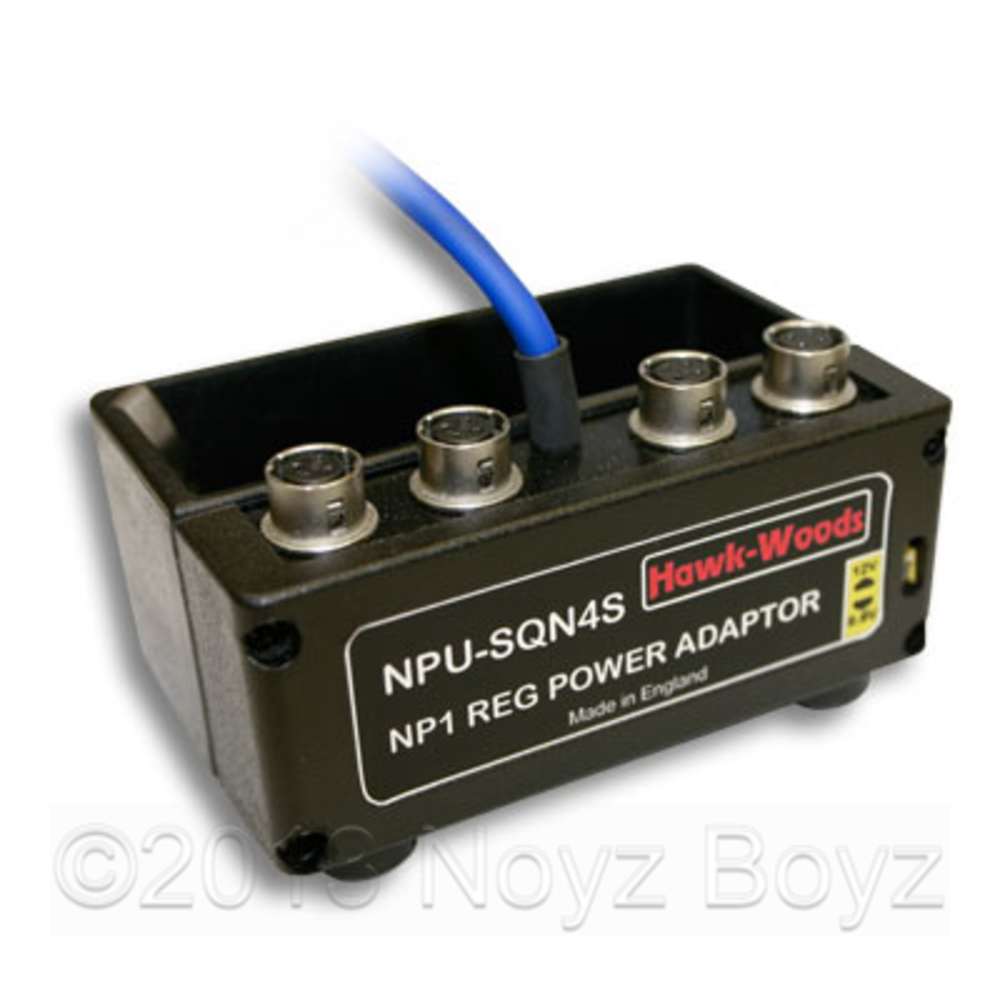

The Hawk-Woods NPU-SQN4S is an NP1 Power Adaptor featuring a fixed Hirose 4-pin male connector (SQN-style) and four switched Hirose 4-pin female outputs. These outputs are fused and include a low battery voltage LED indicator. The adaptor provides a regulated output of 9.6V or 12V, selectable via a voltage switch, and is suitable for powering multiple devices simultaneously from a single NP1 battery.

Main Features

• Input: Hirose 4-pin male (SQN-style, fixed cable)
• Outputs: 4x switched Hirose 4-pin female
• Voltage: regulated 9.6V or 12V DC (selectable)
• Fused: yes, per output
• Low battery LED indicator
• Size (W x H x D): 5 x 7.5 x 3 cm
• Weight: 87 g
