Hawk-Woods VLM-FX9

Hawk-Woods VLM-FX9 – Mini V-Lok Adapter for Sony FX9

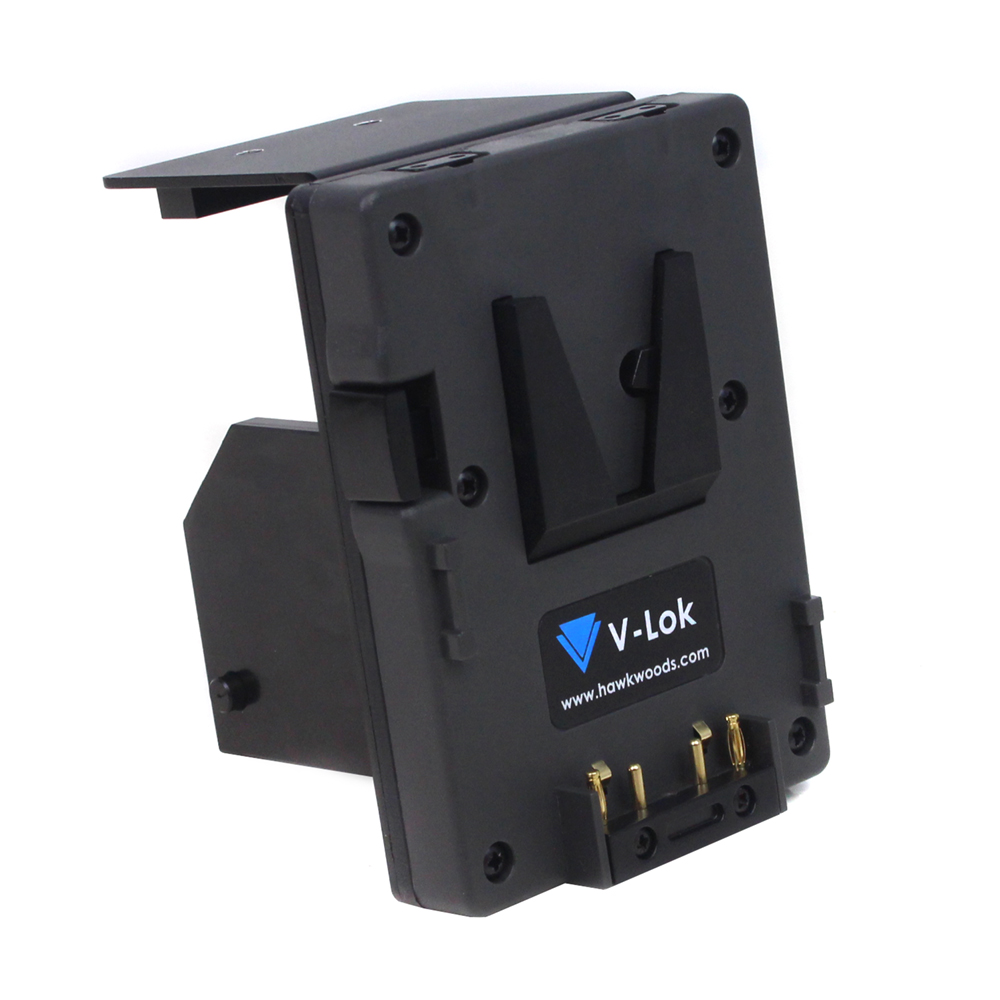

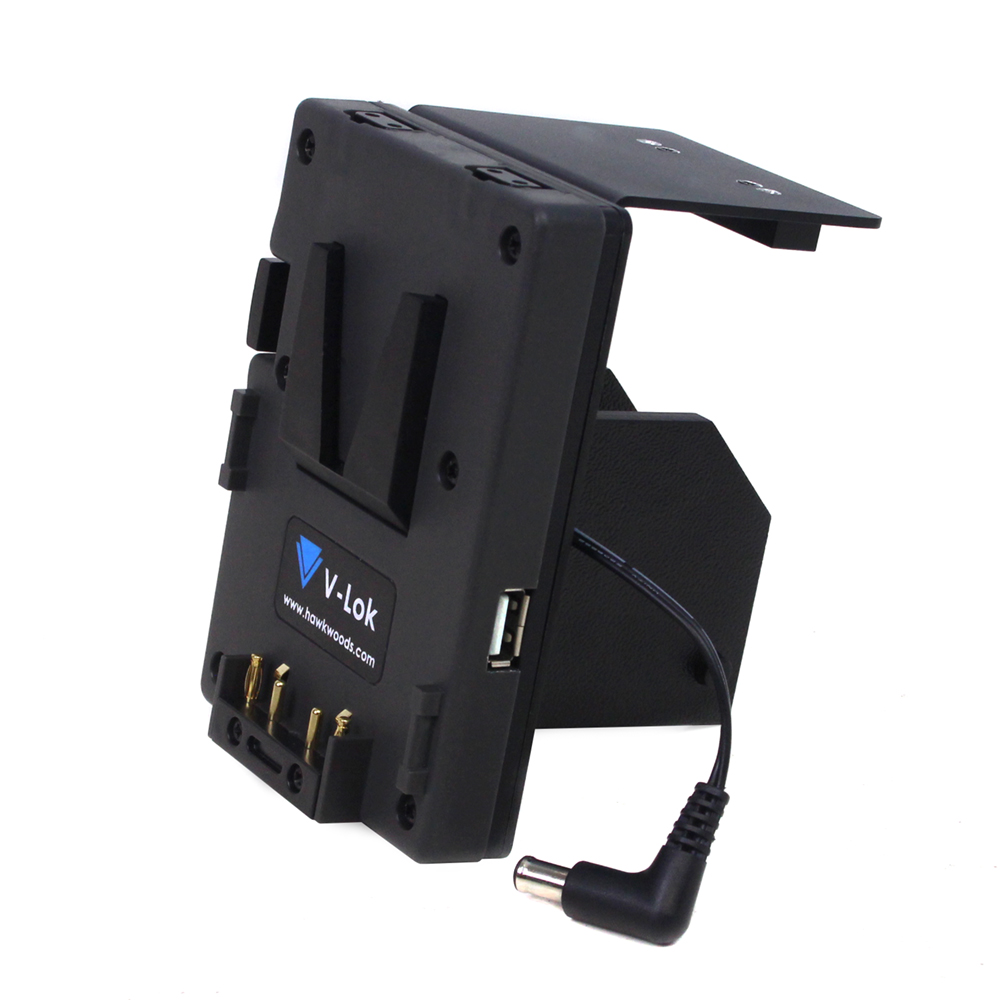

The Hawk-Woods VLM-FX9 is a compact Mini V-Lok adapter plate that fits directly into the original battery port of the Sony FX9 via a mechanical BPU battery fitting. The camera is powered through a fixed DC cable regulated to 19.5 volts, matching the camera's DC input requirement. The adapter provides two unregulated D-Tap (Power-Con) outputs for powering accessories, as well as a 5V 2A USB-A output for charging devices like smartphones. A low voltage warning LED flashes at 11.5V to indicate low battery voltage.

Main Features

• 2x D-Tap (Power-Con) outputs (11–17V)
• 1x USB-A output (5V 2A)
• Fixed 19.5V DC cable for camera power
• Direct mounting via mechanical BPU battery fitting
• Low voltage warning LED at 11.5V

Specifications

• Dimensions: 8.4 × 12 × 8 cm
• Weight: 282 g

Included

• 1x Hawk-Woods VLM-FX9 adapter plate

Related Products

• VL-M50 – 50Wh Mini V-Lok Battery
• VL-M98D – 98Wh Mini V-Lok Data Battery
• VL-M150D – 150Wh Mini V-Lok Data Battery
• VLM-FX6 – Mini V-Lok Adapter for Sony FX6
• VLM-FX9-15 – Mini V-Lok Adapter with 15mm Rod Clamp for Sony FX6/FX9
