Lectrosonics ACOAXTX22

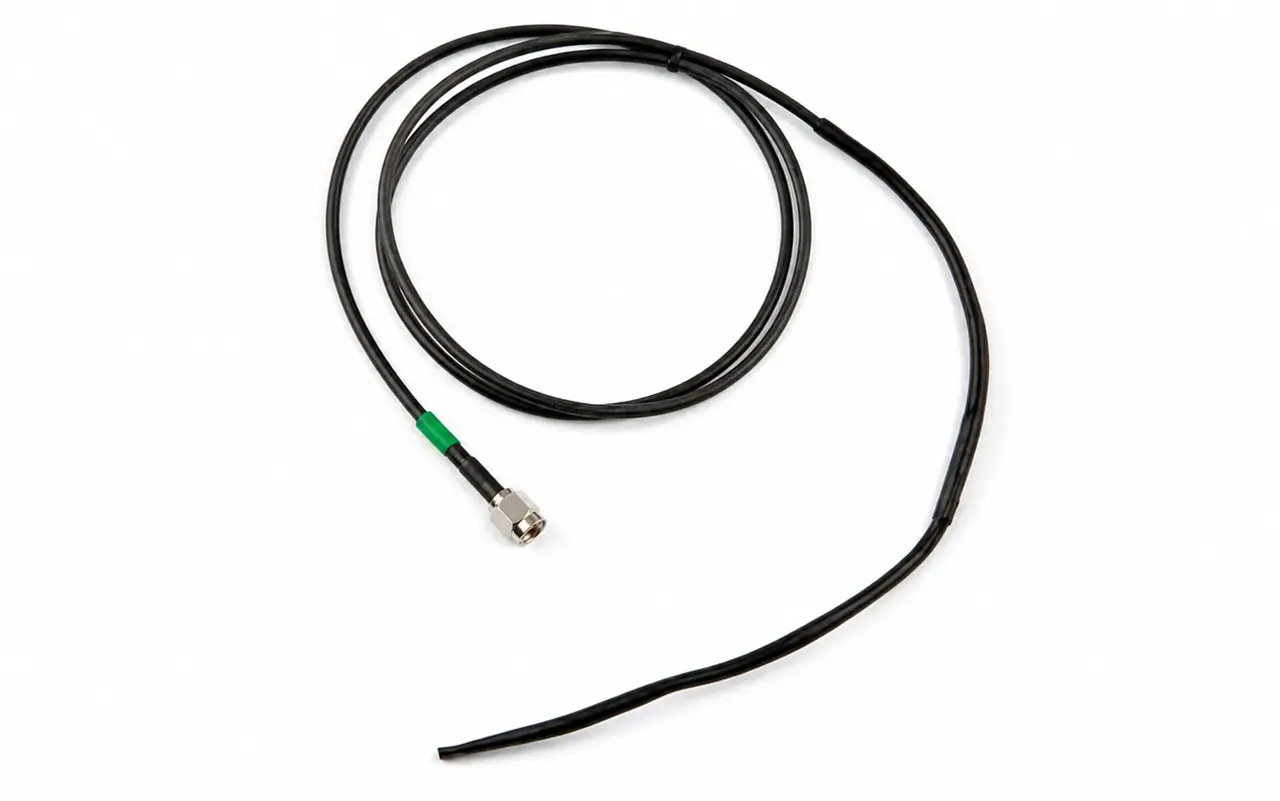

Lectrosonics ACOAXTX22 coaxial antenna for Block 22

The Lectrosonics ACOAXTX22 is the Block 22 version of the ACOAXTX coaxial antenna. It has an SMA plug and is tuned to the 563.2–588.7 MHz frequency range.

The approximately 36-inch coaxial cable allows the radiating antenna element to be positioned away from the connected transmitter. The end forms a quarter-wave antenna specifically tuned to Block 22.

Key features

• Coaxial antenna for compatible Lectrosonics transmitters
• Configured for Block 22
• Allows the antenna element to be positioned away from the transmitter
• Colour band and label identify the frequency block

Specifications

• Type: coaxial quarter-wave antenna
• Connector: SMA plug
• Frequency range: 563.2–588.7 MHz
• Frequency block: Block 22
• Overall length: approximately 36 inches (91 cm)

Compatibility

Suitable for compatible Lectrosonics transmitters with an SMA antenna connection operating within Block 22.
