Lectrosonics ALP500

Lectrosonics ALP500

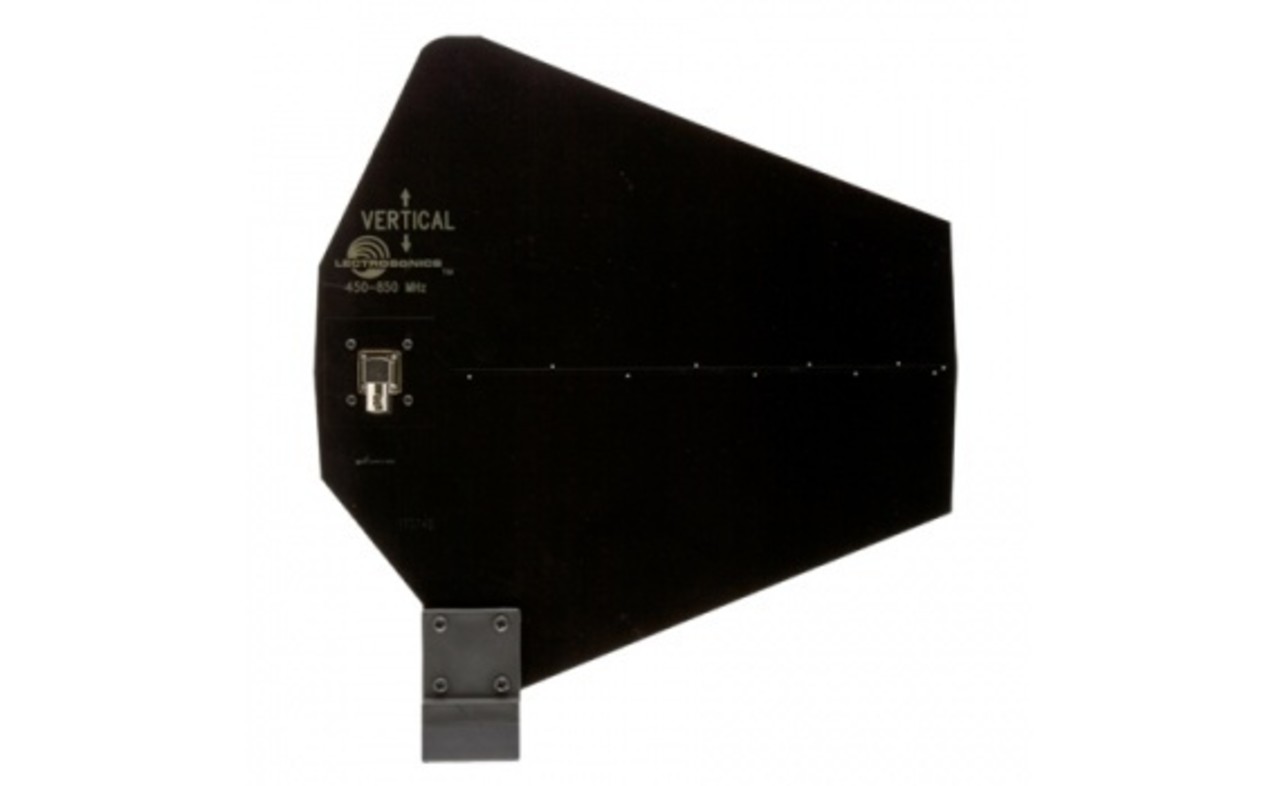

The Lectrosonics ALP500 is a passive directional antenna featuring a Log Periodic Dipole Array (LPDA) design for broadband UHF applications. The antenna provides a directional reception pattern over a frequency range of 450 to 862 MHz. Constructed from 1/8" FR4 fiberglass, the ALP500 is both rugged and lightweight. The mounting base is compatible with 1/4"-20, 3/8"-16, and 5/8"-27 threads for use with various stands.

Main Features

• LPDA design for directional reception pattern
• Frequency range: 450–862 MHz
• 1/8" FR4 fiberglass construction
• 50 Ohm BNC connector
• Mounting base compatible with 1/4"-20, 3/8"-16, and 5/8"-27 threads
• Dimensions: 12" x 10.5" x 1.5" (30.5 × 26.7 × 3.8 cm)
• Weight: 14.2 oz (approximately 403 grams)
