Lectrosonics ALP650H

Lectrosonics ALP650H

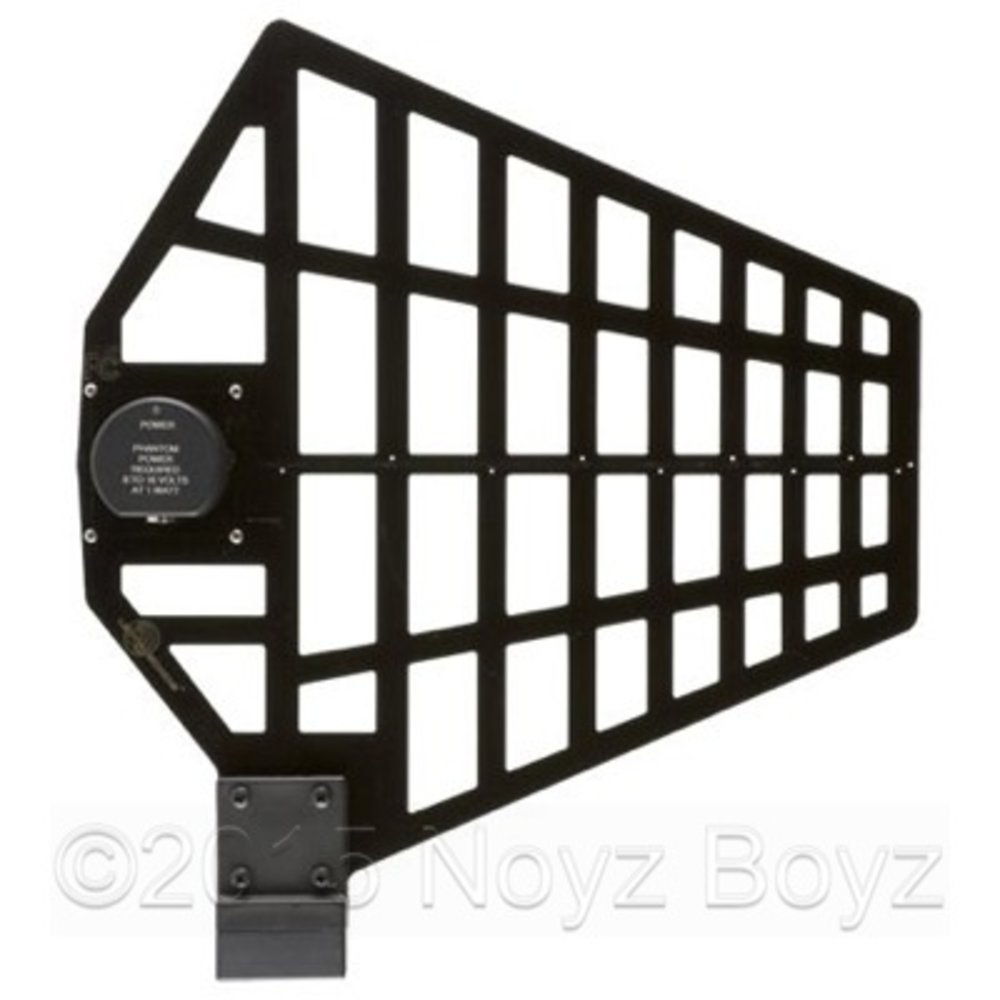

The Lectrosonics ALP650H is a passive directional antenna featuring a Log Periodic Dipole Array (LPDA) design, suitable for broadband UHF applications. The antenna provides a directional reception pattern over a frequency range of 640 to 870 MHz. Constructed from 1/8" FR4 fiberglass, the ALP650H is both rugged and lightweight. The mounting base is compatible with 1/4"-20, 3/8"-16, and 5/8"-27 threads, allowing for mounting on various stands.

Main Features

• LPDA design for directional reception pattern
• Frequency range: 640–870 MHz
• 1/8" FR4 fiberglass construction
• 50 Ohm BNC connector
• Mounting base compatible with 1/4"-20, 3/8"-16, and 5/8"-27 threads
• Dimensions: 12" x 10.5" x 1.5" (30.5 × 26.7 × 3.8 cm)
• Weight: 12 oz (approximately 340 grams)
