Lectrosonics BIAST
5% sale
Product description

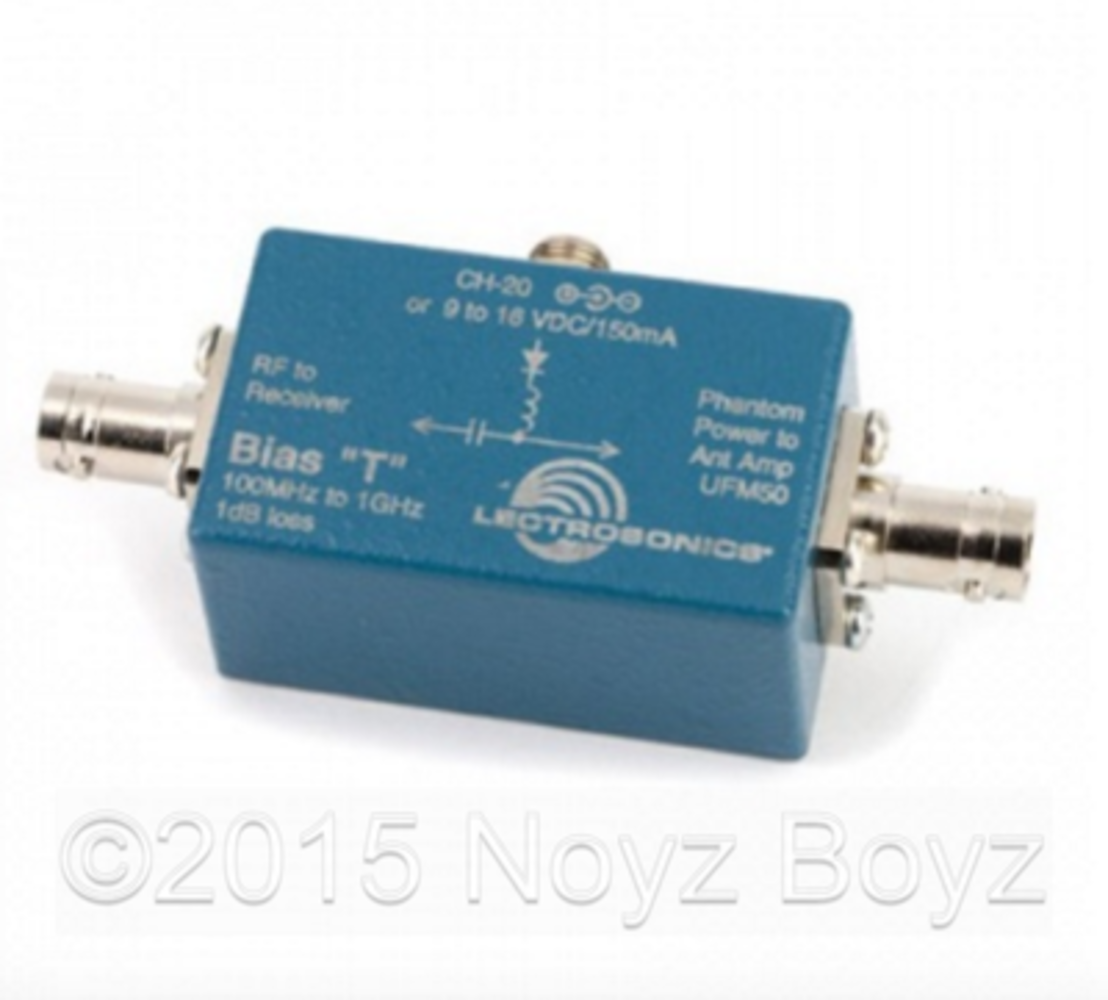

Lectrosonics BIAS T The Lectrosonics BIAS T is a coaxial power inserter that applies DC power to a coaxial antenna line for remotely powering the UFM230 filter/amplifier. The applied DC voltage (9 to 16 VDC) appears on the input port of the BIAS T to power the UFM230 through the coaxial cable, but is isolated from the output port so it will not be ...
Lectrosonics BIAS T

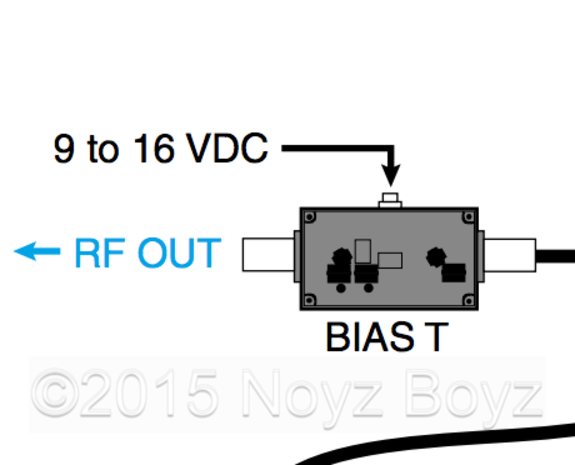

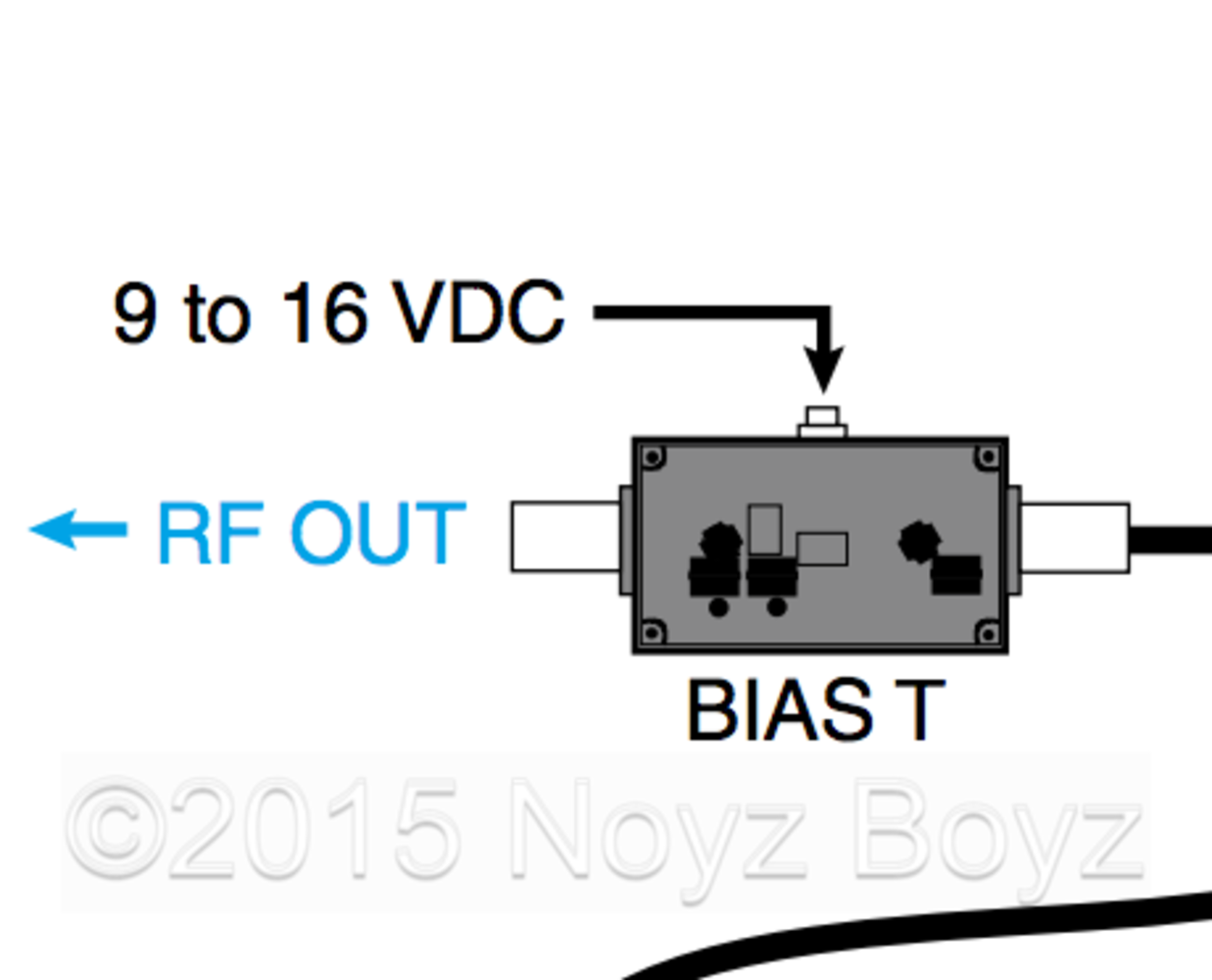

The Lectrosonics BIAS T is a coaxial power inserter that applies DC power to a coaxial antenna line for remotely powering the UFM230 filter/amplifier. The applied DC voltage (9 to 16 VDC) appears on the input port of the BIAS T to power the UFM230 through the coaxial cable, but is isolated from the output port so it will not be applied to the input of the receiver.
Main Features
- Applies DC power to a coaxial antenna line for remotely powering the UFM230 filter/amplifier
- DC voltage: 9 to 16 VDC
- DC power appears on the input port and is isolated from the output port
- Typically placed near the receiver where power is available
- UFM230 filter/amplifier and antenna are placed at the opposite end of the coaxial cable, close to the antenna
- Requires external power supply (not included); compatible with Lectrosonics CH20, DCR12/A8U, and DCR12/A4U
Show more
Show less
Product specifications
- Article number
- LECAntBIAS6495
Related Products:
BIAS T powers a UFM230 remotely via coax (9–16 VDC), with DC isolation between input and output to protect the receiver.
