Lectrosonics LTBATELIM-H

Lectrosonics LTBATELIM-H

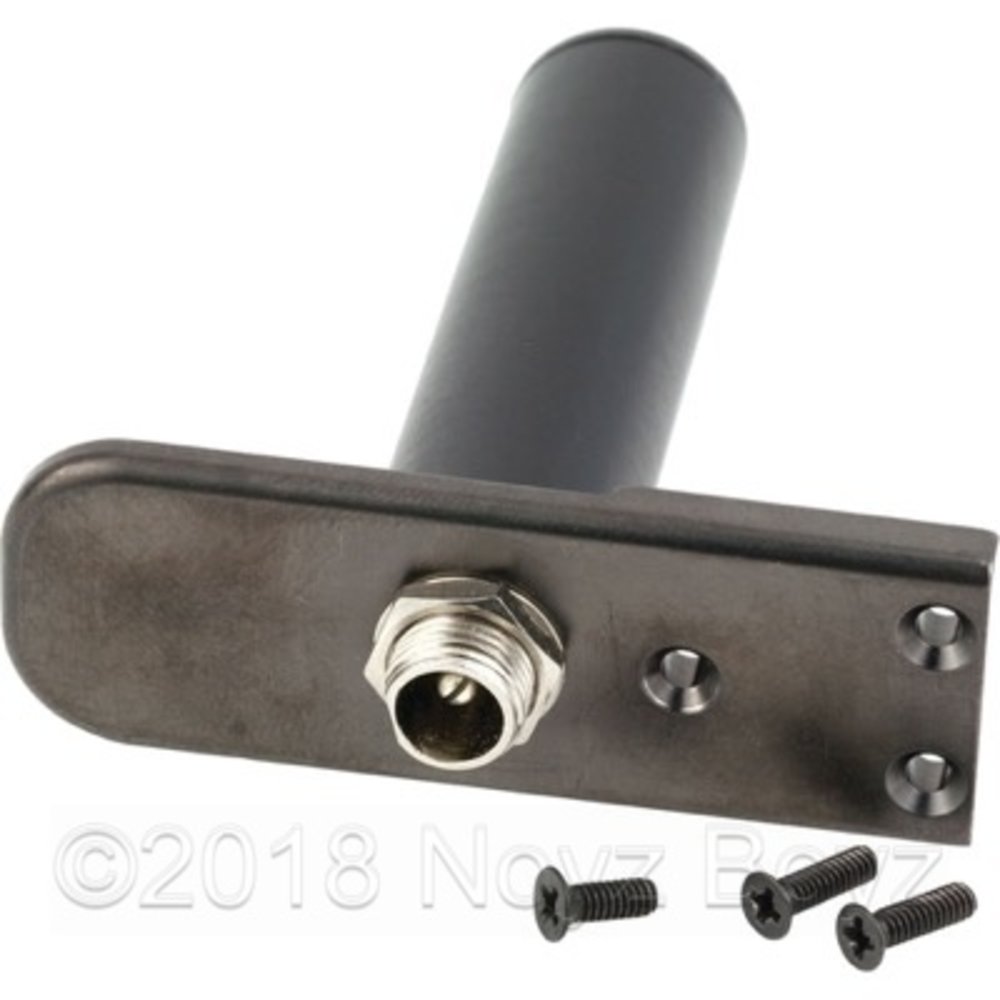

The Lectrosonics LTBATELIM-H is a battery eliminator that allows compatible Lectrosonics devices to be powered from an external DC power source. The LTBATELIM-H replaces the batteries and standard battery door of the device.

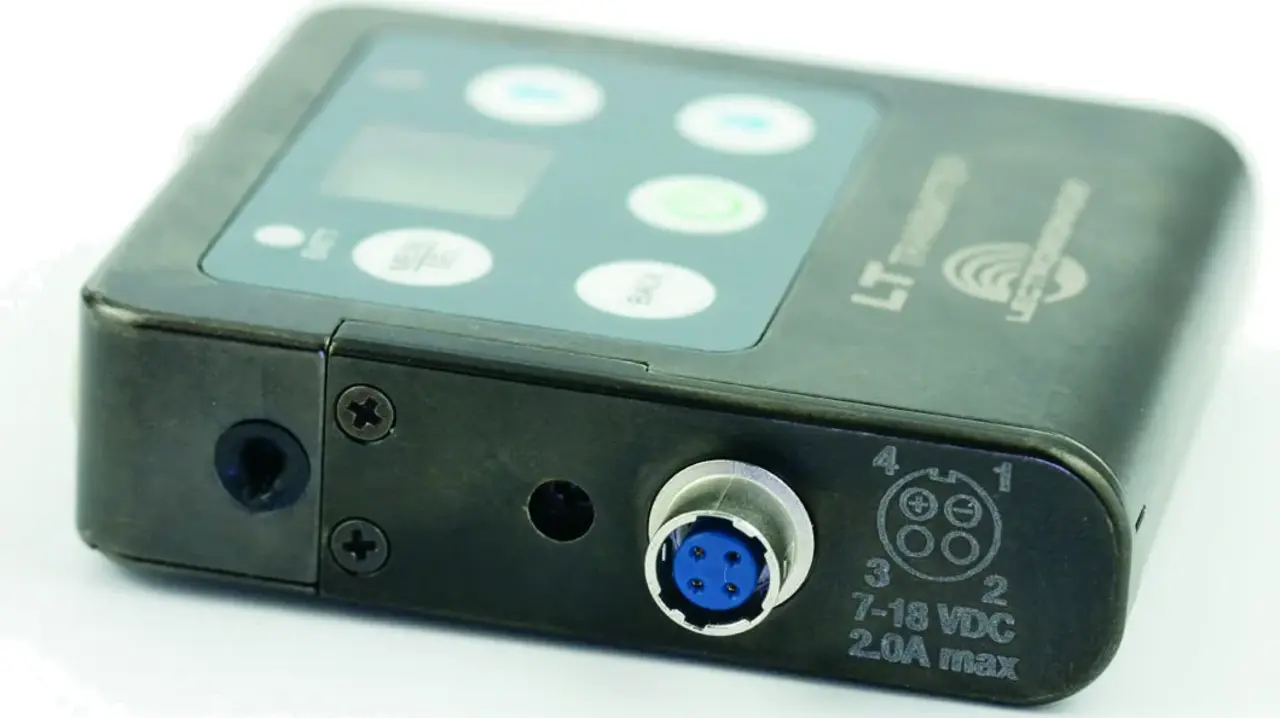

External power is connected through a locking Hirose 4-pin connector. The battery eliminator is compatible with the Lectrosonics LT, M2R, M2Ra, DCHR, DCHT, DBu and DBu-LEMO.

Key Features

• Powers the device from an external DC source
• Replaces the batteries and standard battery door
• Locking Hirose 4-pin power connector
• Input voltage range from 5 to 25 V DC
• Compact design weighing 23 grams

Specifications

• Product type: battery eliminator
• Power connector: locking Hirose 4-pin
• Input voltage: 5–25 V DC
• Pin 4: positive
• Pin 1: negative
• Pins 2 and 3: not connected
• Current consumption at 5 V: 310 mA
• Current consumption at 12 V: 130 mA
• Current consumption at 25 V: 65 mA
• Dimensions: 53 × 60 × 21 mm
• Weight: 23 g

Compatibility

• Lectrosonics LT
• Lectrosonics M2R
• Lectrosonics M2Ra
• Lectrosonics DCHR
• Lectrosonics DCHT
• Lectrosonics DBu
• Lectrosonics DBu-LEMO

Included

• Lectrosonics LTBATELIM-H battery eliminator
• 2× mounting screw, part number 28623
• 1× short mounting screw, part number 28615

Optional Accessory

• Lectrosonics PS200A: 15-inch Hirose 4-pin to locking DC power cable

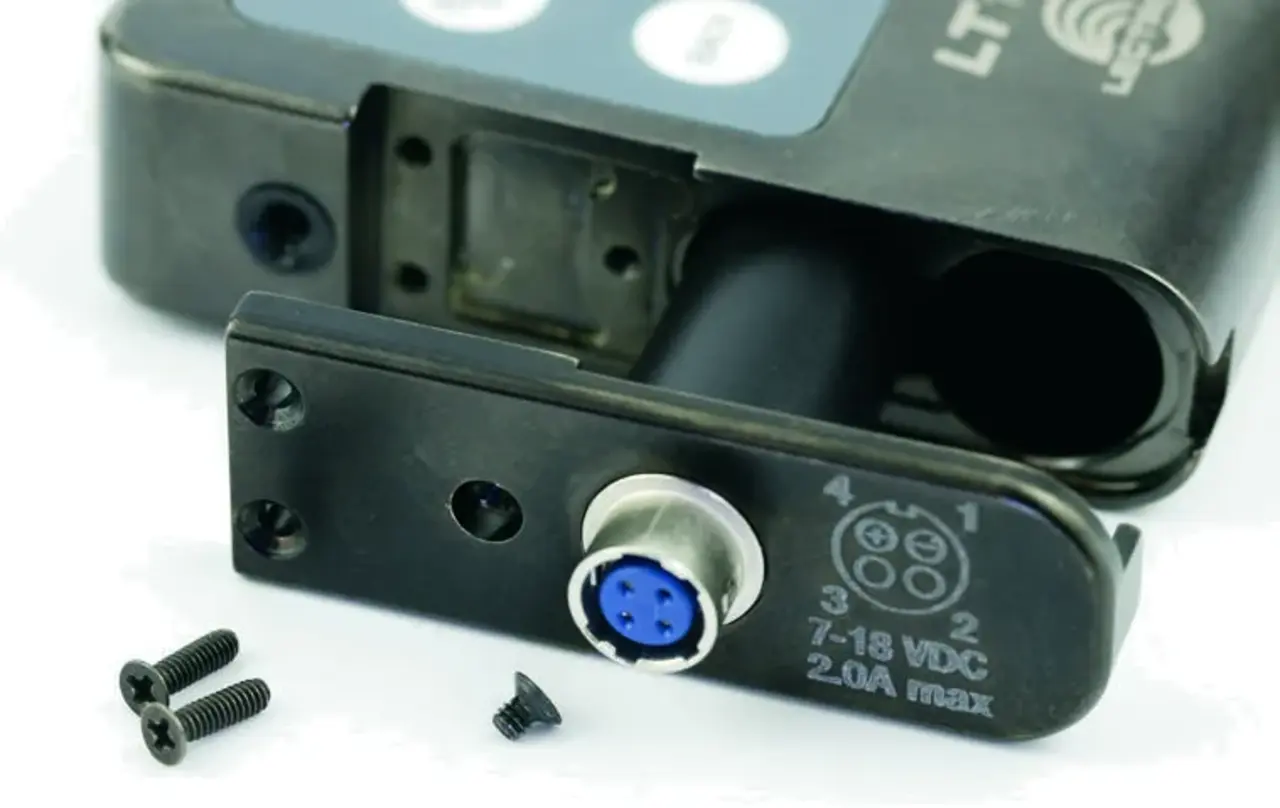

Correct screw placement is important during installation. The short screw with part number 28615 must be installed in the mounting hole near the Hirose connector. Using a longer screw in this position may damage the internal circuit board.
