Lectrosonics SRAES3

Lectrosonics SRAES3

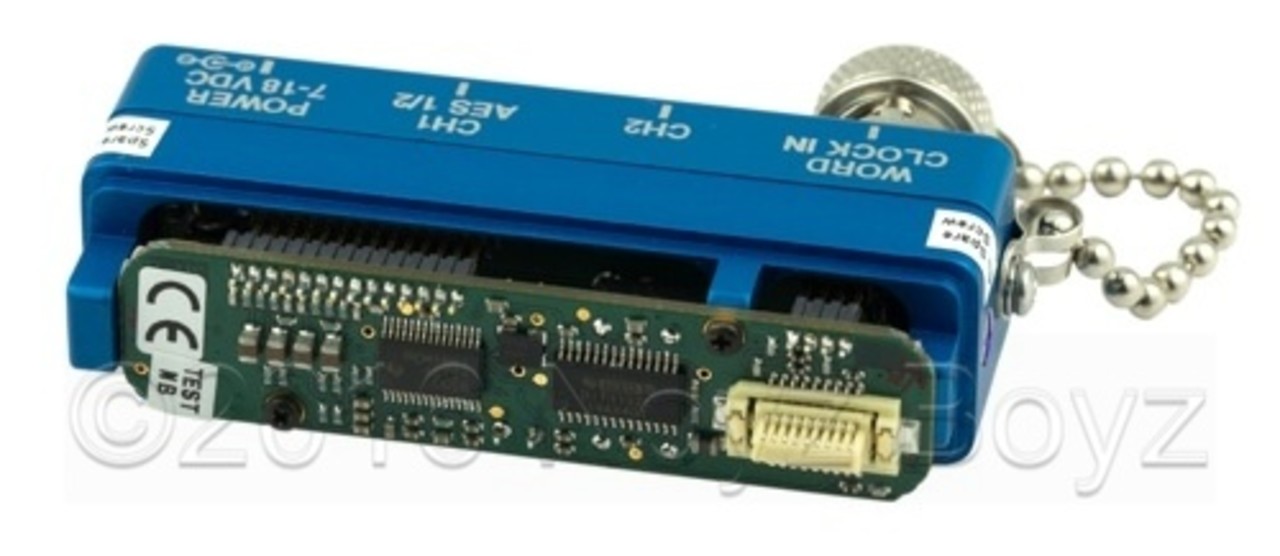

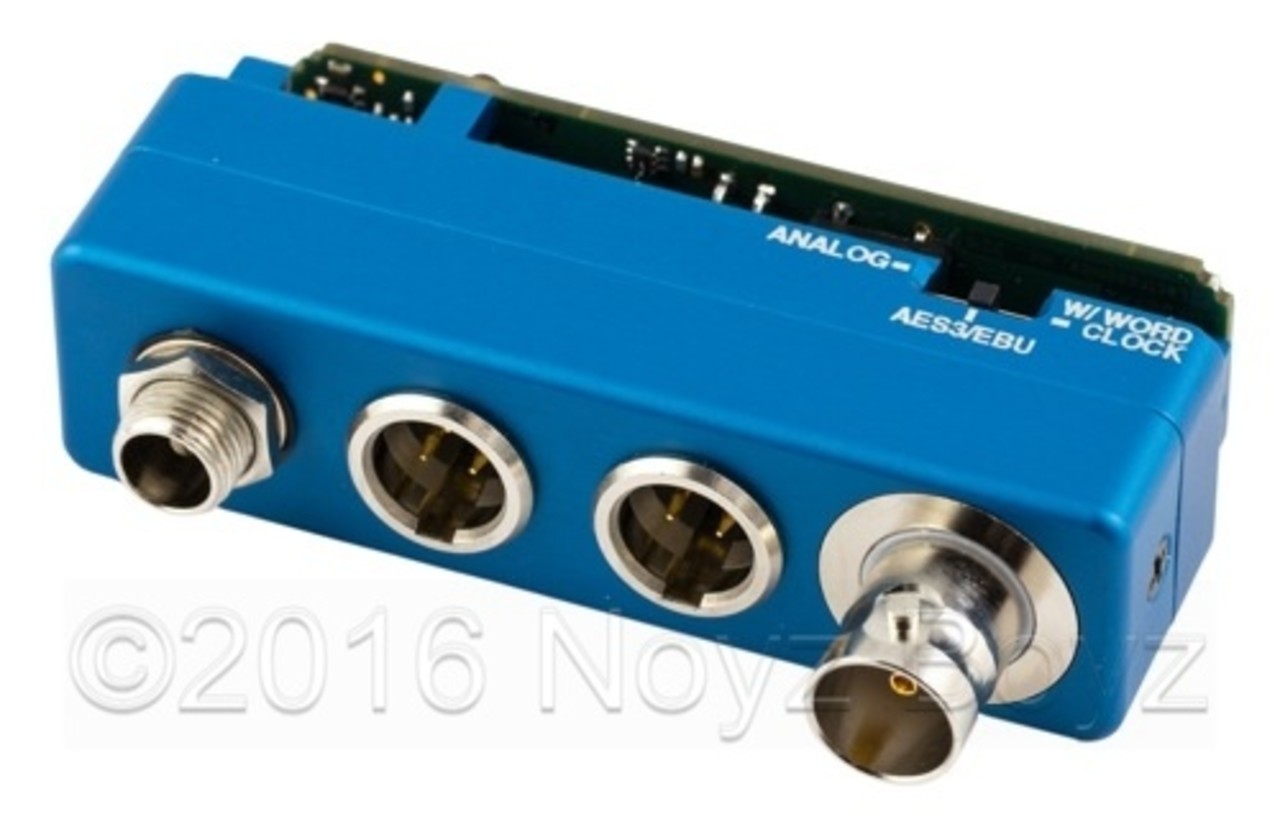

The Lectrosonics SRAES3 is an audio output adapter designed for all SR series dual-channel slot receivers, including the SRa, SRb, and SRc models. This adapter provides both AES3 digital and balanced analog audio outputs, offering flexibility for various applications. The SRAES3 supports internal and external clock sources and is ideal for use in professional audio and video productions.

Main Features

• Compatible with SRa, SRb, and SRc dual-channel slot receivers
• Supports AES3 digital audio output at 48 kHz (internal clock)
• Supports AES3 digital audio output at 44.1, 48, or 96 kHz (external word clock)
• Balanced analog audio output from -50 dBu to +5 dBu in 1 dB steps
• CH1 output delivers digital audio; CH2 output always delivers analog audio

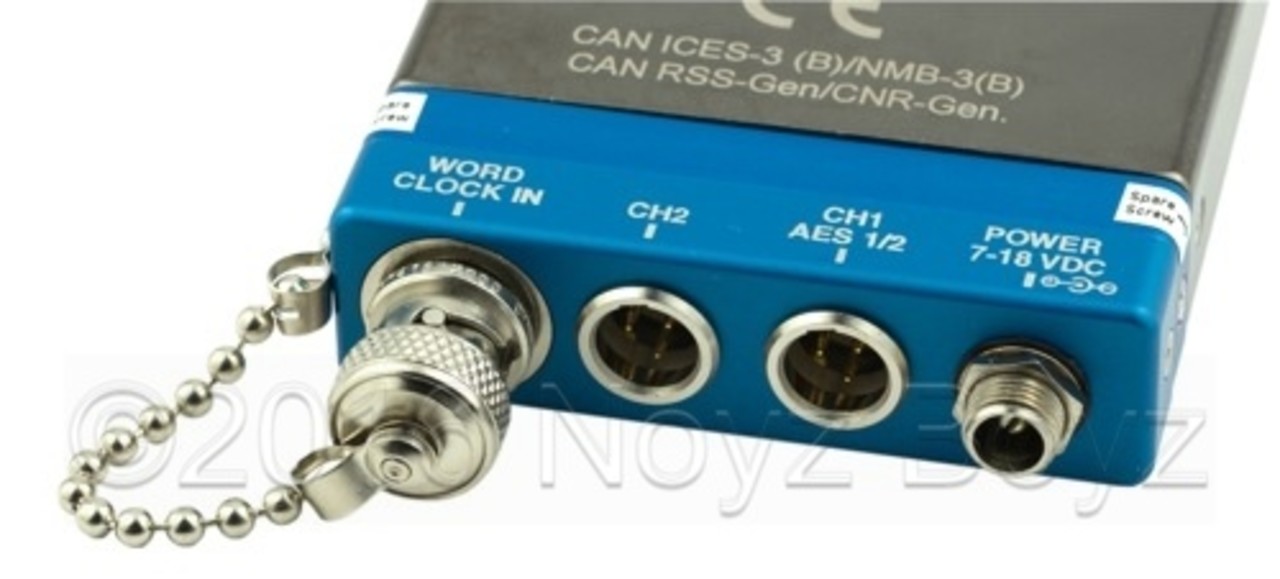

• BNC connector for external word clock input with 75-ohm termination (removable jumper)
• Housing machined from solid aluminum for durability

Technical Specifications

• Digital Output: AES3/EBU, -11 dBFS, THD: 0.15%
• Analog Output: Balanced, -50 to +5 dBu, THD: 0.15%
• Word Clock Input: TTL level, BNC connector, 75-ohm termination (removable)
• Power Requirements (with SRc receiver): 7–18 VDC; 345 mA at 7 VDC, 200 mA at 12 VDC, 135 mA at 18 VDC

Included

• SRAES3 audio output adapter
• Power cable
• Mounting hardware
• User manual
