Lectrosonics ZFSC41

Lectrosonics ZFSC41

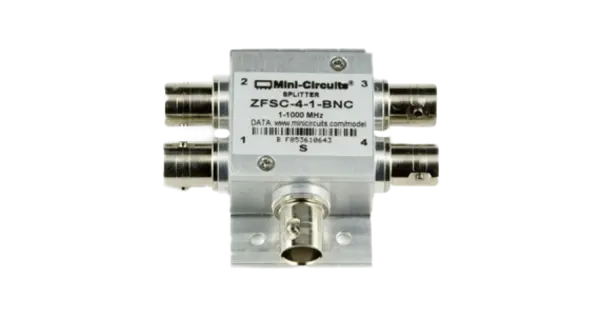

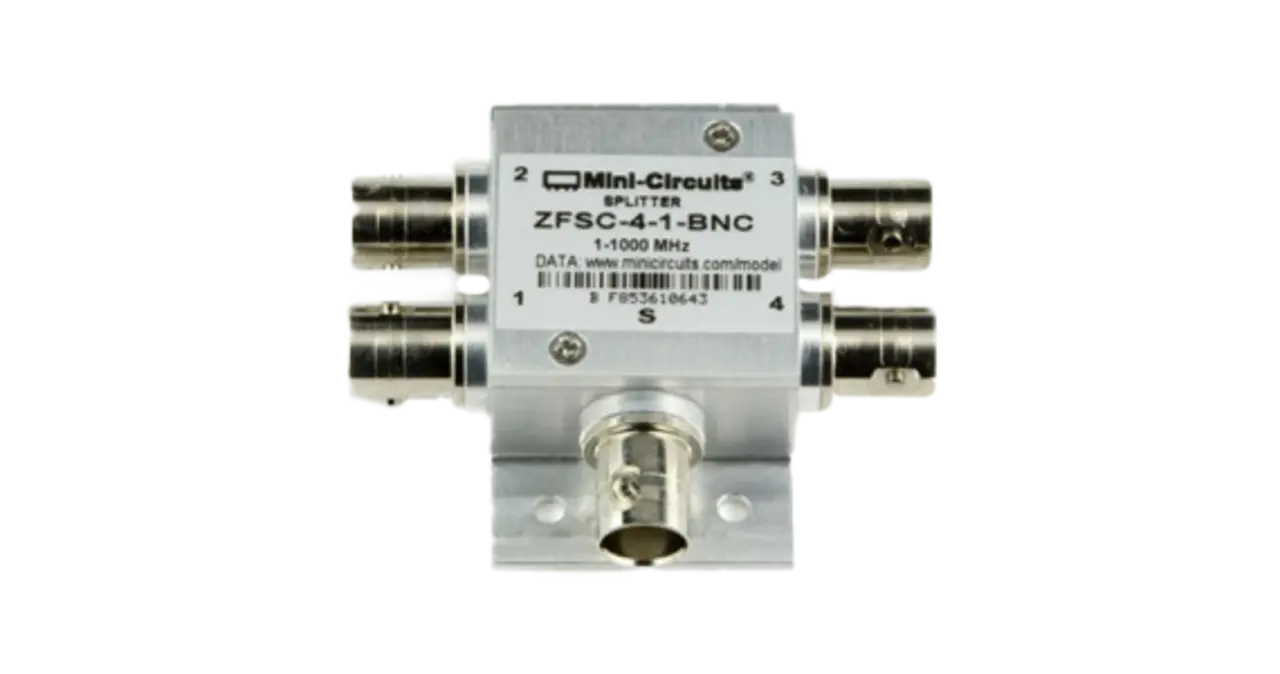

The Lectrosonics ZFSC41 is a passive 4-way RF splitter with a frequency range of 1 to 1000 MHz. It features one BNC input and four BNC outputs, allowing efficient distribution of an incoming antenna signal to multiple receivers. Its robust, shielded metal housing makes it suitable for professional applications.

Main Features

• Passive 4-way RF splitter for antenna signals
• Frequency range from 1 to 1000 MHz
• One BNC input and four BNC outputs
• Robust, shielded metal housing
• Ideal for distributing antenna signals to multiple receivers

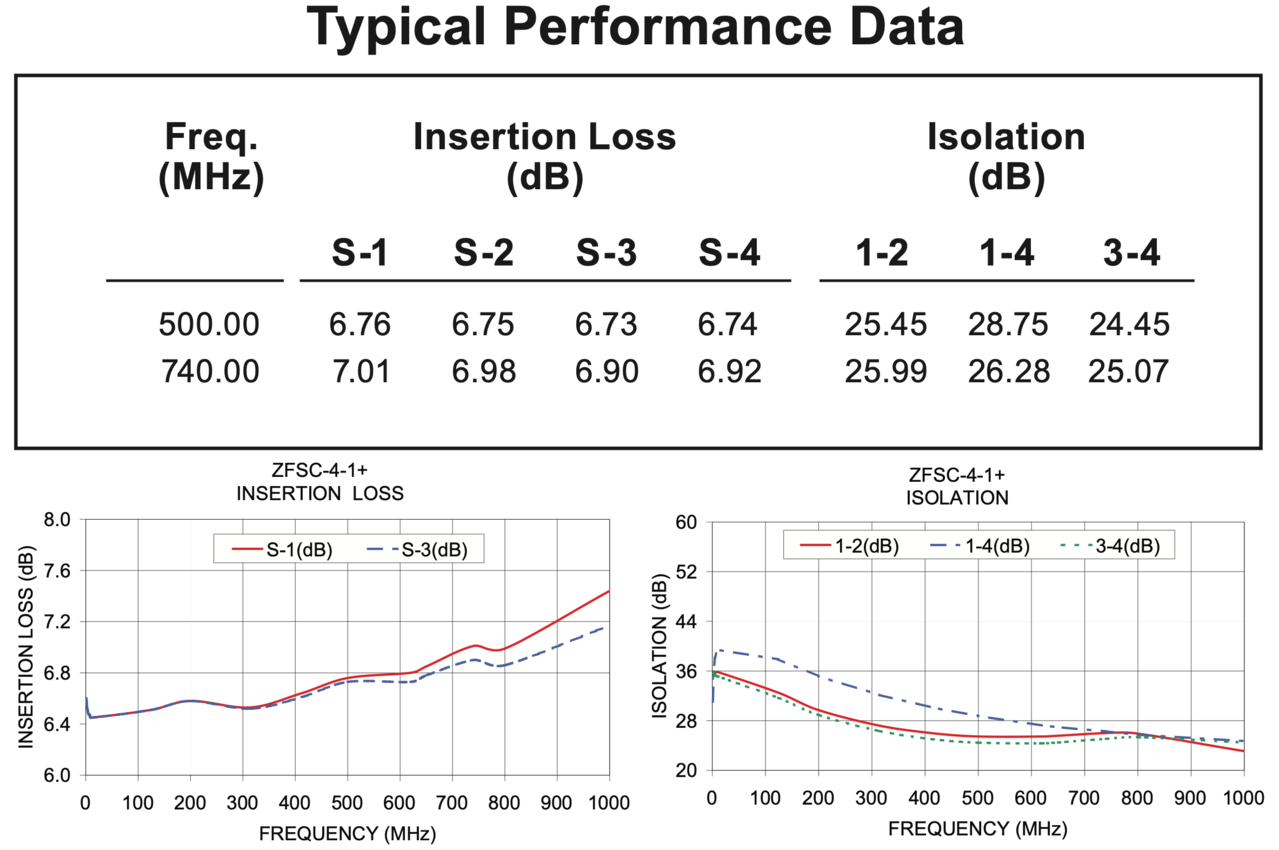

Specifications

• Frequency range: 1–1000 MHz
• Isolation (dB): Low = 25, Mid = 23, High = 20
• Insertion loss per output (dB): Low = 6.4, Mid = 6.6, High = 7.6
• Connector type: BNC (1x input, 4x output)
• Dimensions: 5.1 x 3.8 x 1.3 cm
• Weight: 227 g

Included

• ZFSC41 RF splitter
