PSC RFSMASB

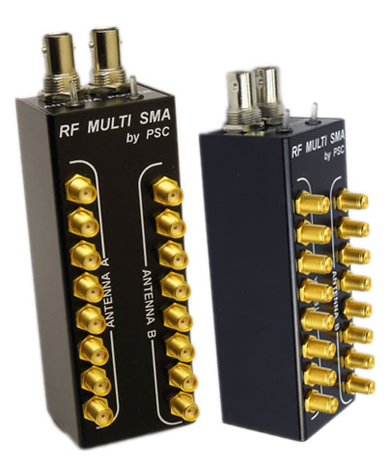

PSC RFSMASB – RF Multi SMA (Single Band)

The RF Multi SMA is a compact RF distribution solution for wireless audio systems, operating in the 470–700 MHz frequency range. It features two separate 1x8 active splitters, supporting up to eight diversity receivers. Equipped with low-noise amplifiers and provides power for external antennas or line amplifiers via switchable BNC inputs. Robust aluminum housing with Hirose power connector and belt clip for portable use.

Main Features

• Frequency range: 470–700 MHz
• Two 1x8 active RF splitters
• Supports up to eight diversity receivers
• Switchable power for external antennas
• Inputs: 2 × BNC
• Outputs: 16 × SMA

Specifications

• Dimensions: 108 × 35 × 41 mm
• Weight: 185 g
• Power: 10–15 VDC @ 120 mA (4-pin Hirose)
• Input/output impedance: 50 Ohms
• Maximum input level: +13 dB
• Noise figure: 0.8 dB
• Output isolation: 24–28 dB
• Housing: black powder-coated aluminum

Included

• RF Multi SMA unit
• Belt clip
