Sanken CMS-50

Sanken CMS-50 M/S Stereo Microphone

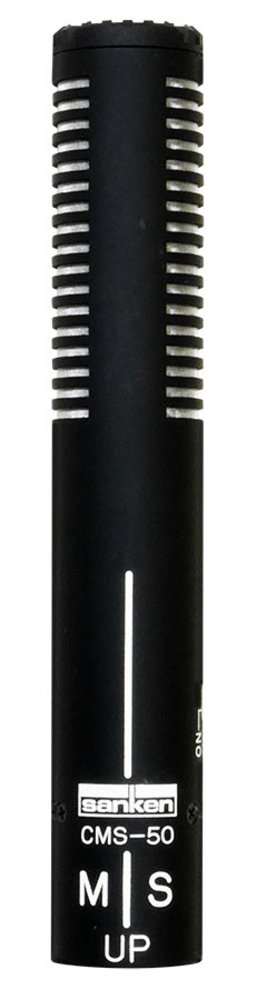

The Sanken CMS-50 is a compact M/S condenser microphone with separate cardioid (M) and figure-8 (S) capsules. At only 137 mm in length and 130 g in weight, it is one of the smallest M/S microphones in its class. The CMS-50 delivers a coherent stereo image with high sound quality and offers flexibility in both pre- and post-production. Its built-in HPF switch allows adjustment of low-frequency characteristics as needed.

Main Features

• M/S component outputs for flexible stereo imaging
• Cardioid and figure-8 patterns for natural stereo capture
• Compact and lightweight: 137 mm, 130 g

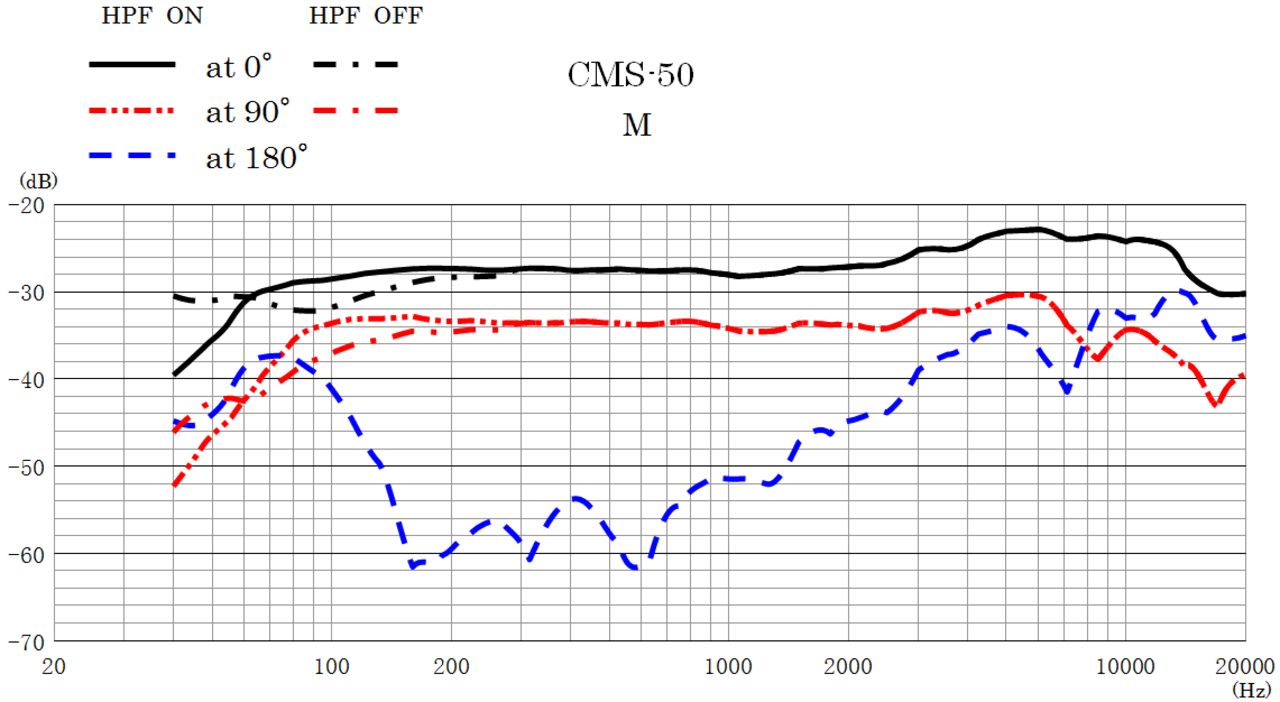

• HPF switch for adjustable low end
• Well suited for field recording, sports, and film production

Specifications

• Type: Self-polarised condenser

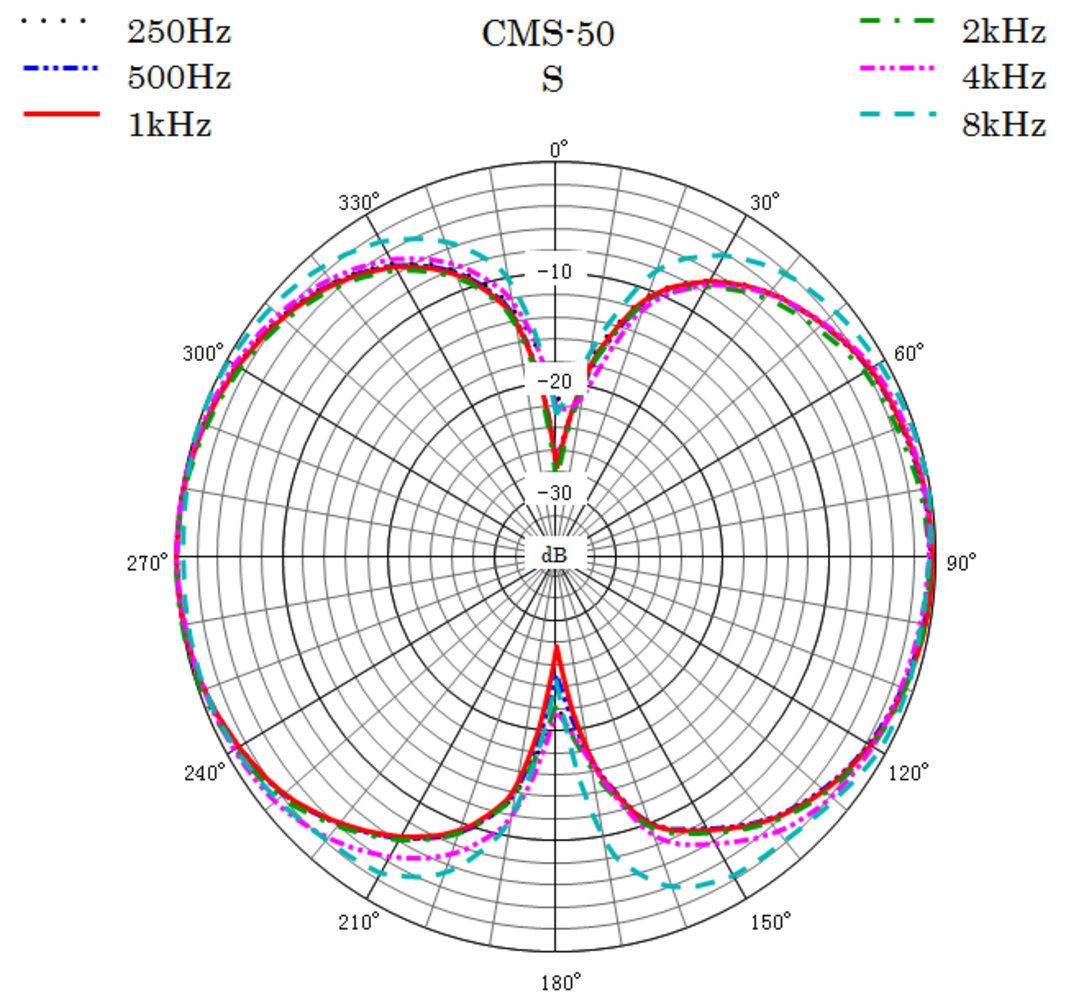

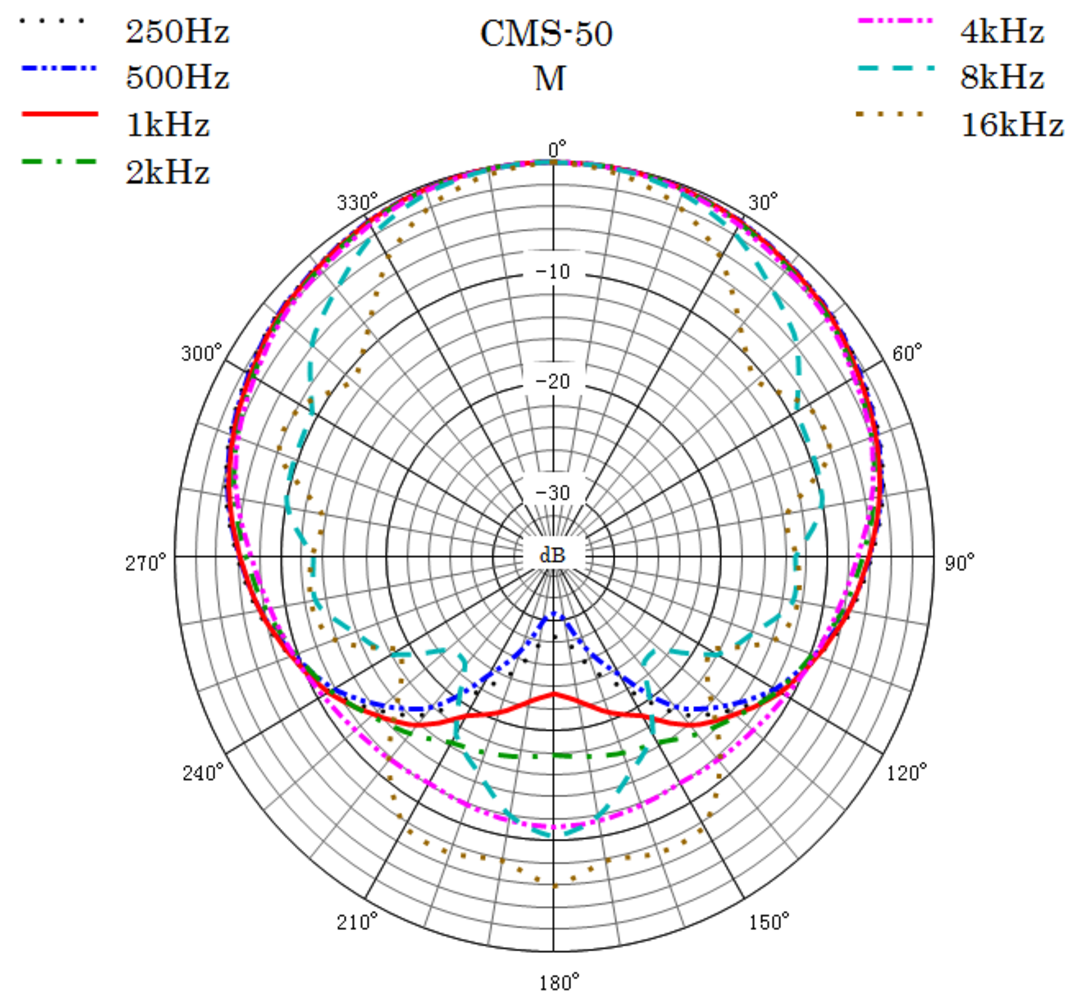

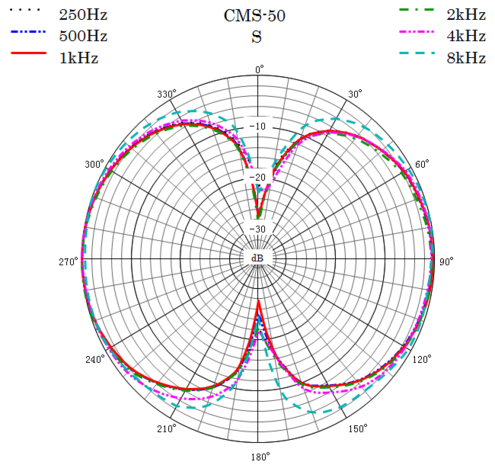

• Polar pattern: M = Cardioid, S = Figure-8

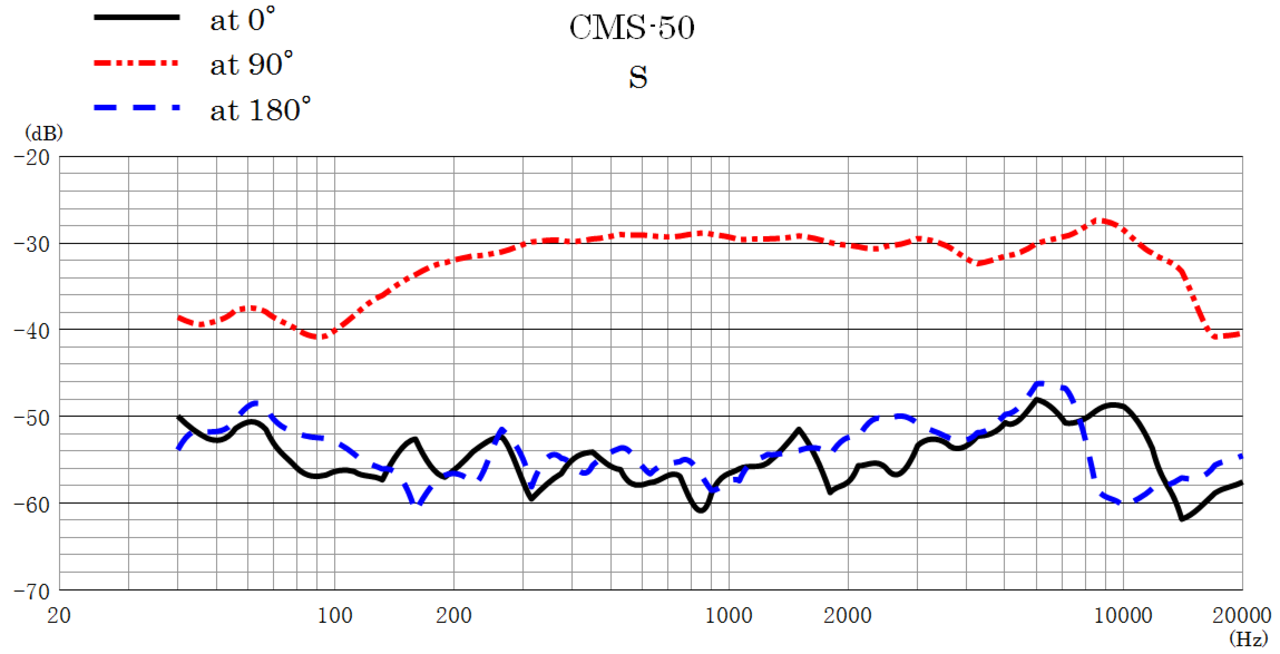

• Frequency response: 60 Hz – 20 kHz
• Sensitivity (1 kHz): –28 dB (40 mV/Pa)
• Equivalent noise (A-weighted): 18 dB SPL
• Max SPL (1% THD): 138 dB SPL
• Output impedance: 140 Ω
• Powering: +48 V phantom
• Current consumption: 4 mA (each channel)
• Dimensions: Ø 22.2 mm × 137 mm
• Weight: 130 g
• Connector: XLR-5M
• Finish: matte black

Applications

• Film and television production
• Sports and field recording
• Ambient recording
• Musical and theatrical live capture

Included

• Sanken CMS-50 M/S Stereo Microphone
• Urethane windscreen
• Measurement data
• Instruction sheet
• Warranty card
• Vinyl case
