Sanken CO-100K

Sanken CO-100K Omnidirectional Microphone

The Sanken CO-100K is the world’s first microphone capable of capturing frequencies up to 100 kHz, designed for actual music and sound recording rather than measurement. Developed in cooperation with NHK’s Science & Technical Research Laboratories, it delivers an exceptionally wide frequency response from 20 Hz to 100 kHz. This allows the CO-100K to capture not only the audible spectrum but also overtones and nuances beyond human hearing, making it especially suitable for classical music, acoustic instruments, and sound design.

Main Features

• Omnidirectional design
• Frequency response from 20 Hz – 100 kHz
• Unique diaphragm design for transparent sound capture
• Developed for professional music and sound production

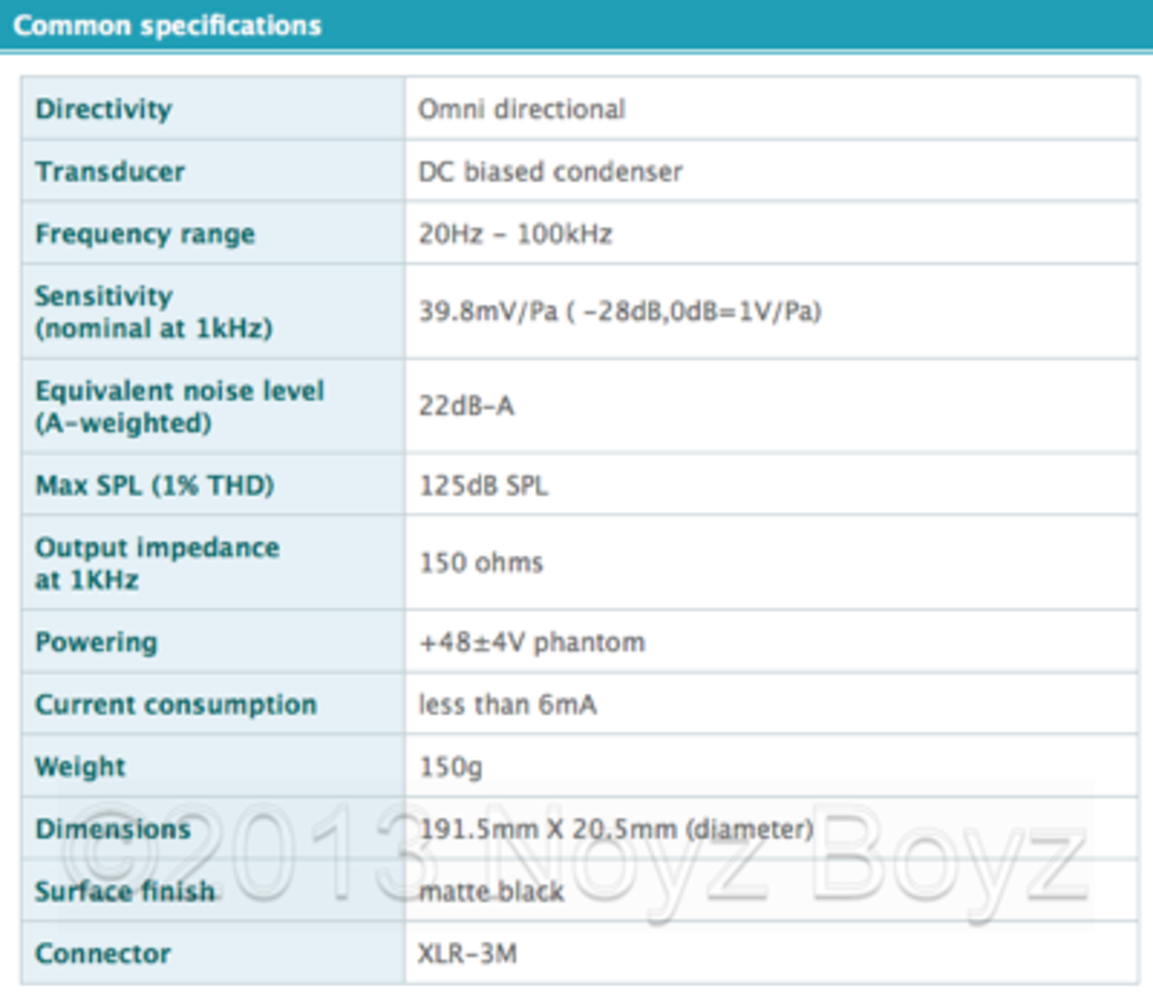

Specifications

• Type: DC biased condenser microphone
• Polar pattern: Omnidirectional
• Frequency response: 20 Hz – 100 kHz
• Sensitivity (1 kHz): –28 dB (39.8 mV/Pa)
• Equivalent noise (A-weighted): 22 dB-A
• Max SPL (1% THD): 125 dB SPL
• Output impedance (1 kHz): 150 Ω
• Powering: +48 ± 4 V phantom
• Current consumption: < 6 mA
• Dimensions: 191.5 mm × 20.5 mm (diameter)
• Weight: 150 g
• Connector: XLR-3M
• Finish: matte black

Applications

• Classical music and orchestra recording
• Acoustic instruments
• Surround and multichannel setups
• Sound design and effects

Included

• Sanken CO-100K Omnidirectional Microphone
• Measurement data
• Instruction manual
• Warranty card
• Vinyl case
