Sanken CSR-2

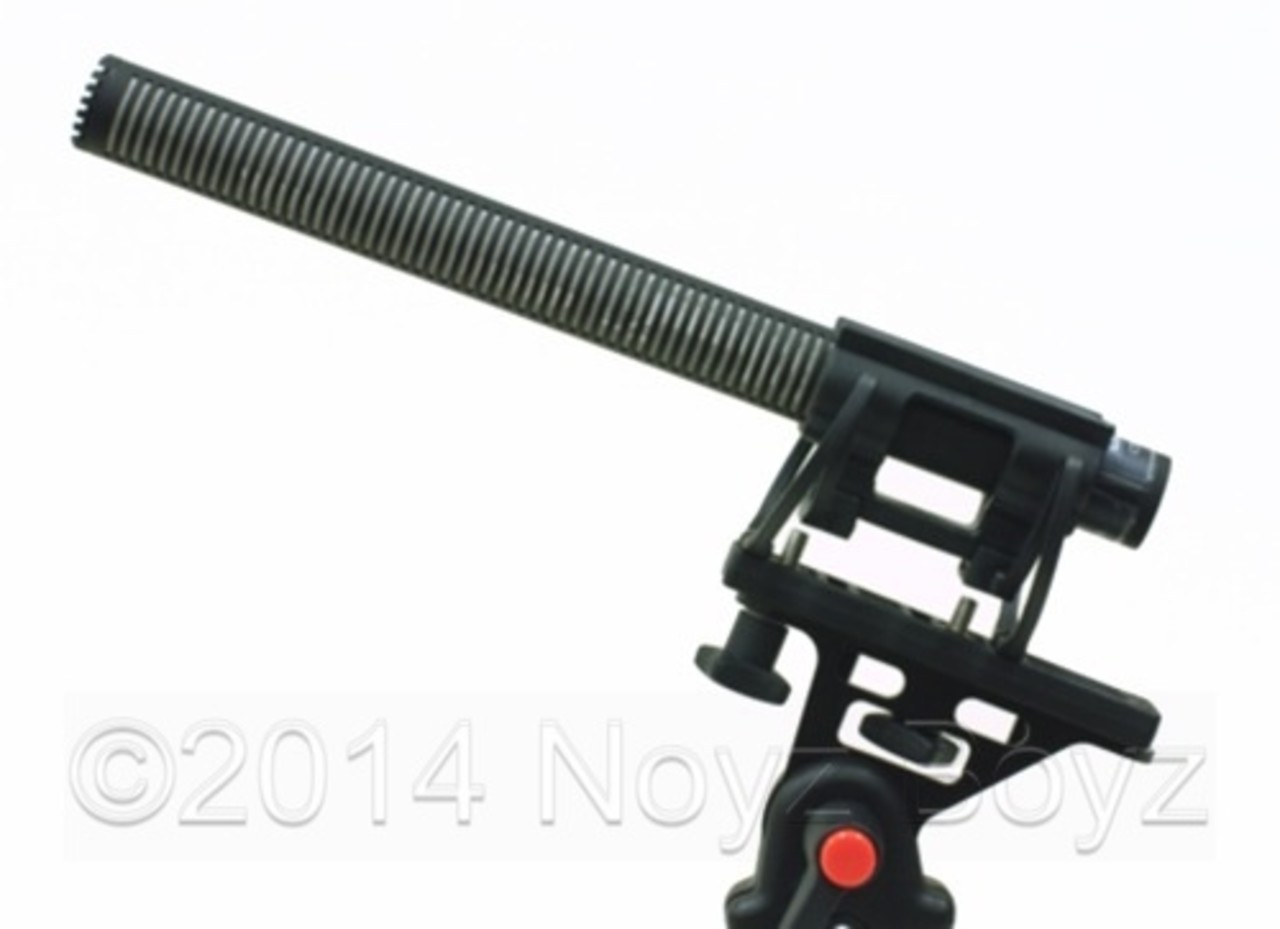

Sanken CSR-2 Shotgun Microphone

The Sanken CSR-2 is a shotgun microphone with exceptionally sharp directivity. It combines a line-tube design for mid to high frequencies with a second-gradient capsule system for low to mid frequencies, effectively suppressing background sensitivity across the full frequency range. At 250 mm in length and 170 g in weight, the CSR-2 is compact and easy to handle, whether mounted on a boompole or camera.

Main Features

• Sharp lobar directivity across a wide frequency range
• Unique 3-capsule design with second-gradient system
• Compact size: 250 mm length, 170 g
• Matte black finish, unobtrusive on camera
• Supplied with windscreen and case

Specifications

• Type: Back electret condenser (3 capsules)

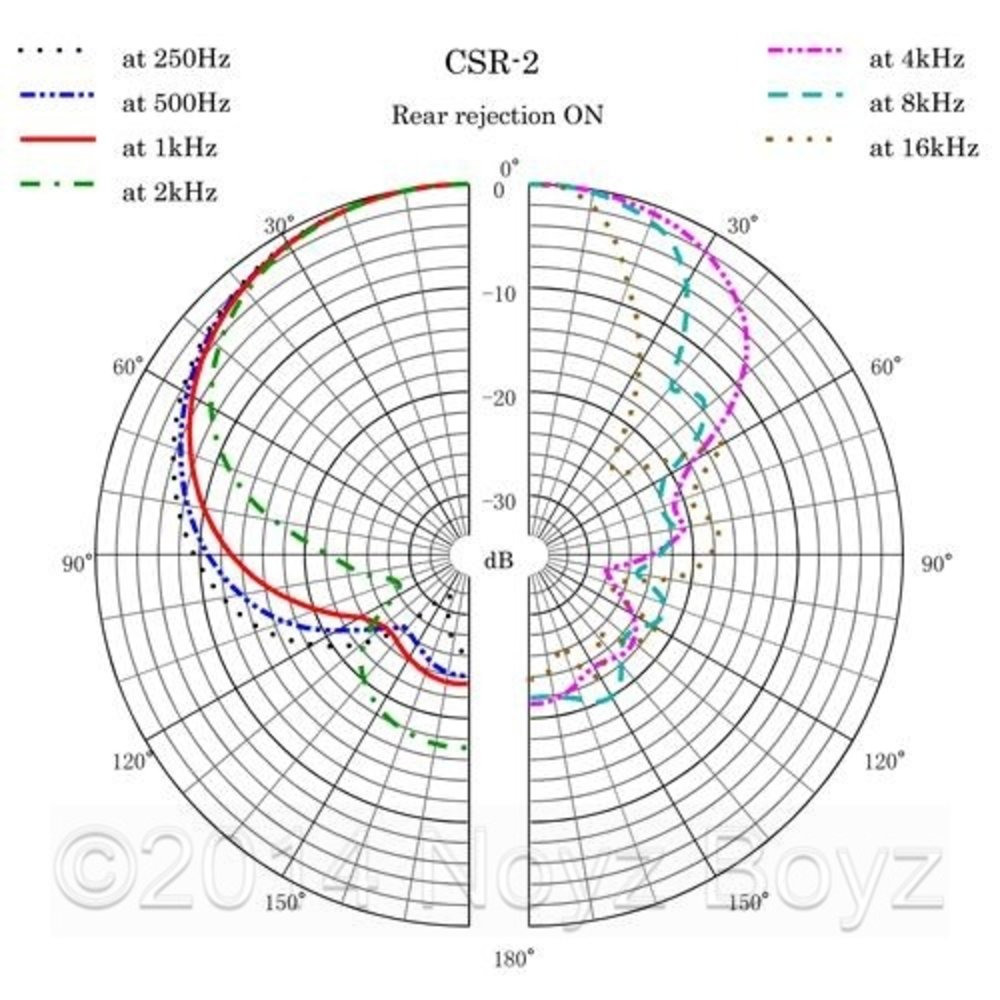

• Polar pattern: Lobar, with rear rejection via second-gradient capsules

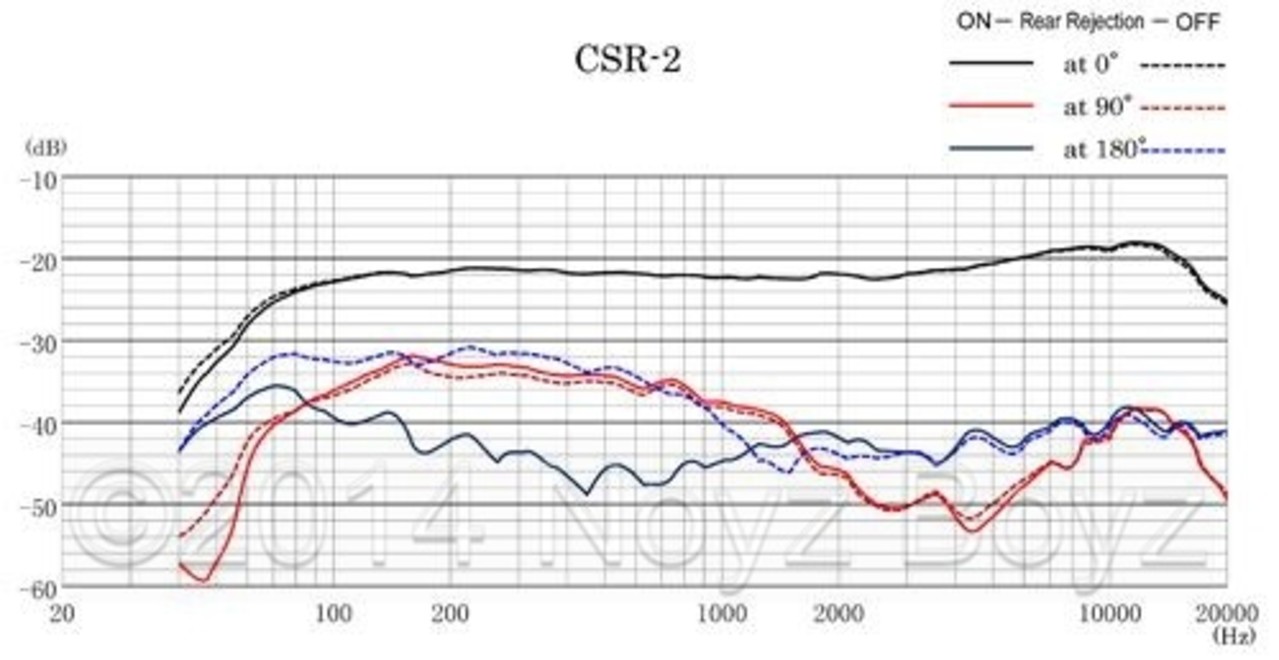

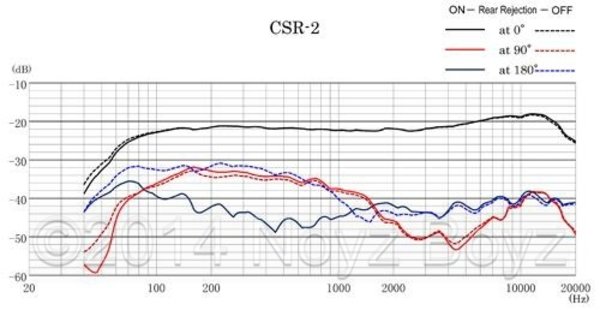

• Frequency response: 70 Hz – 18 kHz
• Sensitivity (1 kHz): –23 dB (71 mV/Pa)
• Equivalent noise (A-weighted): 16 dB-A (rear rejection ON), 15 dB-A (OFF)
• Max SPL (1% THD): 123 dB SPL
• Output impedance: 150 Ω
• Powering: +48 ± 4 V phantom
• Current consumption: 4.5 mA
• Dimensions: 250 mm × 22 mm (diameter)
• Weight: 170 g
• Connector: XLR-3M
• Finish: matte black

Applications

• Film and television production
• Boompole and camera use
• Sports and live events
• Challenging environments with high background noise

Included

• Sanken CSR-2 Shotgun Microphone
• WM-R2 urethane windscreen
• Measurement data
• Instruction manual
• Warranty card
• Vinyl case
