Sanken CU-55

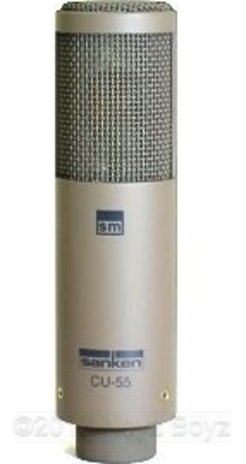

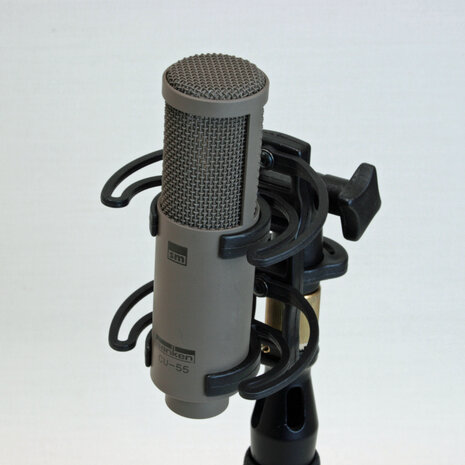

Sanken CU-55 Cardioid Microphone

The Sanken CU-55 is a compact cardioid condenser microphone with a flat frequency response from 40 Hz to 20 kHz. It is designed to capture natural, uncolored sound from acoustic instruments and vocals. Small and lightweight, it is easy to position in studios or live setups. With its built-in –10 dB PAD switch, the CU-55 can handle both subtle sources and very loud instruments, from strings to percussion and brass.

Main Features

• Compact and lightweight design (113 mm, 180 g)
• Wide frequency response (40 Hz – 20 kHz) with flat characteristics
• Natural, uncolored sound reproduction
• PAD switch (0 / –10 dB) for high SPL applications
• Wide dynamic range, suited for orchestra and solo work

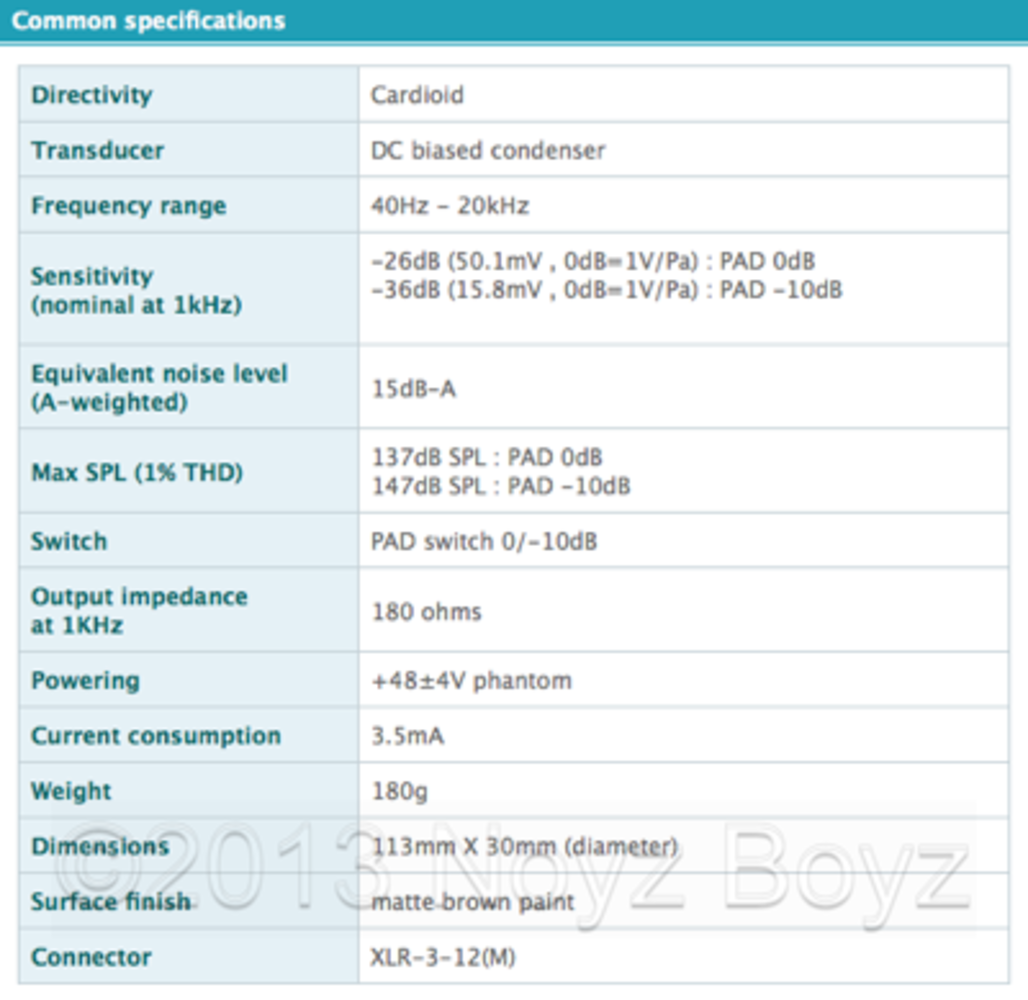

Specifications

• Type: DC biased condenser
• Polar pattern: Cardioid
• Frequency response: 40 Hz – 20 kHz
• Sensitivity (1 kHz): –26 dB (50.1 mV/Pa) / –36 dB (15.8 mV/Pa)
• Equivalent noise (A-weighted): 15 dB-A
• Max SPL (1% THD): 137 dB SPL (PAD 0 dB) / 147 dB SPL (PAD –10 dB)
• PAD switch: 0 / –10 dB
• Output impedance (1 kHz): 180 Ω
• Powering: +48 ± 4 V phantom
• Current consumption: 3.5 mA
• Dimensions: 113 mm × 30 mm (diameter)
• Weight: 180 g
• Connector: XLR-3-12M
• Finish: matte brown paint

Applications

• Studio recording of acoustic instruments
• Solo instruments and vocals
• Orchestra and ensemble recording
• Versatile use in music production

Included

• Sanken CU-55 Cardioid Microphone
• Measurement data
• Warranty card
• Vinyl case
