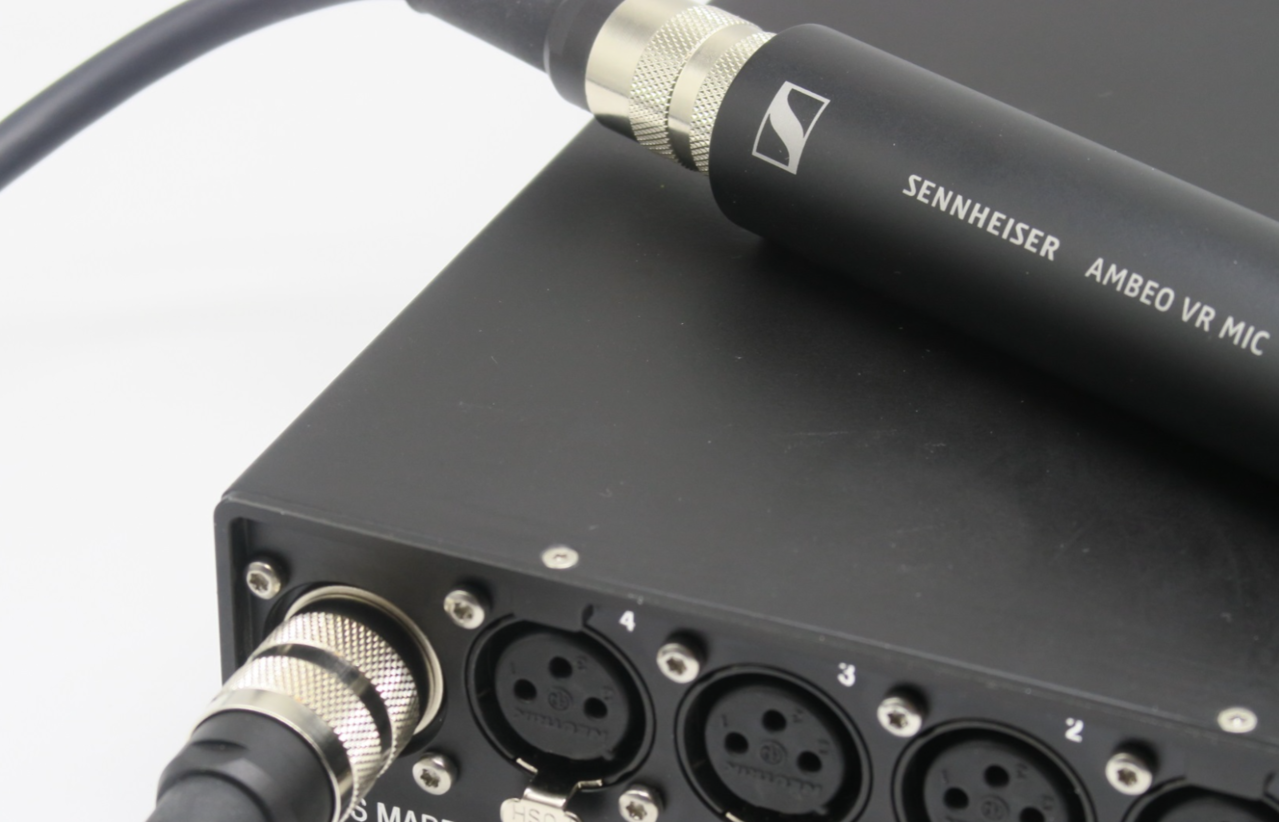

Sonosax R4+ Ambeo 12-PIN Connector

Sonosax AMBEO 12-pin connector for SX-R4+ [024286]

The Sonosax AMBEO 12-pin connector is an optional input board for the SX-R4+ recorder that allows the Sennheiser AMBEO VR Mic to be plugged directly into the recorder. It replaces the traditional 12-pin to 4× XLR audio split cable with a dedicated connector wired internally in parallel with the four XLR mic inputs of the SX-R4+.

This option card lets the AMBEO VR Mic be used directly without additional cables, simplifying setup and reducing wiring errors. The SX-R4+ firmware must be version 3.2 or higher to fully support the AMBEO VR Mic.

Main Features

• Optional AMBEO 12-pin connector for Sonosax SX-R4+.
• Direct connection for the Sennheiser AMBEO VR Mic.
• Internally wired in parallel with the four XLR mic inputs.
• Requires SX-R4+ firmware 3.2 or newer for full support.

Specifications

• Compatibility: Sonosax SX-R4+ recorder.
• Connector: AMBEO 12-pin DIN for Sennheiser AMBEO VR Mic.
• Internal wiring: parallel with 4× XLR mic inputs.
• Functionality: direct ambisonic mic hookup without split cable.
• Firmware requirement: SX-R4+ firmware ≥ 3.2.

Included

• AMBEO 12-pin connector for SX-R4+ [024286].
