Viviana Pebble

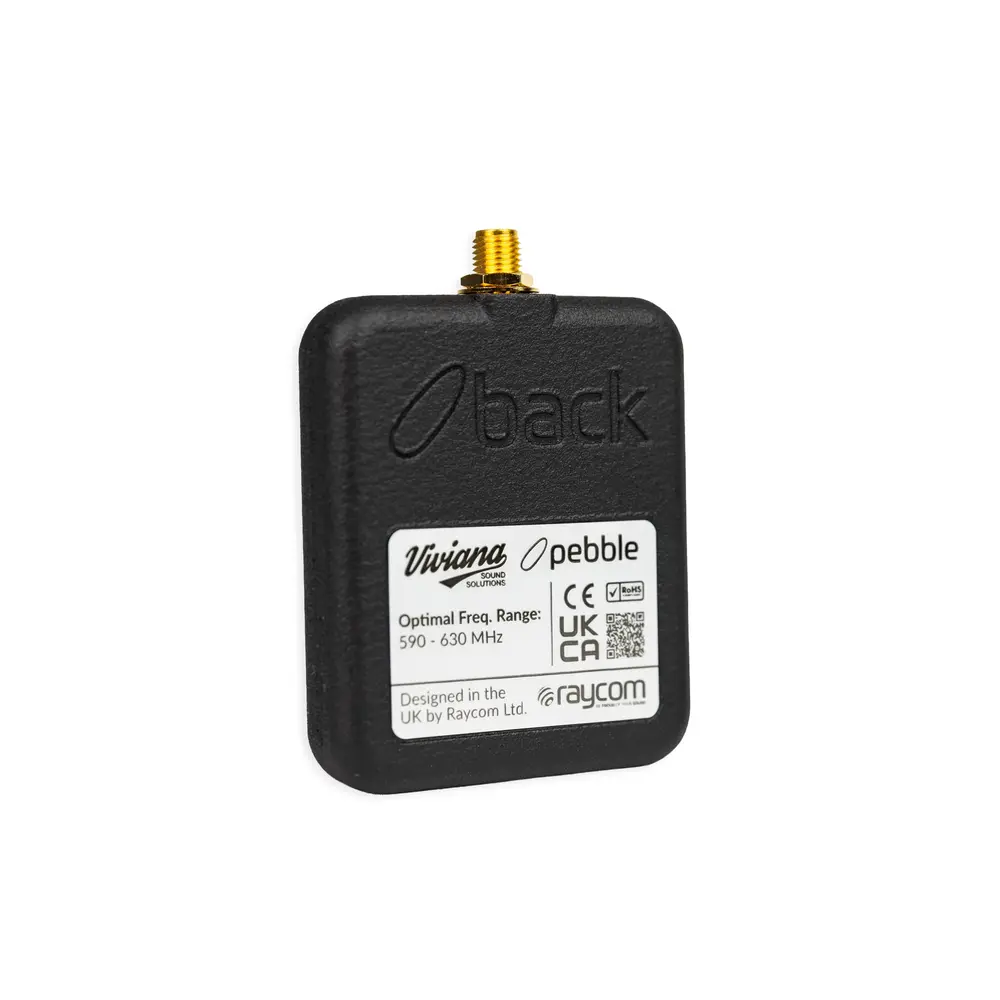

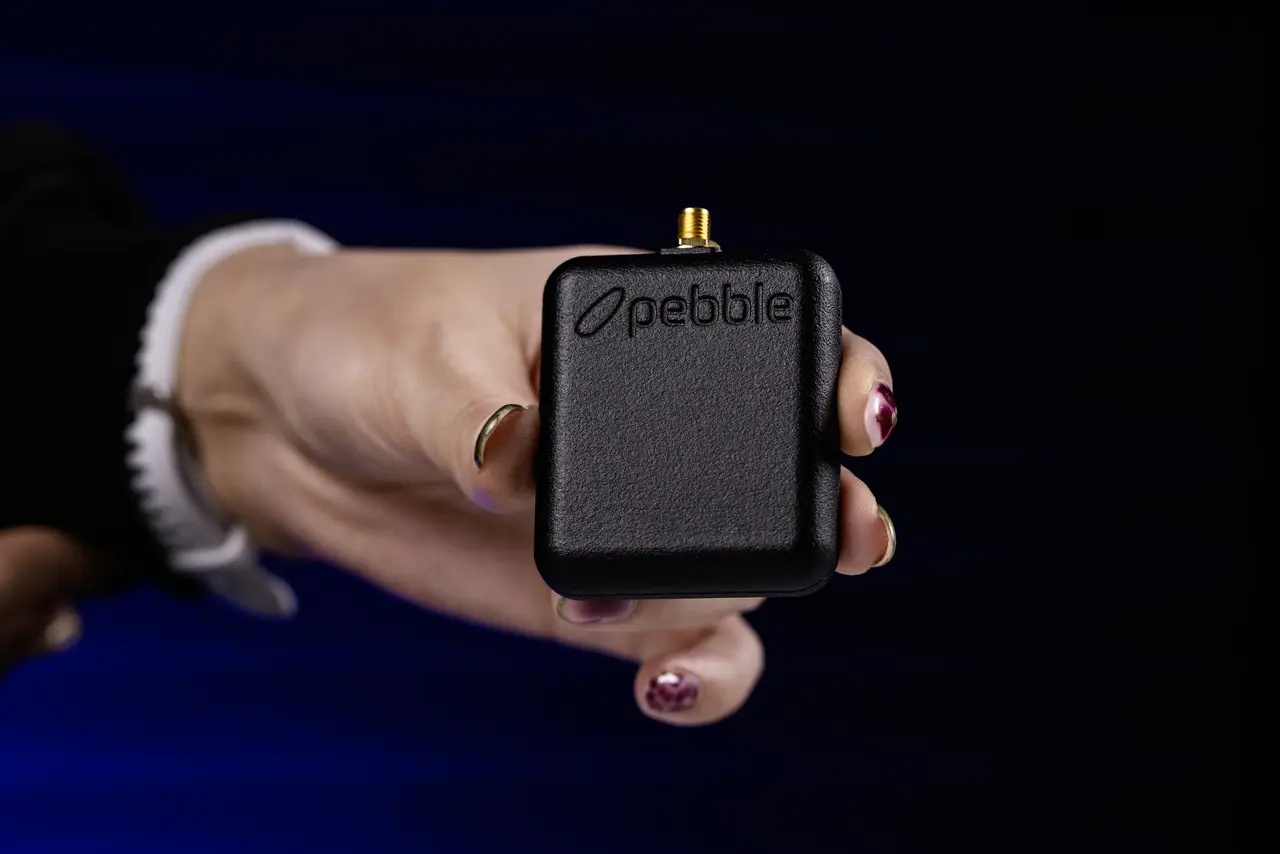

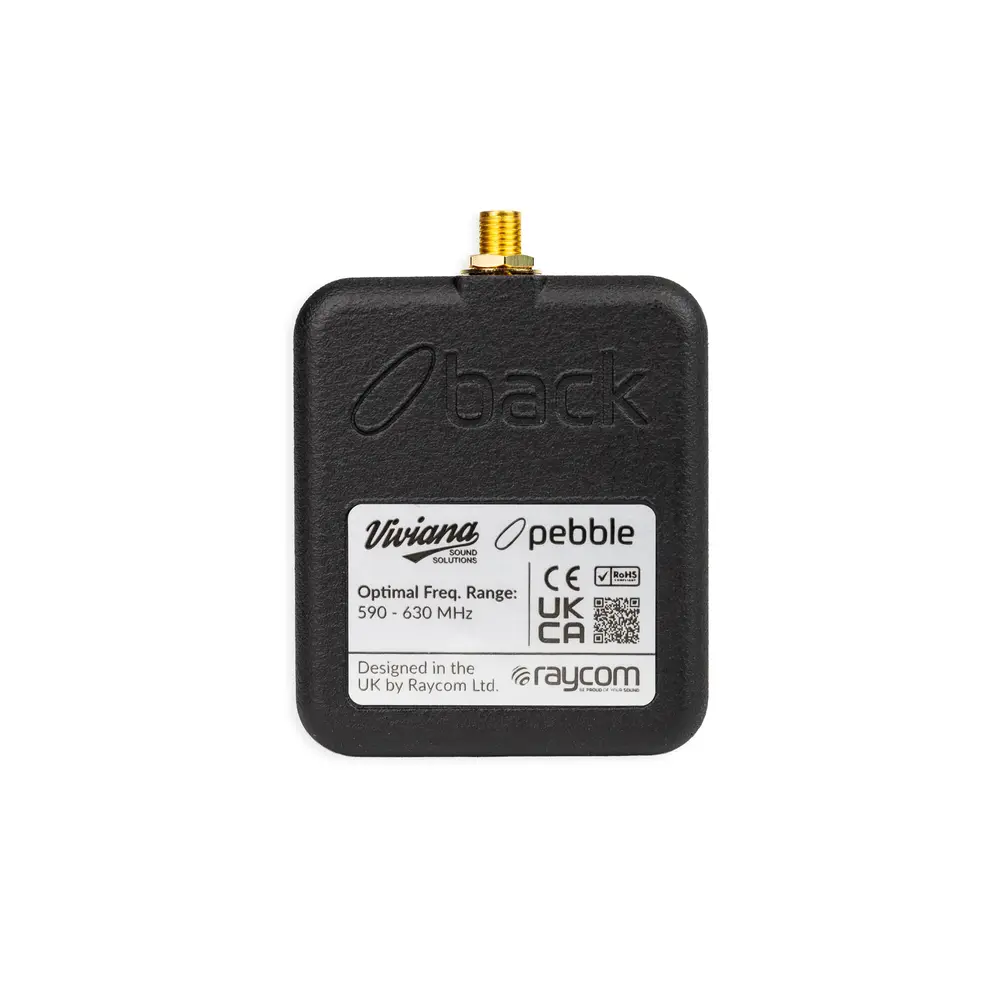

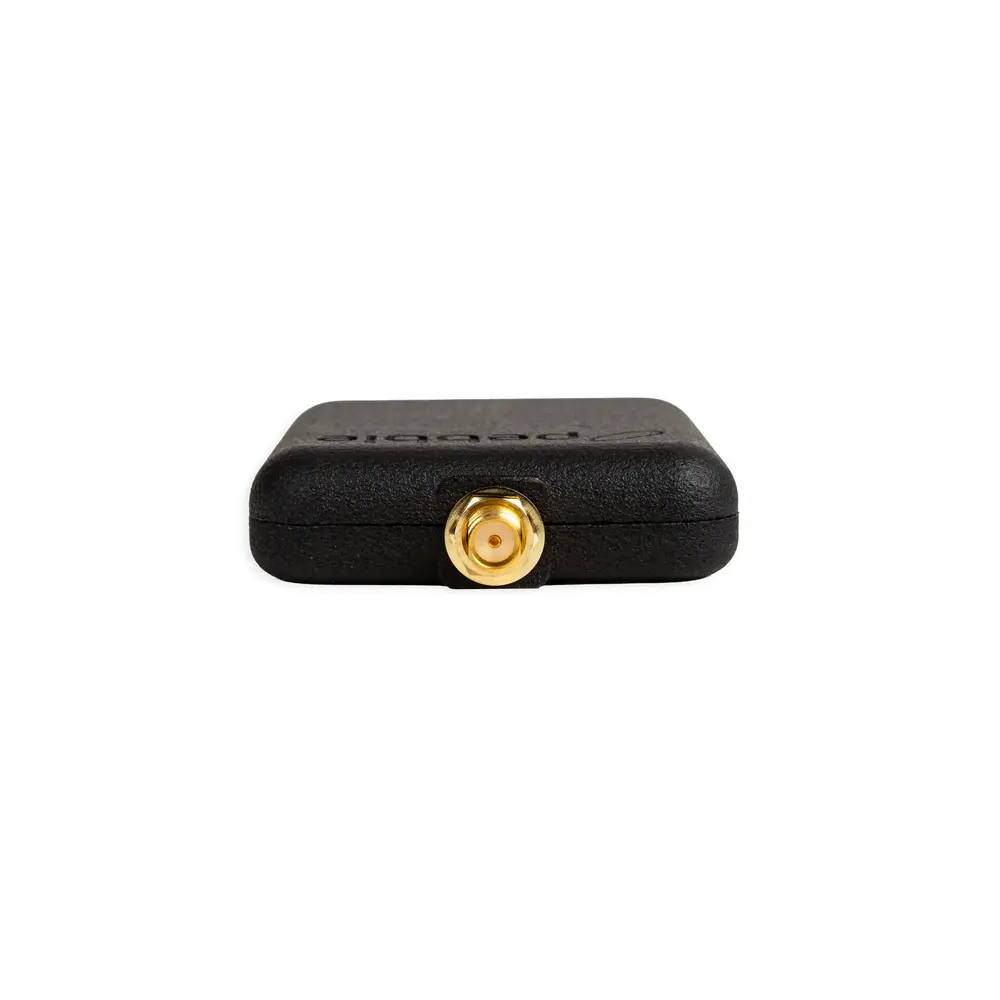

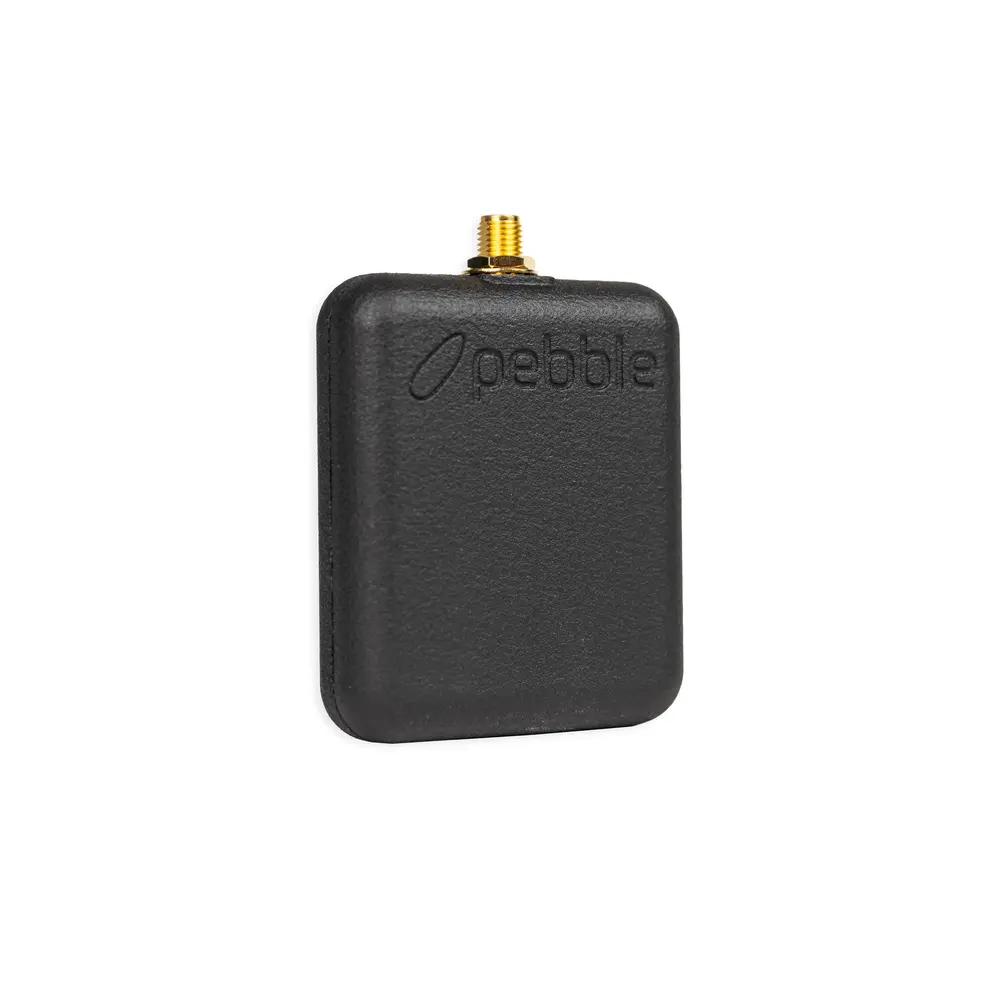

Viviana Pebble Body Wave Antenna [VSSPEBBLE01]

The Viviana Pebble is a compact body-worn antenna designed to reduce the impact of the human body on RF transmission. With traditional whip antennas, a significant portion of RF energy is absorbed by the body when the transmitter is worn close to it, resulting in reduced range and inconsistent signal performance.

The Pebble combines an integrated ground plane with patented BodyWave technology to direct RF energy away from the body and allow it to propagate around it rather than into it. This improves radiation efficiency and reduces signal loss caused by body absorption.

In practical use, particularly when the transmitter is on the opposite side of the body from the receiver, this results in a more stable signal and increased usable range. Independent measurements show a clear gain advantage in directions where the body would normally attenuate the signal.

Main Features

• Body-worn antenna for wireless transmitters
• Patented BodyWave technology
• Integrated ground plane directing RF energy away from the body
• Reduces signal absorption by the body
• More consistent signal when worn under clothing
• Improved propagation around the body
• Compact and rugged enclosure

Where it performs best

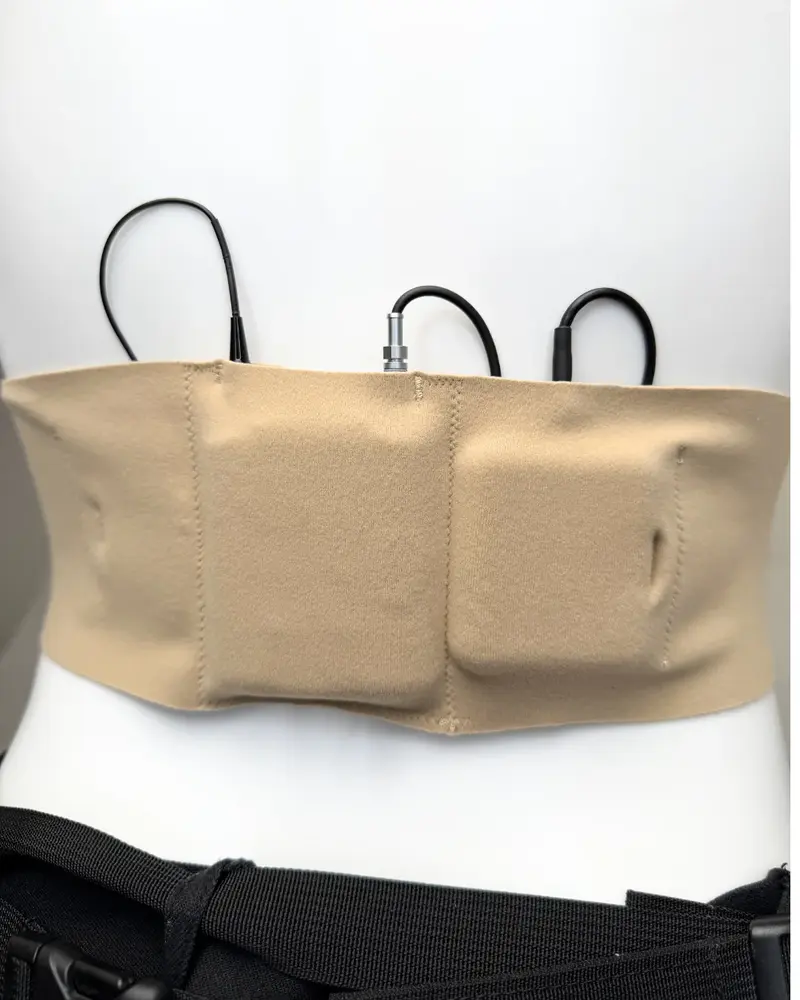

• When transmitters are worn close to the body
• When the body blocks line-of-sight to the receiver
• During movement or rotation of talent
• Outdoor or large spaces with limited reflections

Where the difference may be smaller

• When the antenna is not close to the body
• In RF environments with strong reflections

Specifications

• Brand: Viviana
• Model: Pebble Body Wave Antenna
• Frequency range: 590–630 MHz
• Impedance: 50 Ohm
• Application: body-worn wireless transmitters

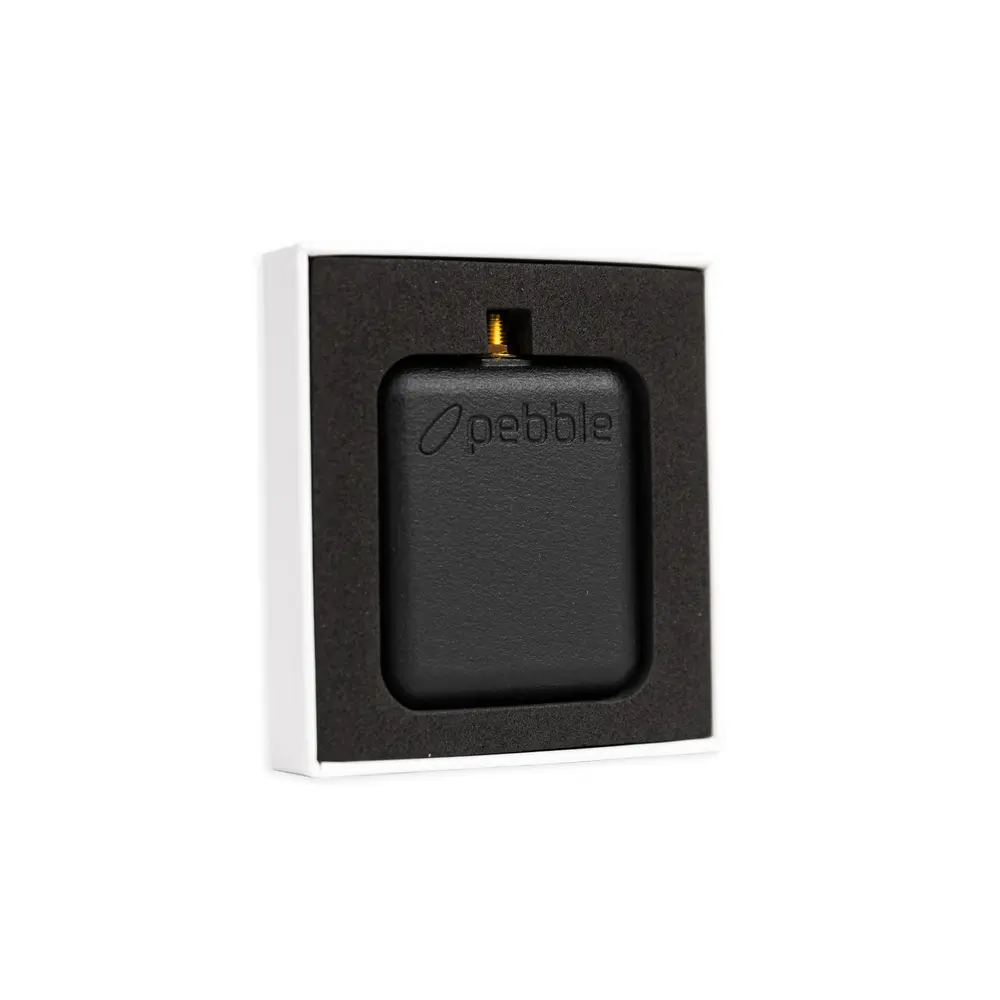

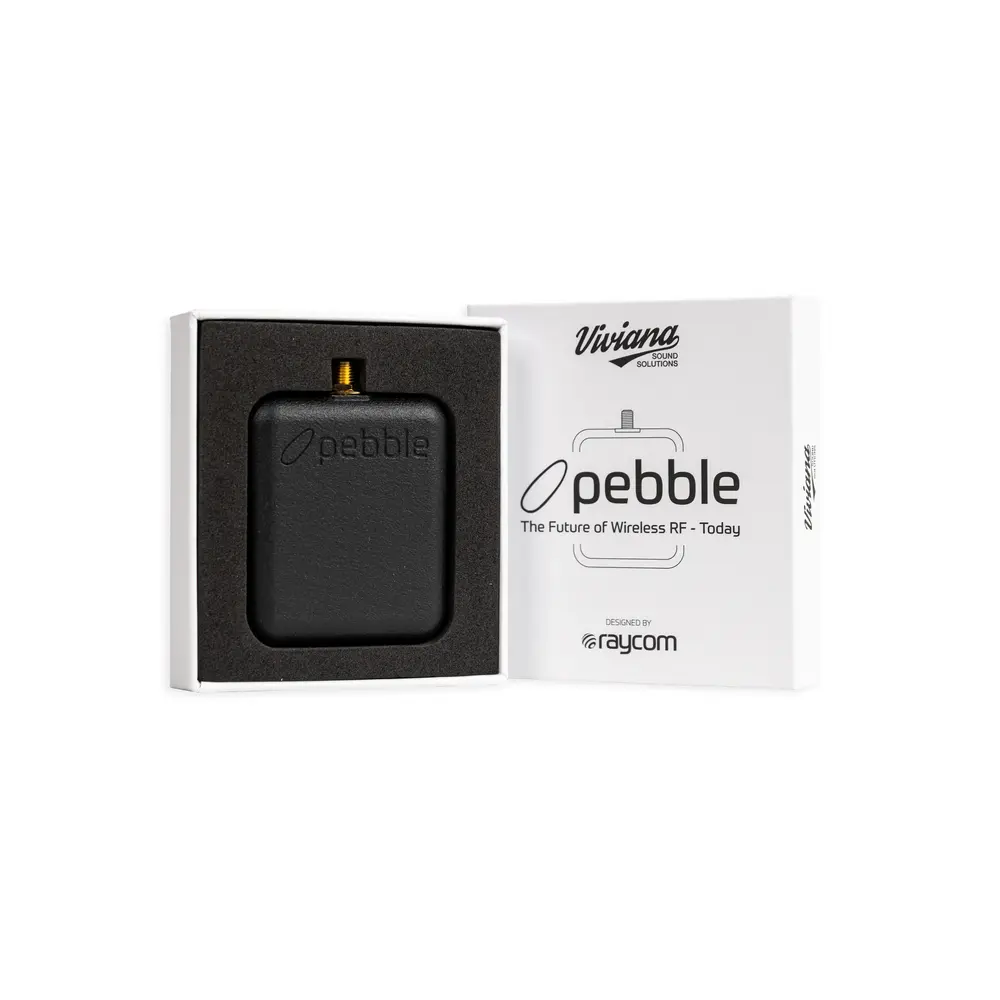

Included

• Pebble antenna ×1
