AudioRoot eHRS4-OUT-4W

AudioRoot eHRS4-OUT-4W

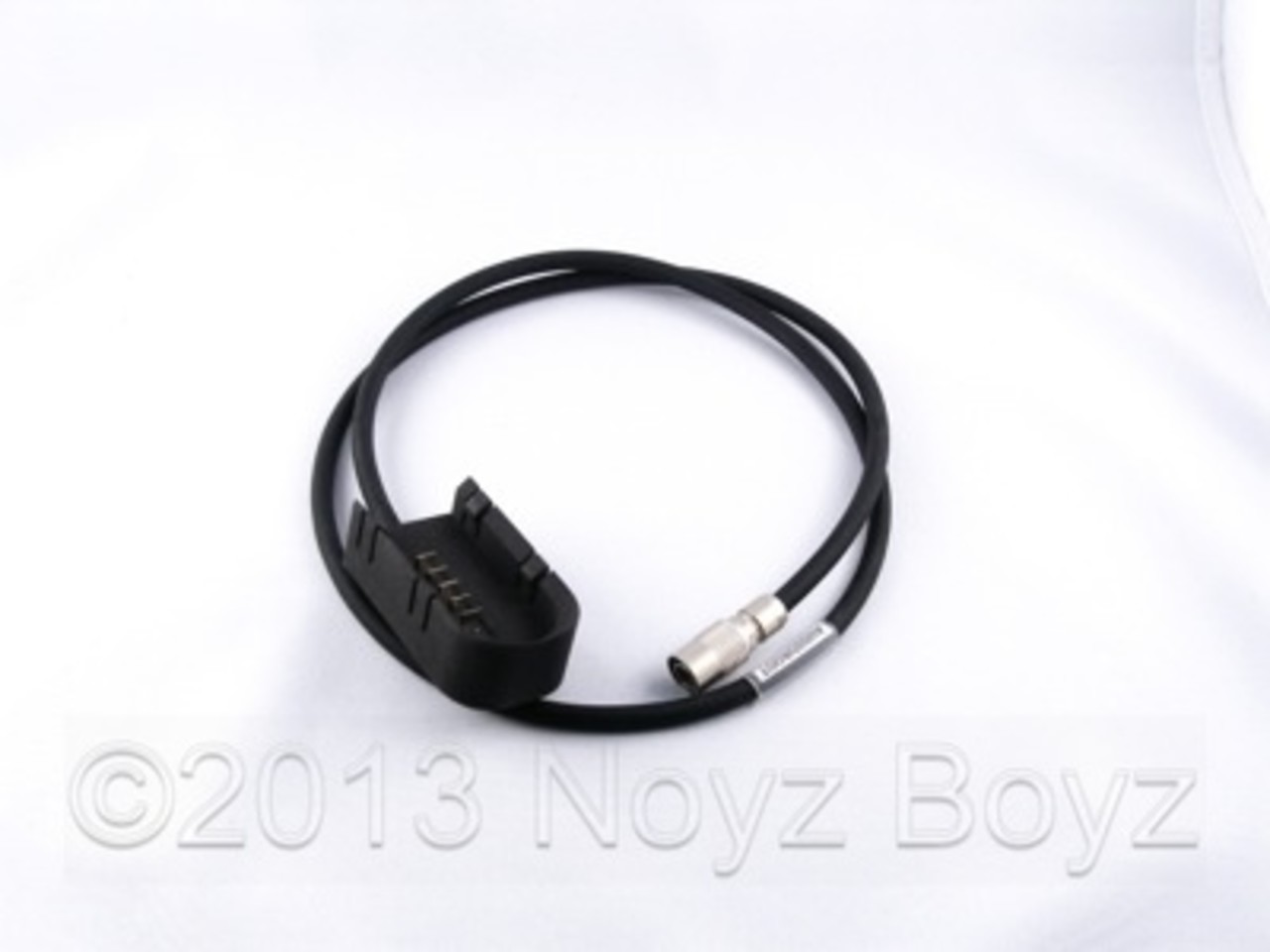

The AudioRoot eHRS4-OUT-4W is a battery cable with an AudioRoot battery connection and a Hirose 4-pin connector. This four-conductor version carries both power and battery telemetry to a suitable distributor.

This allows connected equipment to read information from the smart battery. Telemetry requires a connection that supports this communication.

Main Features

• Direct connection to an AudioRoot eSMART battery.
• Hirose 4-pin output.
• Four-conductor version for power and battery data.

Specifications

• Standard length: 60 cm.
• Cable outside diameter: 5.5 mm.
• Conductors: 2 × 18 AWG and 2 × 24 AWG.
• Other lengths available on request.

Included

• 1 × AudioRoot eHRS4-OUT-4W battery cable.

Compatibility and Other Versions

For connecting an eSMART battery to the eSMART BG-DU. Suitable batteries include the Li-49Wh and Li-98Wh.

For two batteries and hotswapping, choose the eHRS4-HSW-4W. Other output connections are available as the eXLR4-OUT-4W and eTA4F-OUT-4W.
