AudioRoot eLC-SMB

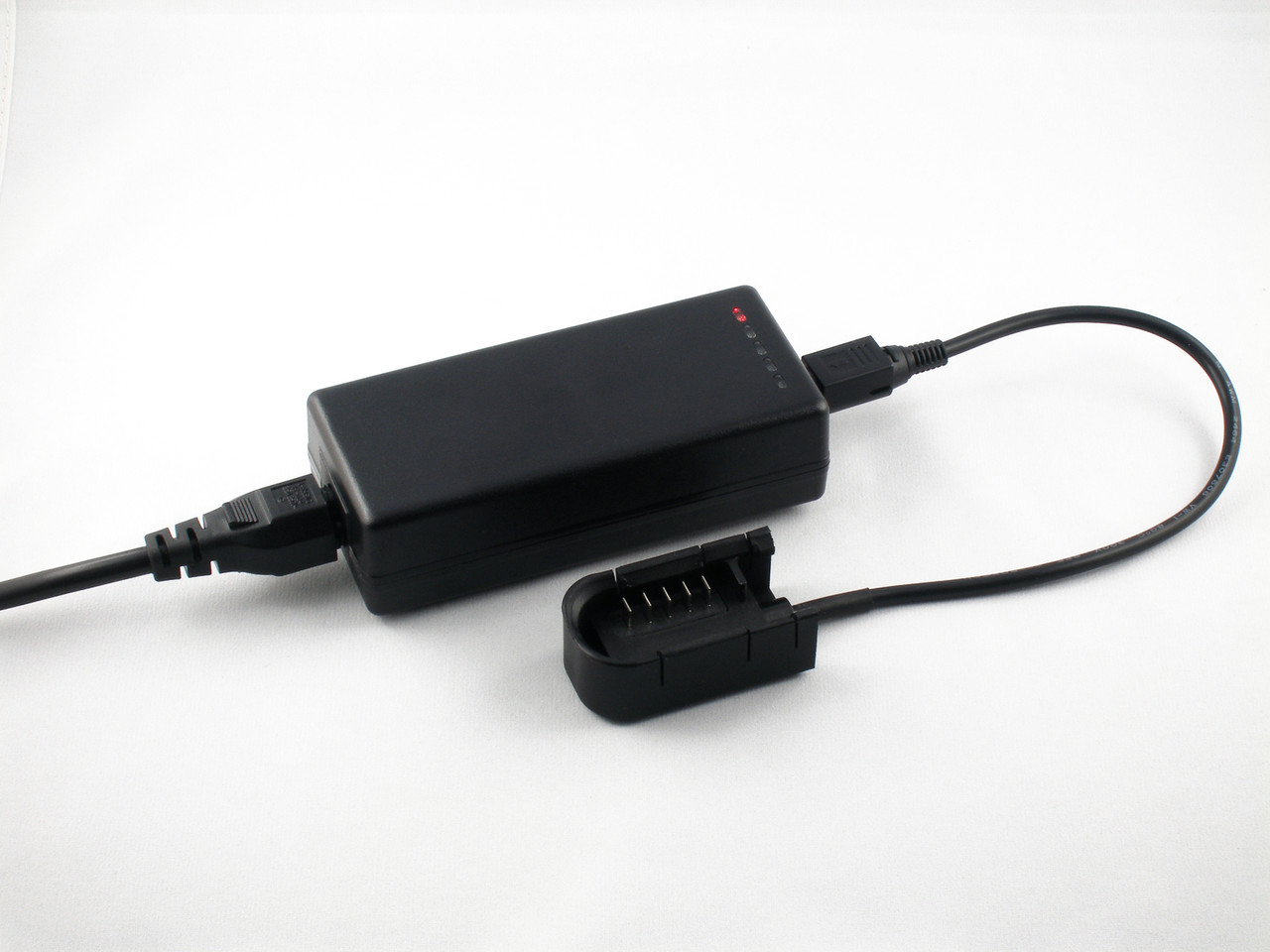

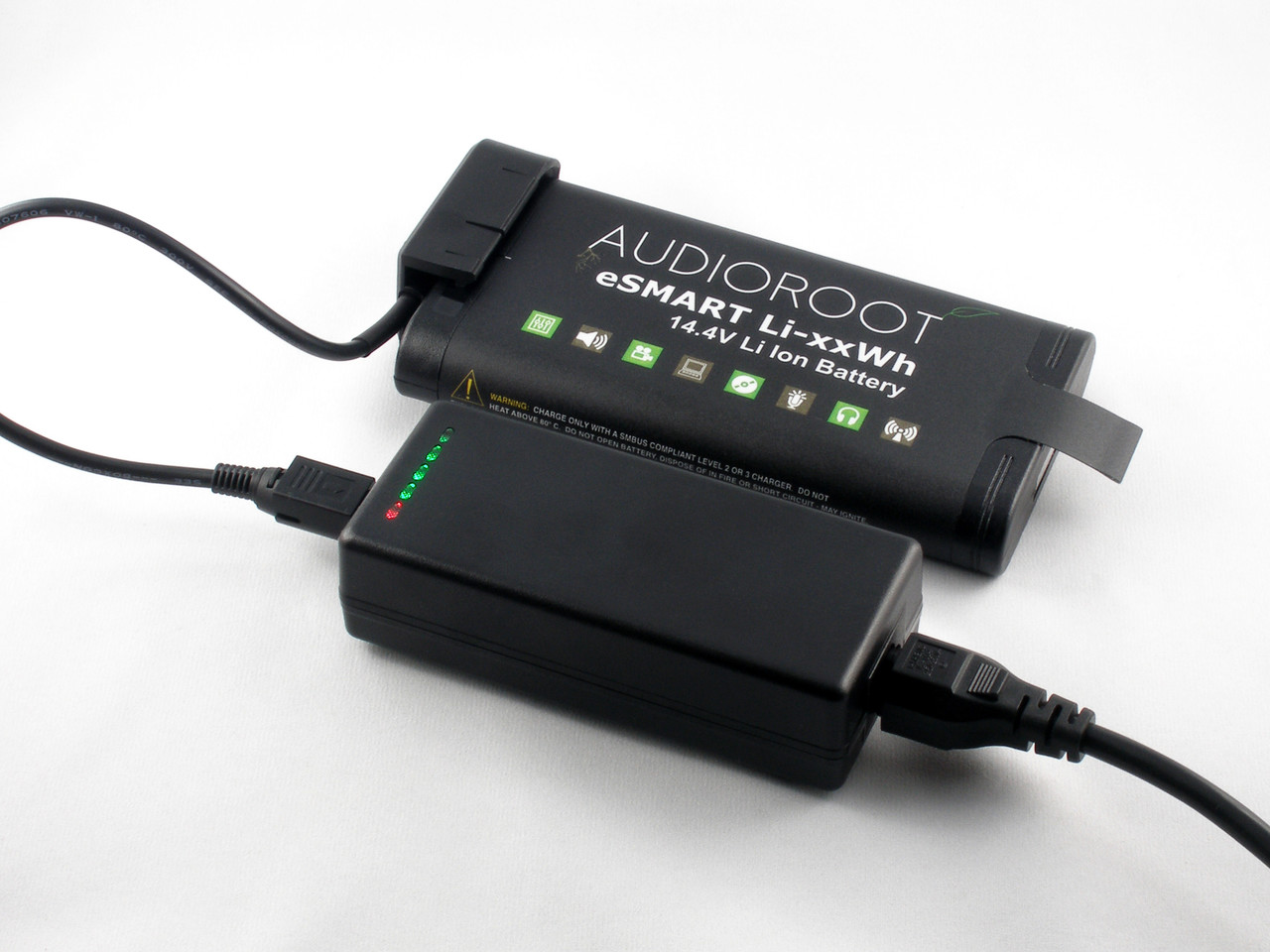

The AudioRoot eLC-SMB is a portable mains-powered smart charger for the eSMART Li-Wh and Li-neo battery ranges. SMBus communication lets the connected battery request the appropriate charging voltage and current.

A five-segment LED indicator shows charging progress. The charger monitors current, voltage and temperature throughout charging, while its wake-up function helps reactivate a fully depleted battery for charging.

Main Features

• Charges one eSMART lithium-ion battery.
• SMBus 1.1 communication between battery and charger.
• Maximum charging current of 2.5 A.
• Five-segment LED charging indicator.
• Compact format for carrying in a bag or backpack.

Specifications

• AC input: 100–240 V.
• Maximum output power: 40 W.
• Standby consumption: less than 1 W.
• Dimensions: 128 × 51.5 × 33 mm.
• Weight: 200 g.

Included

• AudioRoot eLC-SMB smart battery charger.

Batteries are available separately.

Compatibility and Other Chargers

Compatible with the eSMART Li-48neo, eSMART Li-49Wh, eSMART Li-96neo and eSMART Li-98Wh.
