AudioRoot eSMART BH1-T

AudioRoot eSMART BH1-T

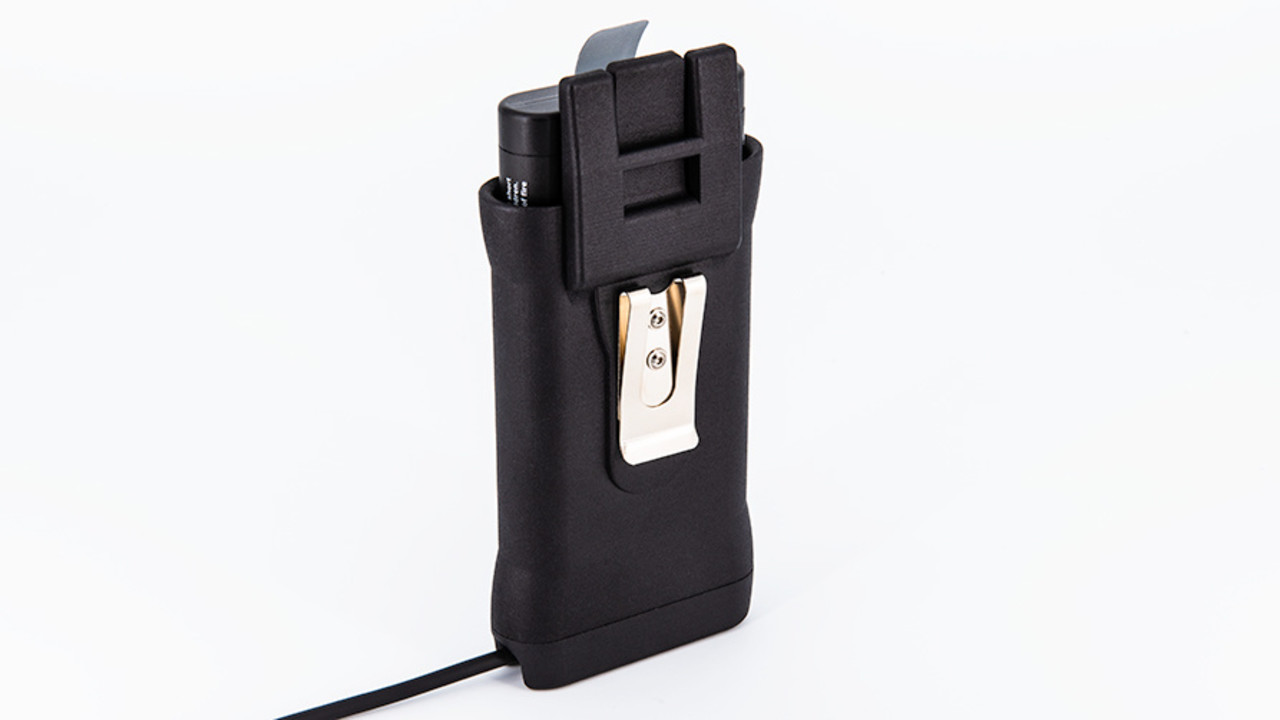

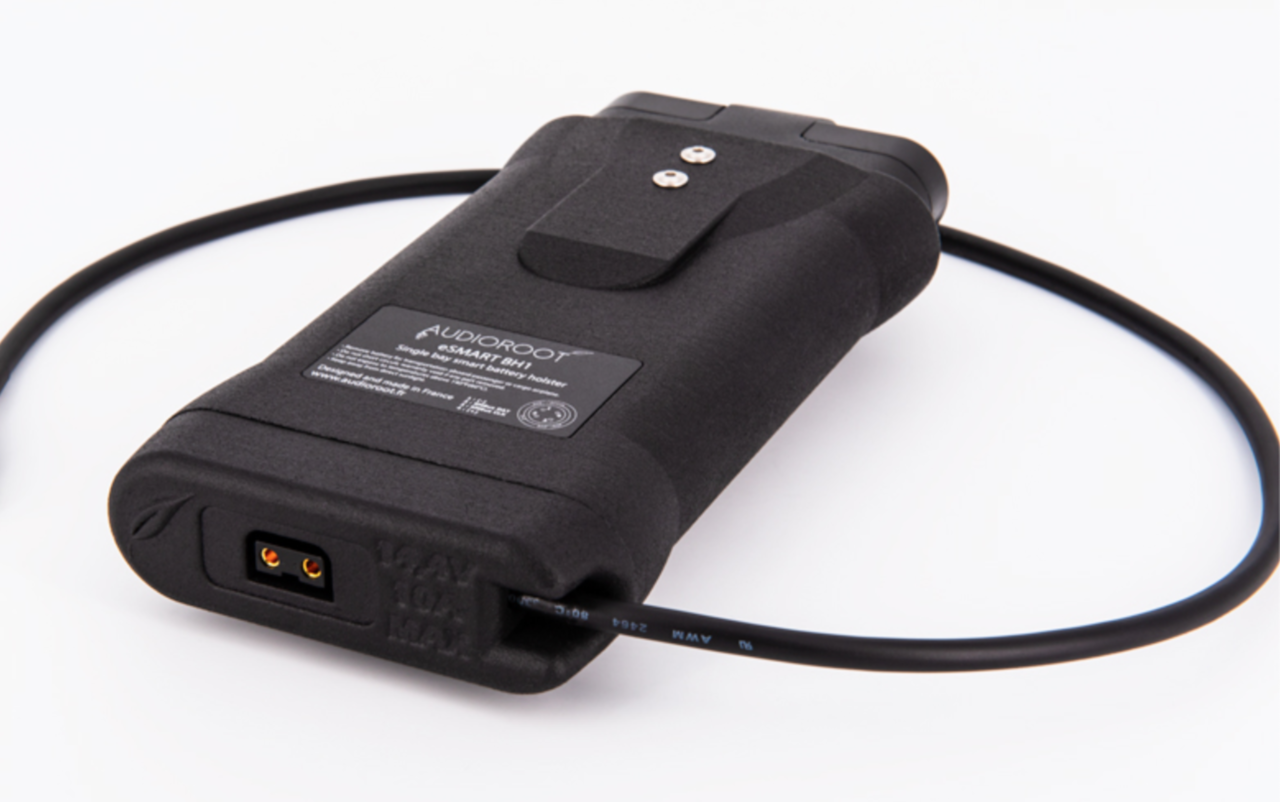

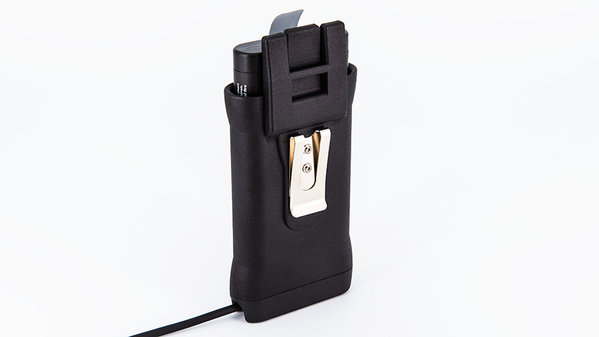

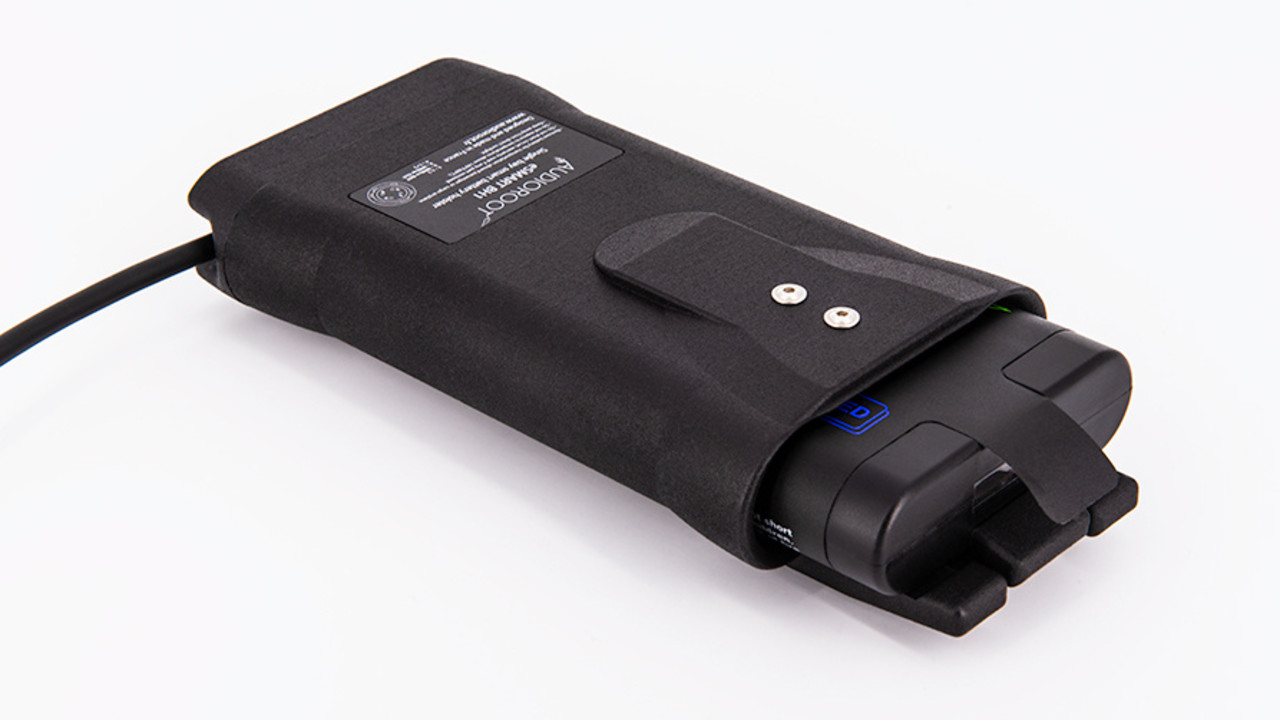

The AudioRoot eSMART BH1-T is a single battery holder for the long eSMART Li-96neo and Li-98Wh batteries. This version has a four-conductor cable with a Switchcraft TA4F connector for power and SMBus telemetry, plus a D-TAP output.

A spring lock secures the battery and allows one-handed removal. The included belt clip provides attachment to a belt or suitable mounting point and can be installed on either side.

Main Features

• Single battery holder with spring locking.
• Four-conductor TA4F cable for power and battery information.
• Separate D-TAP output.
• Belt clip with mounting positions on both sides.

Specifications

• Battery format: long 4S2P eSMART batteries.
• Cable output: Switchcraft TA4F, 4-pin female.
• Cable: four conductors, 60 cm.
• Additional output: D-TAP.

Compatibility

For the eSMART Li-96neo and eSMART Li-98Wh. Telemetry requires a compatible SMBus input on the connected equipment.

Alternative Versions

Choose the BH1-H for 4-pin Hirose or the BH1-X for XLR4F.

Included

• 1 × eSMART BH1-T battery holder with power cable.
• Belt clip.

Battery not included.
