AudioRoot eSMART BH1-H

AudioRoot eSMART BH1-H

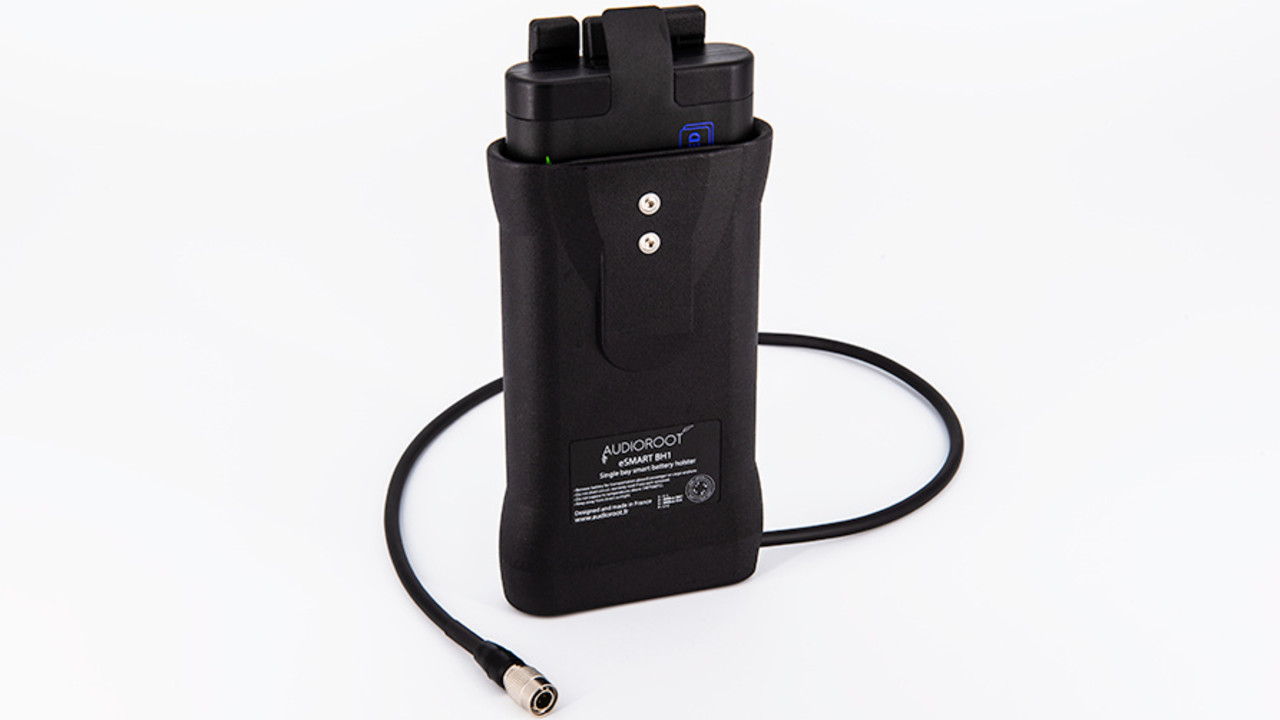

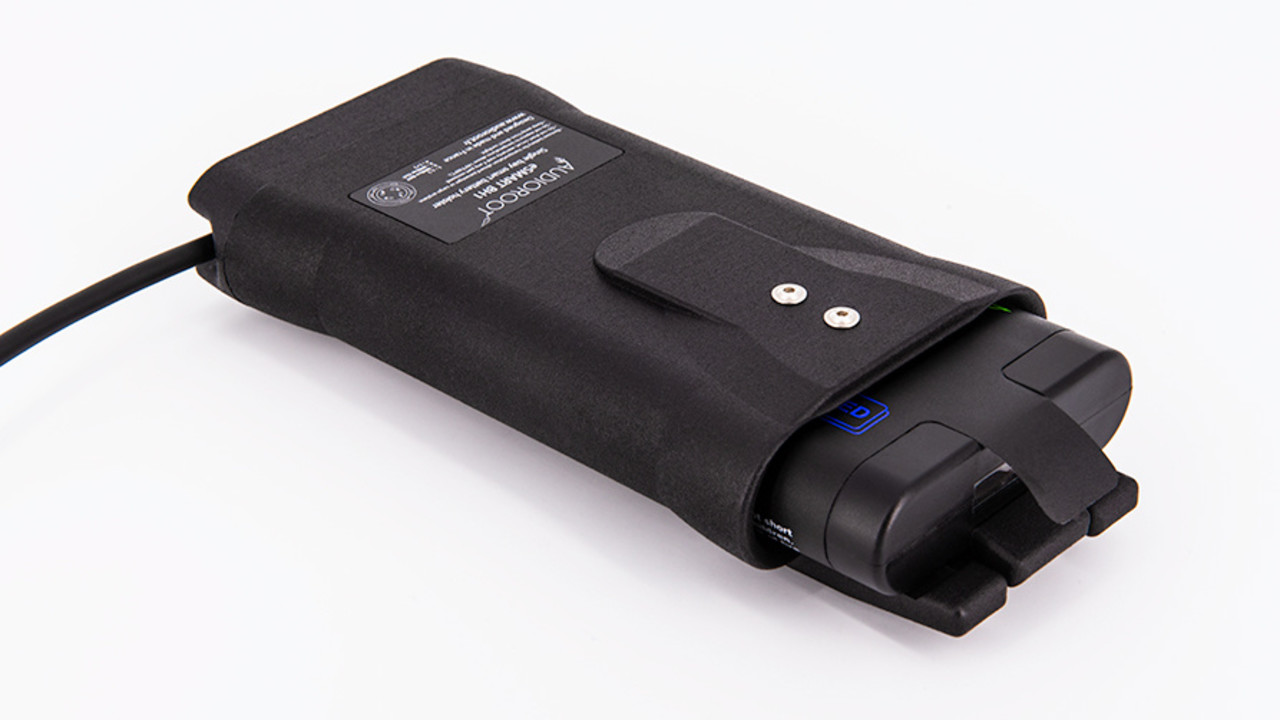

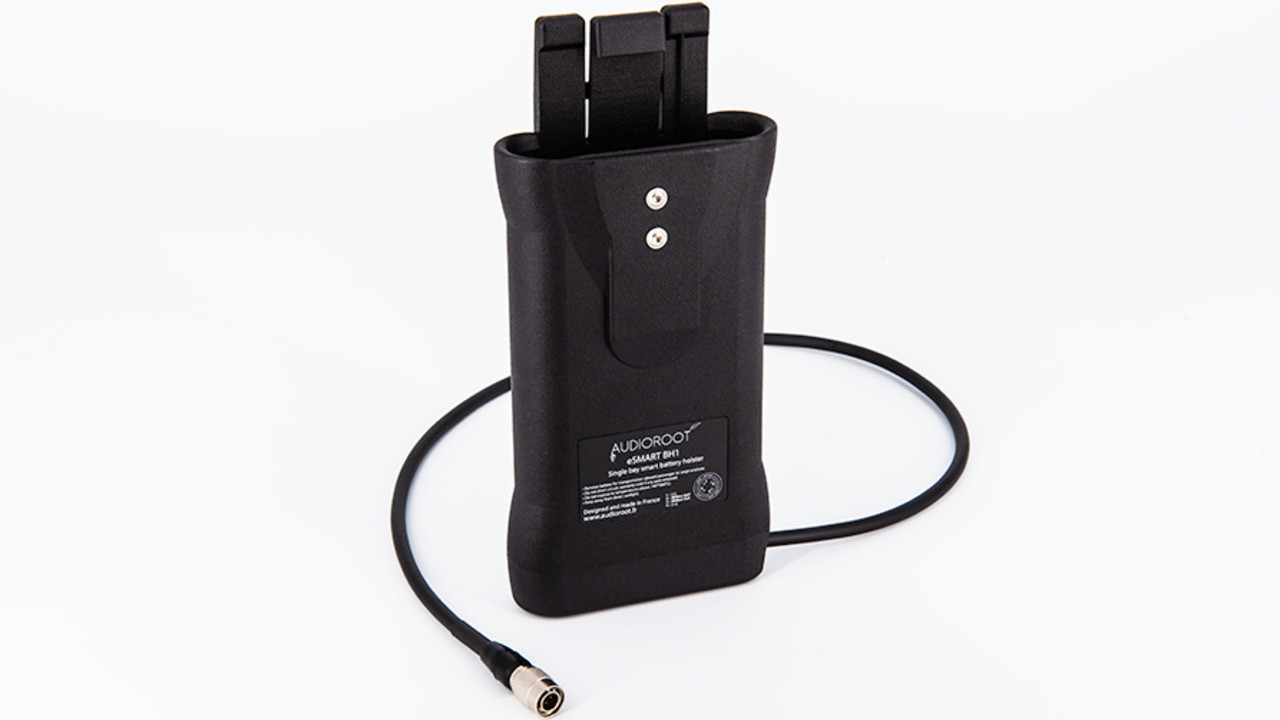

The AudioRoot eSMART BH1-H is a single battery holder for the long eSMART Li-96neo and Li-98Wh batteries. It combines spring locking with a four-conductor Hirose power cable and a separate D-TAP output.

The four-conductor cable carries both power and SMBus battery information to compatible equipment. The included belt clip can be mounted on either side of the holder.

Main Features

• One spring-locking battery position with one-handed removal.
• 4-pin Hirose cable for power and SMBus telemetry.

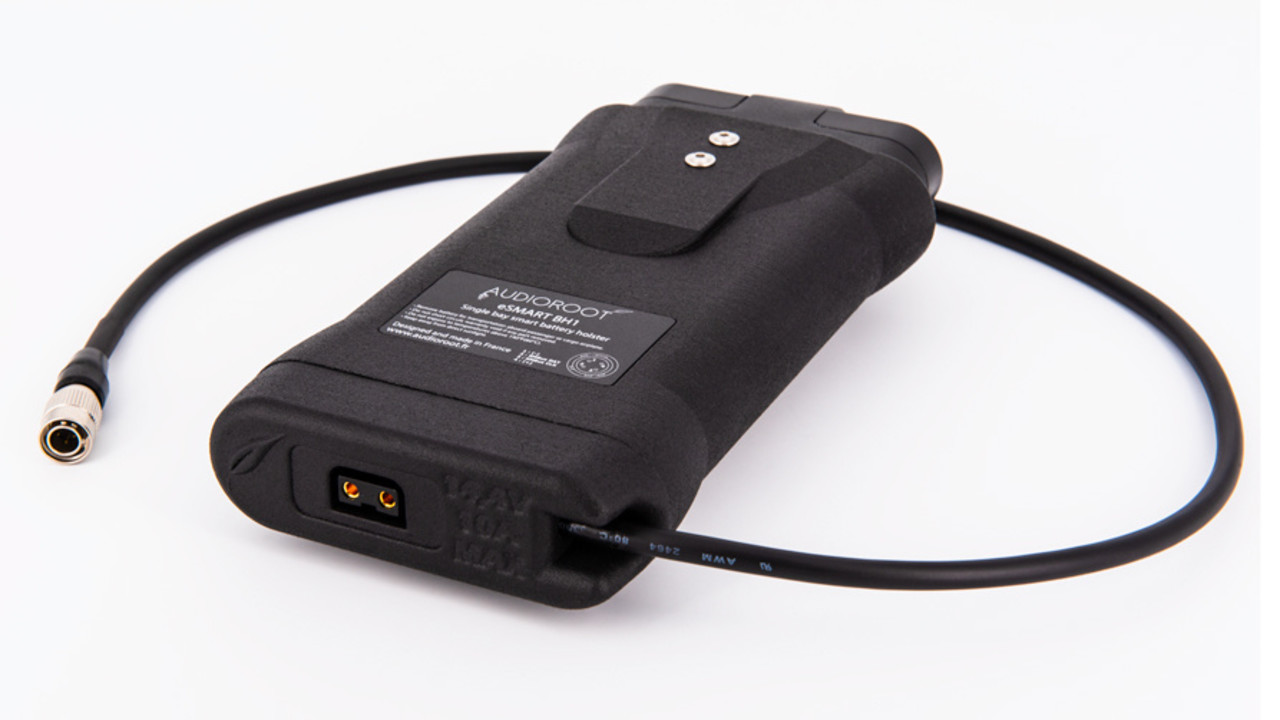

• D-TAP output for an additional power connection.

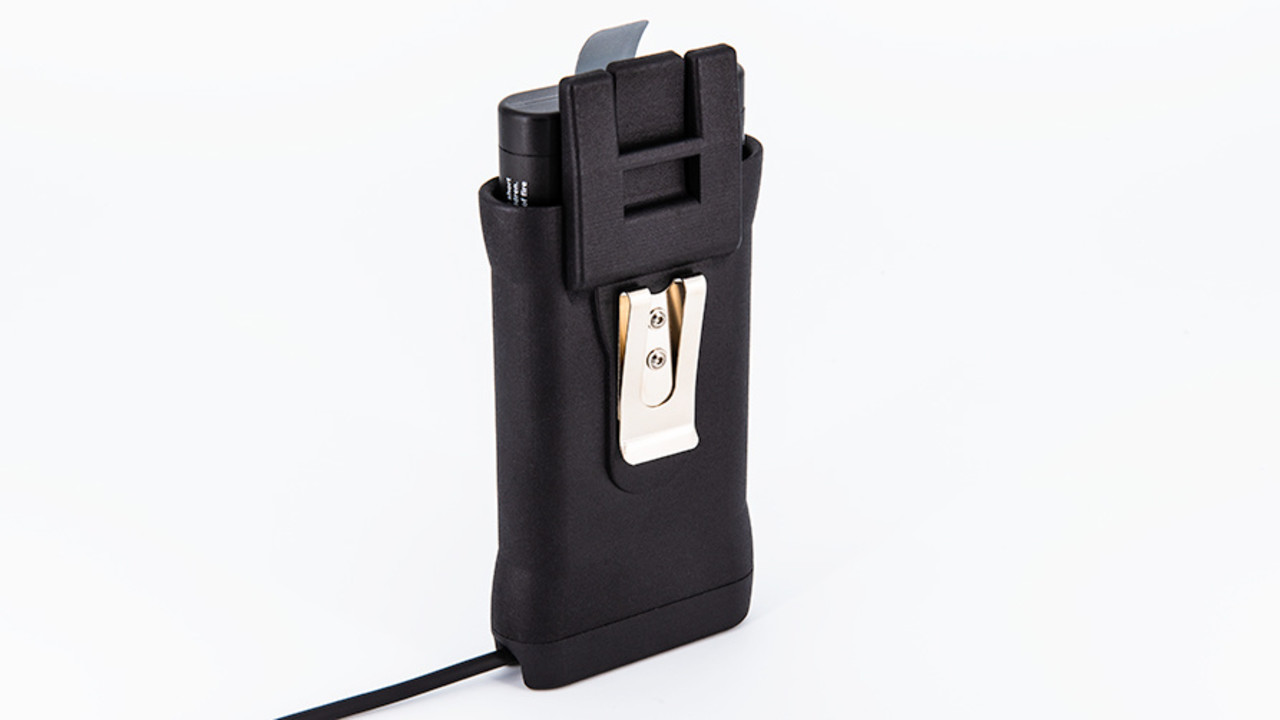

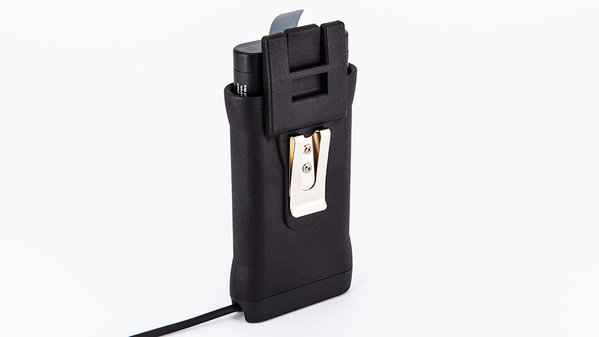

• Belt clip with mounting positions on both sides.

Specifications

• Battery format: long 4S2P eSMART batteries.
• Cable output: 4-pin Hirose.
• Cable: four conductors, 60 cm.
• Additional output: D-TAP.

Compatibility

For the eSMART Li-96neo and eSMART Li-98Wh. The shorter Li-48neo and Li-49Wh are outside the supported holder format.

Alternative Versions

The BH1-T has a TA4F output. The BH1-X has an XLR4F output.

Included

• 1 × eSMART BH1-H battery holder with power cable.
• Belt clip.

Battery not included.
