AudioRoot eSMART LiFe-256Wh

AudioRoot eSMART LiFe-256Wh

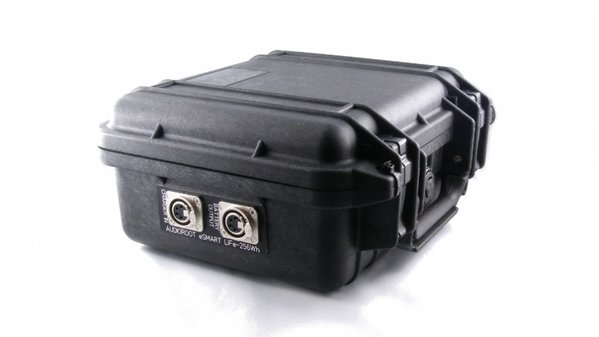

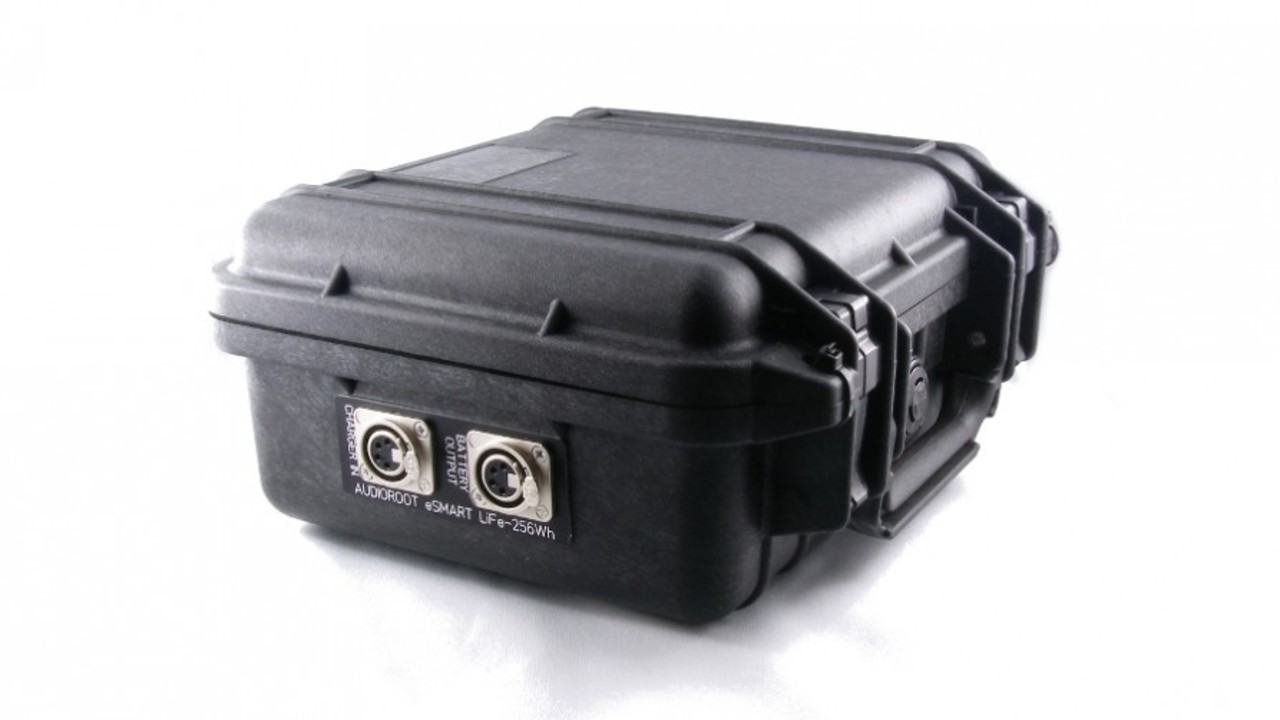

The AudioRoot eSMART LiFe-256Wh is a lithium iron phosphate battery with an energy capacity of 256 Wh and a nominal voltage of 12.8 V. It is housed in a Peli 1200 case with two integrated XLR4 connections for power and charging.

The integrated eSMART electronics communicate with compatible AudioRoot power distributors, allowing battery status to be monitored on the distributor during use. Weighing 3.8 kg, the LiFe-256Wh is the smaller of the two case-mounted batteries in the comparison below.

Main Features

• LiFePO4 battery with 256 Wh energy capacity.
• Nominal voltage of 12.8 V.
• Peli 1200 case with two integrated XLR4 connections.
• eSMART telemetry for compatible power distributors.
• Maximum total output of 20 A; maximum 10 A per XLR4 connection.
• Integrated battery management with cell balancing and electrical protection.

Battery Management and Telemetry

The Battery Management System records information including pack voltage, current draw, temperature, cycle count and identification data. This information is transmitted to a compatible eSMART power distributor.

The system provides protection against overcharge, over-discharge, overcurrent, short circuits and overheating. Internal cell balancing is also included.

Specifications

• Battery chemistry: lithium iron phosphate, LiFePO4.
• Energy capacity: 256 Wh.
• Nominal voltage: 12.8 V.
• Maximum voltage: 14.8 V.
• Cut-off voltage: 10 V.
• Maximum total output current: 20 A.
• Maximum output current per XLR4 connection: 10 A.
• Case: Peli 1200.
• Weight: 3.8 kg.
• Dimensions: 270 × 246 × 123 mm.

The manufacturer specifies a cycle life of up to 1200 cycles at 85% remaining capacity.

Included

• AudioRoot eSMART LiFe-256Wh LiFePO4 battery, installed in a Peli 1200 case with two integrated XLR4 connections.

Compatibility and Charging

AudioRoot confirms compatibility with eSMART BG-DU, BG-DU-REG, DUO, TRIO and K-ART power distributors. Compatible eSMART equipment can retrieve the battery information. When connecting other equipment, check its supported voltage range and the current drawn through each connection.

Compatible charging options are the AudioRoot eLC-PO4 with a charging current of 4 A and the eLC-PO10-S with a charging current of 10 A. Both are fanless LiFePO4 chargers with an XLR4M connection. The eLC-PO10-S provides a higher charging current for faster charging.

Comparison with Other AudioRoot Batteries

The LiFe-256Wh provides 256 Wh energy capacity in a Peli 1200 case. The LiFe-640Wh has the same nominal voltage of 12.8 V but offers greater energy capacity in a larger Peli iM2075 Storm Case. The four smaller lithium-ion models have a nominal voltage of 14.4 V; the neo versions also feature an integrated OLED display.

The case-mounted LiFe batteries use different connections and charging equipment from the smaller lithium-ion models. Also check your power system’s supported voltage range and permitted output current.
